Toyota YARIS FREE TRONIC系统 — Figure 3106

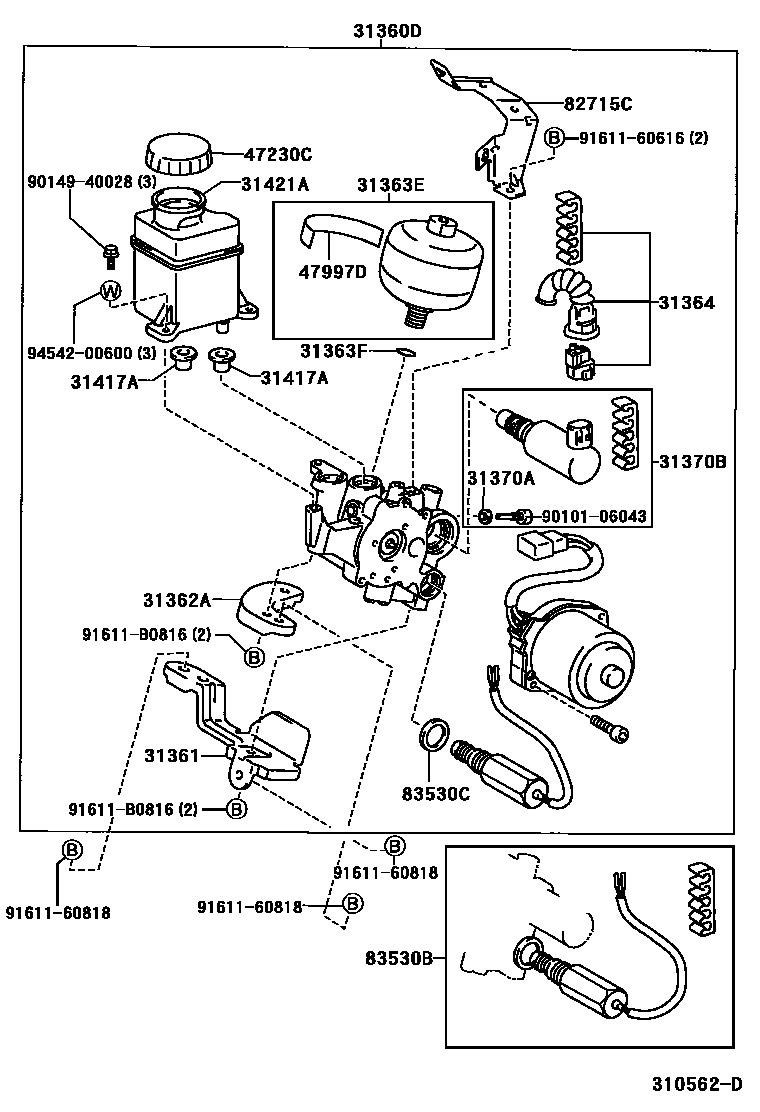

Toyota YARIS EPC diagram 3106, FREE TRONIC系统, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31360D | Clutch actuator assembly | 31360-52010 · 31360-52011 · 31360-52012 · 31360-52013 |
| 31361 | No. 1 clutch actuator bracket | 31361-52010 · 31361-52011 |
| 31362A | No. 2 clutch actuator bracket | 31362-52010 · 31362-52011 |
| 31363E | clutch actuator pressure accumulator | 31363-52010 |
| 31363F | O-ring (for clutch actuator pressure accumulator) | 90301-13014 |
| 31364 | Clutch control solenoid valve wiring harness | 31364-59015 |
| 31370A | Pad (for clutch travel control solenoid valve) | 90430-06104 |
| 31370B | Clutch stroke control solenoid valve assembly | 31370-59015 |
| 31417A | Clutch actuator fluid reservoir retaining ring | 31417-35010 |
| 31421A | Clutch actuator fluid reservoir | 31421-52010 · 31421-52011 |
| 47230C | Reservoir tank filler cap assembly (for clutch actuator) | 47230-24010 · 47230-52010 |
| 47997D | Accumulator warning label | 47997-52010 |
| 82715C | Wire harness clamp bracket | 82715-52290 |
| 83530B | Oil pressure switch assembly (for clutch actuator pump) | 83530-59015 |
| 83530C | Pad (for clutch actuator) | 90430-22010 |
