Toyota YARIS 离合器分离缸 — Figure 3105

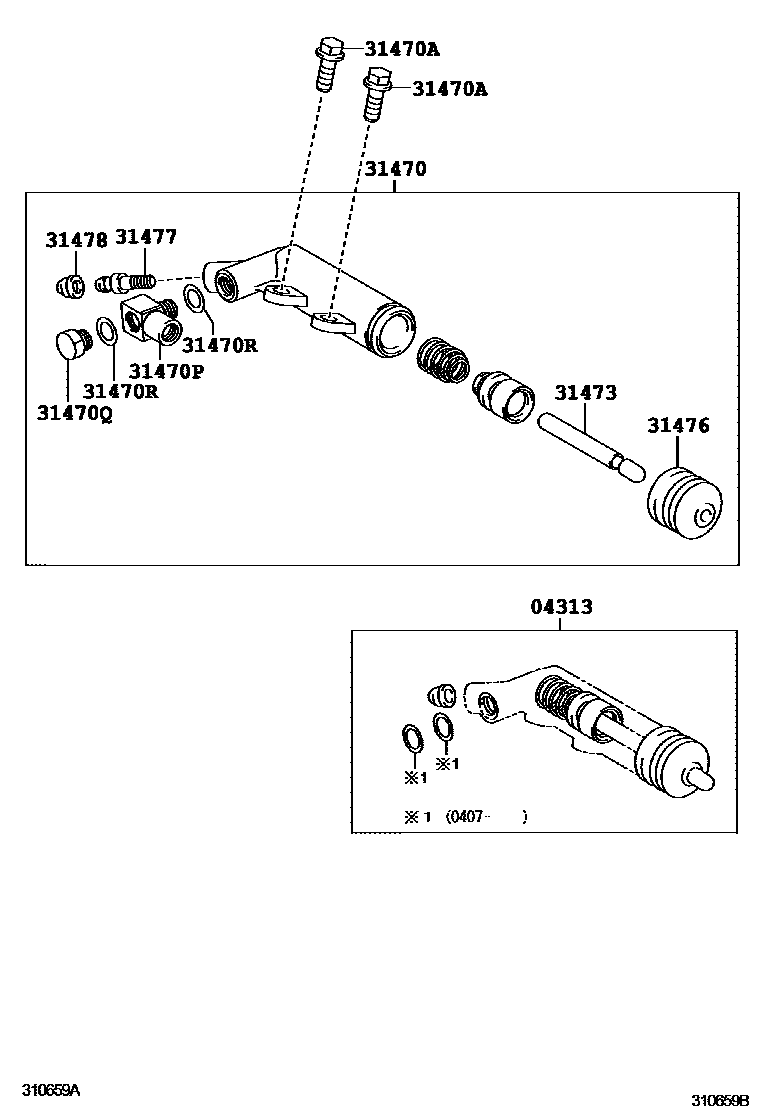

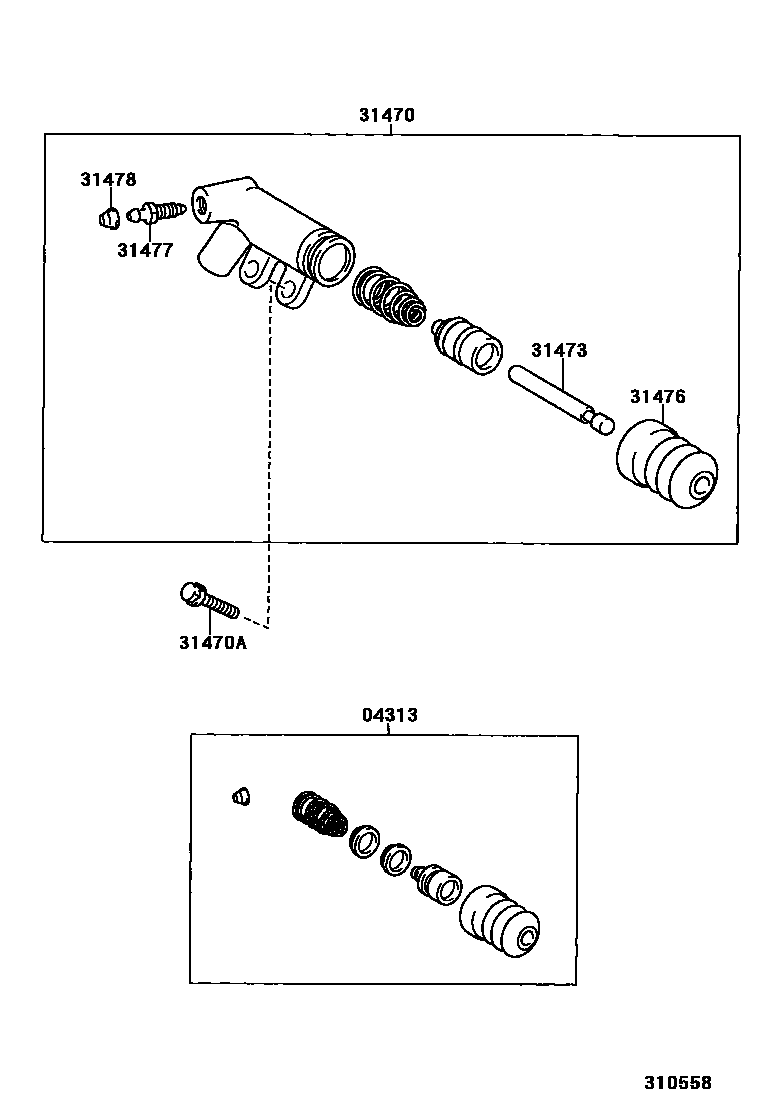

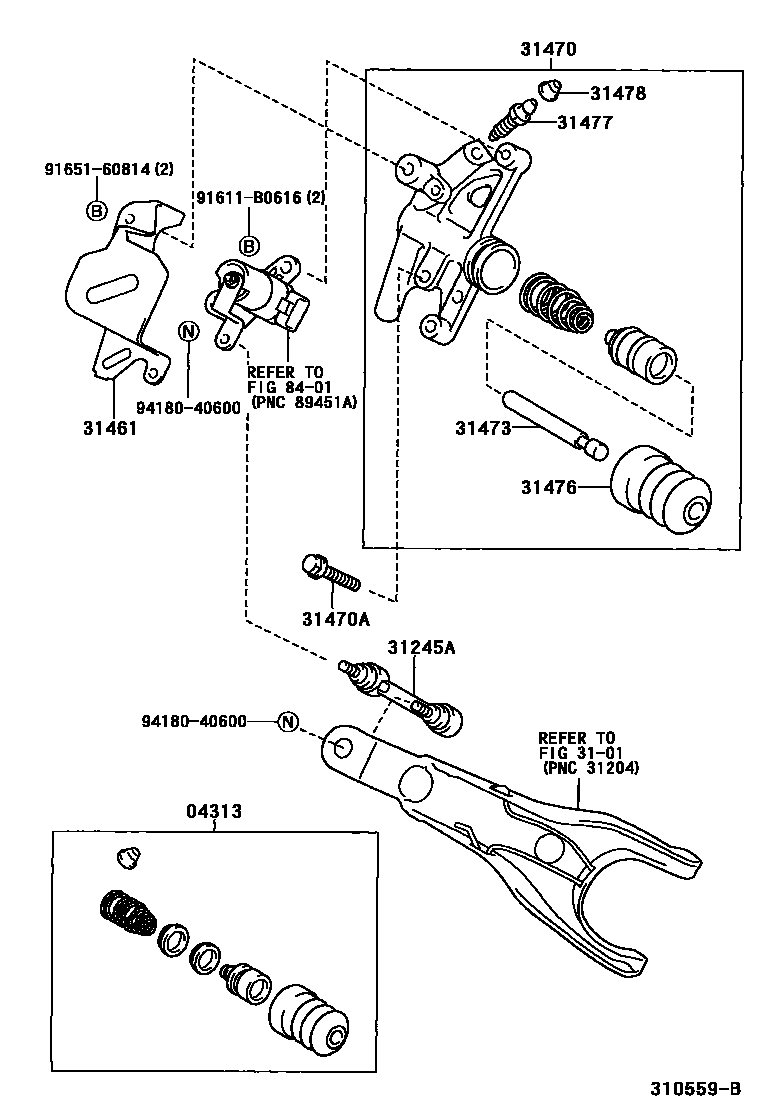

Toyota YARIS EPC diagram 3105, 离合器分离缸, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04313 | Clutch release cylinder assembly | 04313-12060 · 04313-17010 · 04313-18020 · 04313-22030 · 04313-35060 · 04313-52010 · 04313-52020 |
| 31245A | Clutch release fork push rod | 31245-52010 |
| 31461 | Separation cylinder insulation pad | 31461-52020 |
| 31470 | Clutch release cylinder assembly | 31470-52010 · 31470-52011 · 31470-52020 · 31470-52040 · 31470-52050 · 31470-52061 |
| 31470A | Bolt (for securing clutch release cylinder) | 91611-60822 |
| 31470P | Connector (for clutch release cylinder) | 90405-10073 |
| 31470Q | Joint bolt (for clutch release cylinder) | 90401-10056 |
| 31470R | Gasket (for clutch release cylinder) | 90029-43002 · 90430-10074 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-20031 · 31473-32010 · 31473-35050 · 31473-52020 |
| 31476 | Clutch release cylinder dust boot | 31476-22010 |
| 31477 | Bleed plug (for separation cylinder) | 47547-20010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
