Toyota YARIS 燃油喷射系统 — Figure 2211

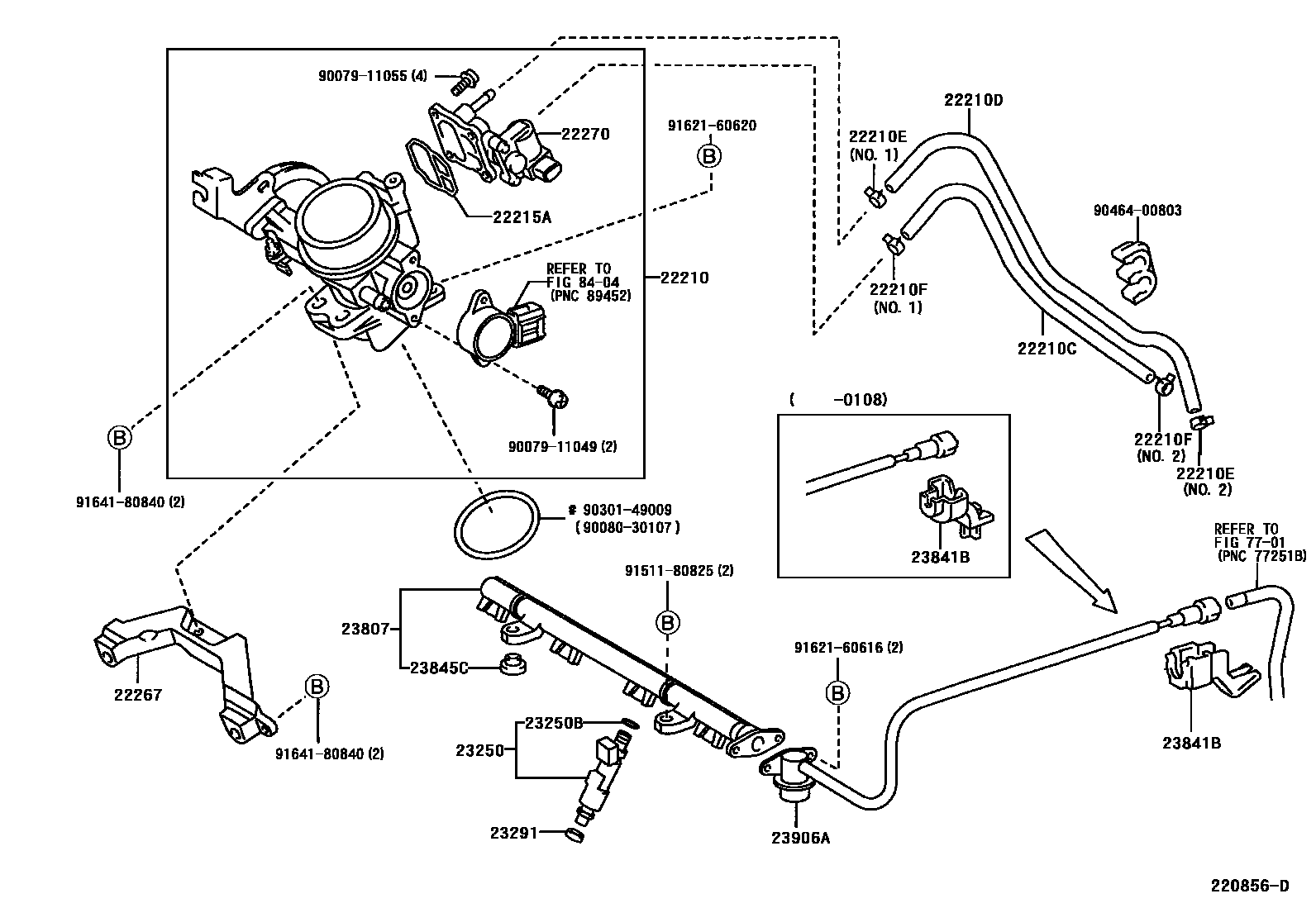

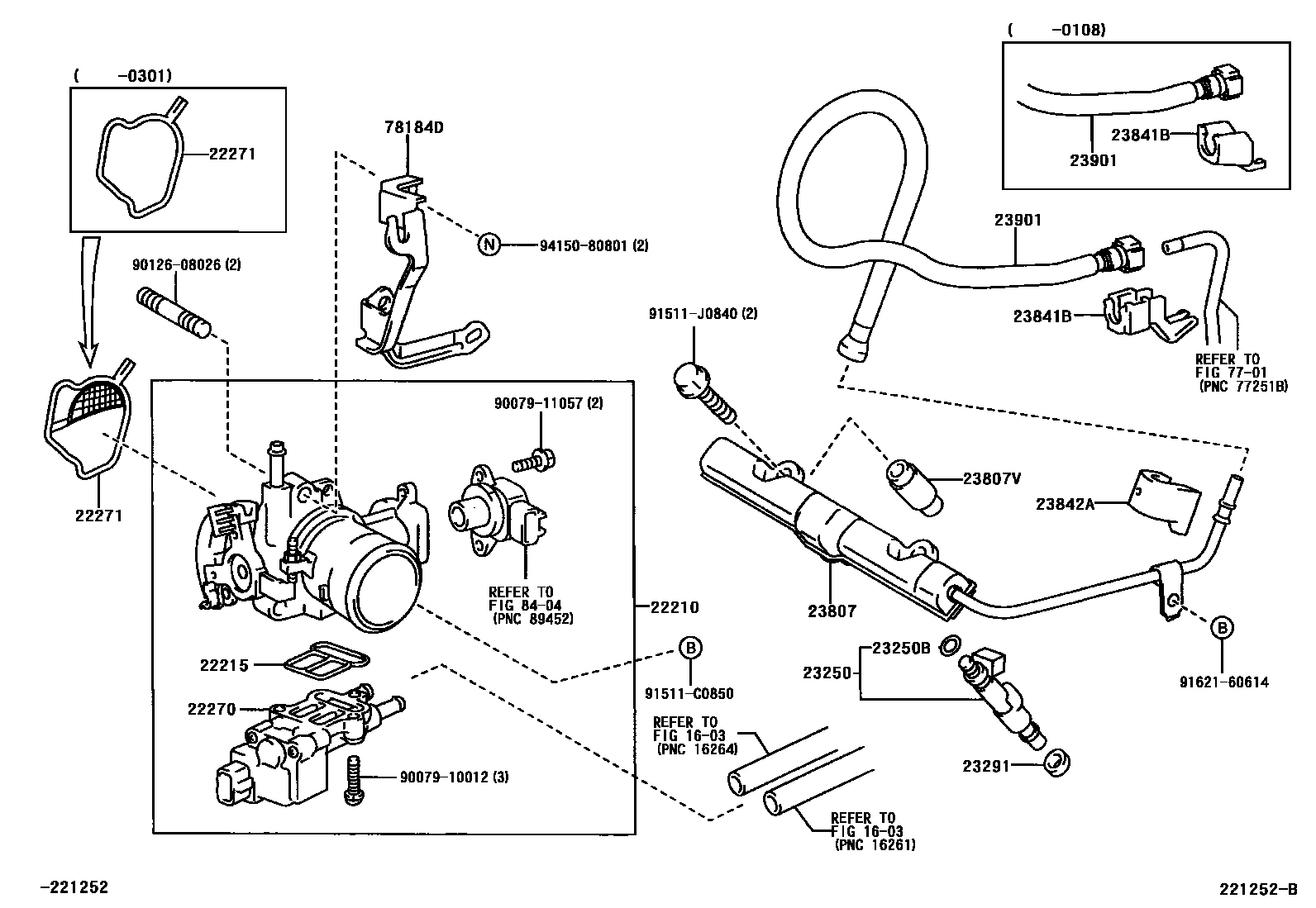

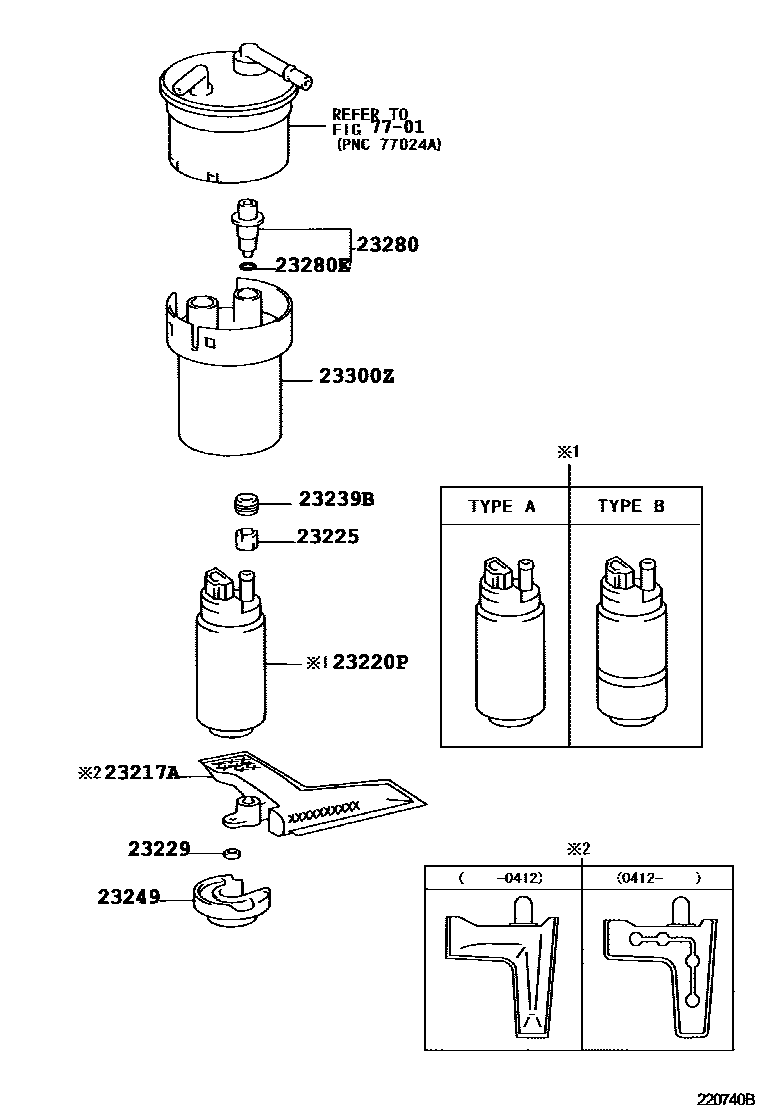

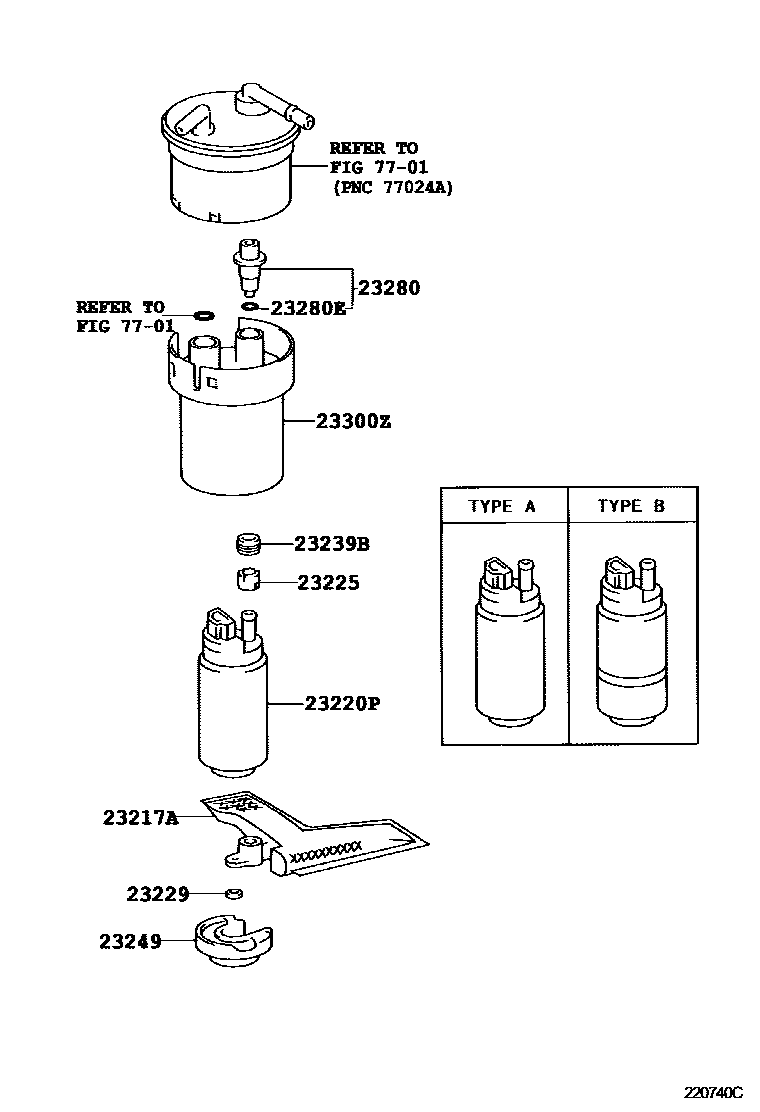

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-21020 · 22210-23010 · 22210-23020 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16261-23010 · 16261-23030 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16264-23010 · 16264-23030 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90466-10002 · 90466-12001 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90466-10002 · 90466-12001 |
| 22215 | Throttle body cover gasket | 22215-7A680 |
| 22215A | Idle speed control valve gasket | 22215-74400 |
| 22267 | Throttle body bracket | 22267-23010 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-21010 · 22270-21011 · 22270-23010 |
| 22271 | Throttle body gasket | 22271-21020 · 22271-21050 |
| 23217A | fuel pump filter | 23217-0D090 · 23217-23010 |
| 23220P | fuel pump assembly | 23221-22030 · 23221-23010 · 23221-23020 |
| 23225 | fuel pump septum | 23225-21010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239B | fuel pump filter seal | 23239-21010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-21020 · 23209-29015 |
| 23250B | O-ring (for fuel injector) | 90301-07024 |
| 23280 | Fuel pressure regulator assembly | 23280-22010 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23291 | Injector vibration isolation pad | 23291-23010 · 23291-41010 |
| 23300Z | Fuel filter (for fuel tank) | 23300-23030 · 23300-23040 |
| 23807 | Oil pipe sub-assembly | 23807-21010 · 23807-23020 · 23807-23030 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-21010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21020 · 23841-23010 · 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23845C | Fuel pipe vibration isolation pad | 23845-23010 |
| 23901 | Fuel pipe sub-assembly | 23901-21020 · 23901-21060 |
| 23906A | Fuel hose sub-assembly | 23901-23010 · 23906-23020 |
| 78184D | Throttle pedal control cable bracket | 78184-52011 |
