Toyota YARIS Alternator — Figure 1903

Toyota YARIS EPC diagram 1903, Alternator, with 8 images and 25 PNC and OE references.

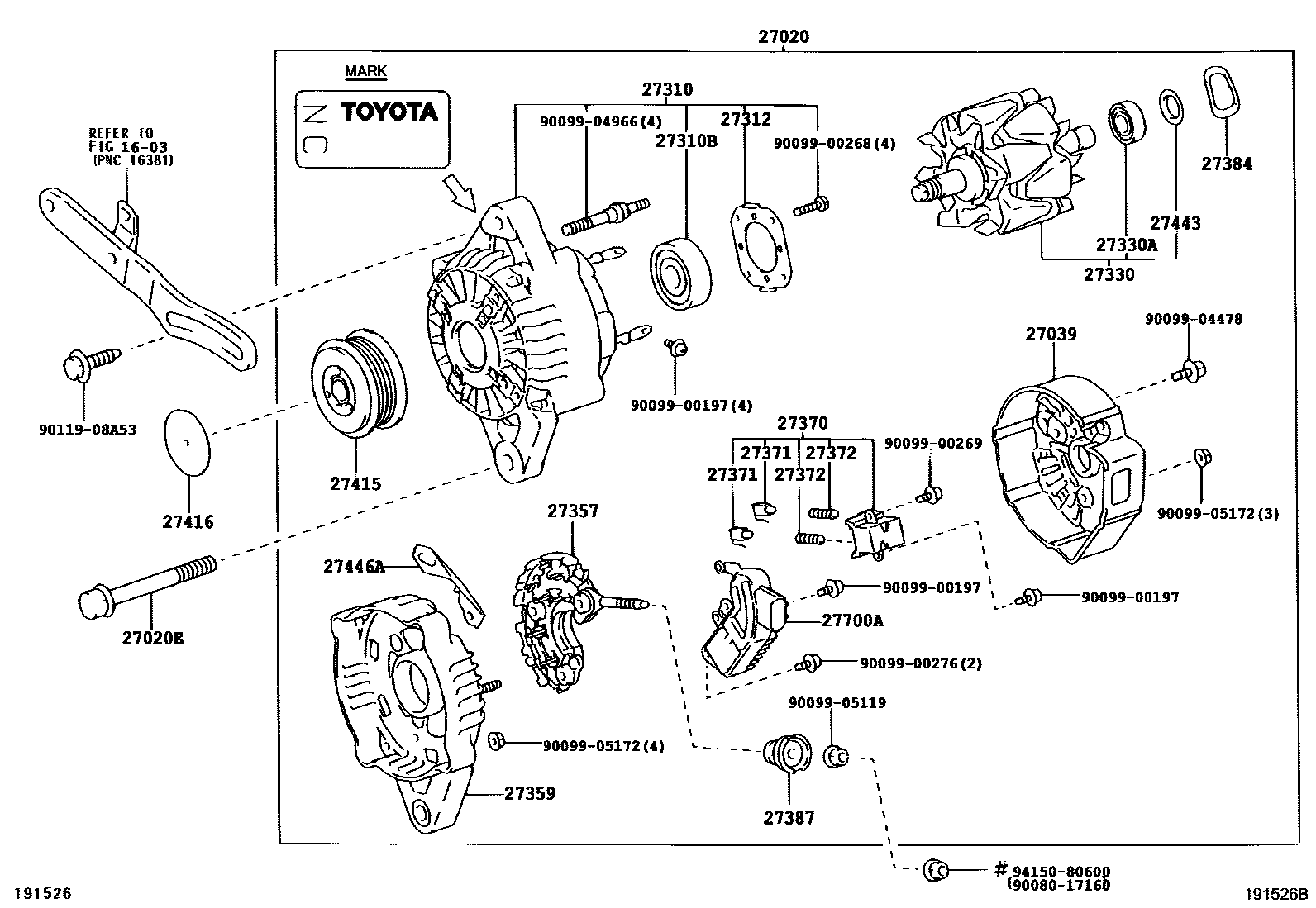

Toyota YARIS Alternator EPC diagram — 191526B — Alternator — 191526B (200109 – 200212)

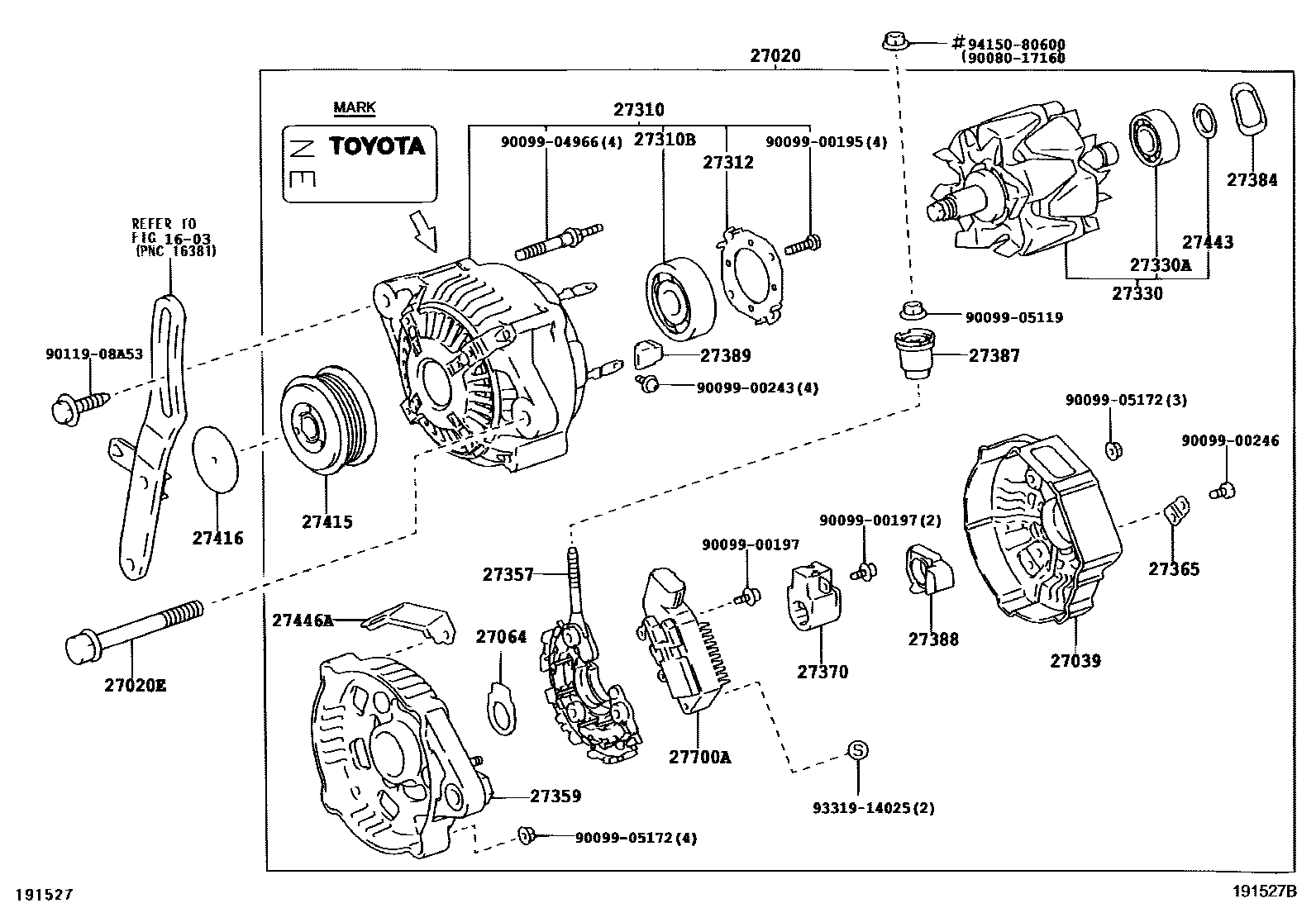

Toyota YARIS Alternator EPC diagram — 191527B — Alternator — 191527B (200109 – 200212)

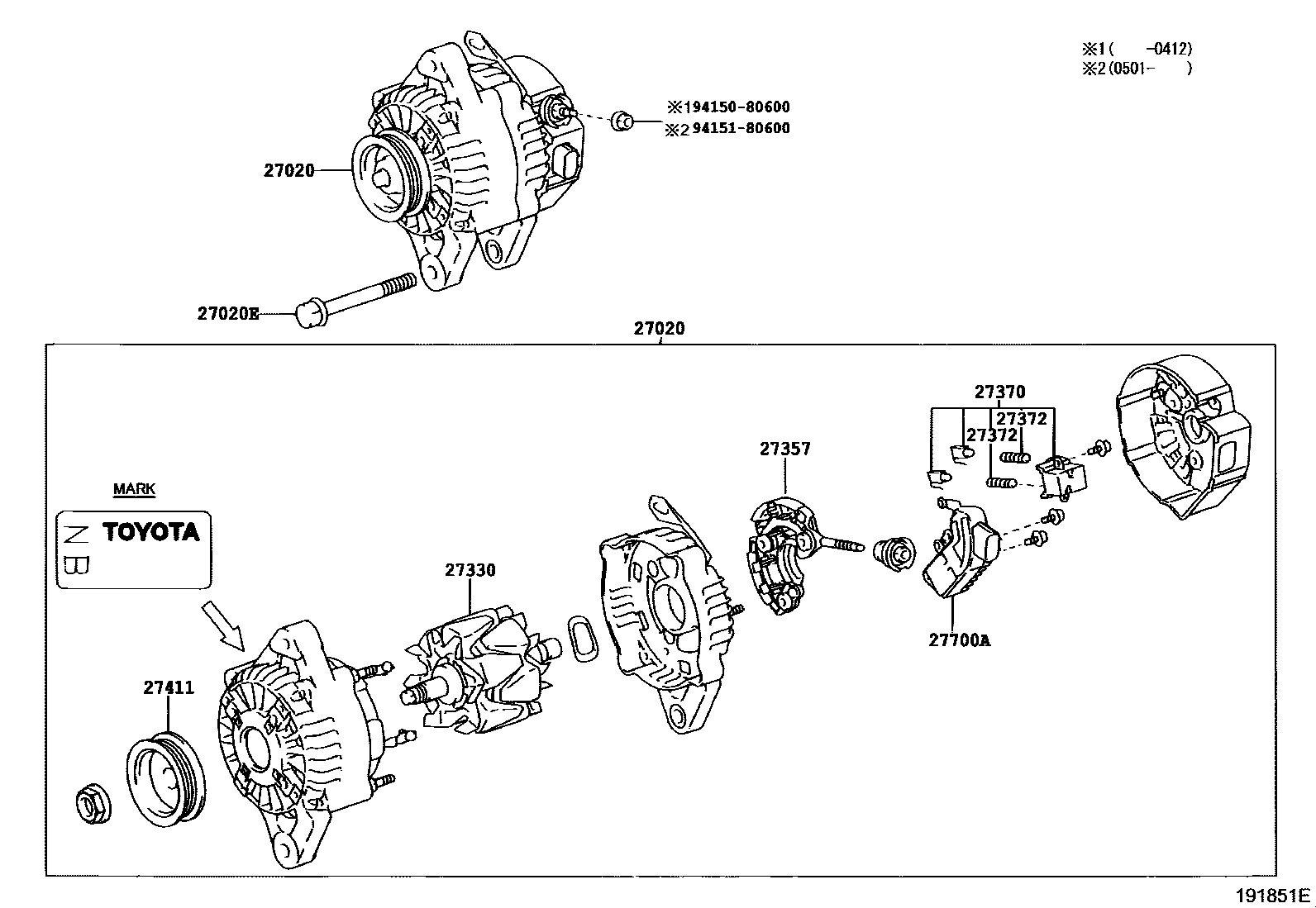

Toyota YARIS Alternator EPC diagram — 191851E — Alternator — 191851E (200212 – 999999)

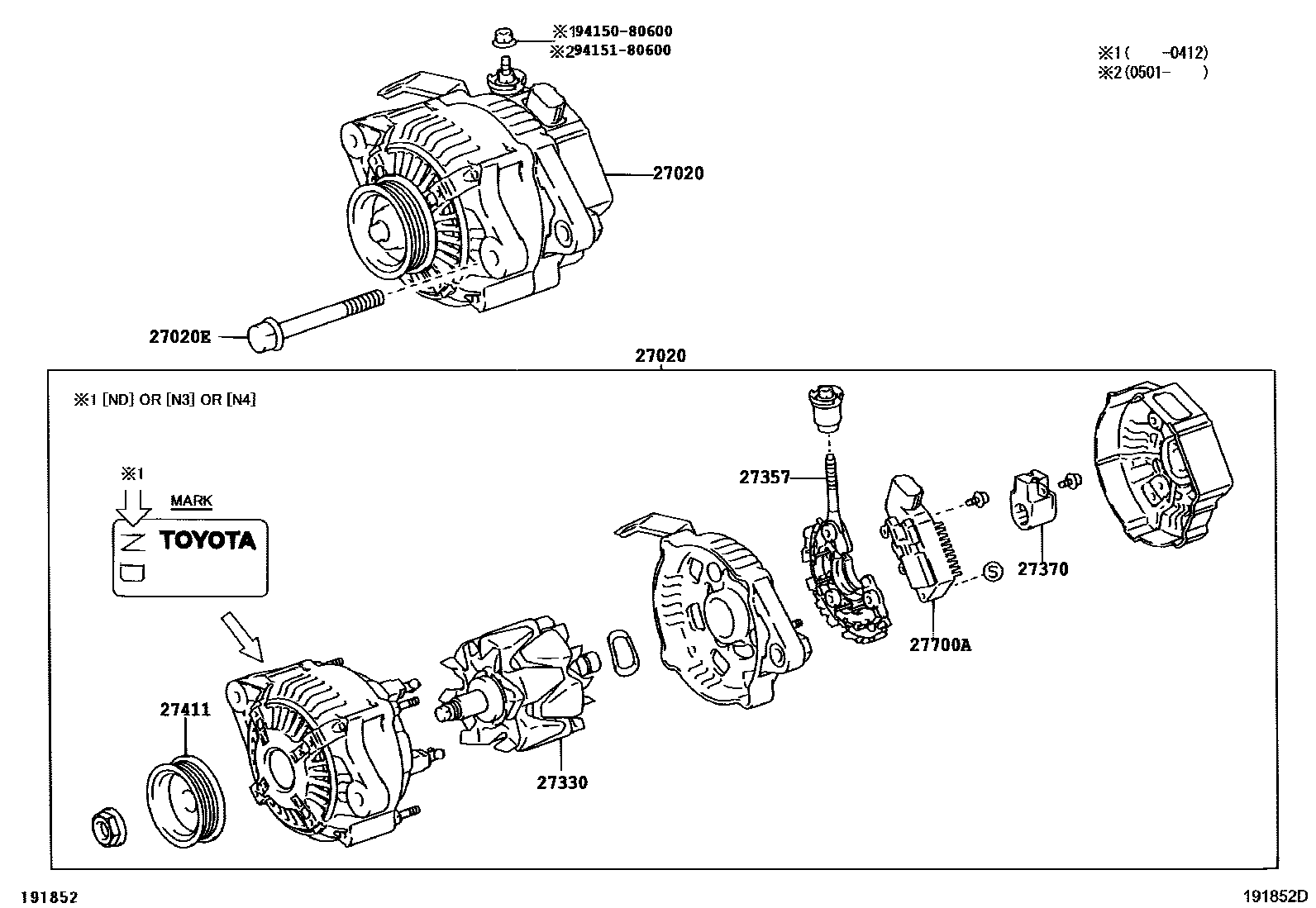

Toyota YARIS Alternator EPC diagram — 191852D — Alternator — 191852D (200212 – 999999)

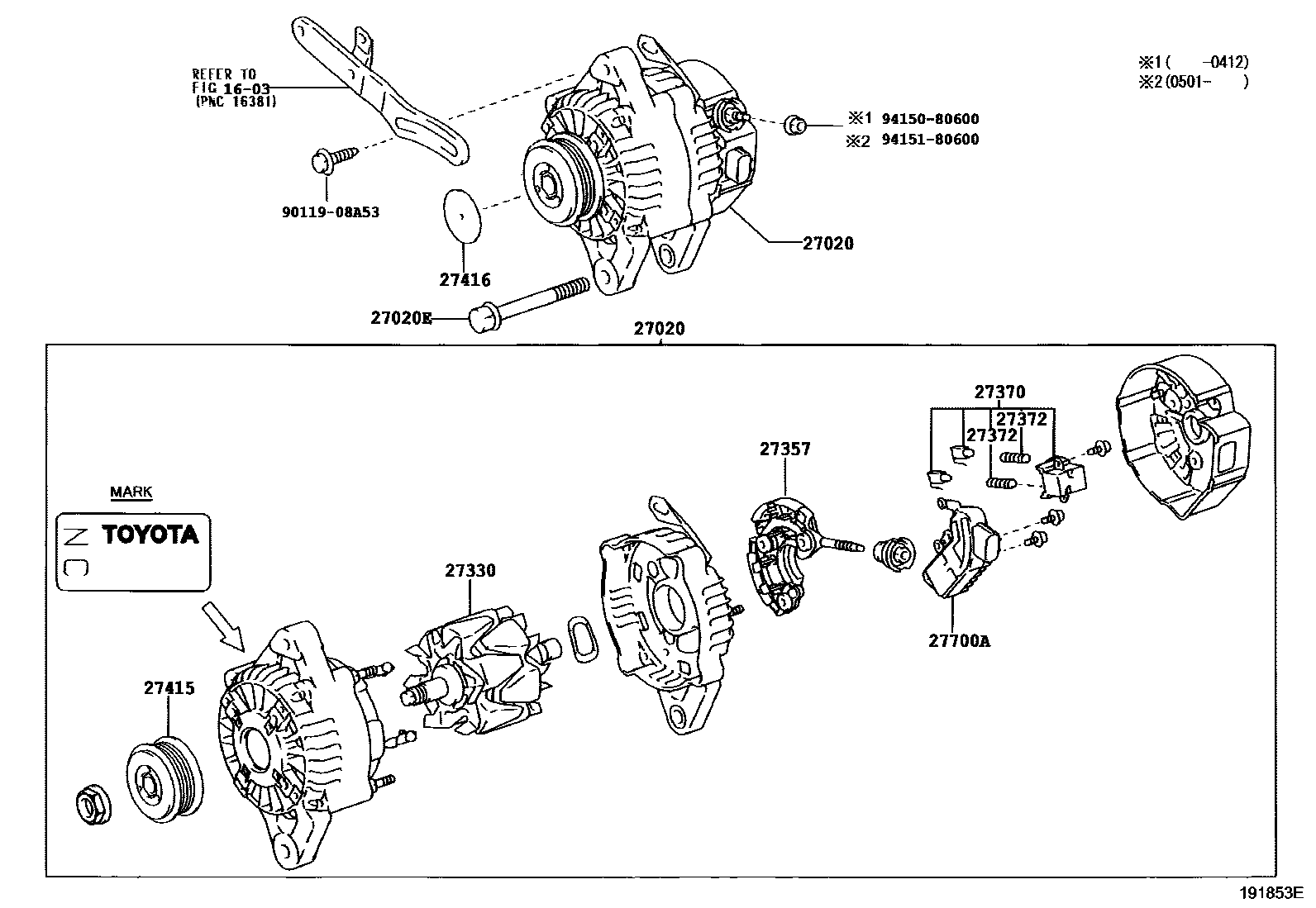

Toyota YARIS Alternator EPC diagram — 191853E — Alternator — 191853E (200212 – 999999)

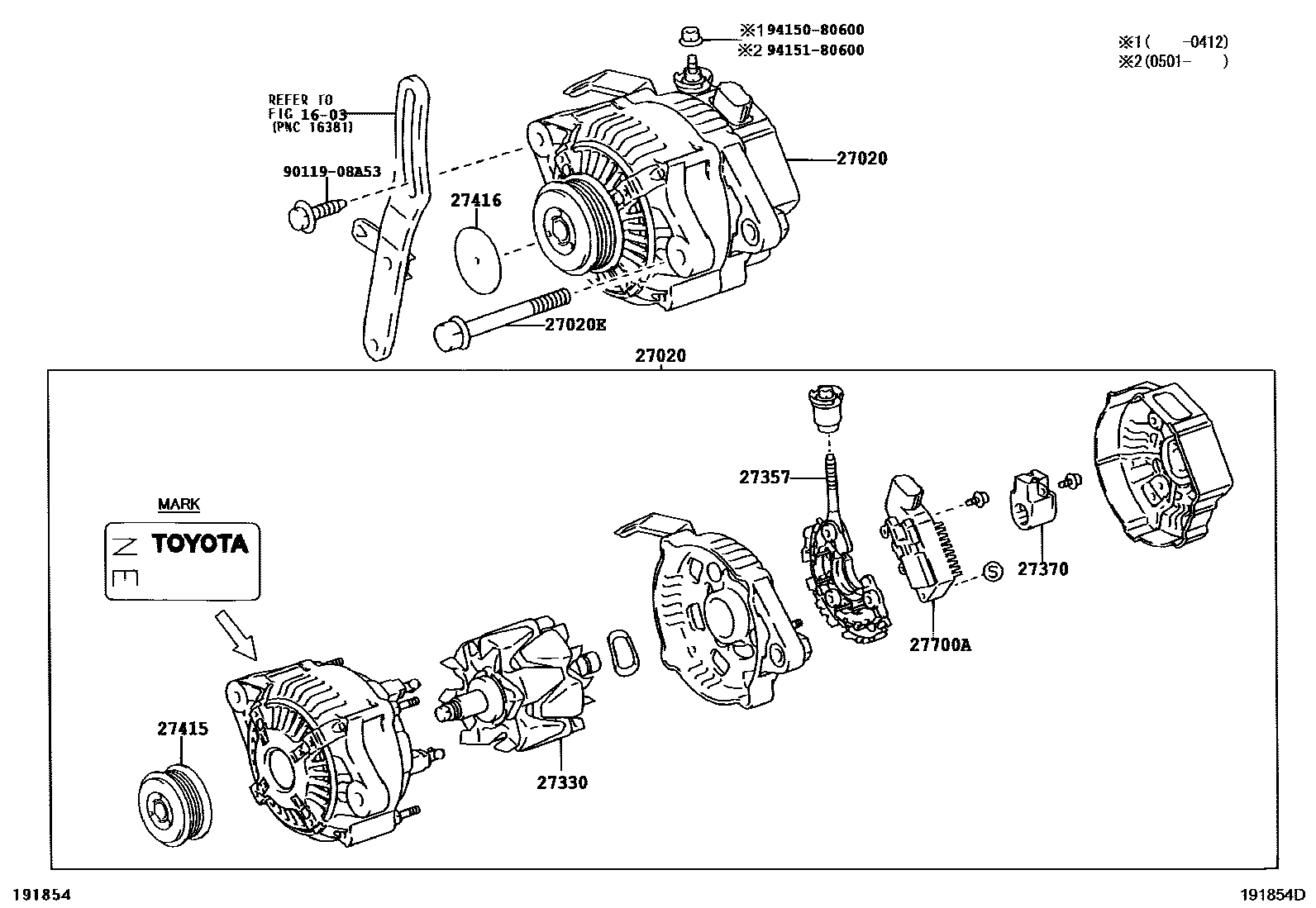

Toyota YARIS Alternator EPC diagram — 191854D — Alternator — 191854D (200212 – 999999)

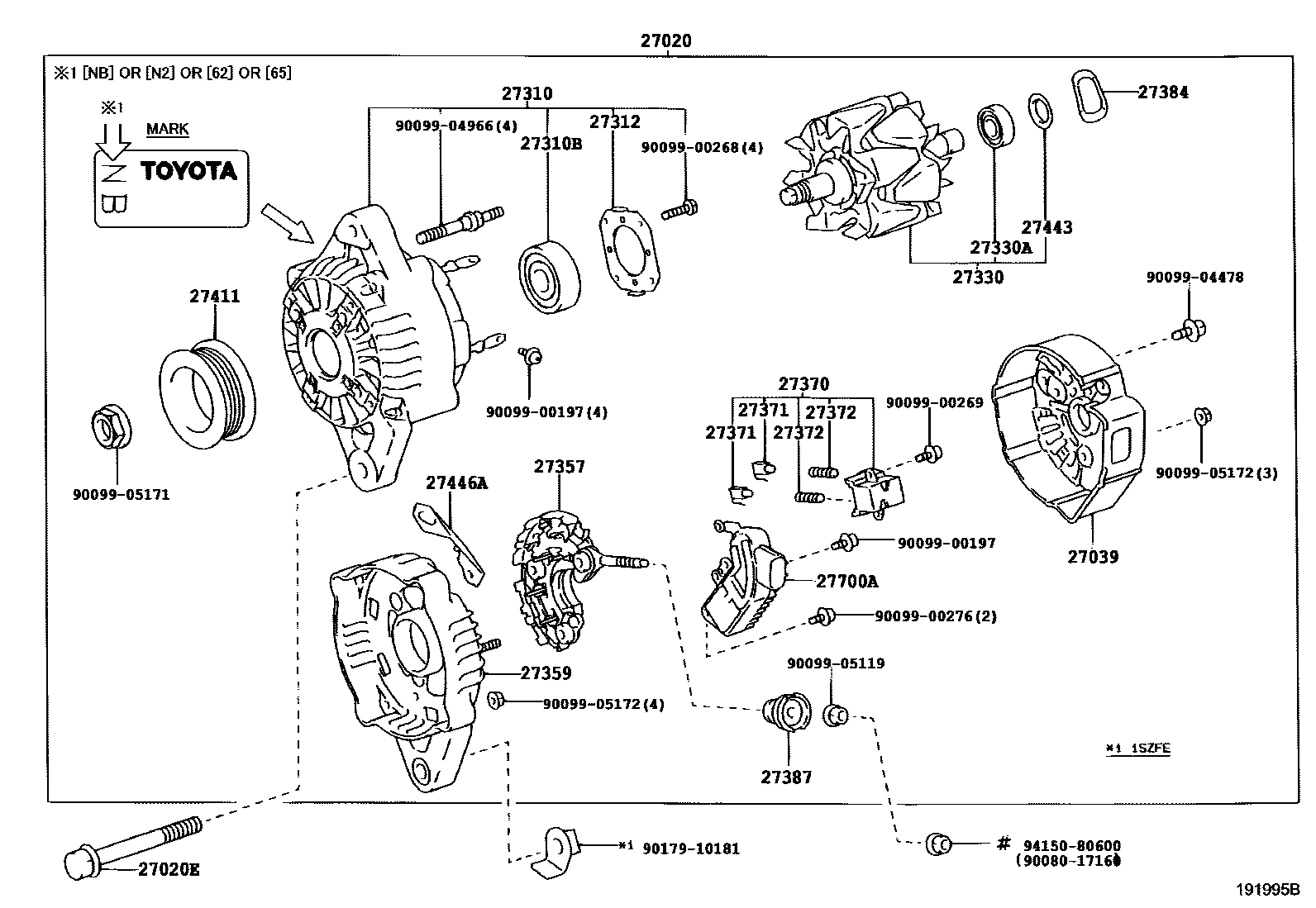

Toyota YARIS Alternator EPC diagram — 191995B — Alternator — 191995B (199901 – 200212)

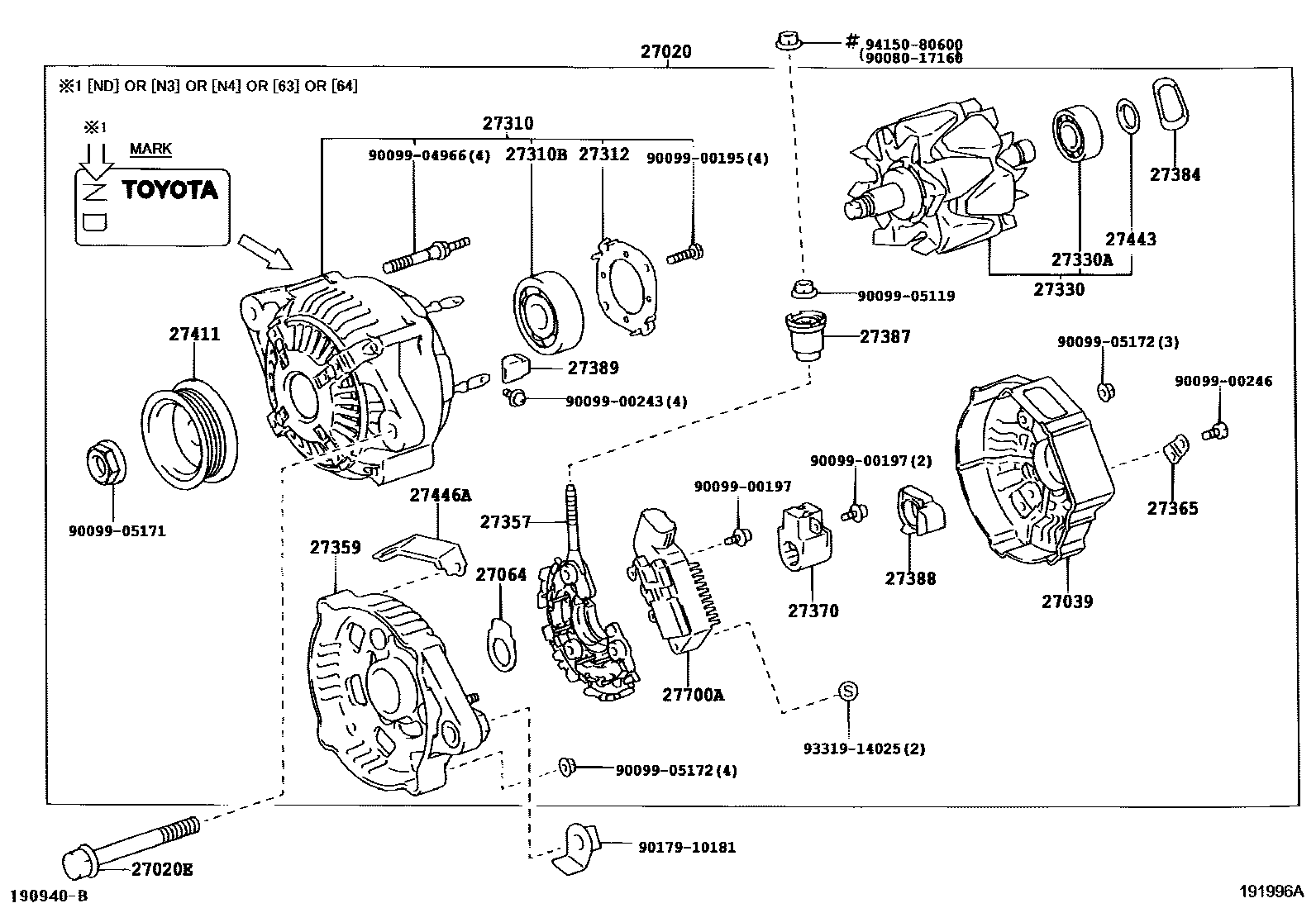

Toyota YARIS Alternator EPC diagram — 191996A — Alternator — 191996A (199901 – 200212)

PNC and OE references

PNC	Part name	OE numbers
27020	Alternator Assembly	27060-21010 · 27060-21020 · 27060-21030 · 27060-21031 · 27060-23010 · 27060-23020 · 27060-23030 · 27060-23040 · 27060-33010 · 27060-33020 · 27060-33030 · 27060-33040
27020E	Bolts (for generator)	90105-10075 · 90105-10468
27039	Alternator Rear End Cover	27039-21020 · 27039-21060 · 27039-22050 · 27039-28090 · 27039-46190 · 27039-55080 · 27039-67100 · 27039-70470
27064	Generator sealing plate	27064-42010
27310	Alternator Drive End Frame Assembly	27310-21020 · 27310-21030 · 27310-21040 · 27310-23030 · 27310-23040 · 27310-23050 · 27310-33050 · 27310-33070
27310B	Bearing (for Alternator Drive End Frame)	90099-10142 · 90099-10219 · 90099-10220
27312	Retainer Plate	27312-42010 · 27312-72100
27330	Alternator Rotor Assembly	27330-16390 · 27330-23020 · 27330-67100 · 27330-74550 · 27330-74730
27330A	Bearings (for generator rotor)	90099-10140 · 90099-10216
27357	Generator rectifier frame	27357-21060 · 27357-22050 · 27357-22070 · 27357-23040 · 27357-23050 · 27357-67100
27359	Generator rectifier end frame	27359-21020 · 27359-21030 · 27359-23030 · 27359-23040 · 27359-33050
27365	terminal board	27365-55080
27370	Alternator Brush Holder Assembly	27370-35060 · 27370-58320 · 27370-75060
27371	Generator brushes	27371-70300
27372	Generator brush spring	27372-63020 · 27372-87501
27384	Washer	27384-16380 · 27384-50030
27387	Terminal Insulator	27387-42021 · 27387-70171
27388	Generator brush cover	27388-42010
27389	Terminal Insulator	27389-42010
27411	Alternator Pulley	27411-11060 · 27411-21030 · 27411-22080 · 27411-33050 · 27411-42010 · 27411-62011 · 27411-65010 · 27411-70200 · 27411-74070
27415	PULLEY, ALTERNATOR W/CLUTCH	27415-33010 · 27415-33020
27416	Generator pulley cover	27416-27010
27443	Generator bearing cap	27443-63020
27446A	card holder	27446-21020 · 27446-72250
27700A	Generator voltage regulator assembly	27700-21010 · 27700-23010
