Toyota YARIS vacuum tube — Figure 1708

Toyota YARIS EPC diagram 1708, vacuum tube, with 4 images and 4 PNC and OE references.

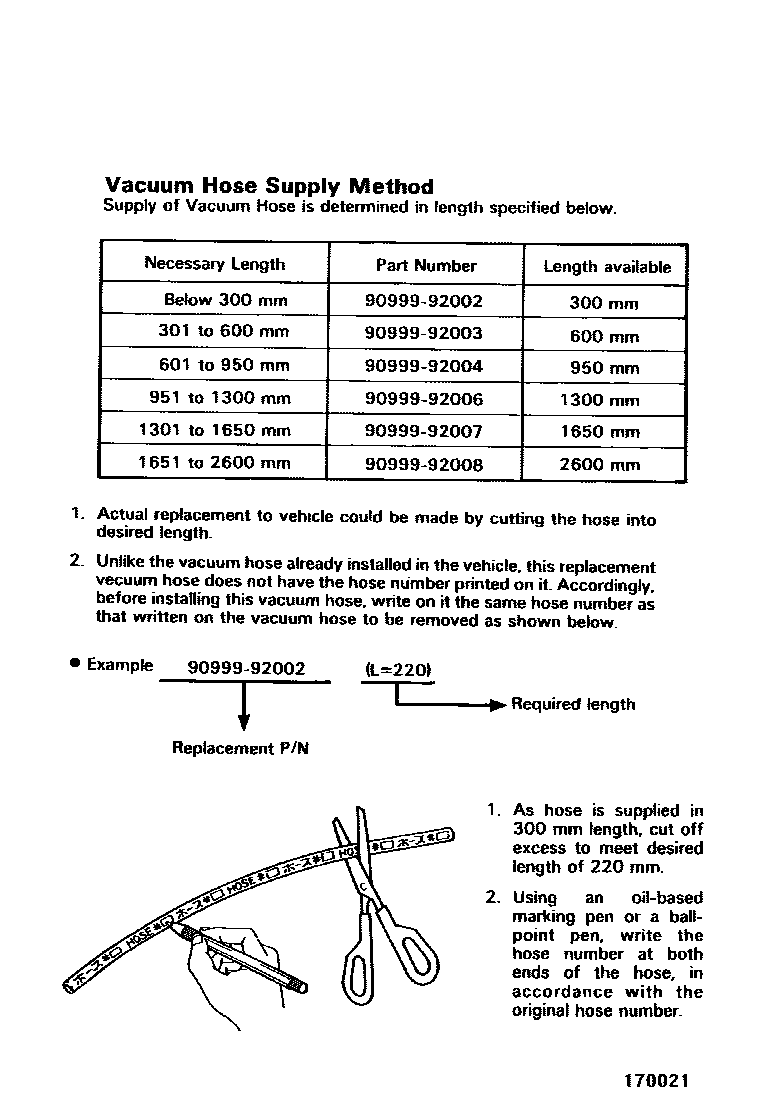

Toyota YARIS vacuum tube EPC diagram — 170021
vacuum tube — 170021 (199901 – 999999)

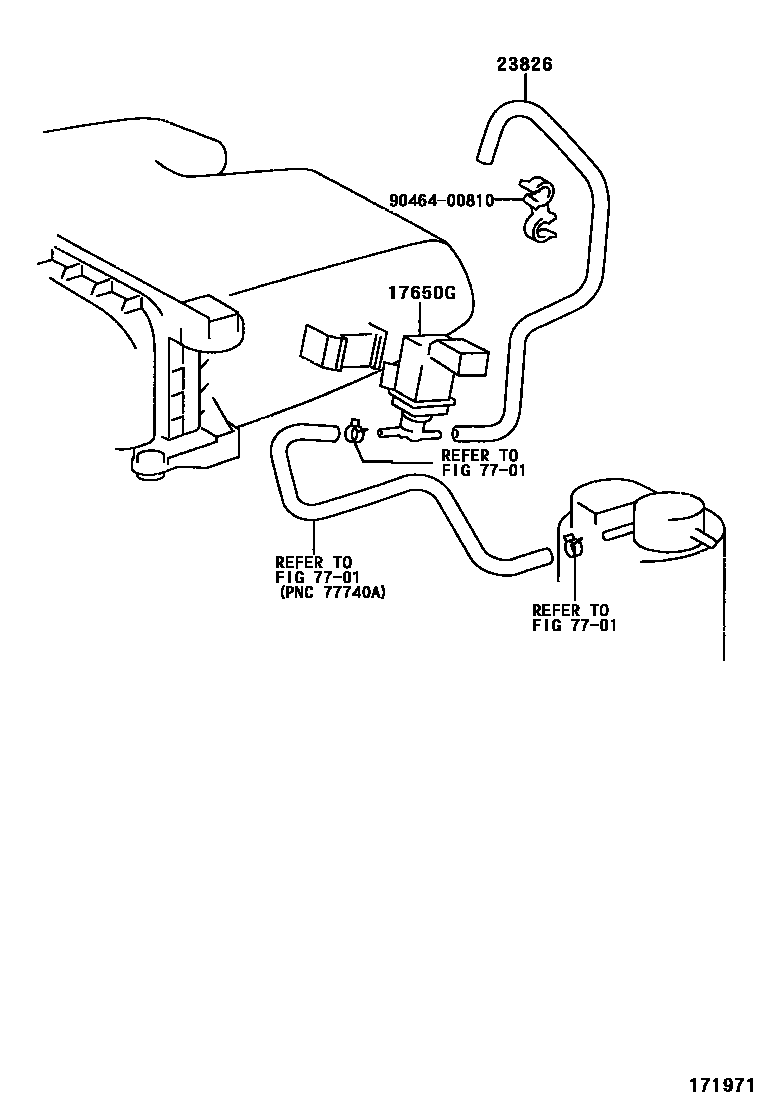

Toyota YARIS vacuum tube EPC diagram — 171971
vacuum tube — 171971 (199901 – 200212)
Toyota YARIS vacuum tube EPC diagram — 172164
vacuum tube — 172164 (199908 – 999999)
Toyota YARIS vacuum tube EPC diagram — 173117D
vacuum tube — 173117D (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
17650GDuty cycle controlled vacuum switching valve90910-12202
23826No. 1 fuel vapor supply hose23826-23020 · 95328-07036
25693AEGR vacuum regulator shock absorber25693-58010
25850Electronic vacuum regulating valve assembly25850-33010
