Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.

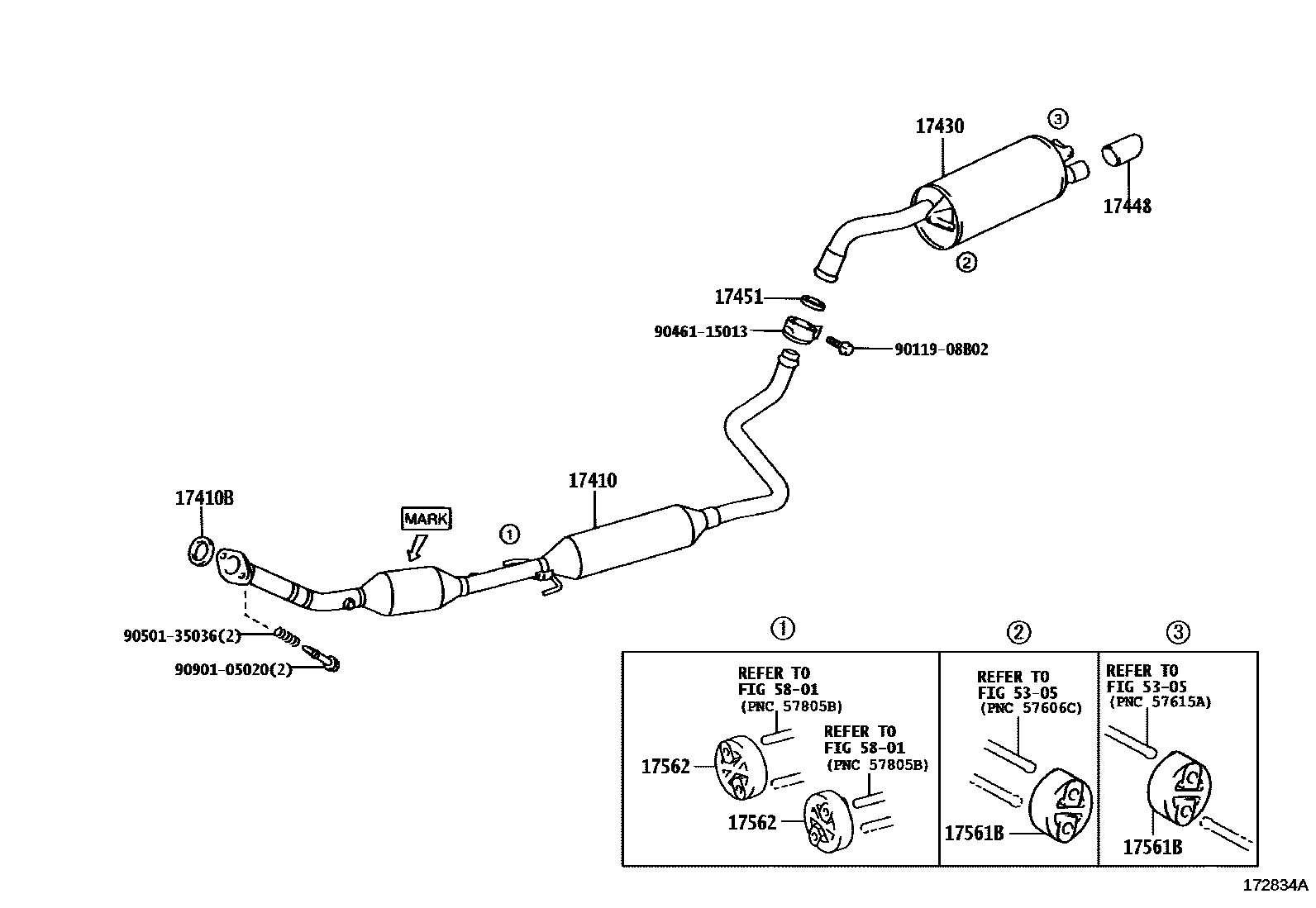

Toyota YARIS Exhaust Pipe EPC diagram — 172834A — Exhaust Pipe — 172834A (200101 – 999999)

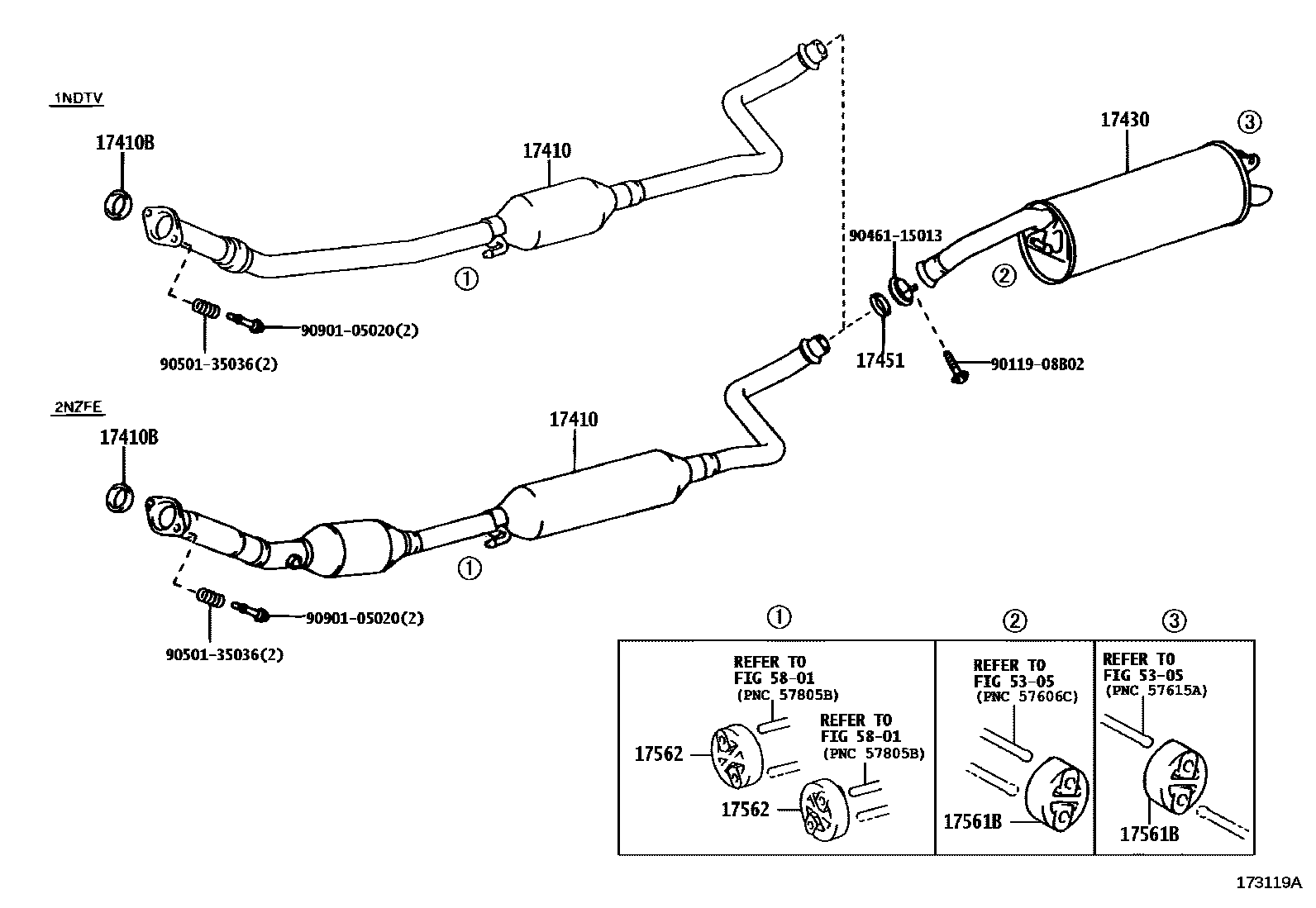

Toyota YARIS Exhaust Pipe EPC diagram — 173119A — Exhaust Pipe — 173119A (199908 – 999999)

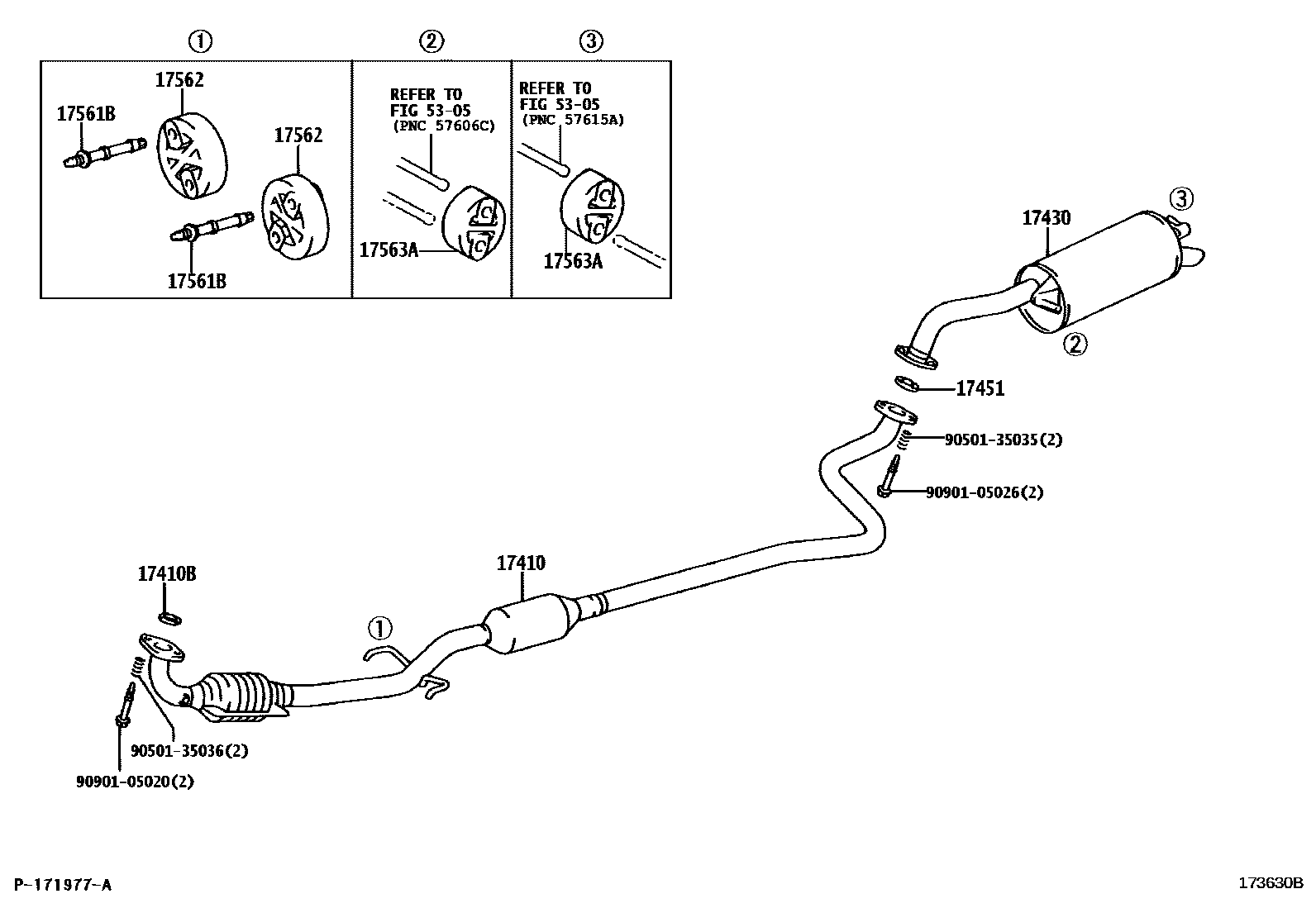

Toyota YARIS Exhaust Pipe EPC diagram — 173630B — Exhaust Pipe — 173630B (199901 – 200212)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-21060 · 17410-21070 · 17410-21210 · 17410-21310 · 17410-21341 · 17410-21620 · 17410-23061
17410B	Exhaust pipe gasket	17451-21030 · 17451-23030 · 90917-06080
17430	Exhaust tailpipe assembly	17430-21030 · 17430-21031 · 17430-21200 · 17430-21250 · 17430-21251 · 17430-21540 · 17430-23020
17448	Exhaust pipe tail throat	17408-74040 · 17408-74080
17451	Exhaust pipe gasket	17451-23010 · 90917-06082
17561B	No. 1 exhaust pipe lifting lug	17565-74280 · 17584-23020
17562	No. 2 exhaust pipe lifting lug	17562-23040
17563A	No. 3 exhaust pipe lifting lug	17565-46040
