Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

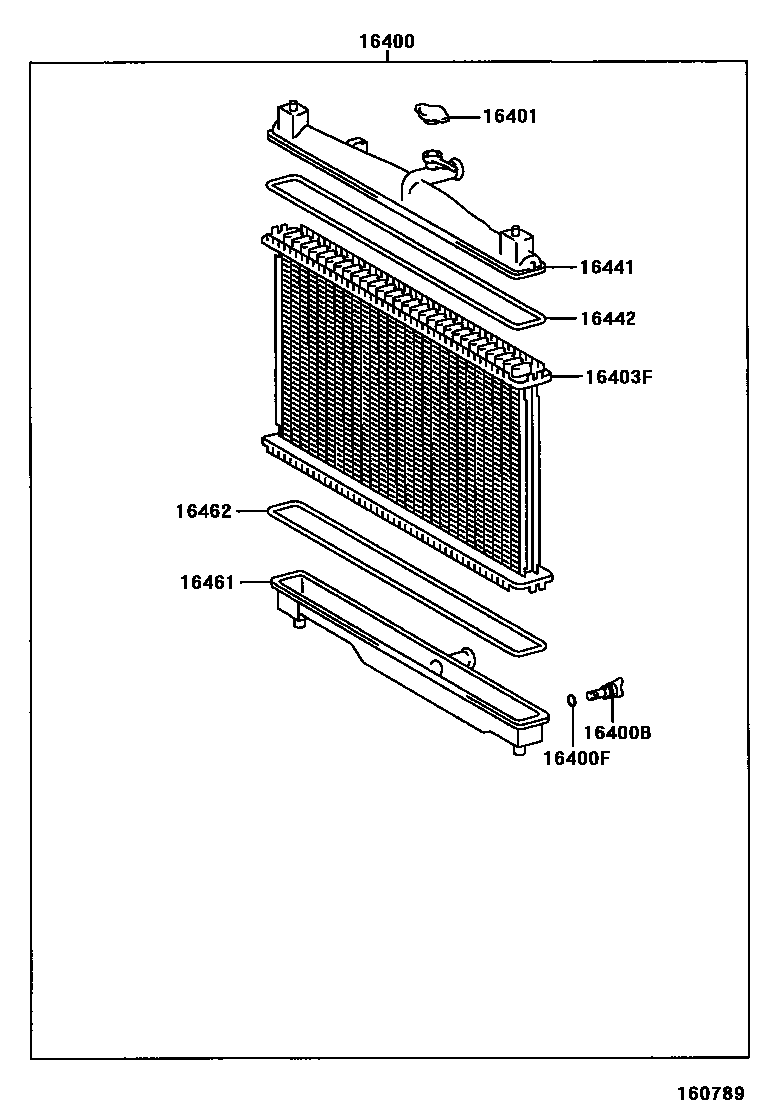

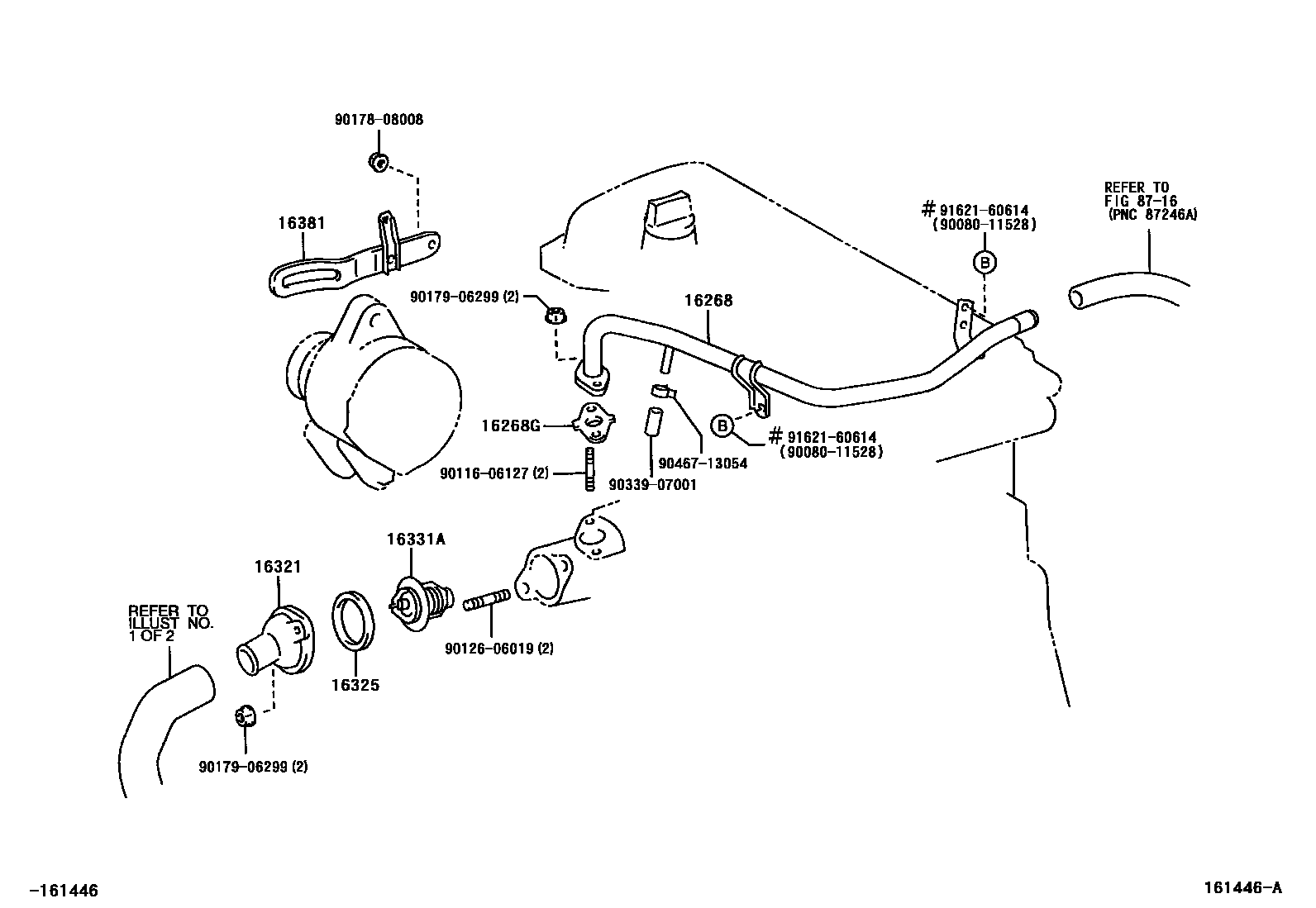

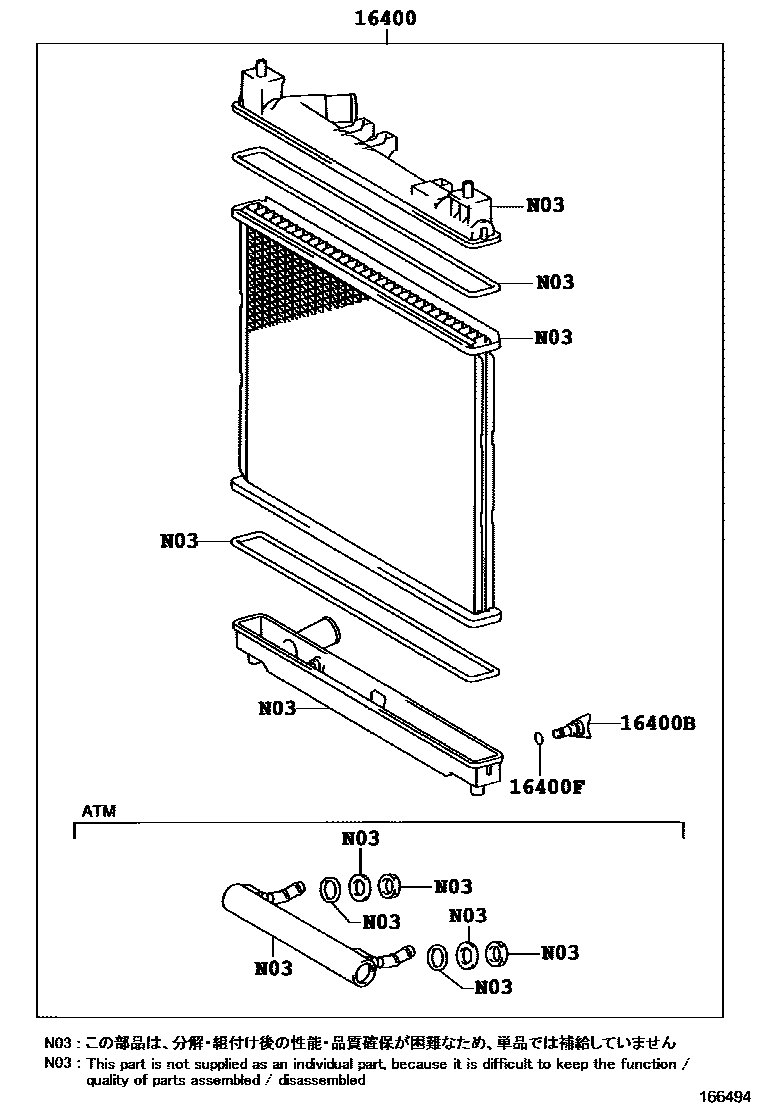

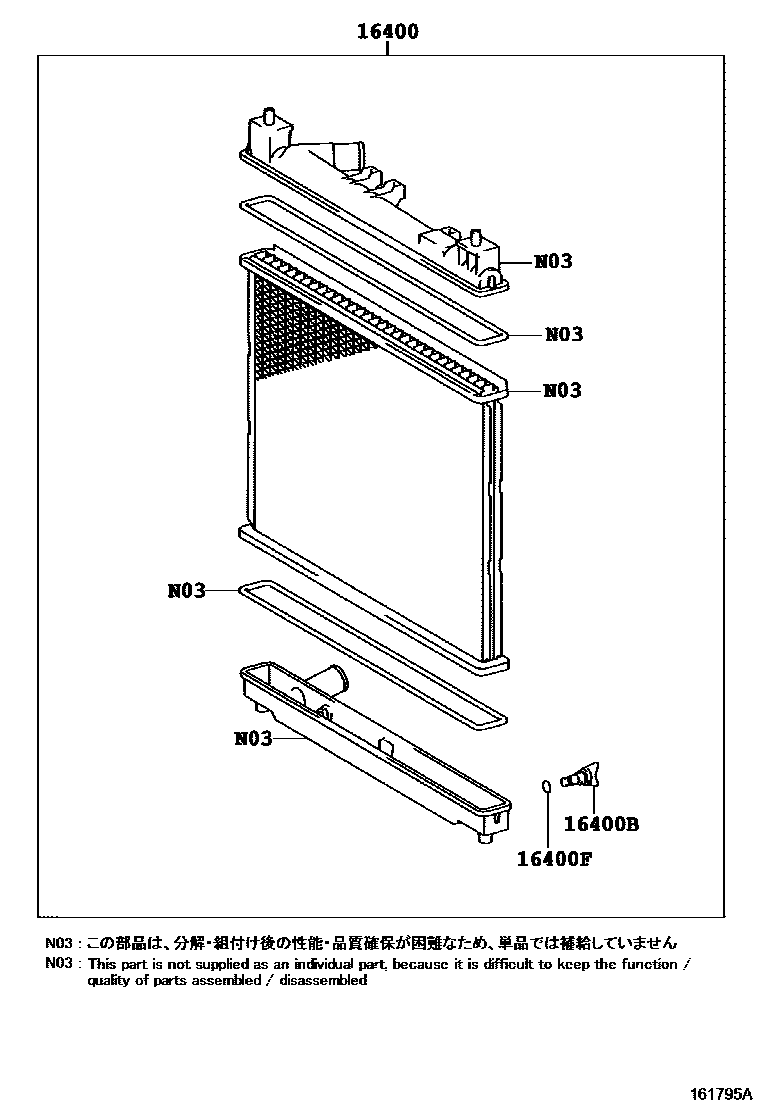

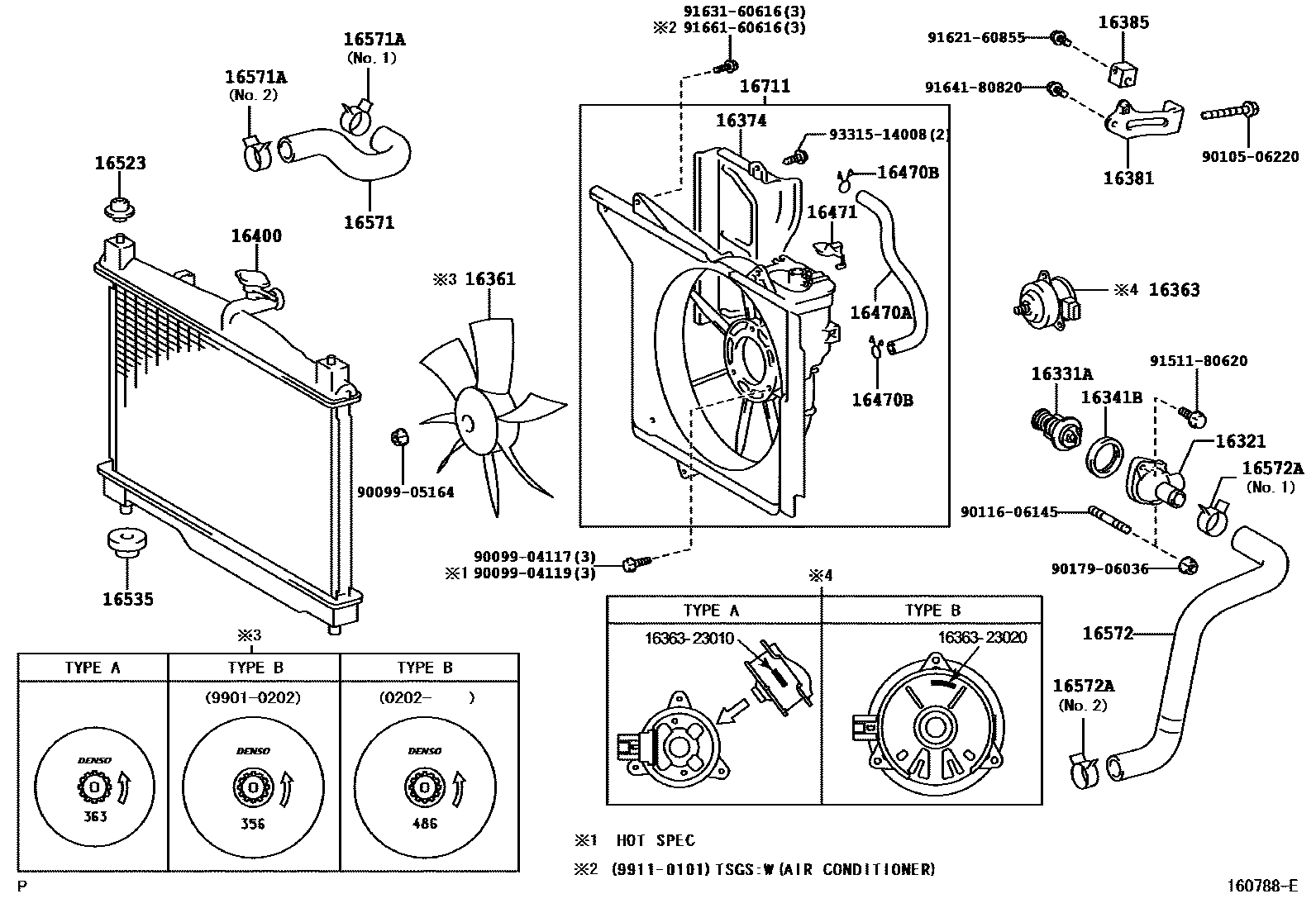

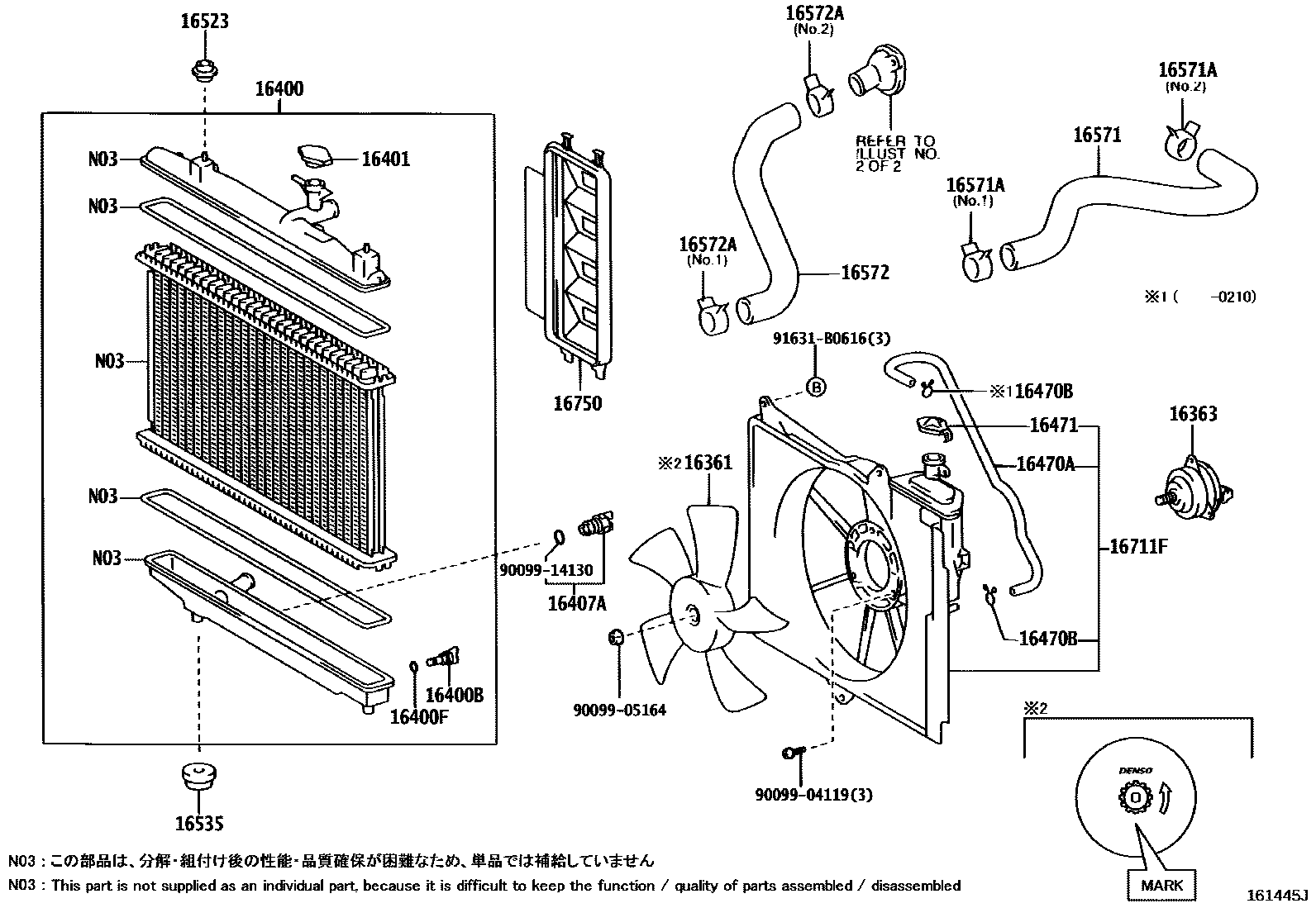

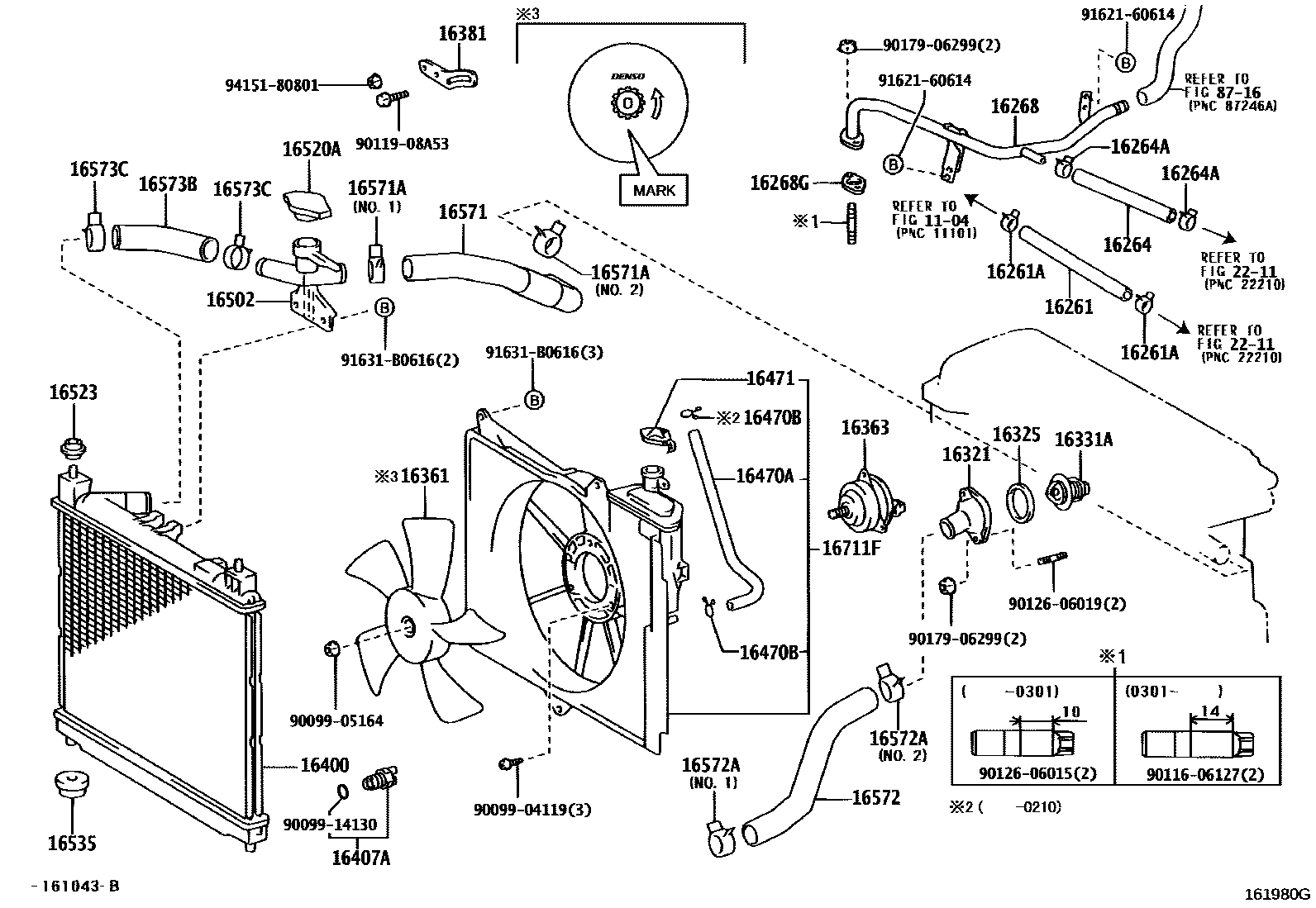

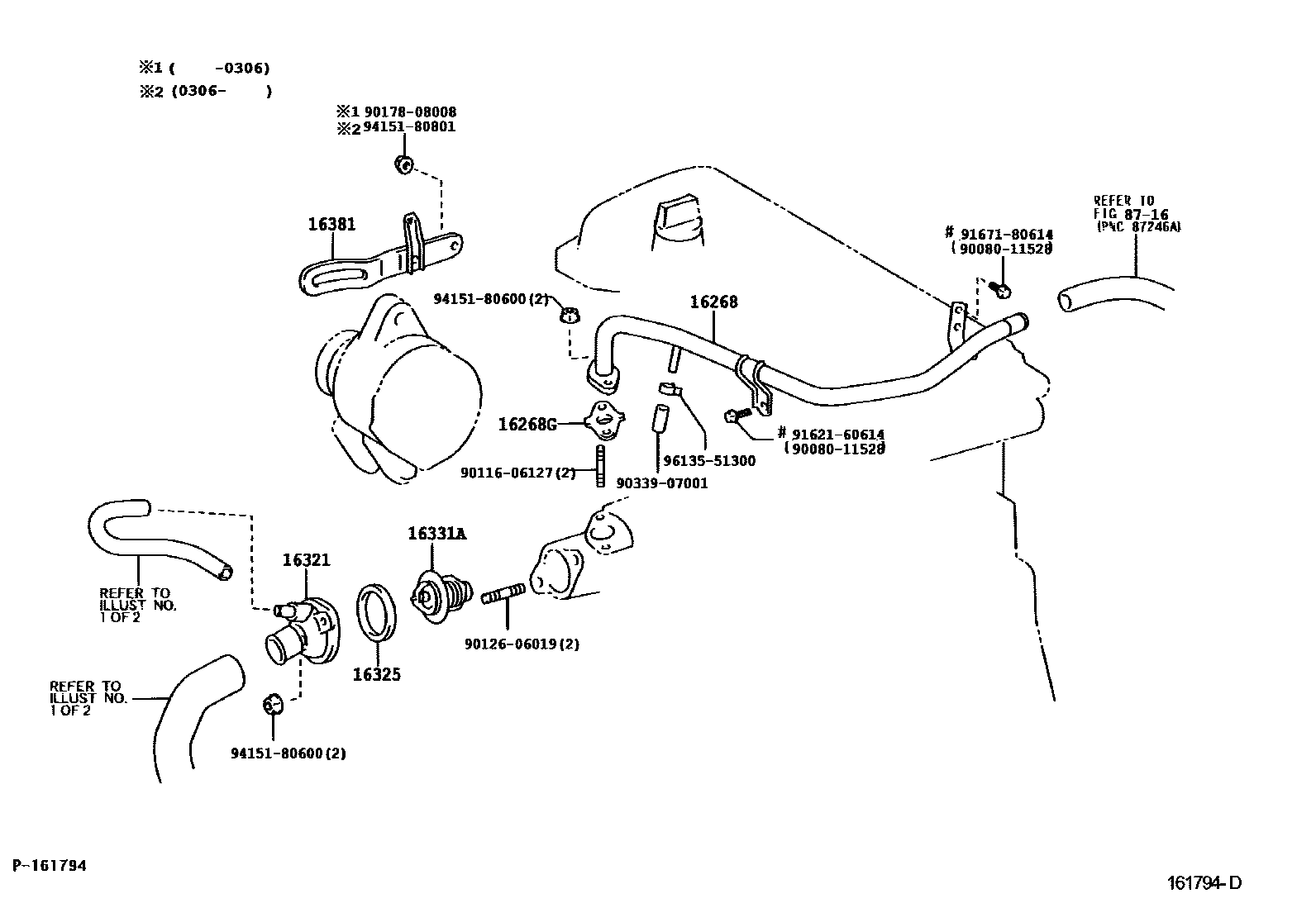

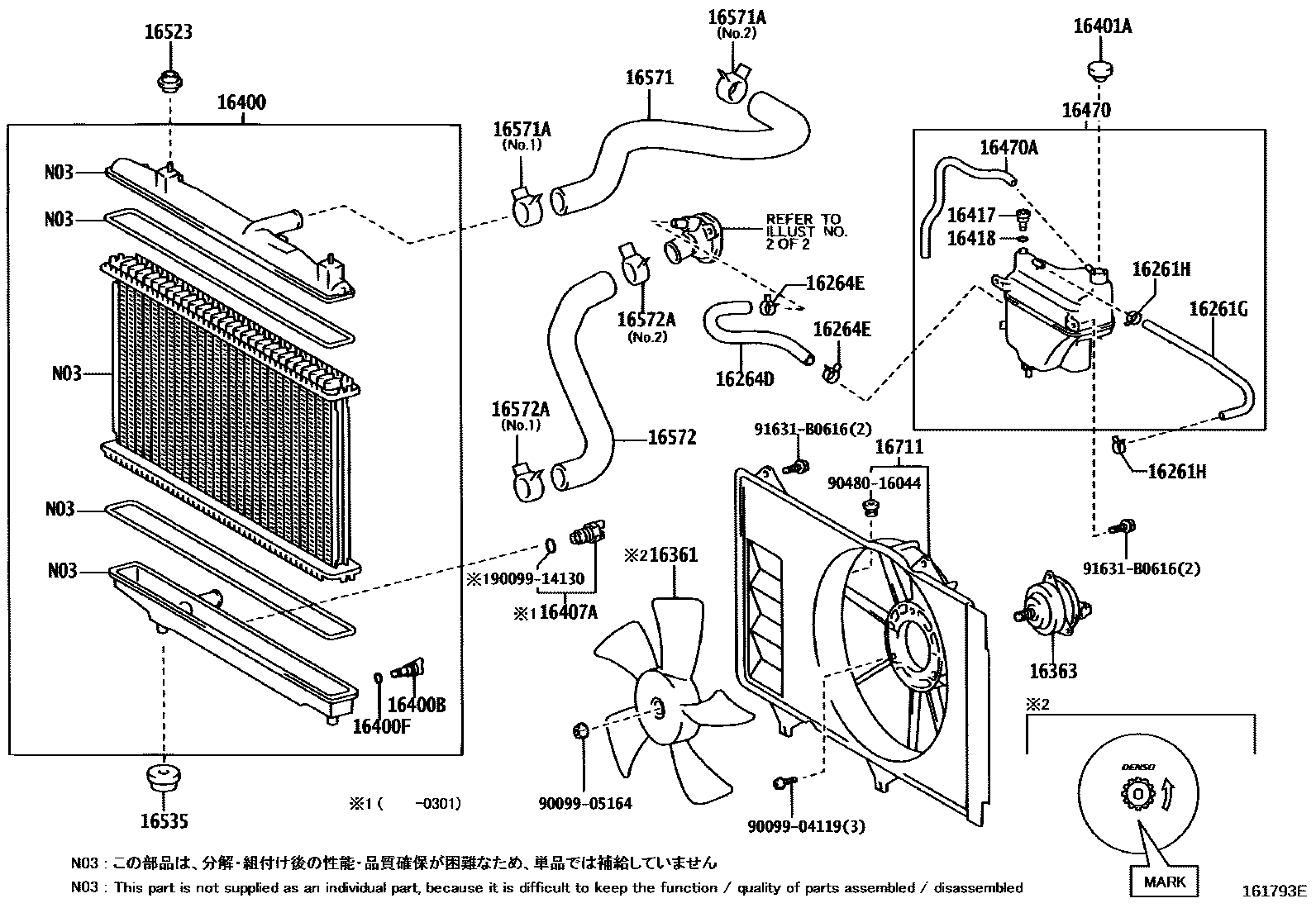

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 99555-10185 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-33020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96135-51300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16261-21040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-33010 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-21010 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21020 · 16268-21021 · 16268-21022 · 16268-33010 |
| 16268G | Gasket (for water bypass pipe) | 16258-21010 · 16258-21020 |
| 16321 | water inlet | 16031-33010 · 16321-21020 · 16321-23020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 |
| 16331A | thermostat | 90916-03093 · 90916-03122 |
| 16341B | water inlet gasket | 16341-35010 |
| 16361 | Fan | 16361-21030 · 16361-21050 · 16361-21080 · 16361-23030 · 16361-23040 · 16361-23050 · 16361-28100 |
| 16363 | cooling fan motor | 16363-0D040 · 16363-23010 · 16363-23020 · 16363-23030 · 16363-28150 · 16363-28160 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-23010 |
| 16381 | Fan belt adjustment lever | 16381-21020 · 16381-21030 · 16381-23030 · 16381-33020 |
| 16385 | Fan belt adjustment slider | 16385-23010 |
| 16400 | Radiator assembly | 16400-21060 · 16400-21070 · 16400-21080 · 16400-23080 · 16400-23100 · 16400-33070 · 16400-33080 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-62100 |
| 16401A | Radiator reservoir cap sub-assembly | 16401-53010 |
| 16403F | Radiator core sub-assembly | 16403-23090 · 16403-23100 |
| 16407A | Radiator drain switch sub-assembly | 16407-7A130 |
| 16417 | switch | 16417-50240 |
| 16418 | Seals | 16492-21050 |
| 16441 | Radiator water tank | 16441-23090 |
| 16442 | O-ring (for radiator tank) | 16442-23090 |
| 16461 | Radiator lower tank | 16461-23080 |
| 16462 | O-ring (for radiator lower tank) | 16462-23090 |
| 16470 | Radiator reservoir assembly | 16480-33010 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-33010 · 16472-33010 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-0J010 · 16471-23010 |
| 16502 | Water injection port sub-assembly | 16502-21010 |
| 16520A | Water injection port cover sub-assembly | 16401-62100 |
| 16523 | Secondary radiator bracket buffer pad | 16523-23010 |
| 16535 | Radiator lower support | 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-21020 · 16571-23040 · 16571-33020 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-33006 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-21020 · 16572-23030 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-33006 · 90467-34003 · 90467-34004 |
| 16573B | Radiator hose No. 3 | 16573-21010 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-33006 |
| 16711 | fan cover | 16711-23050 · 16711-23060 · 16711-33030 |
| 16711F | BUSE, VENTILATEUR(AV RESERVOIR AUX RADIATEUR) | 16711-21030 · 16711-33010 |
| 16750 | Fan cover ventilation duct assembly | 16750-21011 |
