Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 3 images and 3 PNC and OE references.

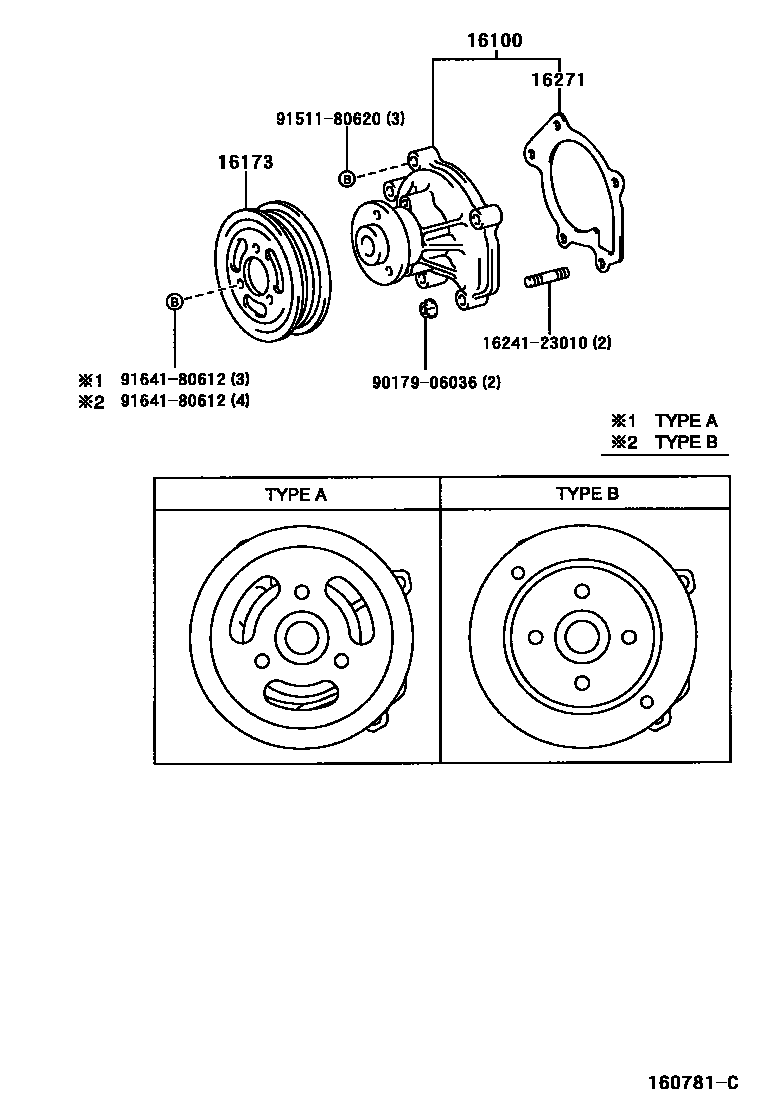

Toyota YARIS Water Pump EPC diagram — 160781C — Water Pump — 160781C (199901 – 200212)

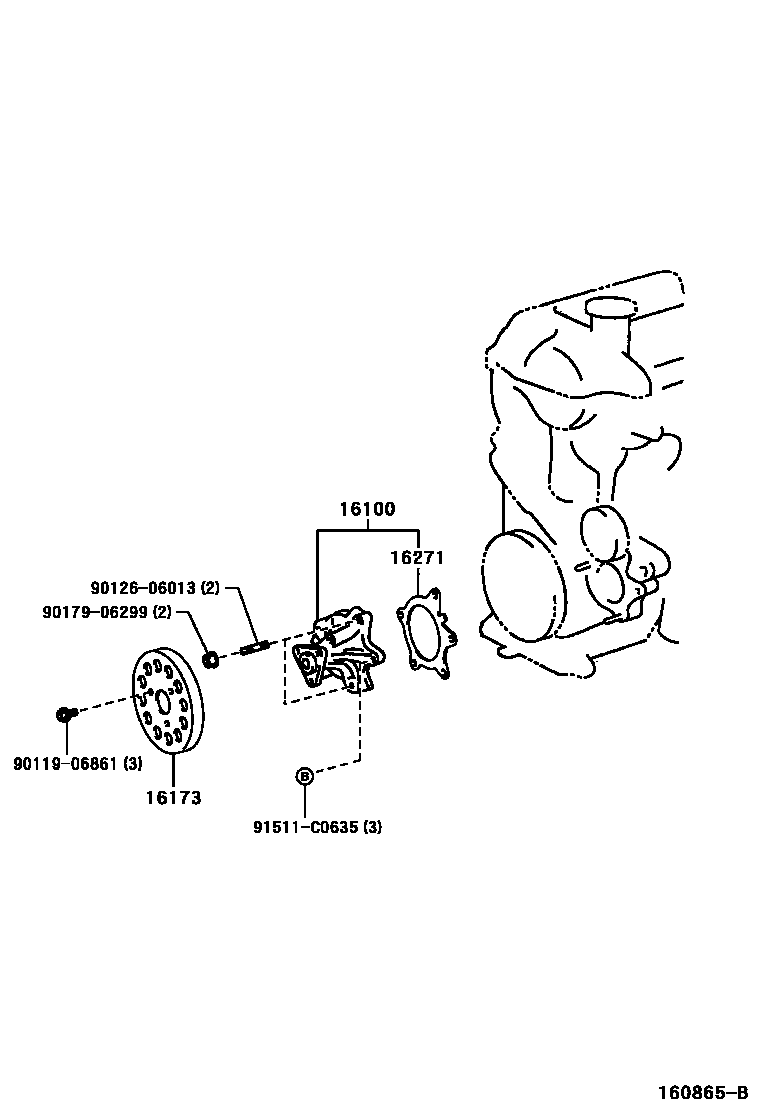

Toyota YARIS Water Pump EPC diagram — 160865B — Water Pump — 160865B (199908 – 999999)

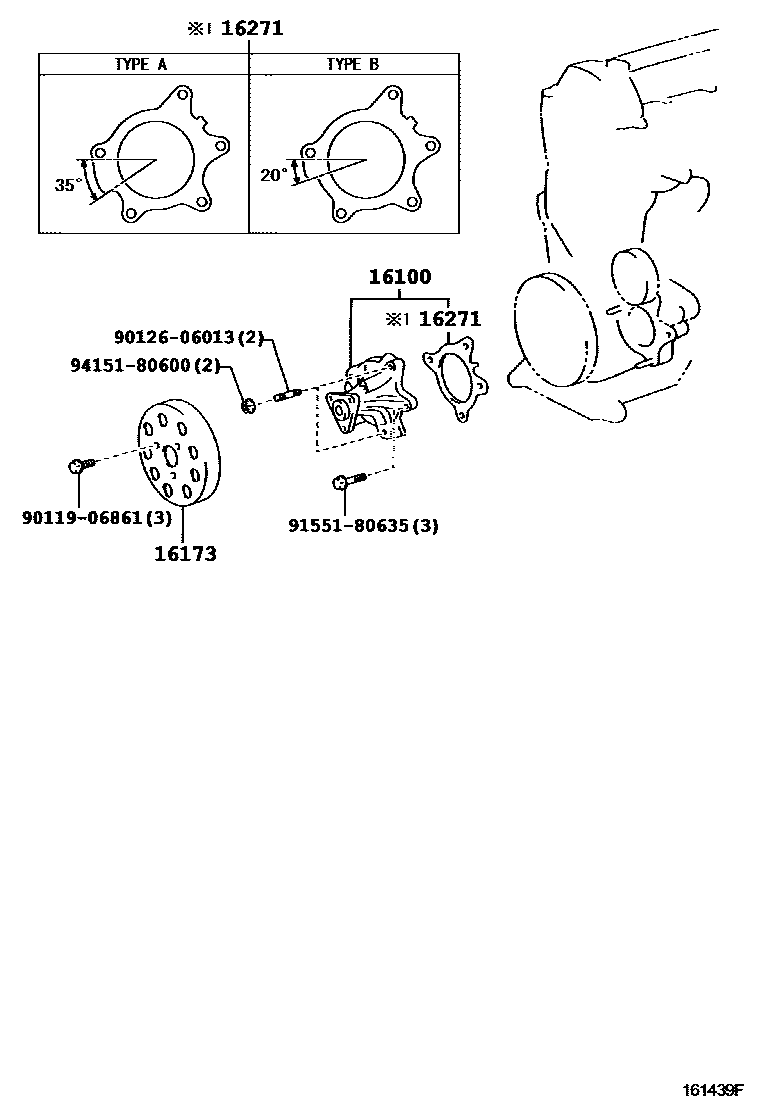

Toyota YARIS Water Pump EPC diagram — 161439F — Water Pump — 161439F (200110 – 999999)

PNC and OE references

PNC	Part name	OE numbers
16100	Engine water pump assembly	16100-29115 · 16100-29125 · 16100-29155 · 16100-29156 · 16100-29195 · 16100-29196
16173	water pump pulley	16173-21020 · 16173-23020 · 16173-23030 · 16173-33010
16271	water pump gasket	16271-21020 · 16271-23020 · 16271-33020
