Toyota YARIS Crankshaft & Piston — Figure 1301

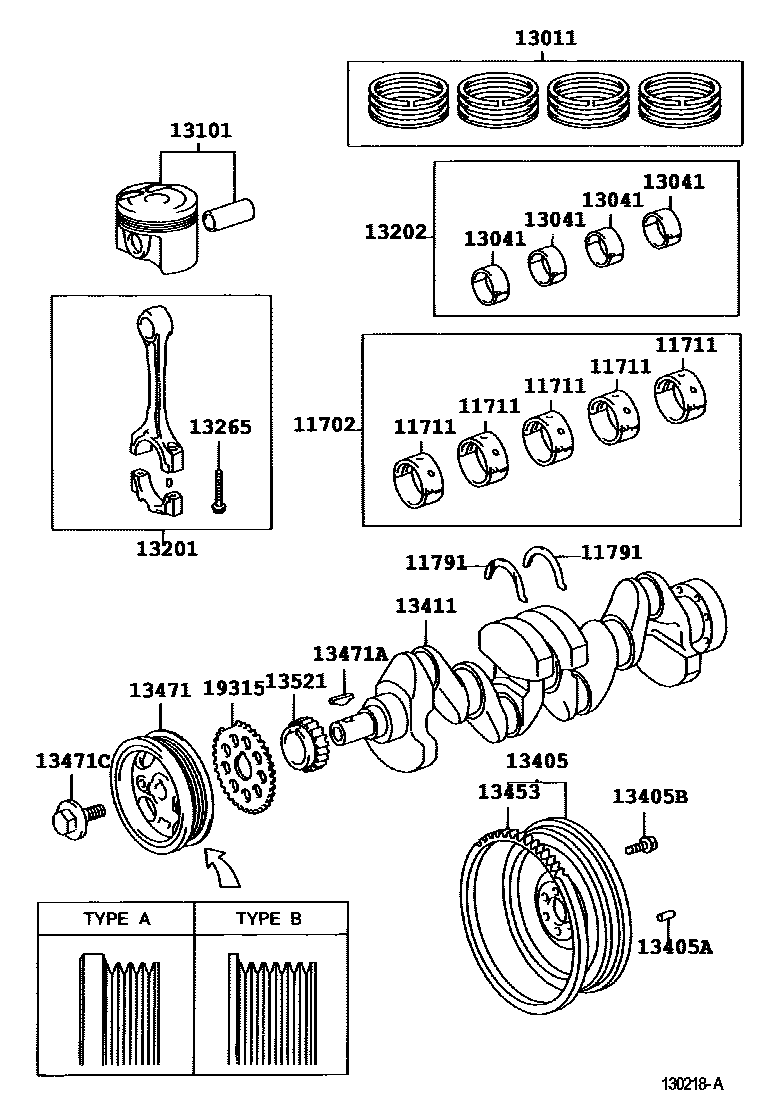

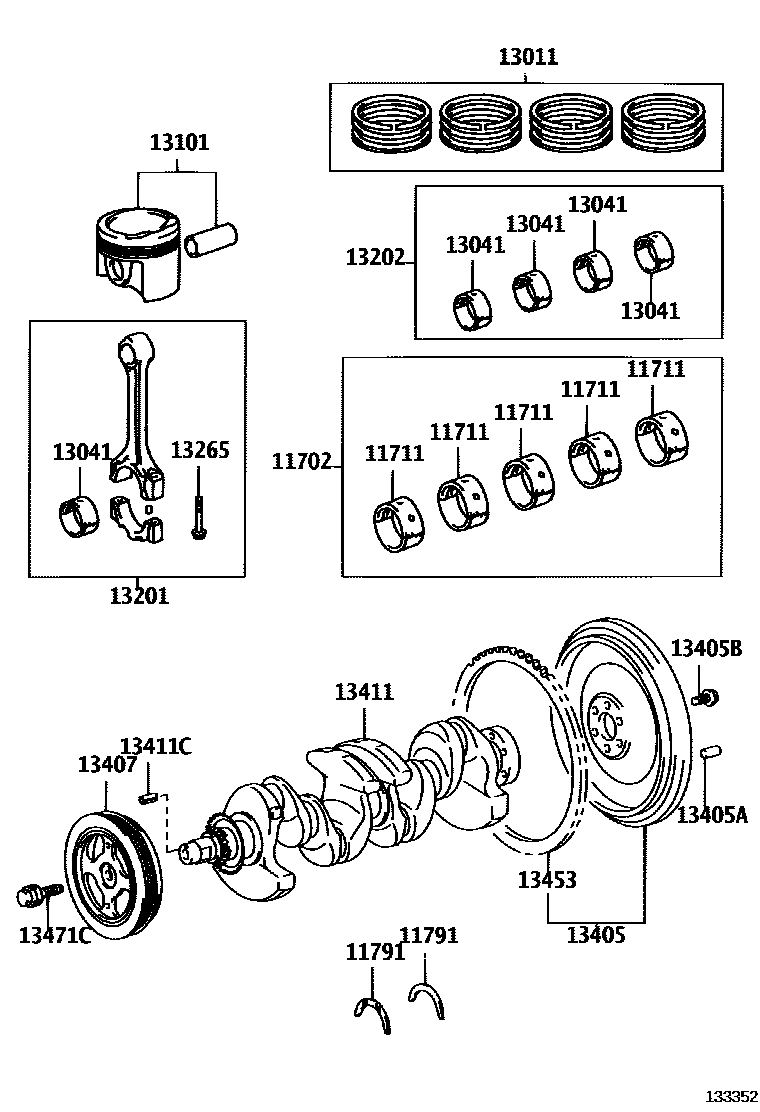

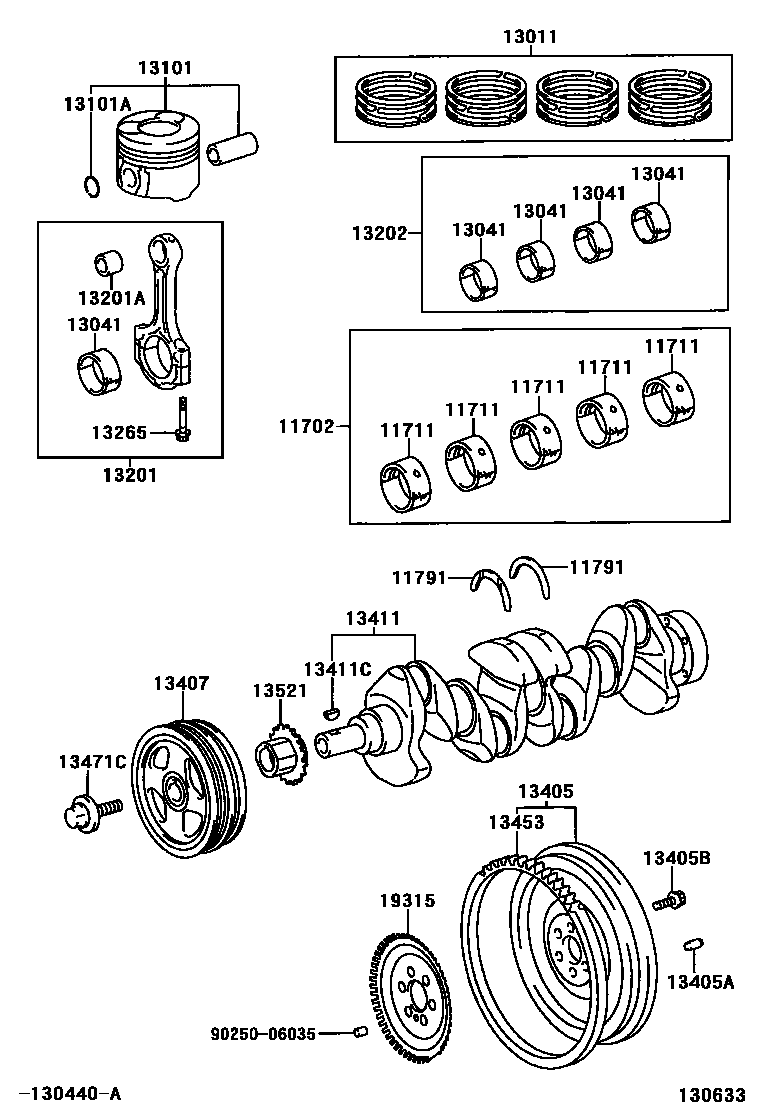

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21010 · 11704-21020 · 11704-21031 · 11704-21040 · 11704-23020 · 11704-23050 |
| 11791 | Thrust washer on crankshaft | 11791-21010 · 11791-22020 · 11791-23020 · 11791-33030 · 11791-37010 · 11792-21010 · 11792-22020 · 11792-23020 · 11792-33030 · 11793-21010 · 11793-22020 · 11793-23020 · 11793-33030 |
| 13011 | Piston ring assembly | 13011-21040 · 13011-21041 · 13011-21050 · 13011-23040 · 13011-23041 · 13011-33040 · 13011-33041 · 13013-23040 · 13013-23041 |
| 13041 | Connecting rod bearing | 13041-23020 |
| 13101 | Piston sub-assembly with pin | 13101-0W010 · 13101-0W011 · 13101-21030 · 13101-21040 · 13101-21070 · 13101-23020 · 13103-23020 |
| 13101A | Bore snap ring (for piston pin) | 90080-52139 |
| 13201 | Connecting rod sub-assembly | 13201-23022 · 13201-29095 · 13201-29115 · 13201-29425 · 13201-29735 · 13201-39035 · 13201-39055 |
| 13201A | Bushing (for connecting rod small end) | 90999-73146 · 90999-73147 |
| 13202 | Connecting rod bearing assembly | 13204-21022 · 13204-21030 · 13204-21031 · 13204-23020 · 13204-33040 · 13204-33041 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-23010 |
| 13405 | Flywheel sub-assembly | 13405-21020 · 13405-21030 · 13405-23040 · 13405-33020 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10463 · 90913-01023 · 90913-01024 |
| 13407 | Crankshaft damper sub-assembly | 13407-21020 · 13407-33010 |
| 13411 | crankshaft | 13401-21020 · 13401-21030 · 13401-33010 · 13401-33011 · 13411-23030 · 13411-33903 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 · 95161-30416 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-23020 · 13453-55010 |
| 13471 | crankshaft pulley | 13470-23010 · 13470-23020 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12308 · 90119-12345 · 90119-14106 |
| 13521 | Crankshaft timing gear or sprocket | 13521-23010 · 13521-33020 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-23010 · 19315-33010 |
