Toyota YARIS Engine Mounting — Figure 1107

Toyota YARIS EPC diagram 1107, Engine Mounting, with 4 images and 11 PNC and OE references.

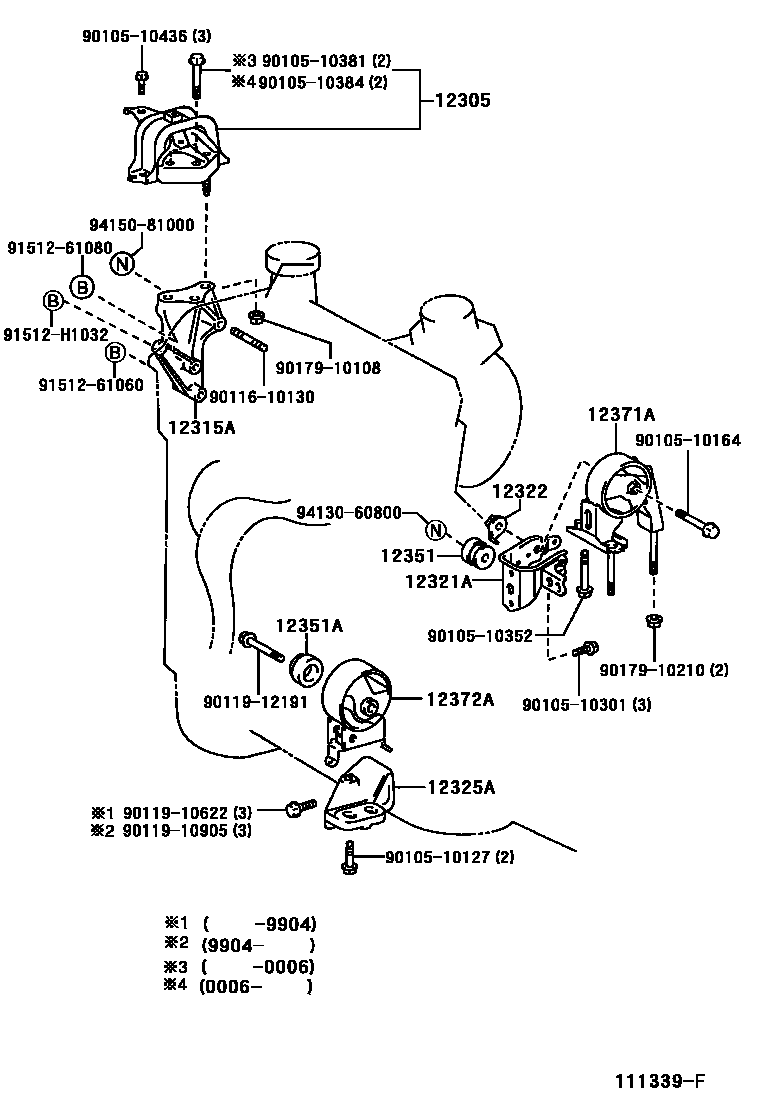

Toyota YARIS Engine Mounting EPC diagram — 111339F
Engine Mounting — 111339F (199901 – 200212)

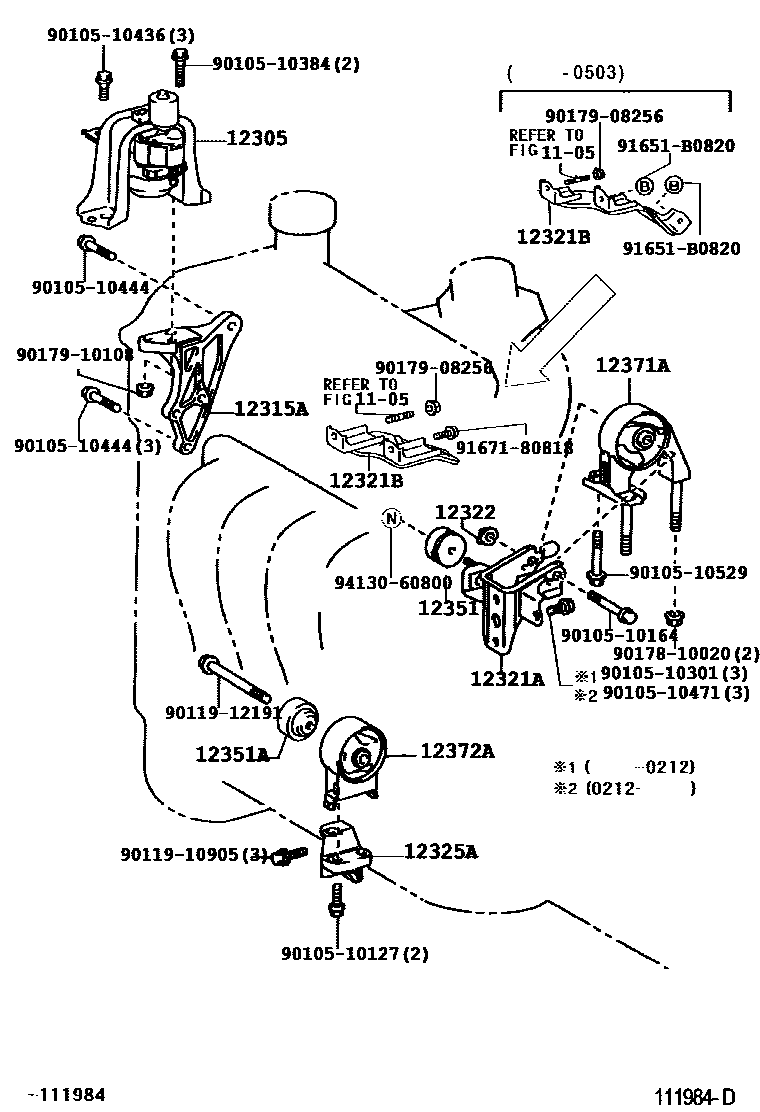

Toyota YARIS Engine Mounting EPC diagram — 111984D
Engine Mounting — 111984D (200101 – 999999)

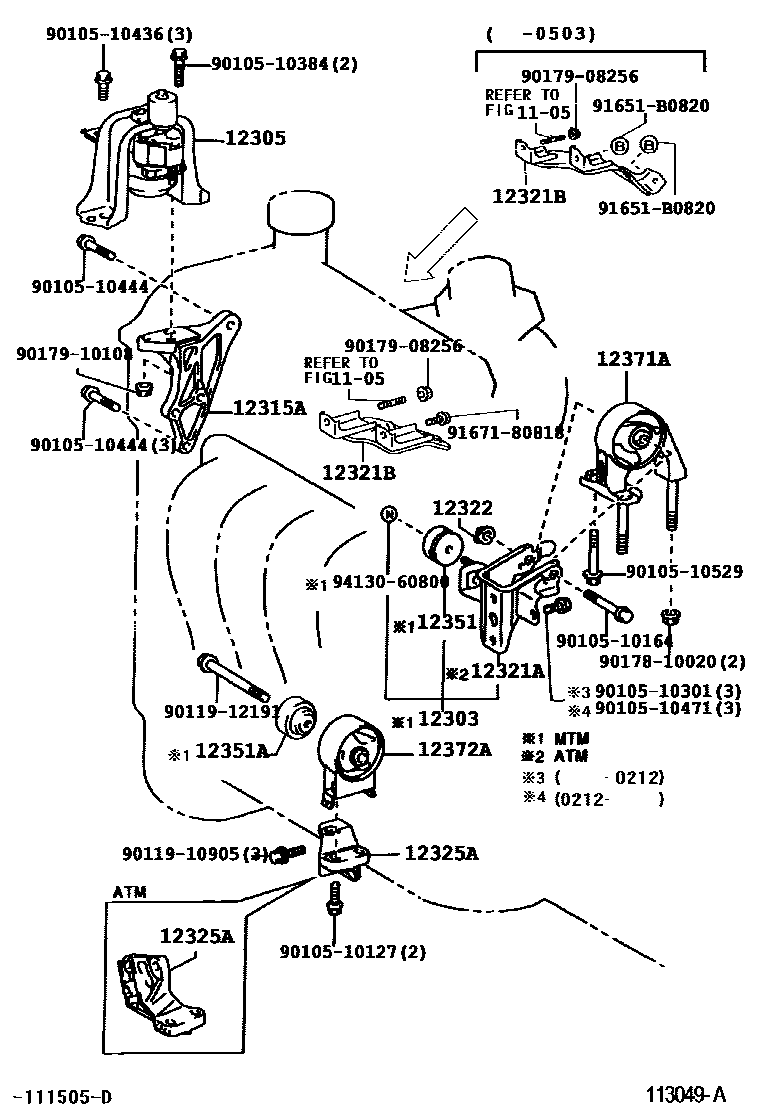

Toyota YARIS Engine Mounting EPC diagram — 113049A
Engine Mounting — 113049A (199908 – 999999)

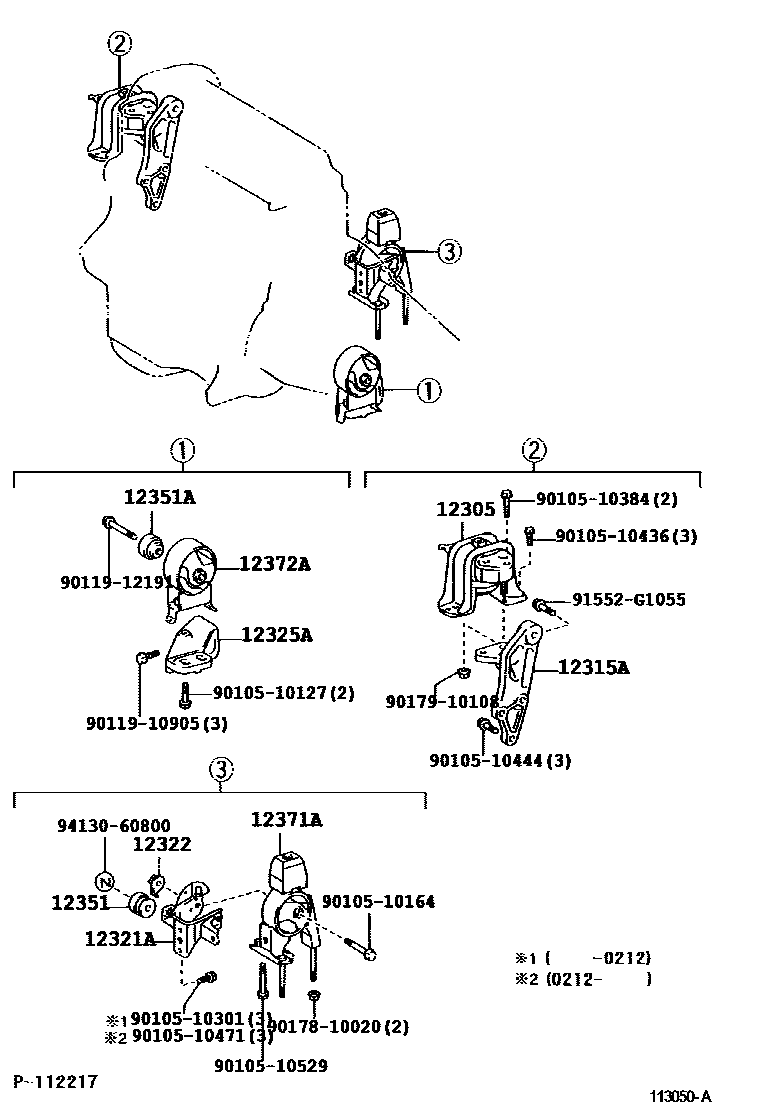

Toyota YARIS Engine Mounting EPC diagram — 113050A
Engine Mounting — 113050A (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
12303Engine rear mounting bracket sub-assembly12303-21020 · 12303-21070
12305Engine right side mounting vibration isolation pad sub-assembly12305-21060 · 12305-21140 · 12305-23010 · 12305-23011 · 12305-33010
12315AEngine right side mounting bracket (for transversely mounted engine)12315-21030 · 12315-21040 · 12315-23021 · 12315-33020
12321ARear engine mounting bracket (for transverse engine)12321-21030 · 12321-21100 · 12321-21140 · 12321-23020 · 12321-23021
12321BDrive shaft heat insulation pad sub-assembly43409-52010 · 43409-52020
12322Engine No. 2 rear suspension bracket12322-23020
12325AEngine left side mounting bracket (for transversely mounted engine)12325-21020 · 12325-21030 · 12325-23010 · 12325-23011
12351engine mount shock absorber12351-11130 · 12351-23010
12351AEngine mount shock absorber (for vibration isolation pad)12351-11030
12371AEngine rear mount vibration isolation pad12371-21020 · 12371-21021 · 12371-21150 · 12371-23010 · 12371-23011 · 12371-23020 · 12371-33020
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-23010 · 12372-23020
