Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 16 PNC and OE references.

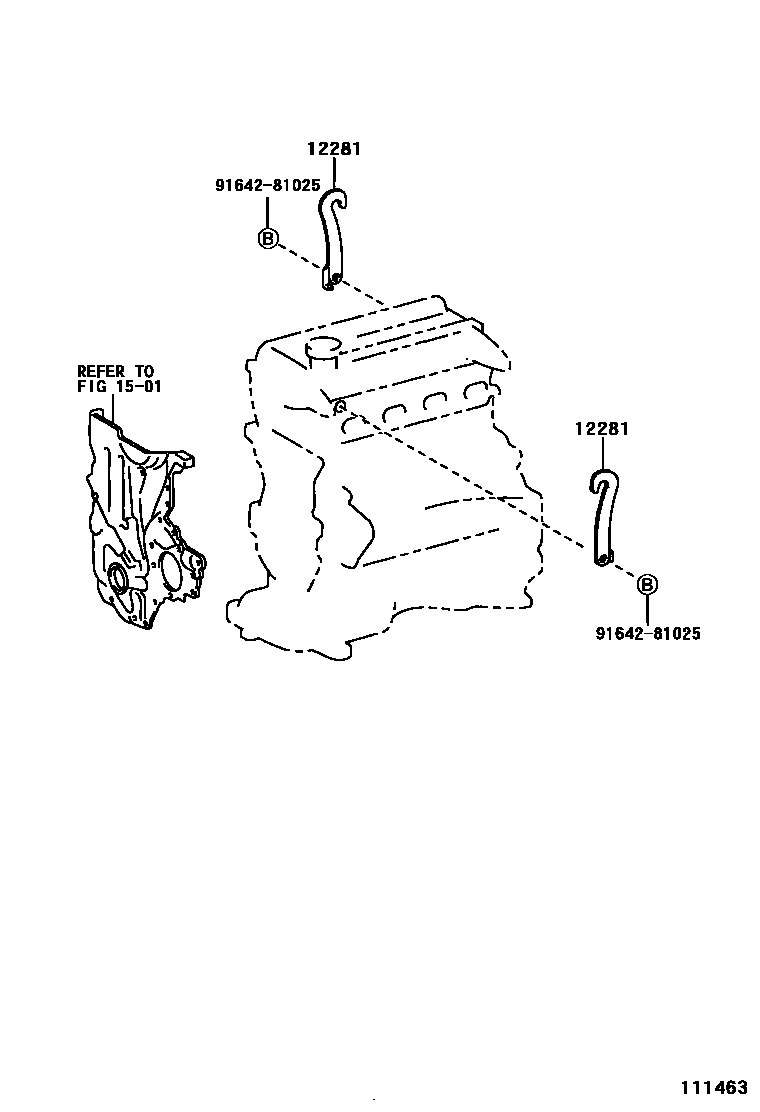

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 111463
Timing Gear Cover & Rear End Plate — 111463 (199908 – 999999)

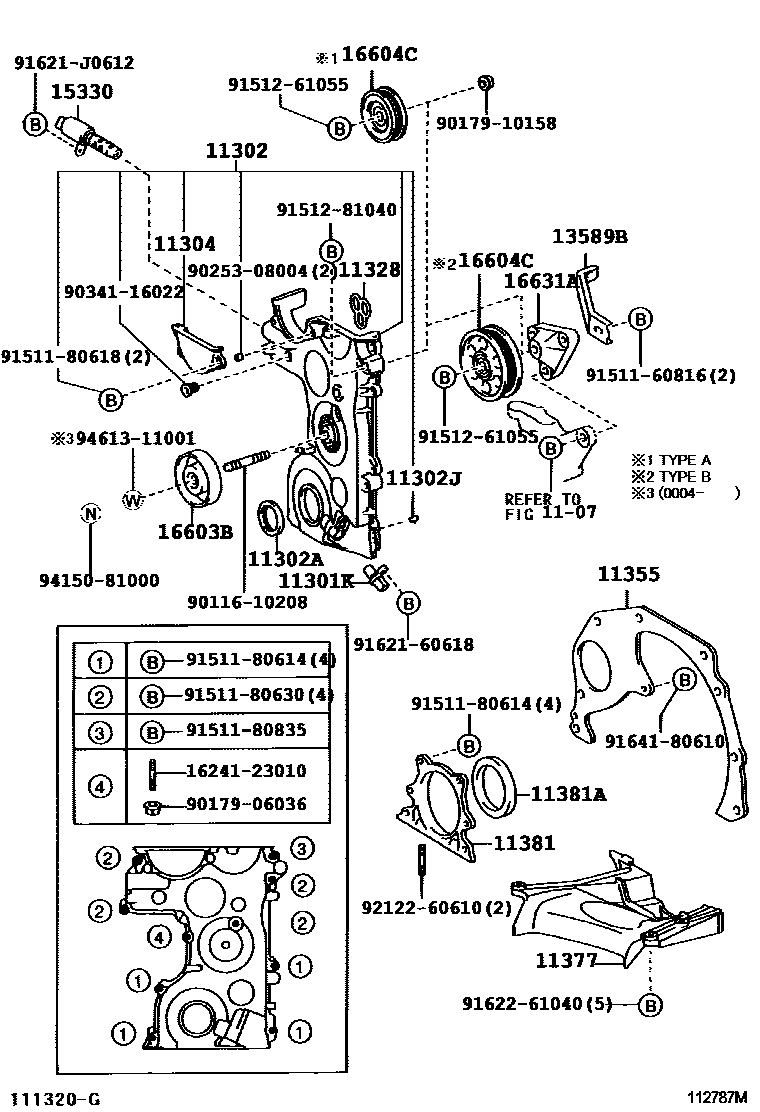

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 112787M
Timing Gear Cover & Rear End Plate — 112787M (199901 – 200212)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05043
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-23010 · 11310-23011 · 11310-23012
11302AOil seal (for timing chain or timing belt cover)90311-35040
11302JDirect sales (for timing chain cover)90250-06030
11304No. 2 timing chain or timing belt cover11322-23010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-23020
11355rear end plate11355-23010
11377Rear end plate reinforcement11377-23010 · 11377-23011
11381RETAINER, ENGINE REAR OIL SEAL11381-23010
11381ASEAL, ENGINE REAR OIL90311-73001
12281Engine No. 1 hanger12281-21010
13589BIdler gear bracket stay13589-23010
15330Camshaft timing oil control valve assembly15330-23010
16603BIdler gear sub-assembly16603-23010 · 16603-23011 · 88440-52010
16604CNo. 2 idler pulley sub-assembly16604-23020 · 16604-23030 · 88440-52020
16631AIdler gear bracket16631-23010
