Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

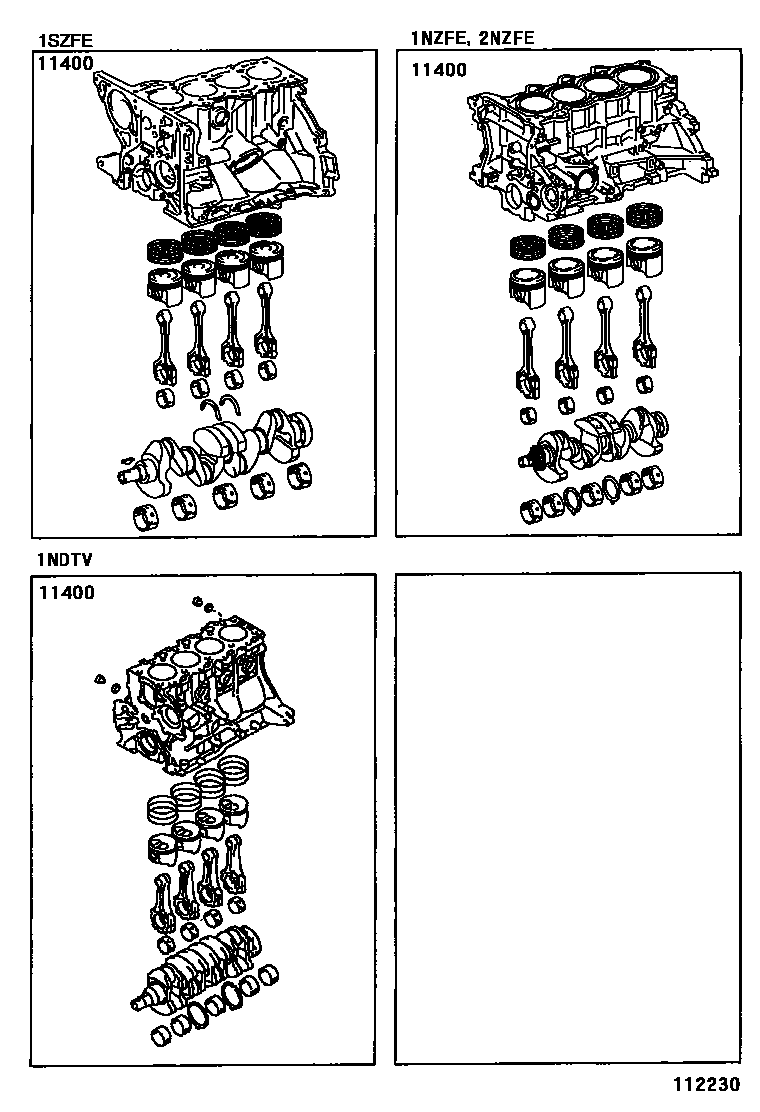

Toyota YARIS Short Block Assembly EPC diagram — 112230
Short Block Assembly — 112230 (199901 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-21040 · 11400-21051 · 11400-21080 · 11400-21220 · 11400-23020 · 11400-23021 · 11400-33030
