Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

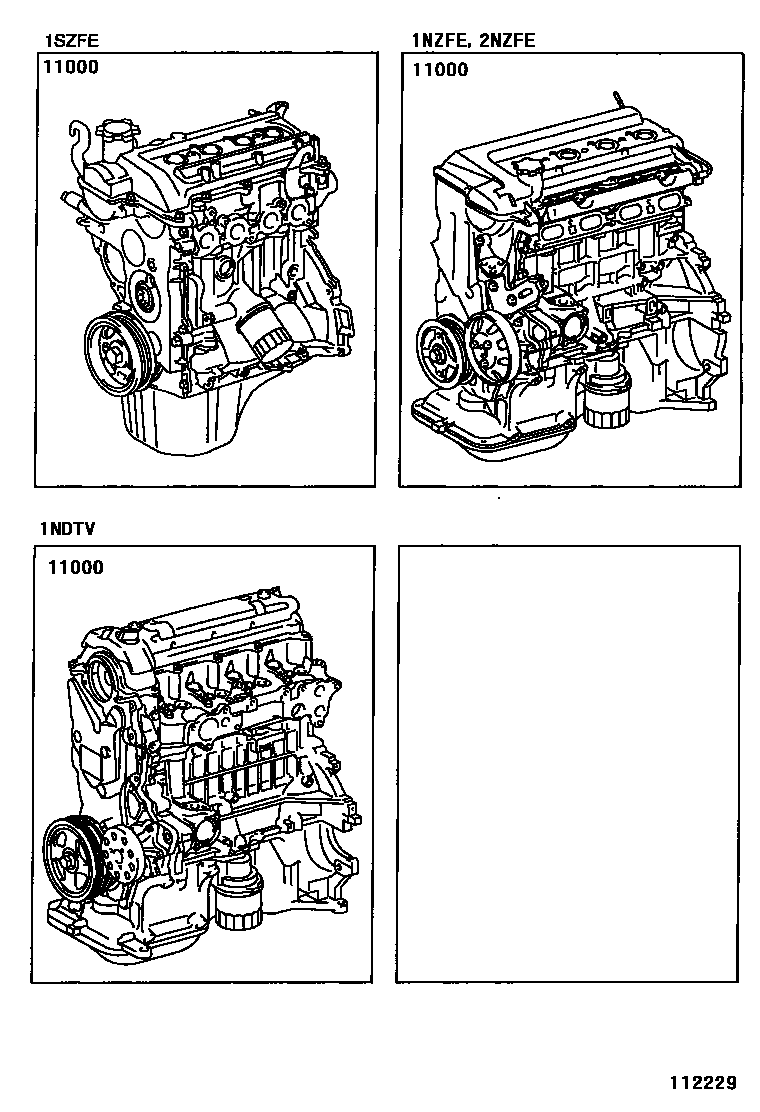

Toyota YARIS Partial Engine Assembly EPC diagram — 112229
Partial Engine Assembly — 112229 (199901 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-21040 · 19000-21041 · 19000-21160 · 19000-21191 · 19000-21230 · 19000-21231 · 19000-23070 · 19000-23080 · 19000-23081 · 19000-23090 · 19000-23091 · 19000-23100 · 19000-23101 · 19000-23110 · 19000-23120 · 19000-23130 · 19000-33040
