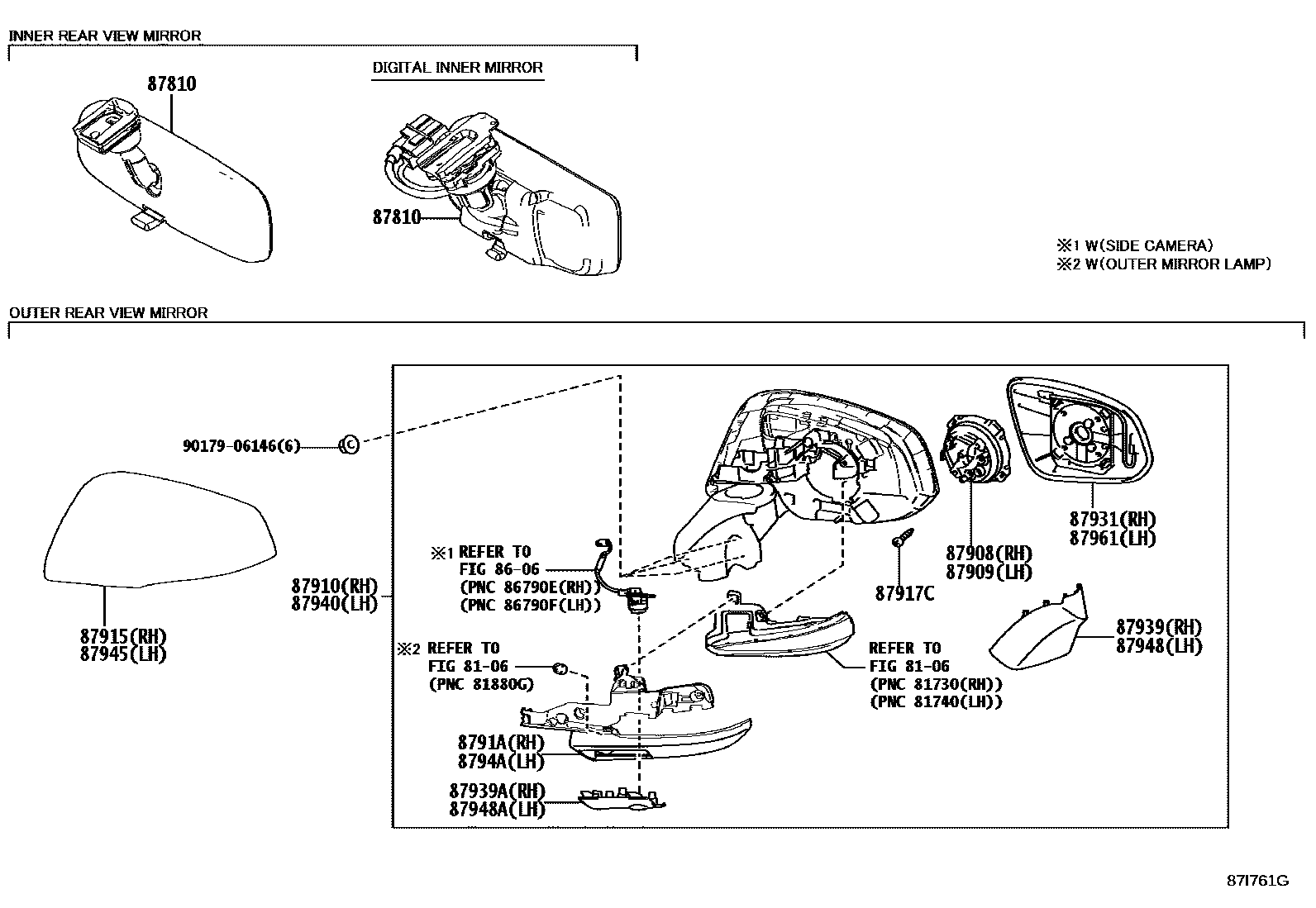

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0WW70 · 87810-0WZ30 · 87810-28140 · 87840-0W140 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-42E71 |
| 87909 | Left exterior rearview mirror actuator assembly | 87908-42E71 |
| 87910 | Right exterior rearview mirror assembly | 87910-42E41 · 87910-42E42 · 87910-42E61 · 87910-42K50 · 87910-42K51 · 87910-42K90 · 87910-42L20 · 87910-42L21 · 87910-42L60 · 87910-42L80 |
| 87917C | Exterior rearview mirror screws | 87917-15010 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791B-42E40 · 8791B-42E50 |
| 87931 | Right exterior rearview mirror | 87931-42E50 |
| 87939 | Right exterior rearview mirror hole cover | 87939-42E30 |
| 87939A | Right exterior rearview mirror hole cover | 87939-42E50 · 87939-42E60 · 87939-42L20 |
| 87940 | Left exterior rearview mirror assembly | 87940-42E11 · 87940-42E12 · 87940-42E31 · 87940-42K40 · 87940-42K41 · 87940-42K80 · 87940-42L10 · 87940-42L11 · 87940-42L50 · 87940-42L70 |
| 87948 | Left exterior rearview mirror hole cover | 87948-42E00 |
| 87948A | Left exterior rearview mirror hole cover | 87948-42E20 · 87948-42E30 · 87948-42L10 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794B-42E10 · 8794B-42E20 |
| 87961 | Left exterior rearview mirror | 87961-42E20 · 87961-42E40 |
