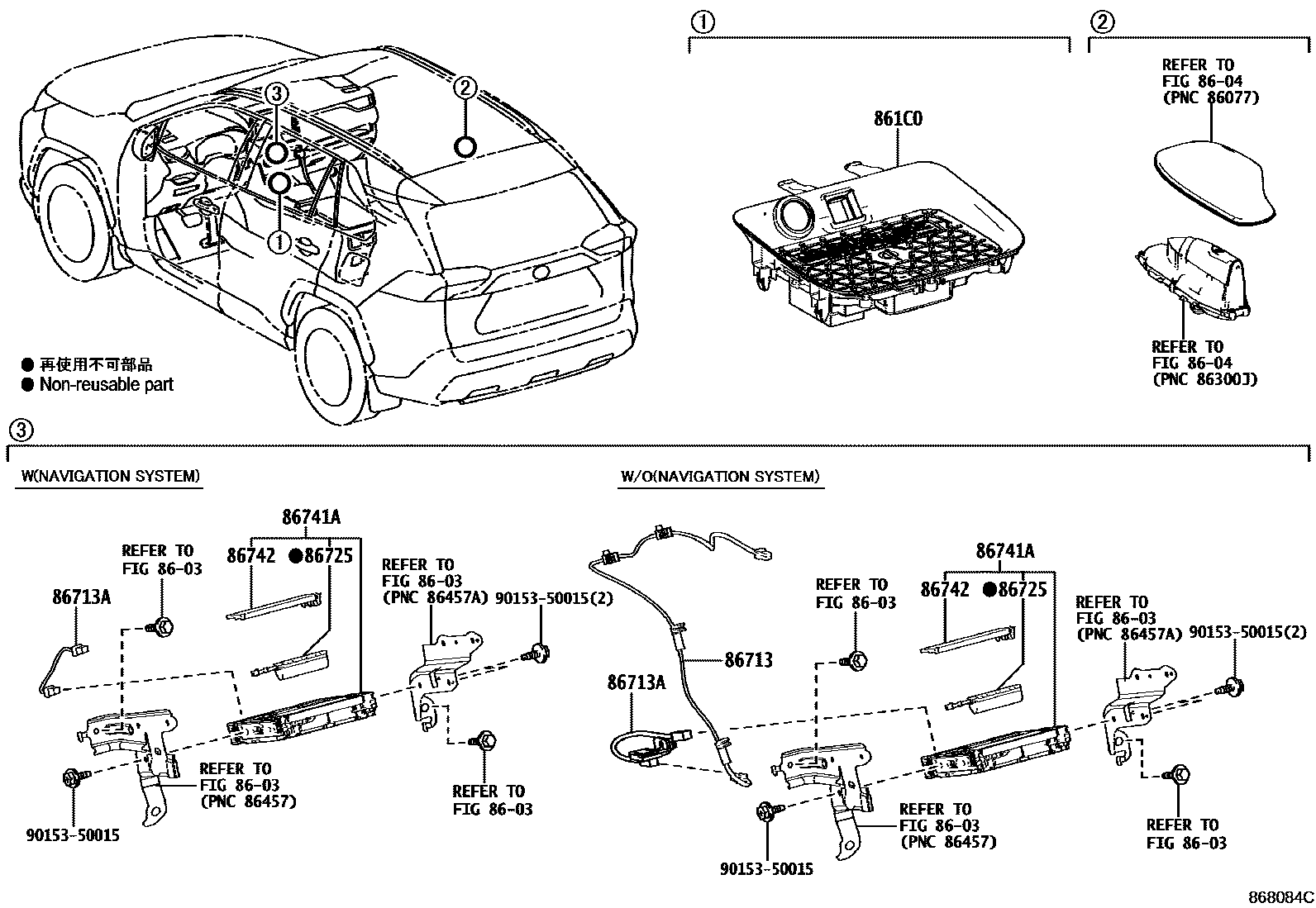

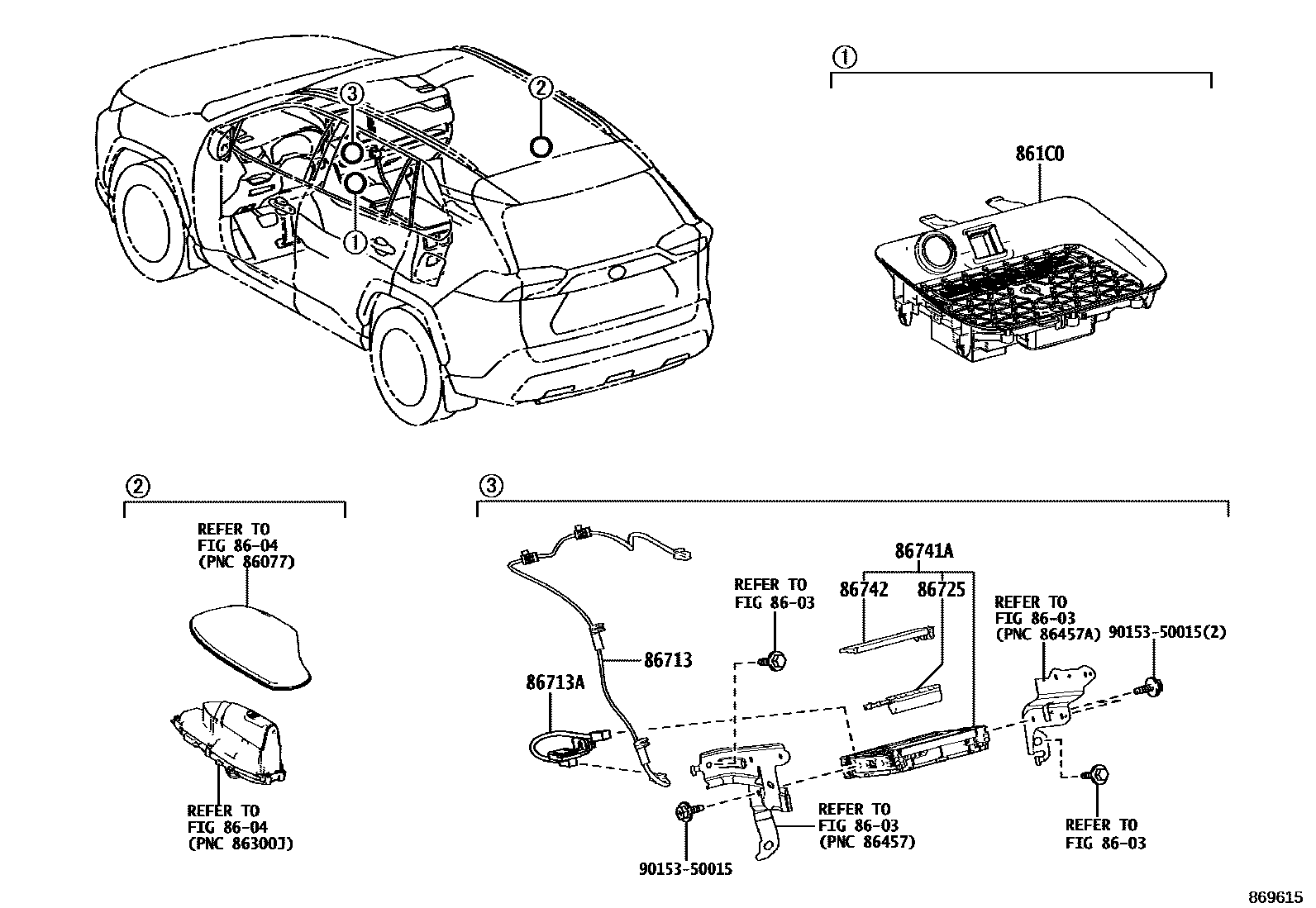

Toyota RAV4 车载电话和呼救装置 — Figure 8615
Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713 | Telephone ECU wiring harness | 86713-42020 · 86713-42170 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-42080 · 86713-42090 |
| 86725 | mobile phone battery | 86725-06020 · 86725-0E010 |
| 86741A | Telecommunications transceiver | 86741-42071 · 86741-76050 · 86741-76090 |
| 86742 | transceiver cover | 86742-0E020 · 86742-78010 |
