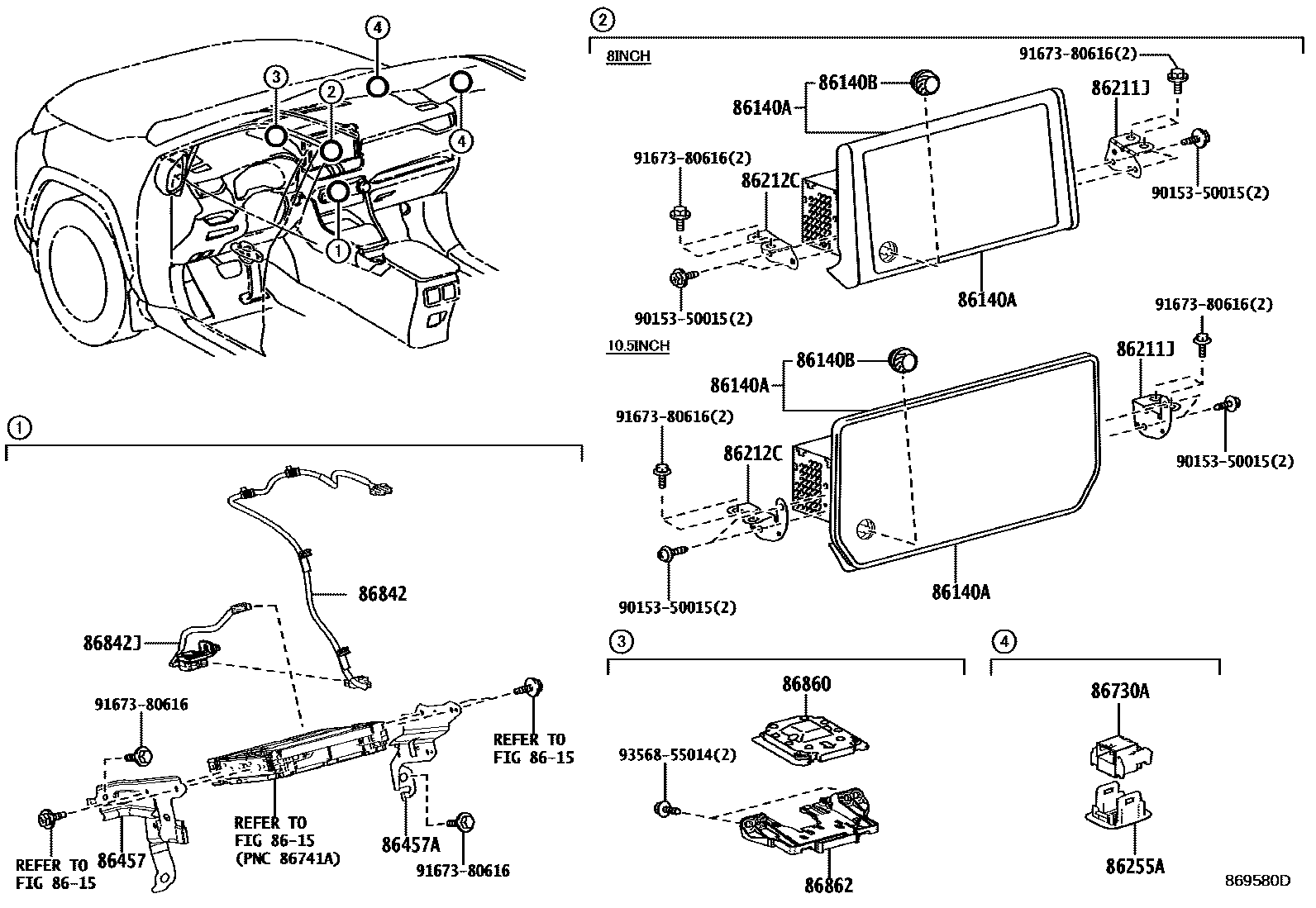

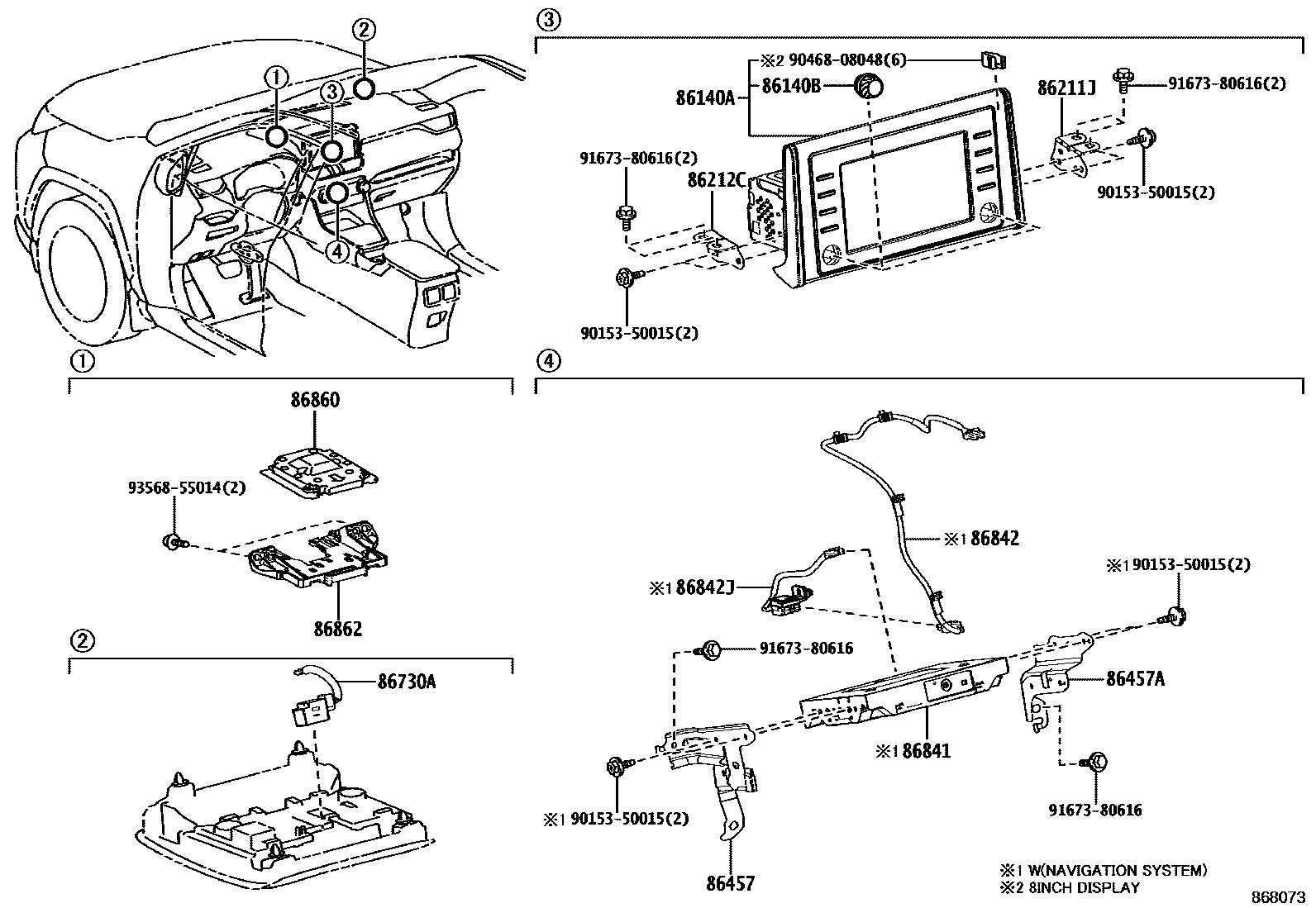

Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-42880 · 86140-42720 · 86140-42730 · 86140-42740 · 86140-42750 · 86140-42760 · 86140-42770 · 86140-42780 · 86140-42790 · 86140-42N30 · 86140-42N40 · 86140-42N60 · 86140-42N80 |
| 86140B | Radio and display receiver switch button | 90010-22132 · 90010-23059 · 90010-23065 |
| 86211J | No. 1 radio bracket | 86211-42110 · 86211-42170 |
| 86212C | No. 2 radio bracket | 86212-42110 · 86212-42170 |
| 86457 | Multimedia module bracket No. 1 | 86457-42050 |
| 86457A | Multimedia module bracket No. 2 | 86457-42060 |
| 86730A | Telephone amplifier assembly | 86730-42080 · 86730-42110 |
| 86841 | Navigation ECU | 86840-35011 · 86840-35012 · 86840-35013 · 86840-35014 · 86840-35015 |
| 86842 | Navigation harness No. 1 | 86842-42020 · 86842-42030 |
| 86842J | Navigation harness No. 2 | 86842-42030 · 86842-42120 |
| 86860 | Navigation antenna assembly | 86880-42010 · 86880-52020 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-48060 |
