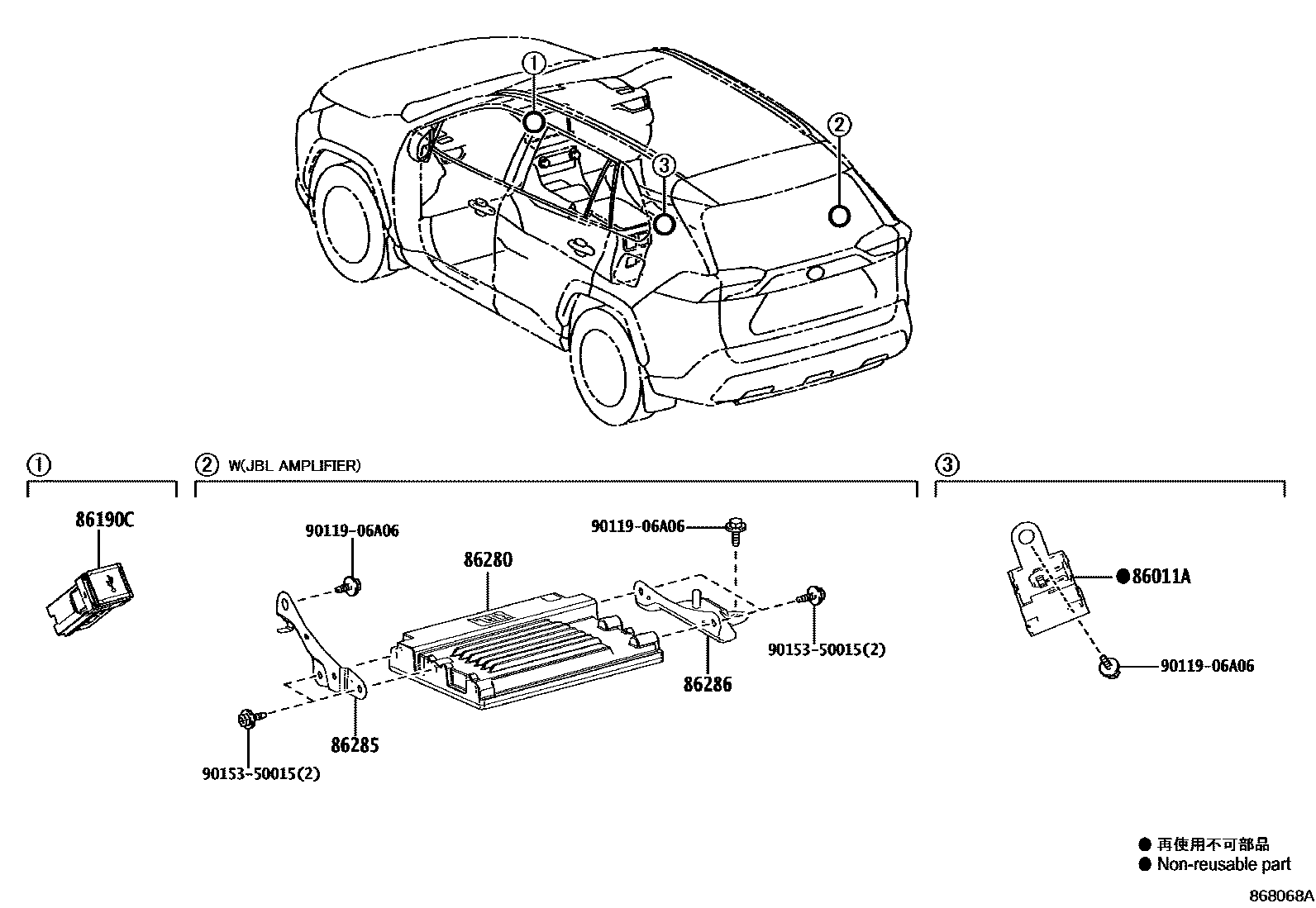

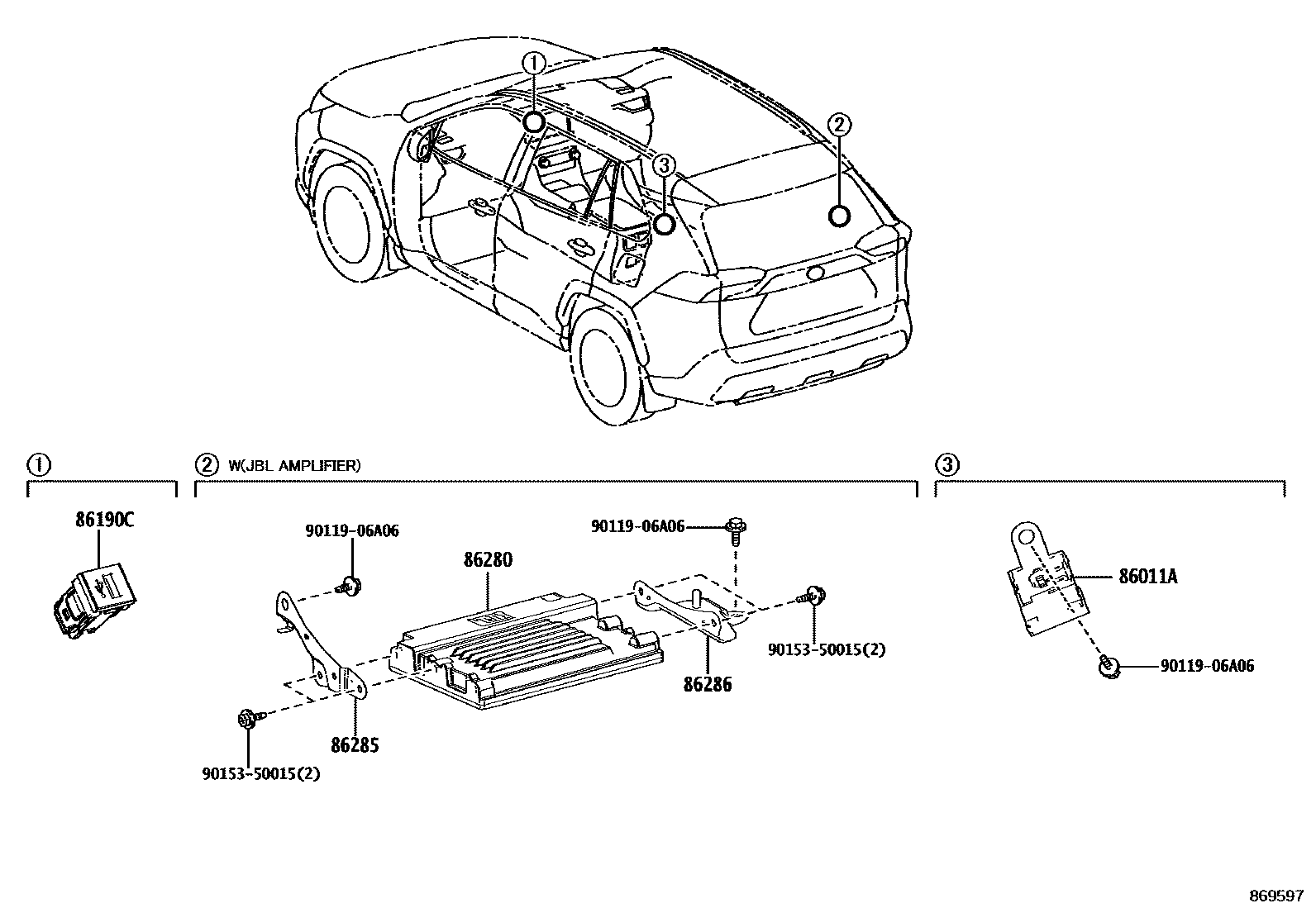

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04189 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-34010 · 86190-42030 · 86190-42031 |
| 86280 | Stereo parts amplifier assembly | 86280-42060 · 86280-42100 |
| 86285 | Amplifier Stand No. 1 | 86285-42050 |
| 86286 | Amplifier Stand No. 2 | 86286-42030 |
