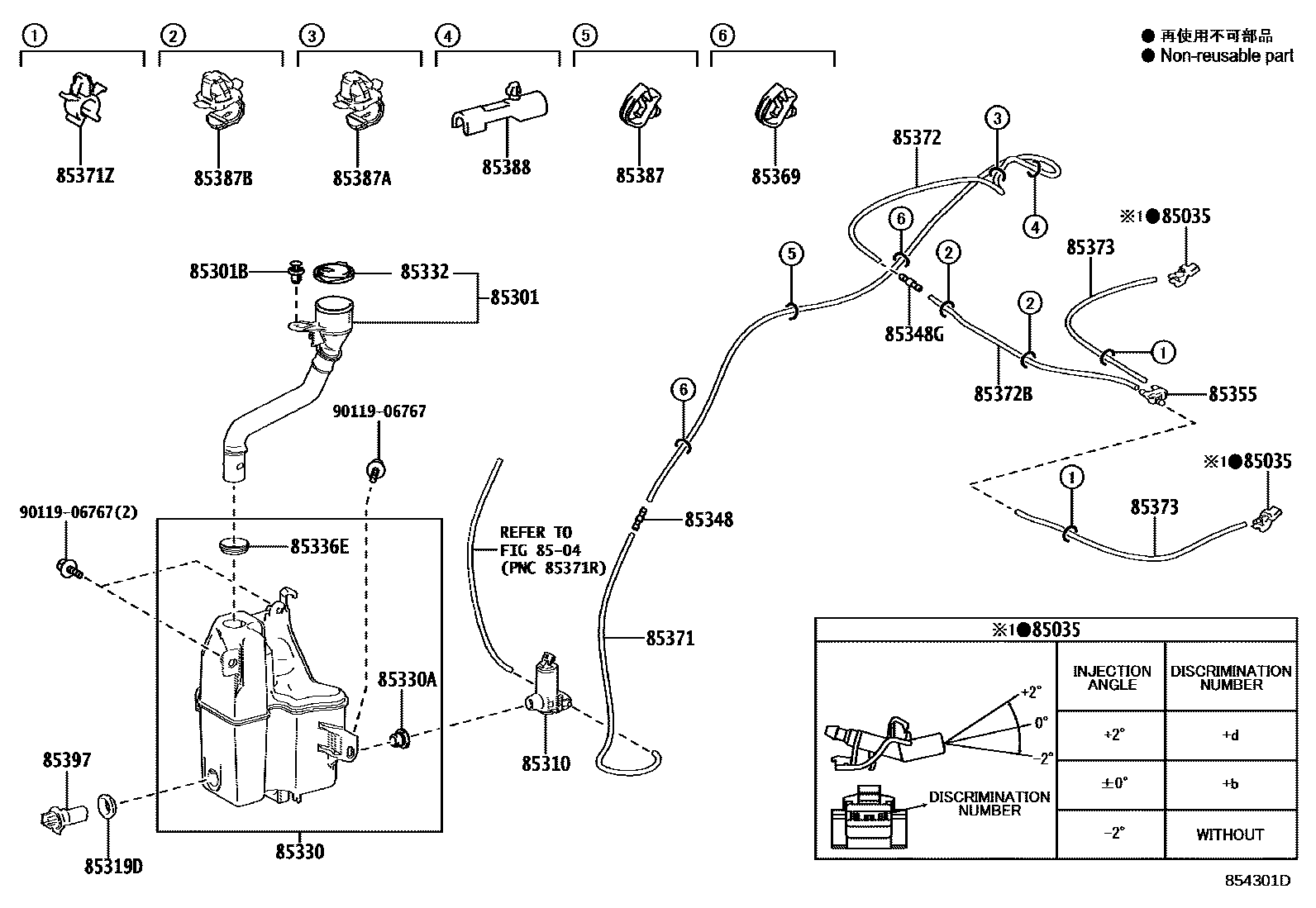

Toyota RAV4 挡风玻璃清洗器 — Figure 8503
Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85301-42031 |
| 85301B | ATTACHE, RONDELLE | 90467-07215 |
| 85310 | Windshield washer motor and pump assembly | 85330-47100 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-42410 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-42031 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348G | Windshield washer hose connector No. 2 | 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85369 | card holder | 82711-16790 |
| 85371Z | COLLIER, FLEX LAVE-VITRE | 90469-07011 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-35520 |
| 85387A | Cleaner clip No. 2 | 85371-12040 |
| 85387B | No. 3 cleaner clip | 85371-12040 |
| 85388 | Clip No. 2 (for windshield washer) | 85387-42280 |
| 85397 | Liquid level warning switch assembly | 85397-30400 |
