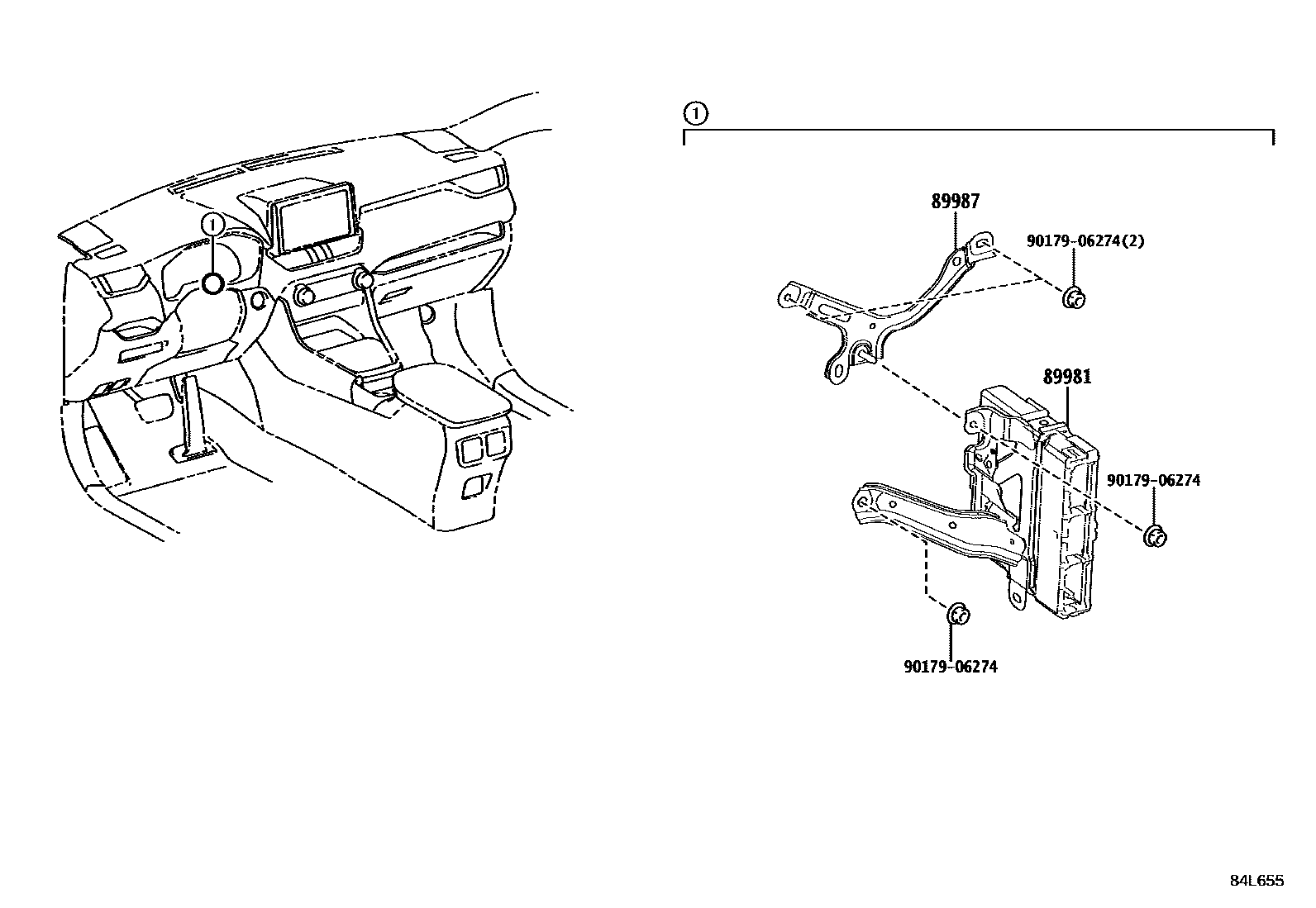

Toyota RAV4 HV控制ECU — Figure 8433
Toyota RAV4 EPC diagram 8433, HV控制ECU, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89980-42250 · 89980-42251 · 89980-42252 · 89980-42B50 · 89980-42D10 · 89980-42D11 |
| 89987 | No.1 ECU bracket | 89987-42030 |
