Toyota RAV4 HV逆变器 — Figure 8431

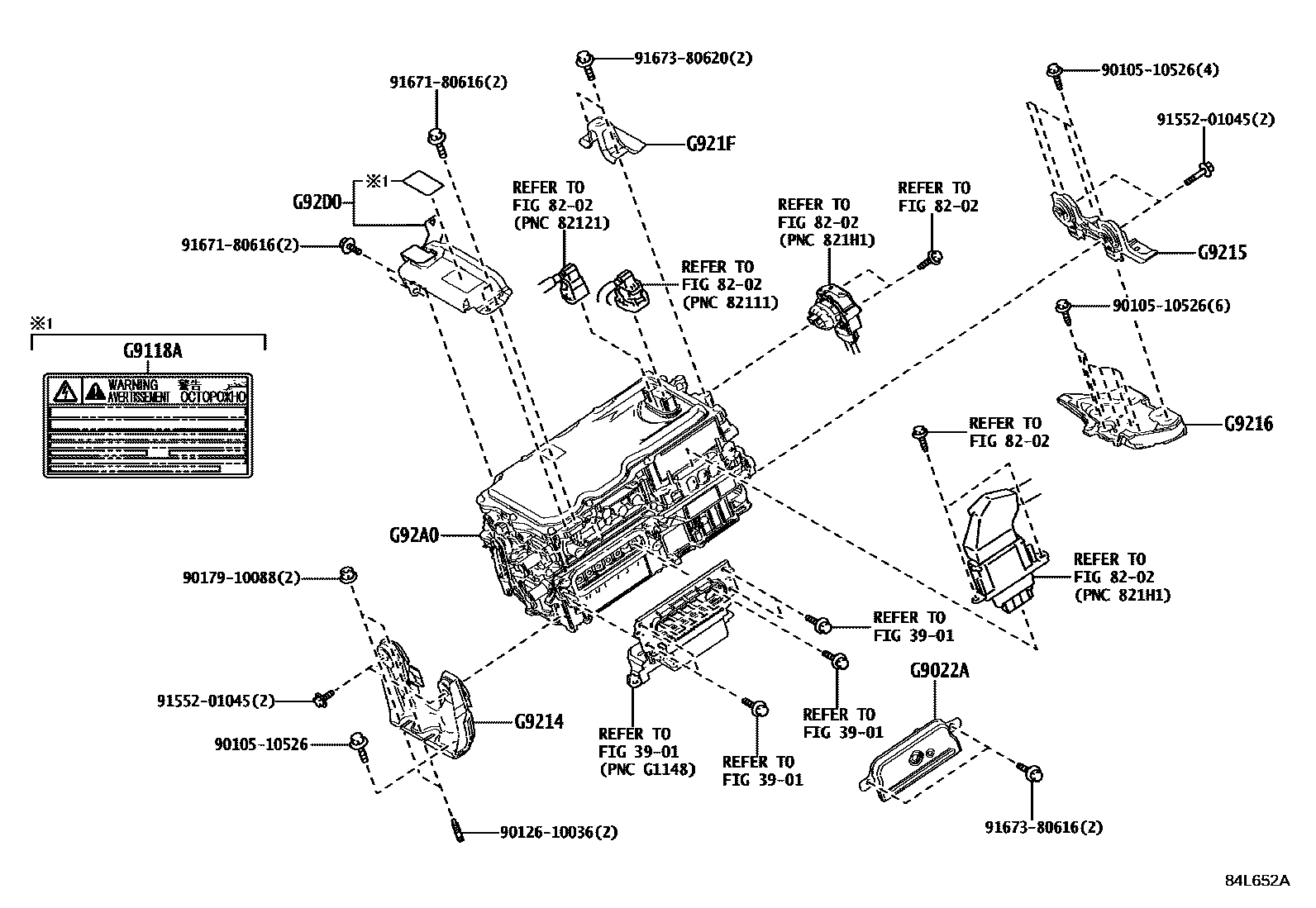

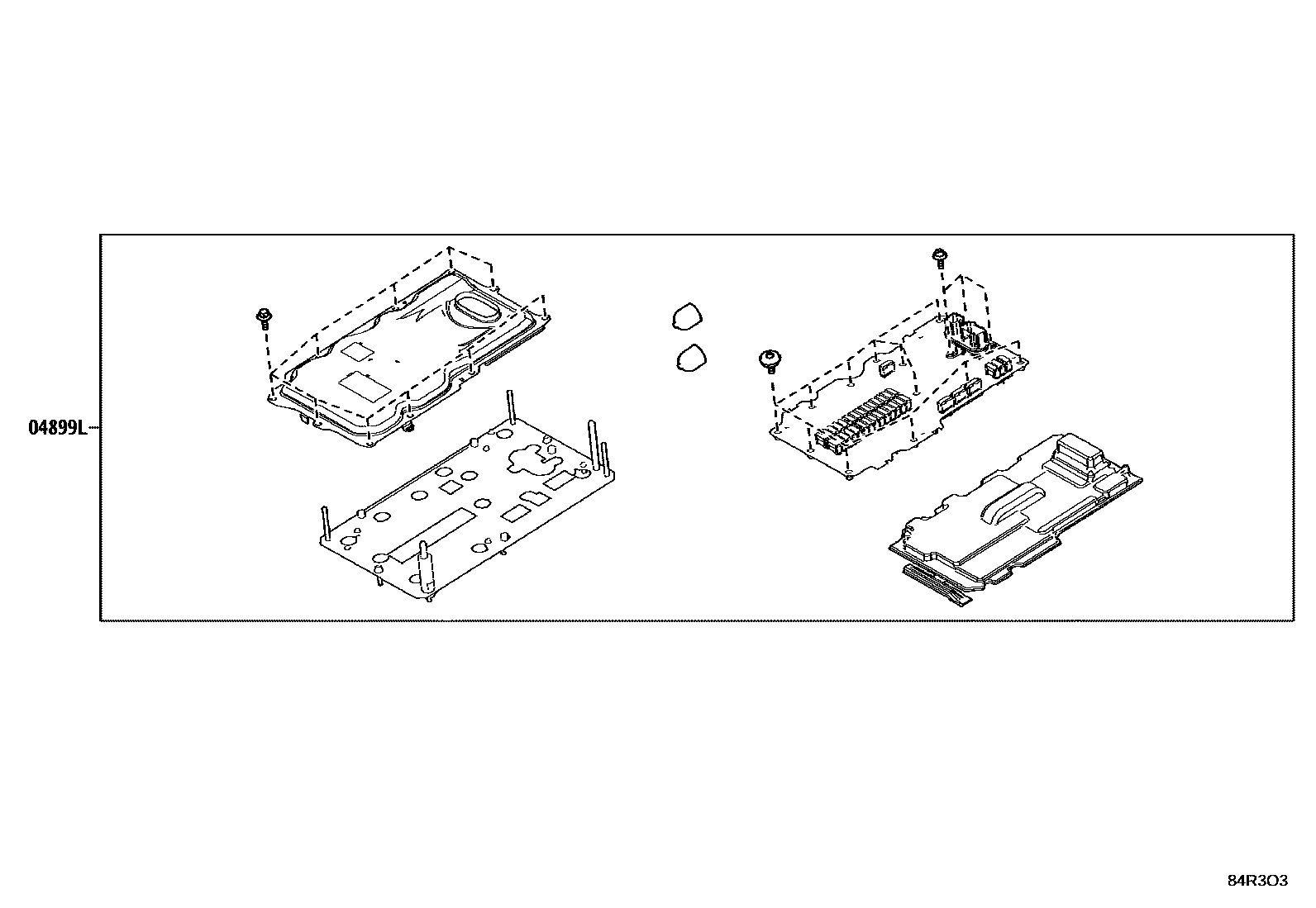

Toyota RAV4 EPC diagram 8431, HV逆变器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899L | KIT ORDINATEUR, COMMANDE GENERATEUR MOTEUR | 04899-42031 · 04899-42032 · 04899-42050 |
| G9022A | SOUS-ENS. CACHE, ONDULEUR, SUP | G9022-47050 |
| G9118A | No. 1 Electric Vehicle Device Controller Warning Label | G9118-76010 |
| G9214 | No. 1 inverter bracket | G9214-42010 |
| G9215 | No. 2 inverter bracket | G9215-42020 |
| G9216 | No. 3 inverter bracket | G9216-42020 |
| G921F | PROTECTION, INVERSEUR, NO.2 | G921F-42010 |
| G92A0 | Hybrid motor control inverter assembly | G92A0-42110 · G92A0-42111 · G92A0-42112 · G92A0-42113 |
| G92D0 | HV inverter protection device assembly | G92D0-42010 |
