Toyota RAV4 遥控门锁 — Figure 8420

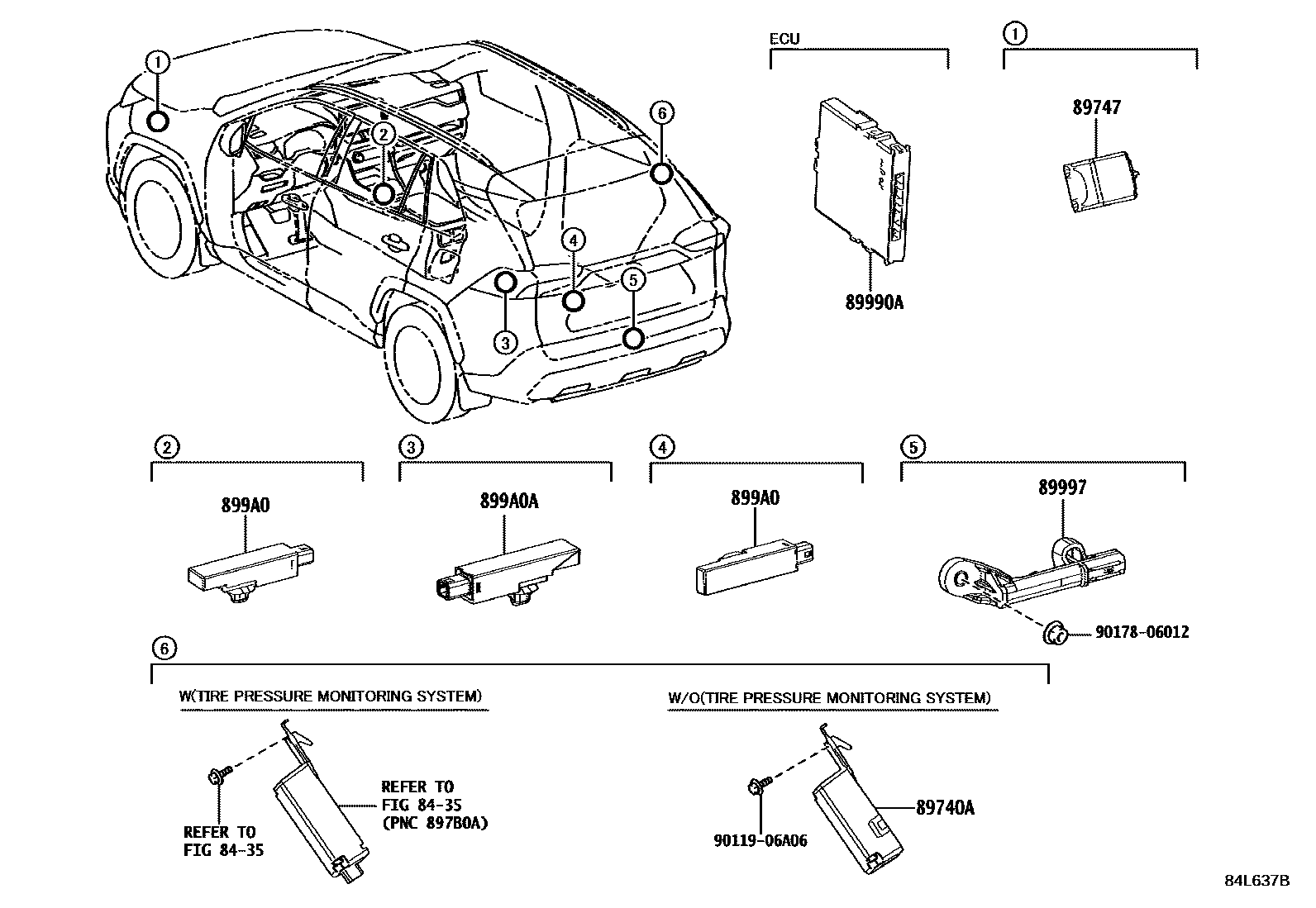

Toyota RAV4 EPC diagram 8420, 遥控门锁, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-42090 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-42190 · 899H0-42200 · 899H0-42330 · 899H0-42340 · 899H0-42421 · 899H0-42480 · 899H0-42490 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12130 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-42030 |
