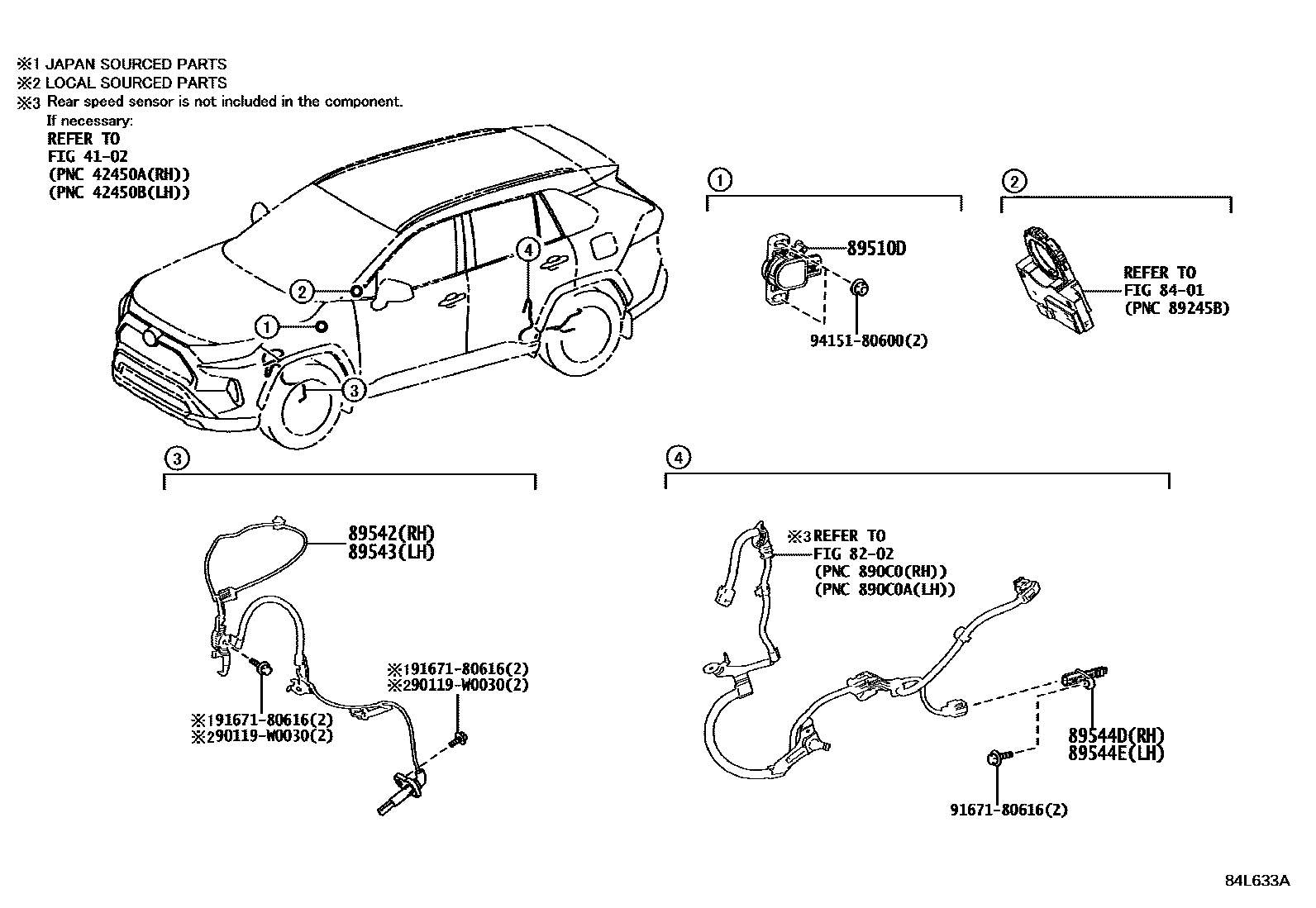

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-42010 · 89510-47040 |
| 89542 | Right front wheel speed sensor | 89542-42070 |
| 89543 | Left front wheel speed sensor | 89543-42070 |
| 89544D | CAPTEUR, CONTROLE DERAPAGE, ARR MD | 89544-06130 · 89544-0R020 |
| 89544E | CAPTEUR, CONTROLE DERAPAGE, ARR MG | 89544-06130 · 89544-0R020 |
