Toyota RAV4 后组合灯 — Figure 8111

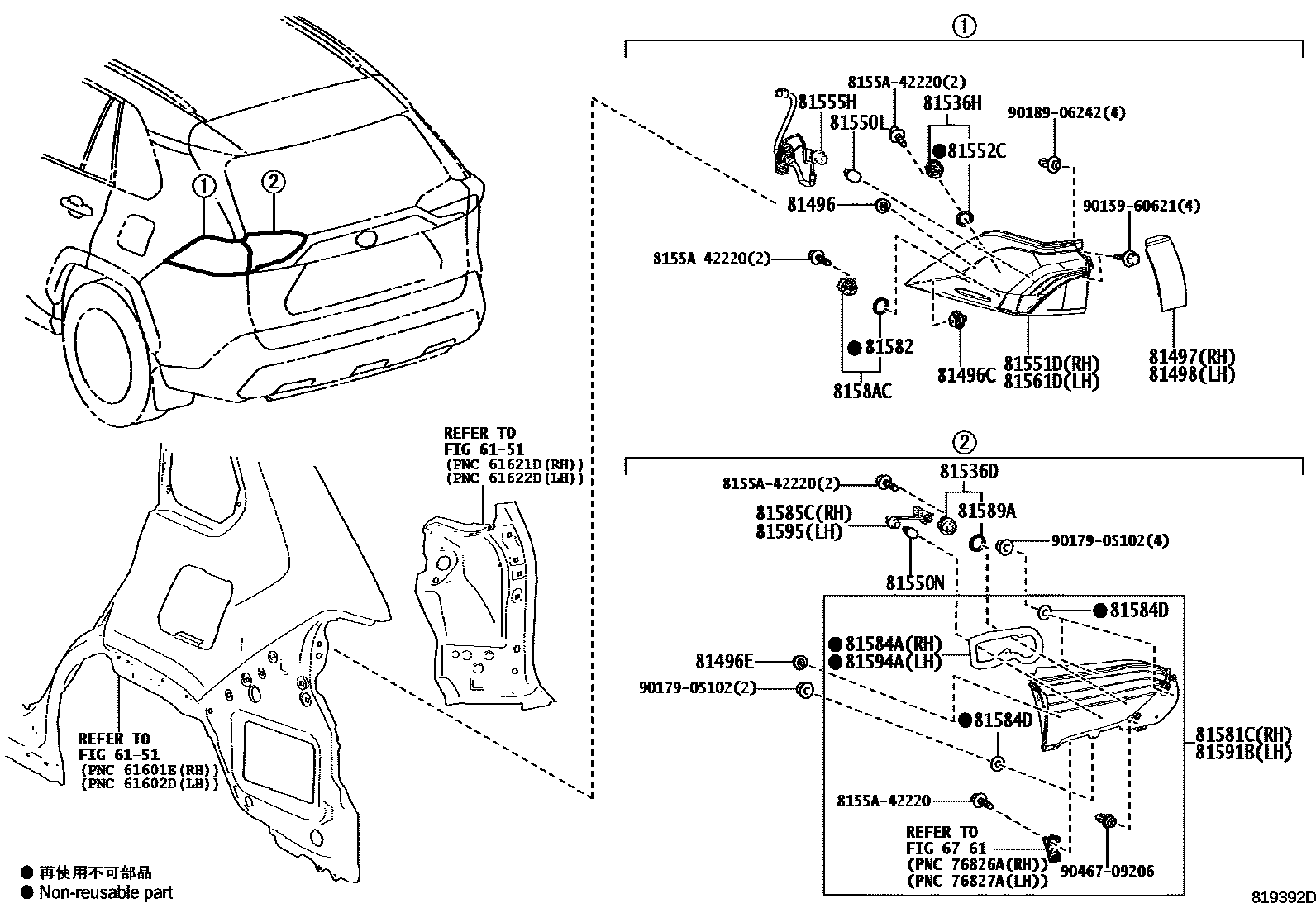

Toyota RAV4 EPC diagram 8111, 后组合灯, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81496E | GUIDE, ECLAIRAGE ARRIERE COMBINE, NO.3 | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-42010 |
| 81498 | Left rear combination lamp cover | 81498-42010 |
| 81536D | LED, FEU ARR | 81536-42200 |
| 81536H | LED, FEU ARR, NO.2 | 81536-42230 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-42221 · 81551-42230 |
| 81552C | Rear combination light gasket | 81538-42200 |
| 81555H | PRISE & CABLE, BLOC OPTIQUE ARRIERE | 81555-42220 · 81555-42230 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-42221 · 81561-42230 |
| 81581C | Right rear light lampshade and lamp body | 81581-42151 |
| 81582 | rear light gasket | 81538-42200 |
| 81584A | Right rear light gasket | 81584-42080 |
| 81584D | rear light gasket | 81584-22040 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-42080 |
| 81589A | rear light gasket | 81538-42200 |
| 8158AC | LED, FEU STOP | 81536-42200 |
| 81591B | Left rear light shade and body | 81591-42121 |
| 81594A | Left rear light gasket | 81594-42050 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-42080 |
