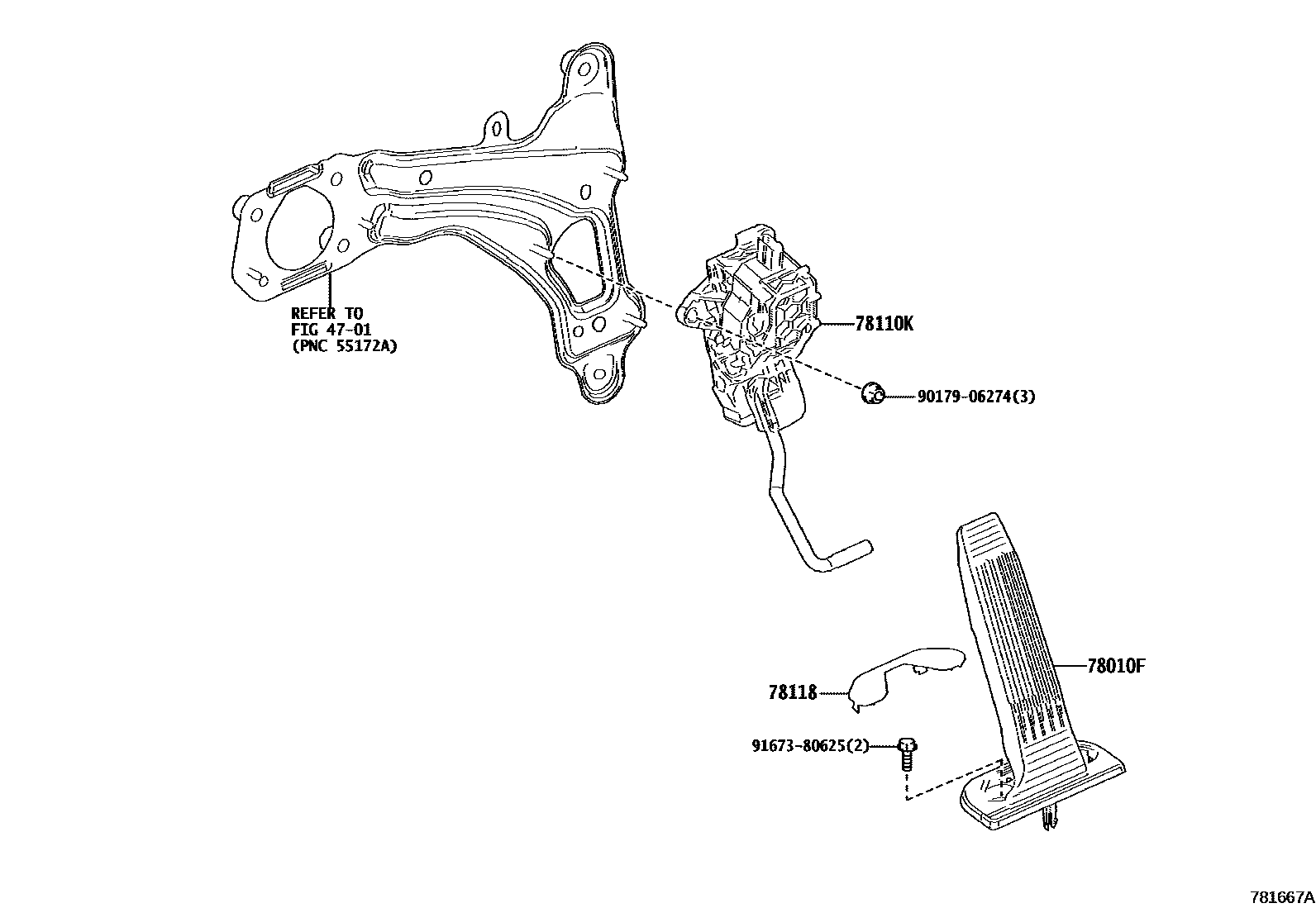

Toyota RAV4 accelerator pedal connecting rod — Figure 7851
Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78101-33060 · 78101-33061 |
| 78110K | Accelerator pedal sensor assembly | 78110-33130 · 78110-33131 |
| 78118 | accelerator pedal pad | 78117-33020 |
