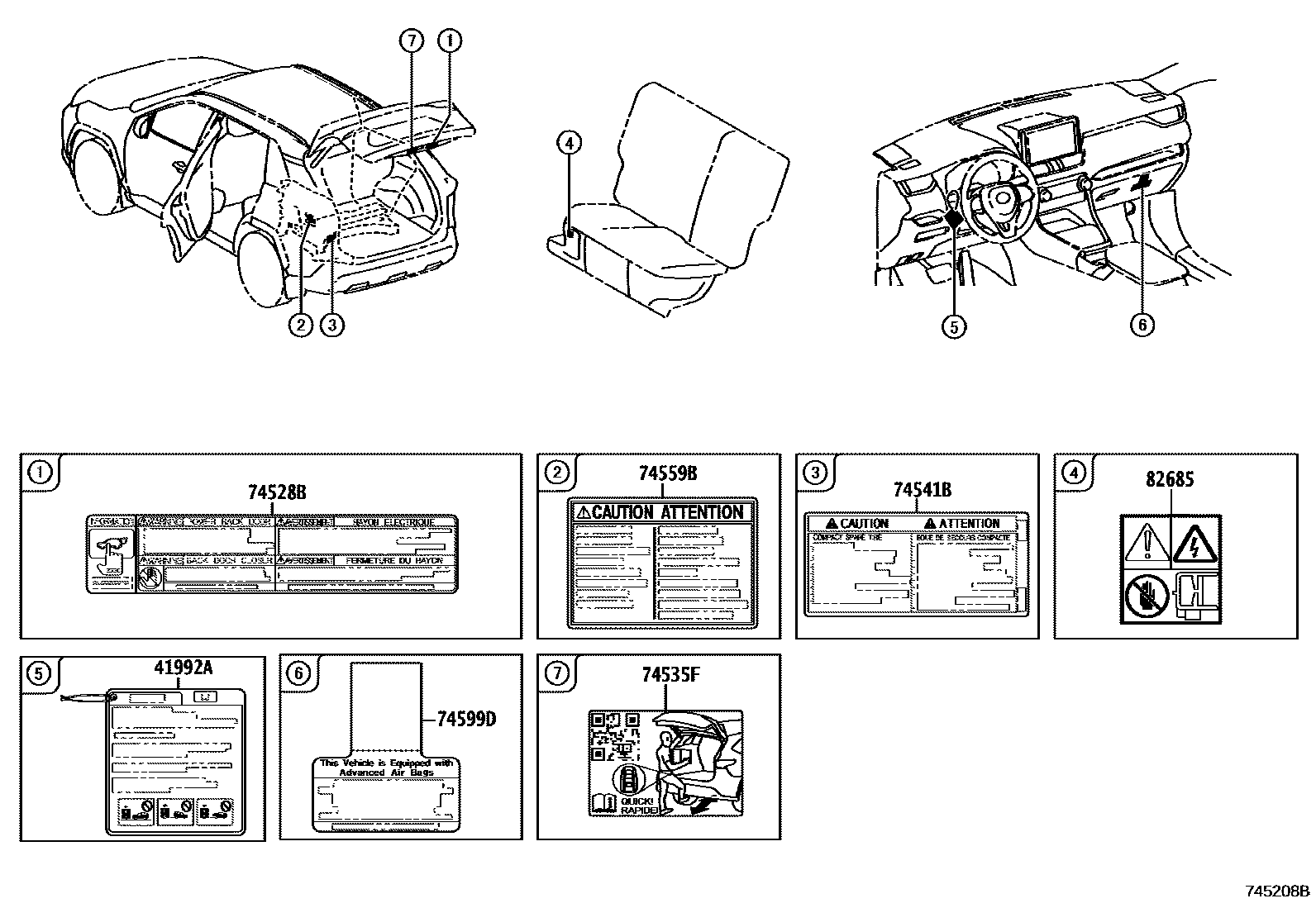

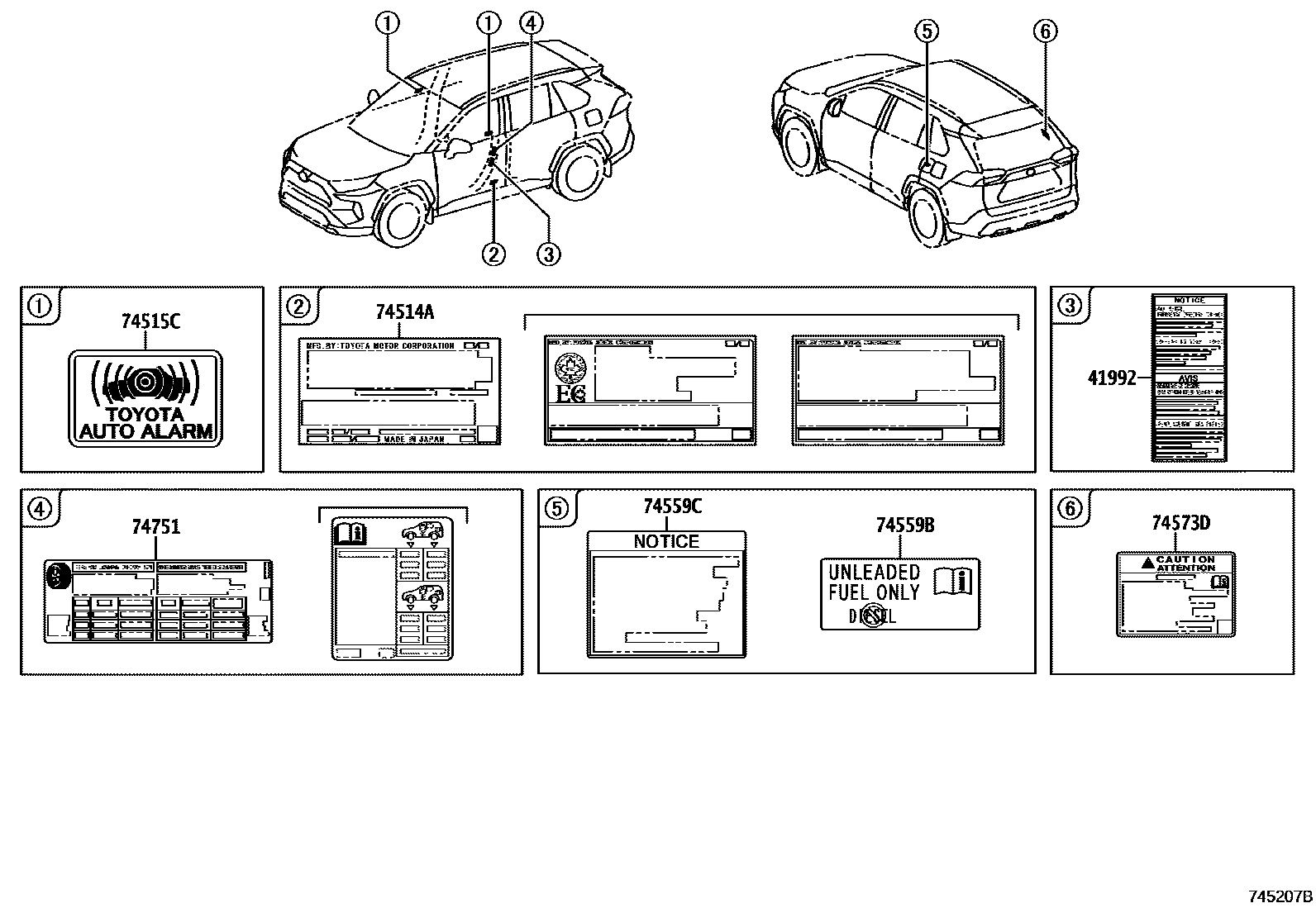

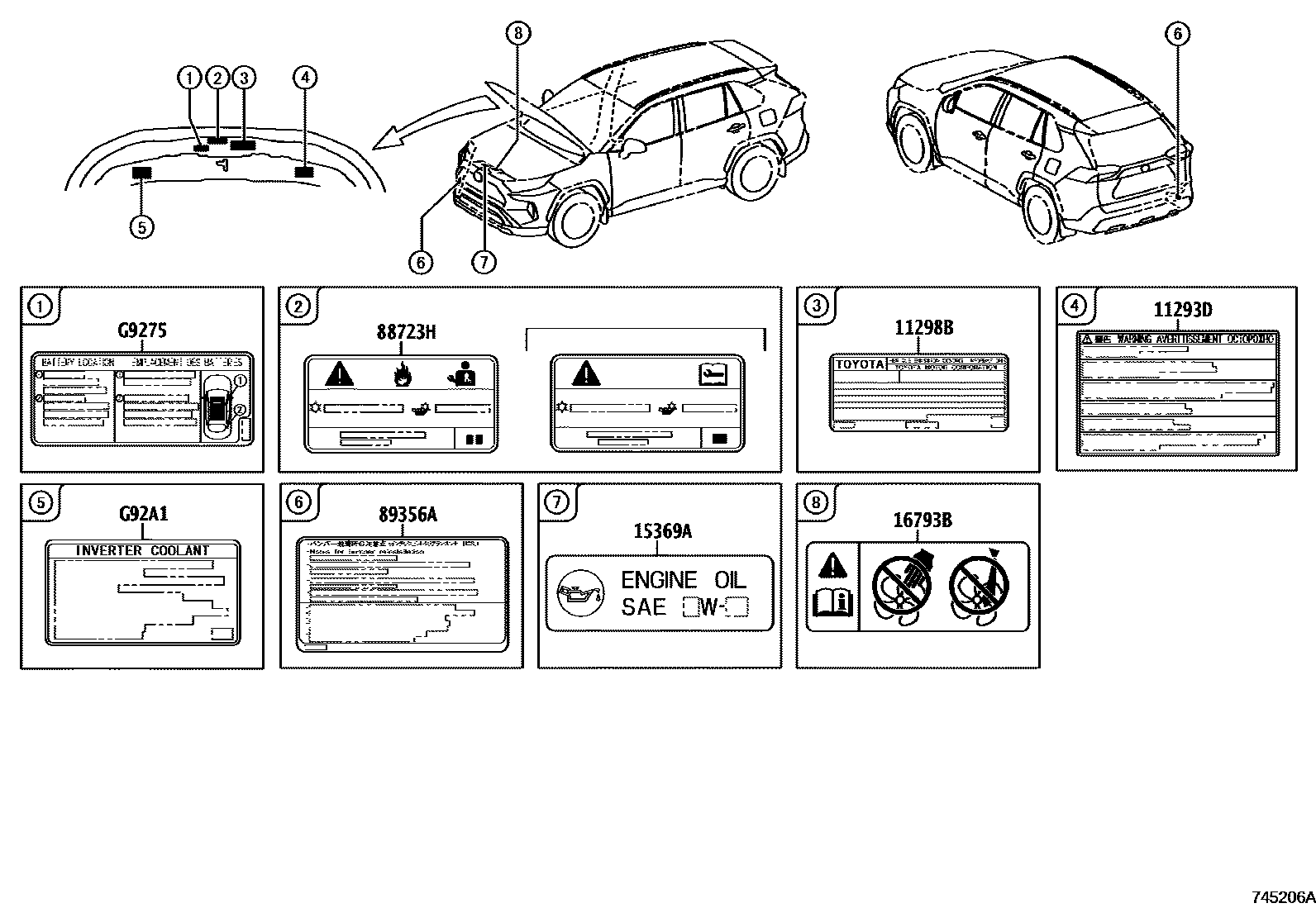

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-25110 · 11298-25111 · 11298-25112 · 11298-25113 · 11298-25114 |
| 15369A | Engine oil information label | 15369-25010 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-48020 |
| 41992A | ETIQUETTE, AVERTISSEMENT DIFFERENTIEL, NO.2 | 41992-42030 |
| 74514A | Regulatory Certification Information Label | 74514-47010 · 74514-48020 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74528B | Back door warning label | 74528-42011 |
| 74535F | Back door auxiliary mechanism information label | 74535-42100 |
| 74541B | Small spare tire warning plate | 42668-42020 |
| 74559B | fuel information label | 74559-20140 · 74559-30070 |
| 74559C | ETIQUETTE, INFORMATIONS CARB, NO.2 | 74559-48010 |
| 74573D | Electric vehicle battery warning labels | 74573-42090 · 74573-42130 |
| 74599D | Driver and passenger air bag information labels | 74599-48020 |
| 74751 | tire pressure information label | 42661-42C80 · 42661-42E10 · 42661-42J20 · 42661-48E30 |
| 82685 | warning nameplate | 82685-47110 · 82685-47111 |
| 88723H | Cooler maintenance warning label | 88723-42100 · 88723-42130 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-42030 |
| G92A1 | HV coolant system information label | G92A1-76010 |
