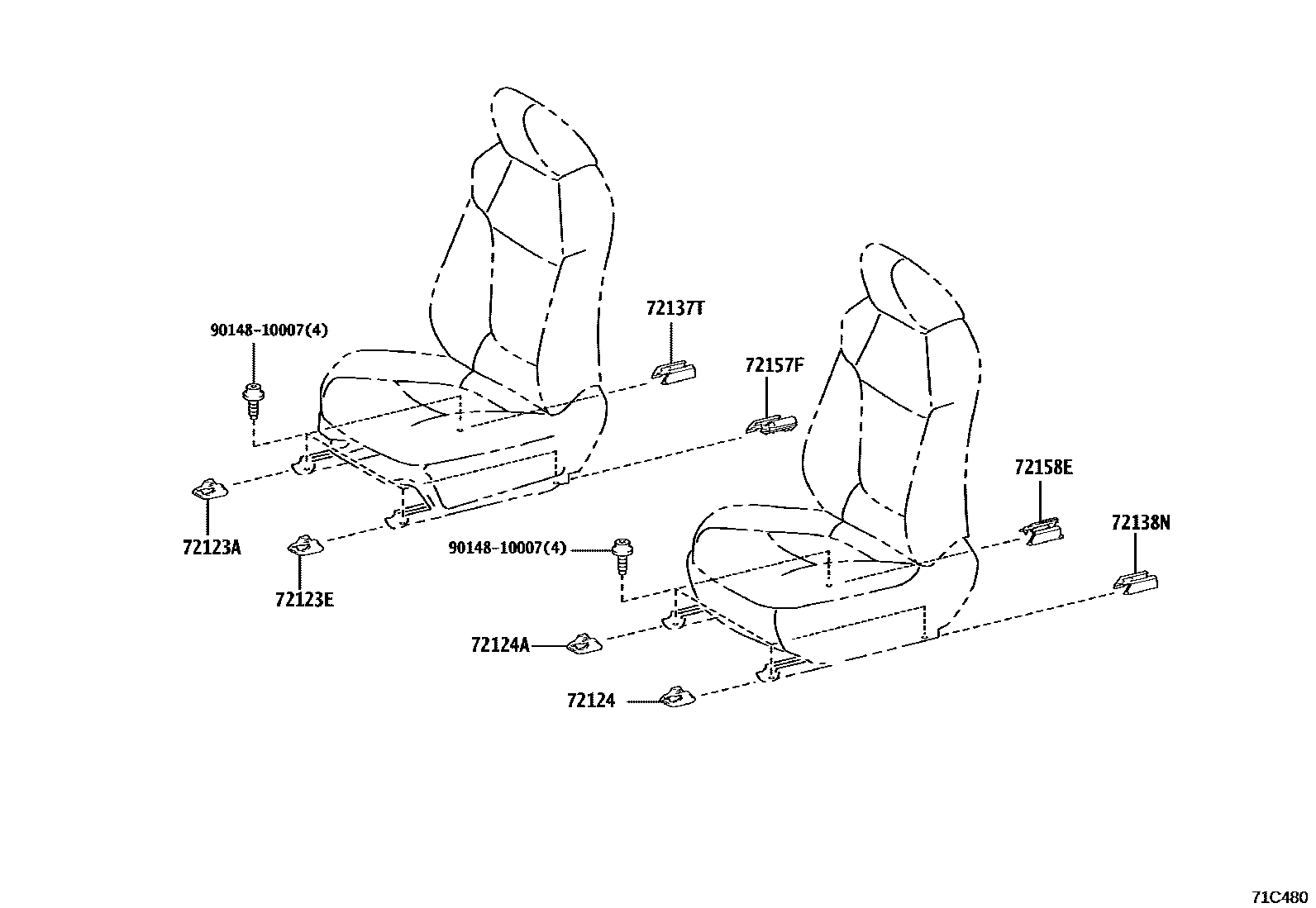

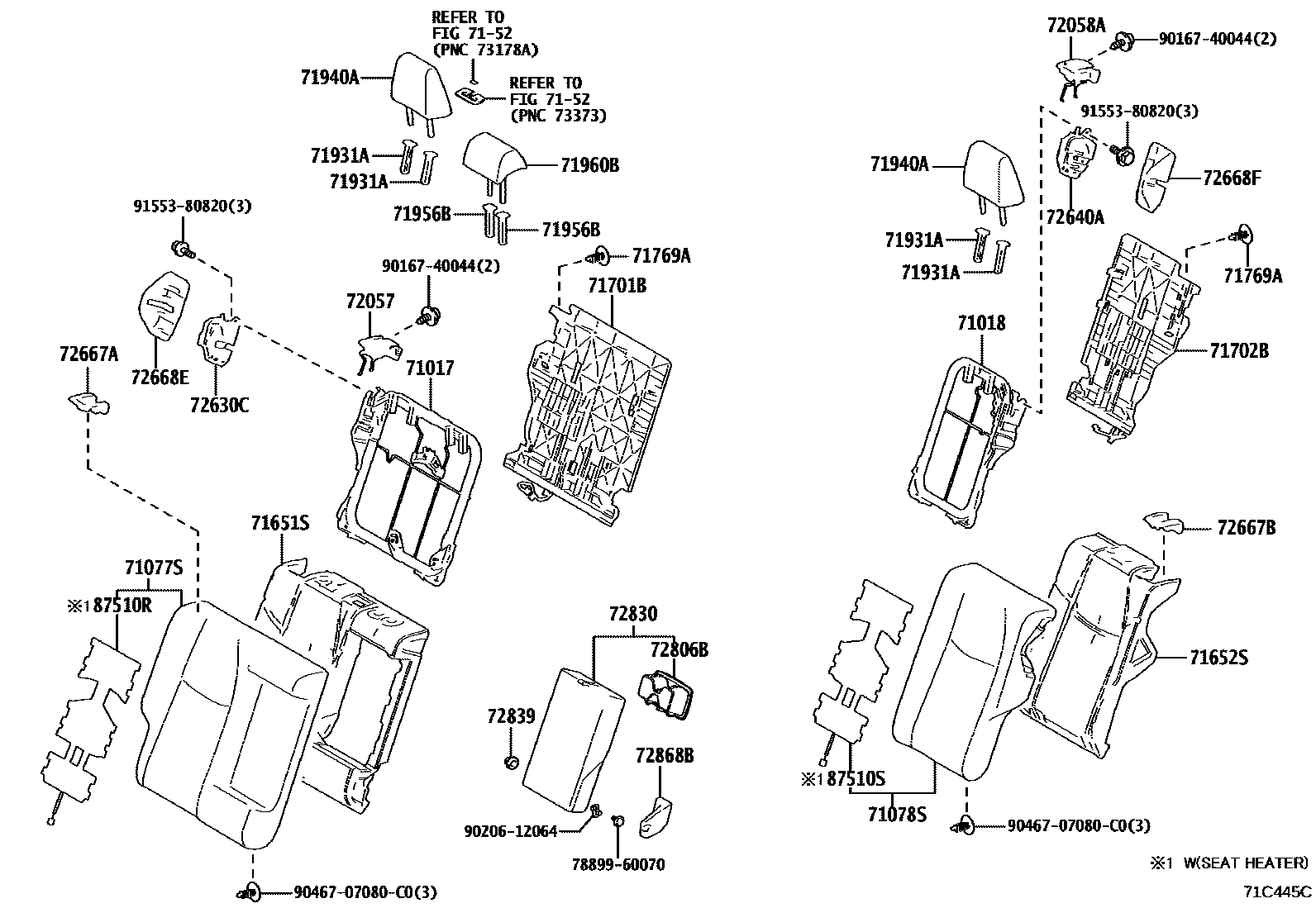

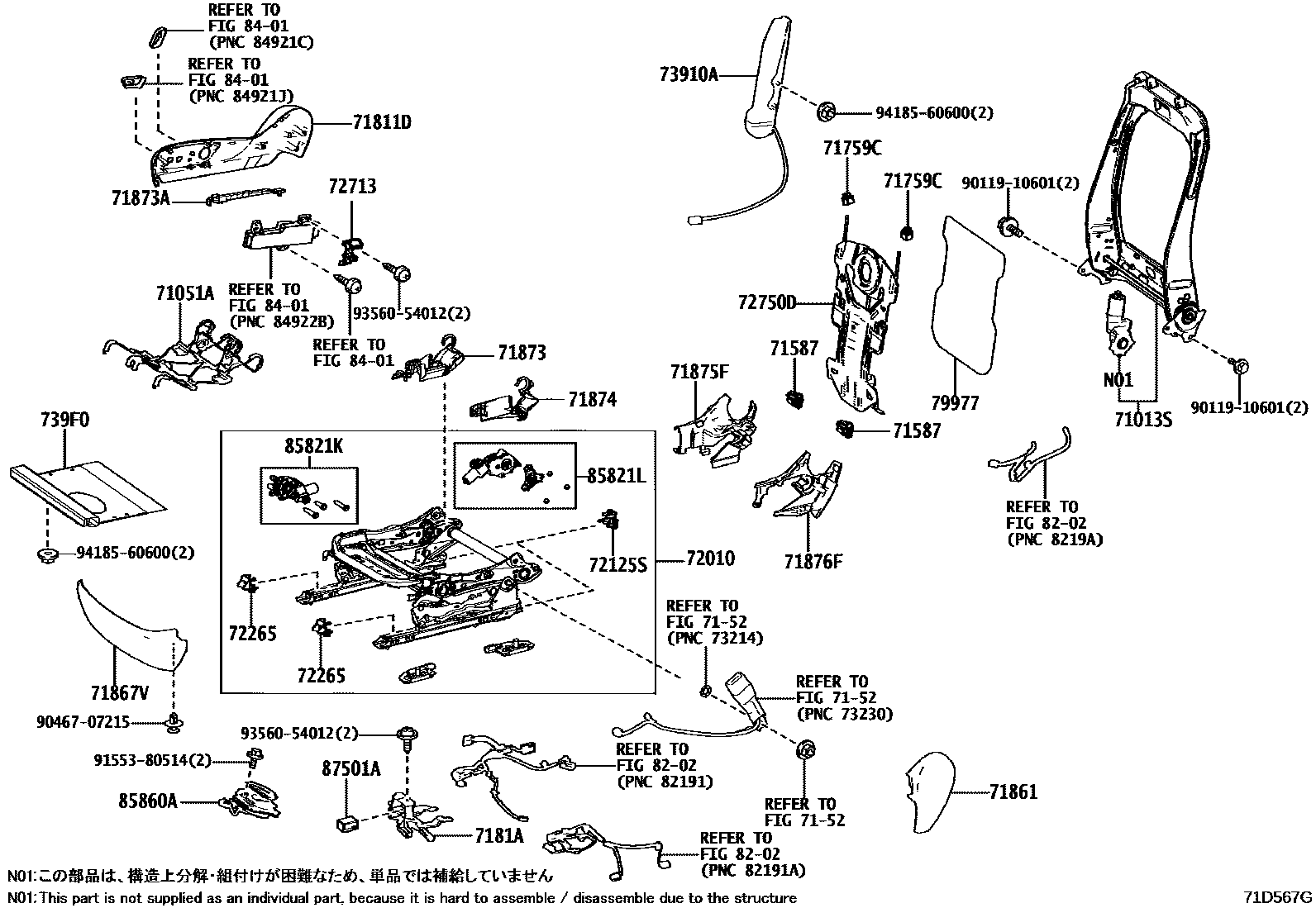

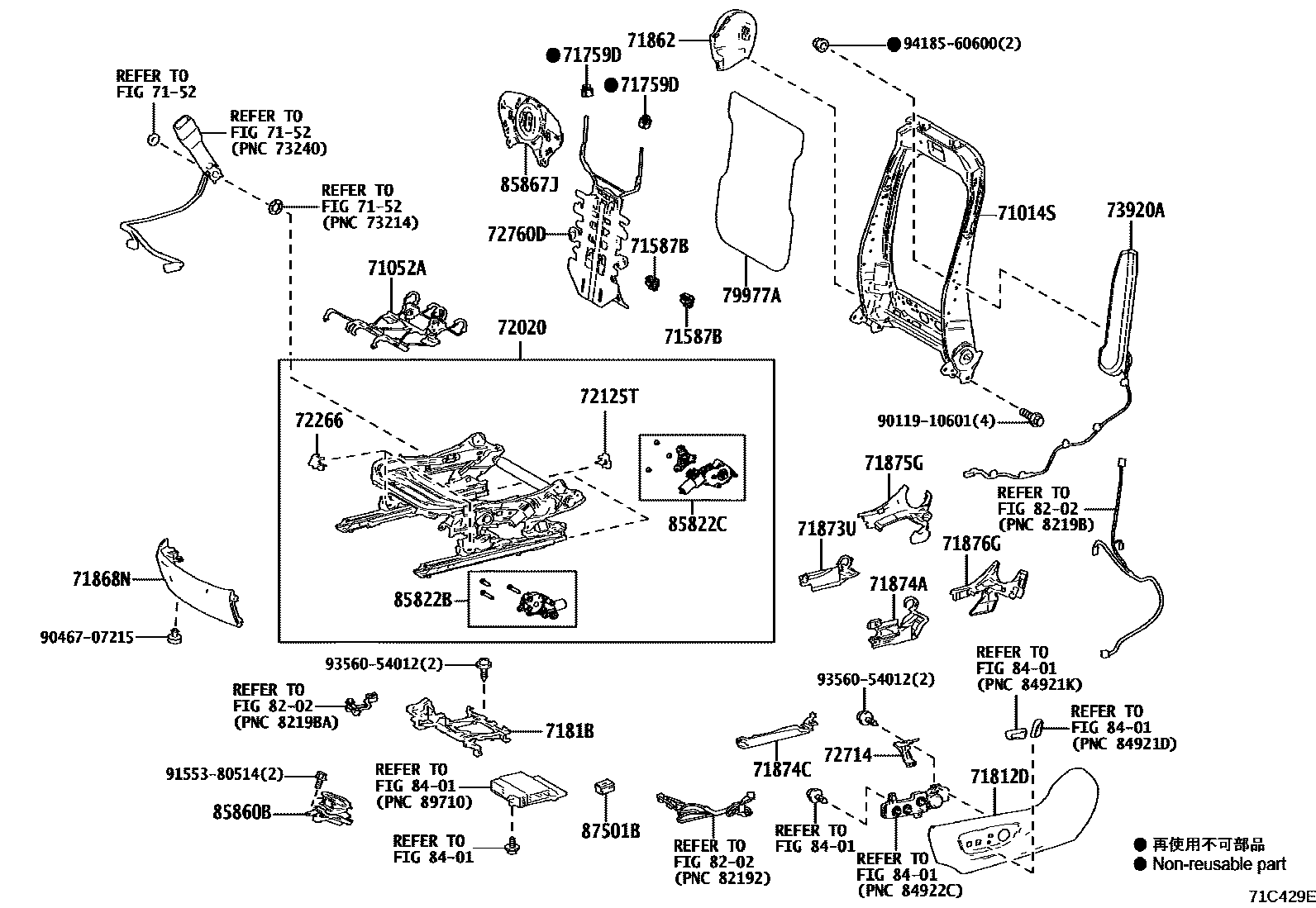

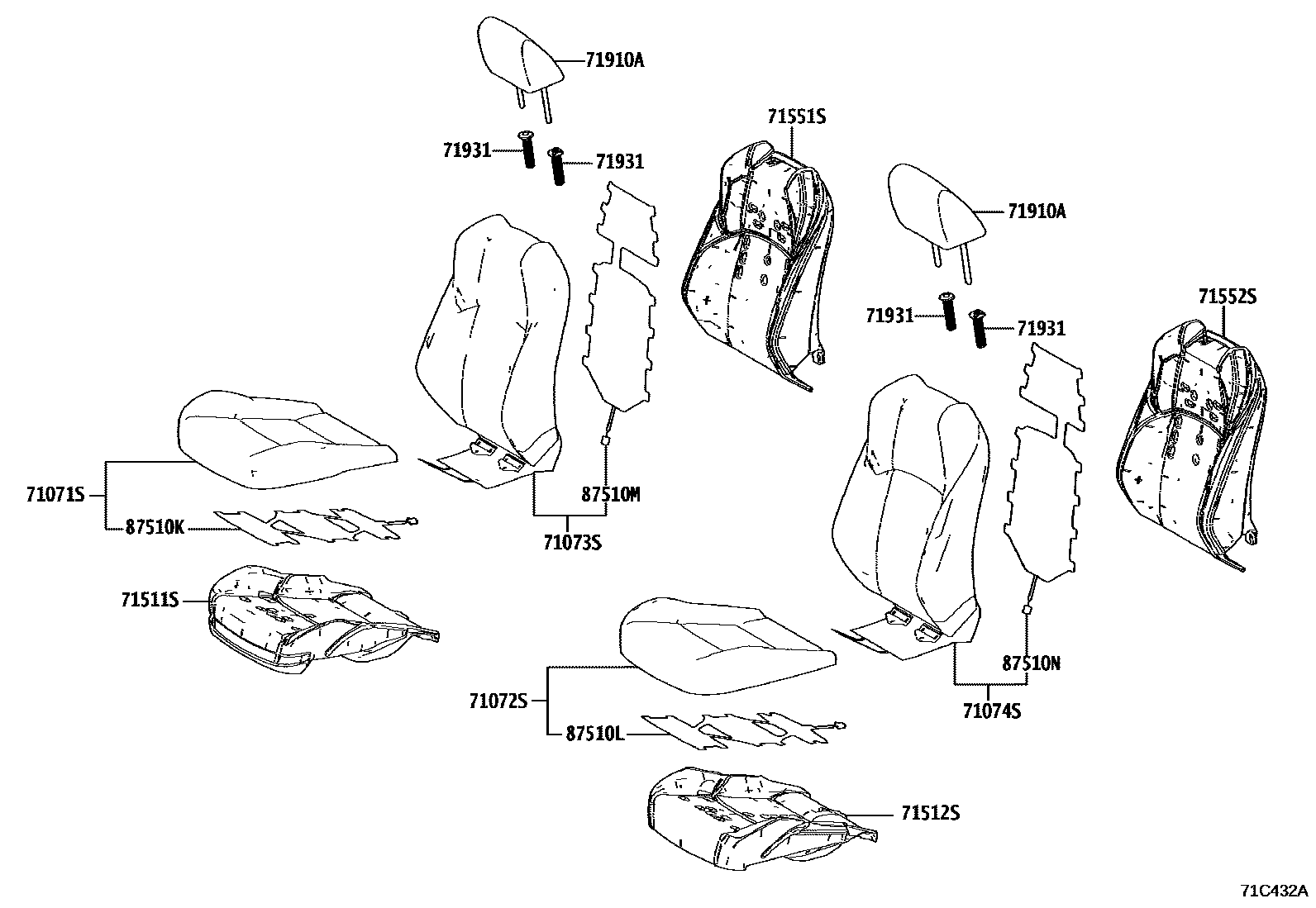

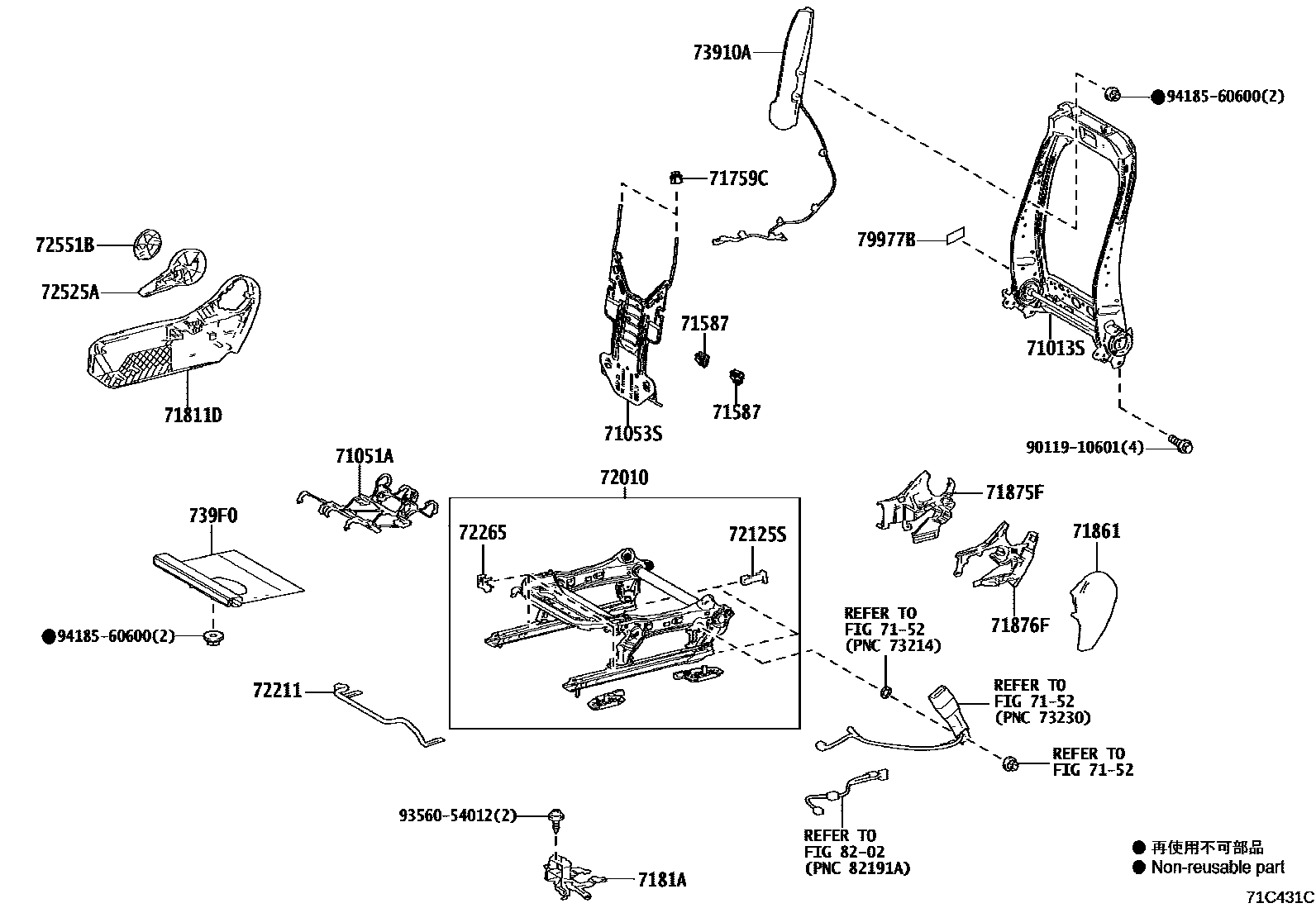

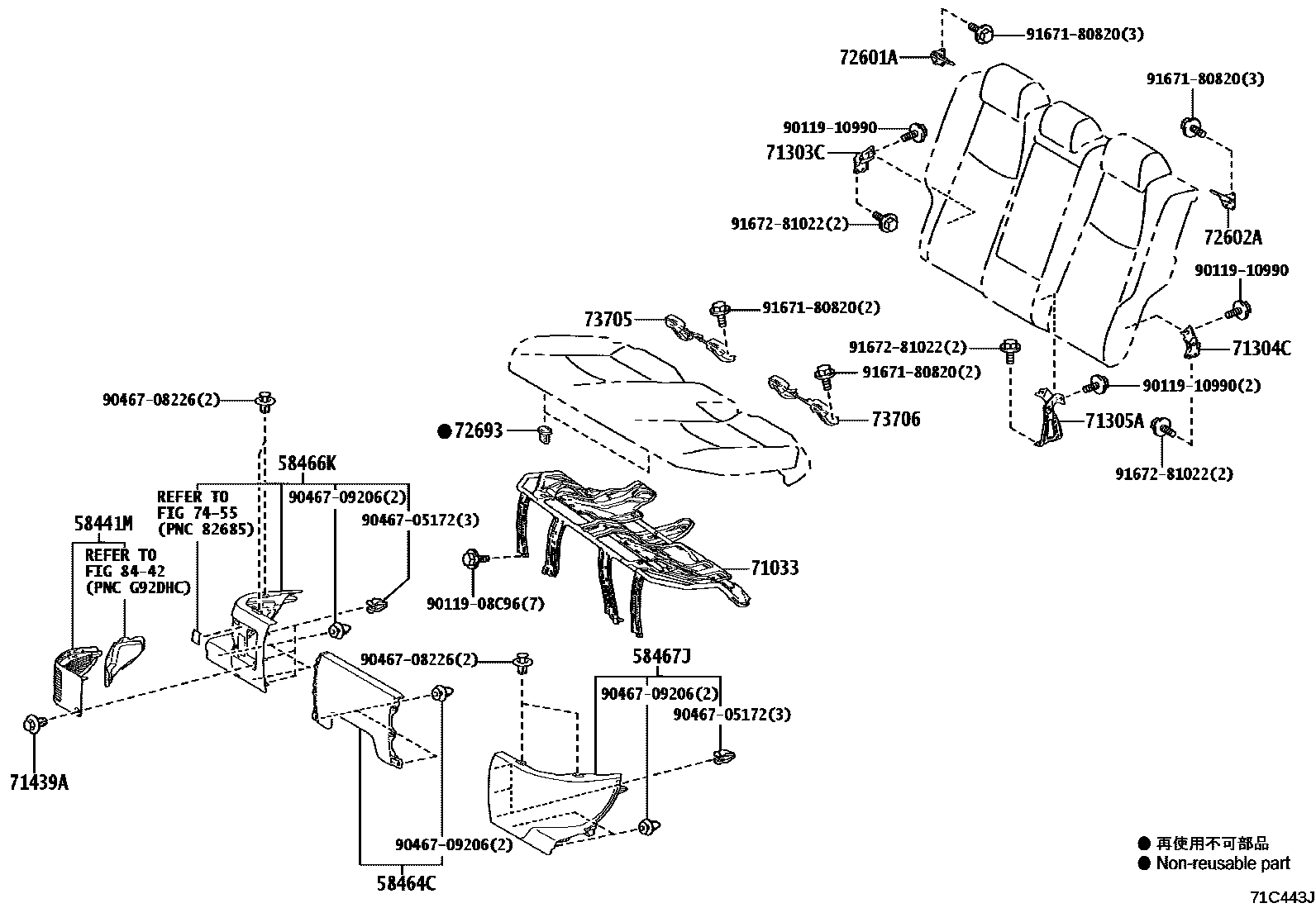

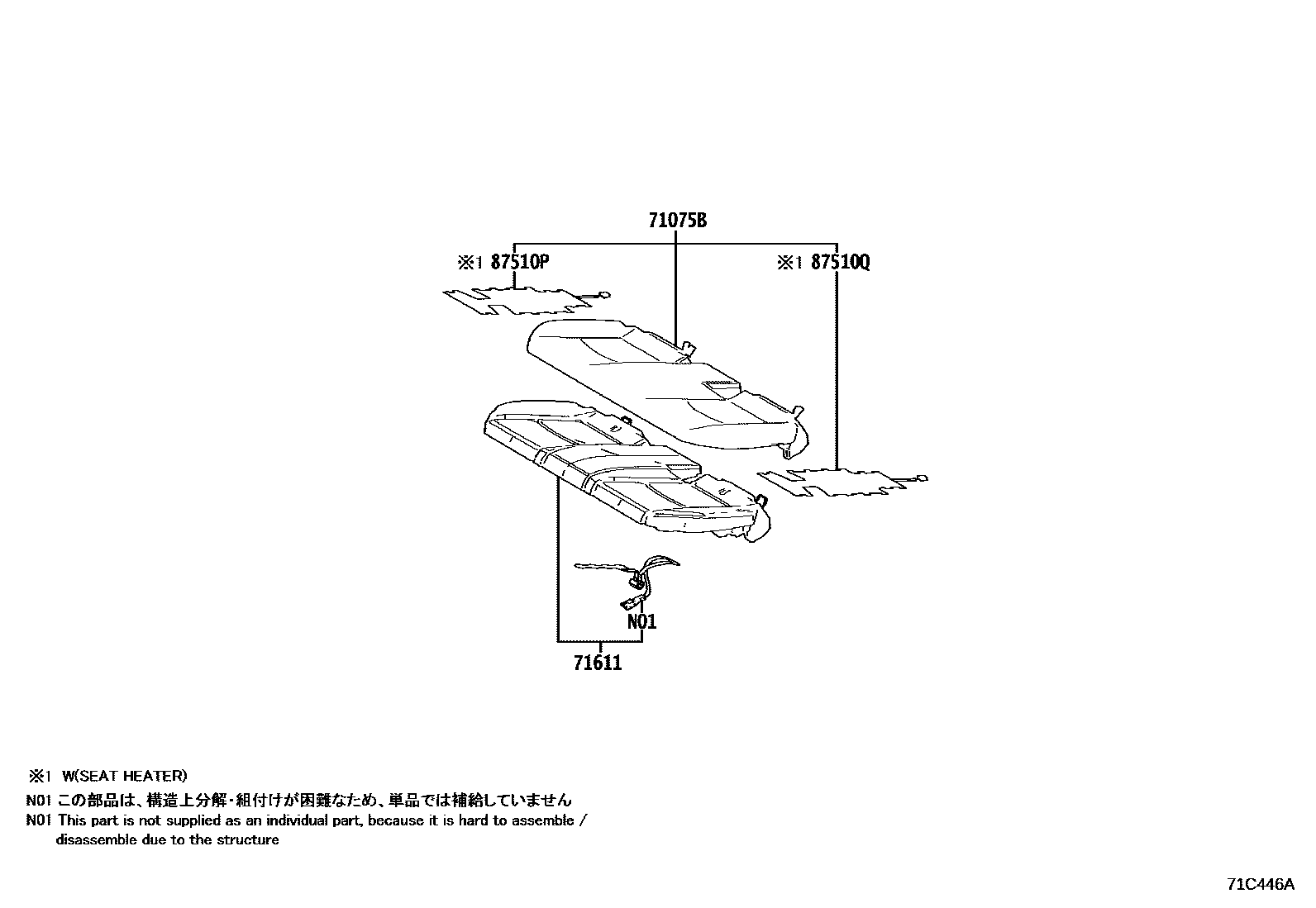

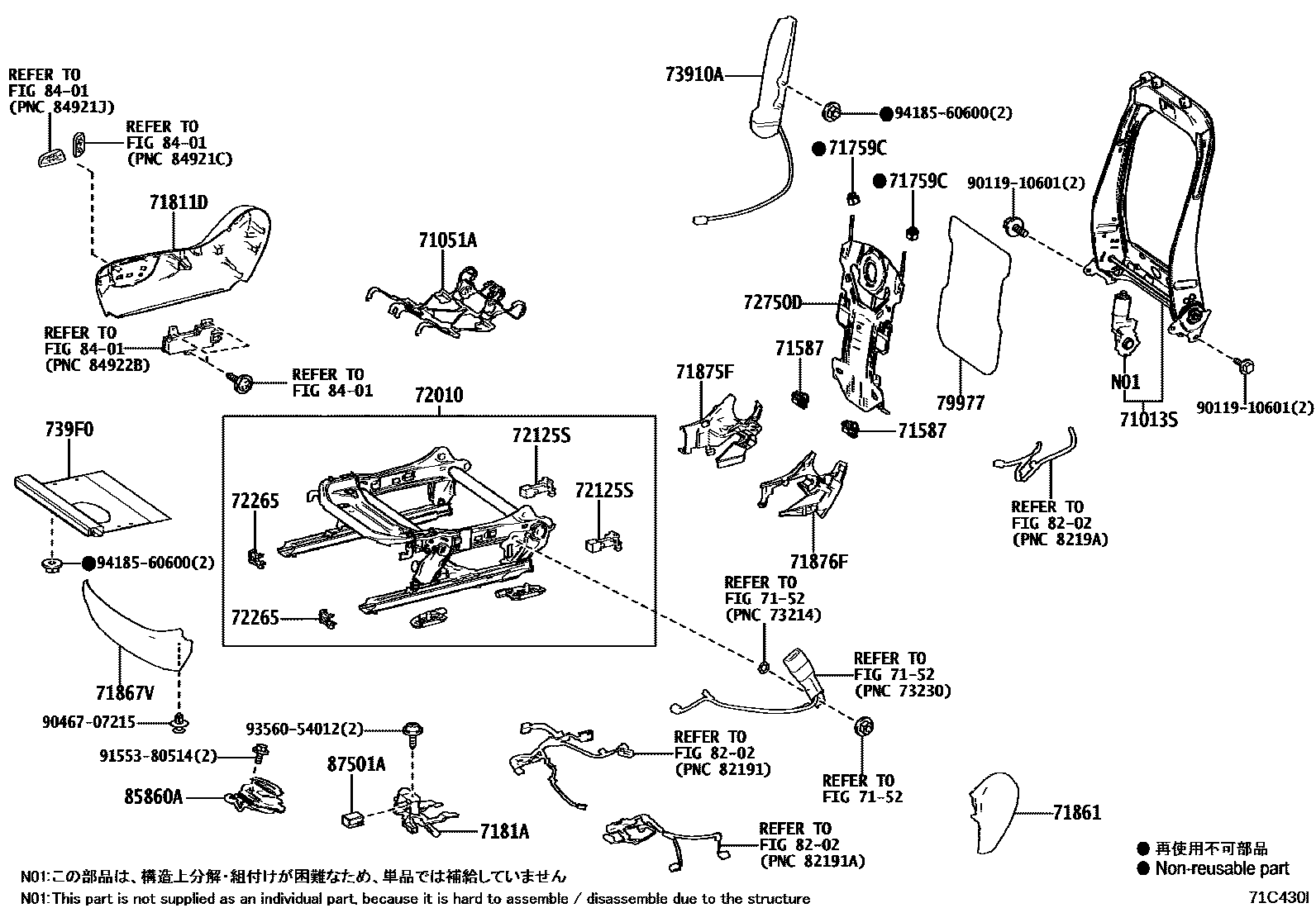

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 9 images and 83 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-42231 · 71013-42340 |
| 71014S | Front left seat back frame sub-assembly | 71014-42201 · 71014-42211 |
| 71017 | Right rear seat back frame sub-assembly | 71017-42240 |
| 71018 | Rear left seat back frame sub-assembly | 71018-42290 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-42030 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-42020 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-42020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-42010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-42330 · 71511-42350 · 71511-42440 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-42220 · 71512-42230 |
| 71551S | Front right seat back cushion (for split seats) | 71551-42360 · 71551-42380 |
| 71552S | Front left seat back cushion (for split seats) | 71552-42230 · 71552-42240 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71587B | Front seat back edge protective cover | 71587-47010 |
| 71611 | Rear seat cushion cushion | 71611-42150 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-42200 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-42190 |
| 71701B | Rear right seat back panel sub-assembly | 71701-42010 |
| 71702B | Rear left seat back panel sub-assembly | 71702-42010 |
| 71759C | Front seat back hook No. 1 | 71759-50040 |
| 71759D | Front seat back hook 2 | 71759-50040 |
| 71769A | Rear seat back panel clip | 71769-28040 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-42010 · 7181A-47010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-42010 |
| 71873 | Front right seat cushion lower guard panel | 71873-42050 |
| 71873A | Front seat cushion lower guard | 71873-60160 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71874-42040 |
| 71874 | Front left seat cushion lower guard | 71873-42060 |
| 71874A | Front left seat cushion lower guard | 71874-42050 |
| 71874C | Front seat cushion lower guard | 71874-42060 |
| 72010 | Front right seat adjuster assembly | 72010-42320 · 72010-42400 · 72010-42450 |
| 72020 | Front left seat adjuster assembly | 72020-42340 · 72020-42370 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-10100 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72123-10100 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-10100 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-10100 |
| 72125S | CACHE, GLISSIERE SIEGE AV, SUP ARR MD | 72125-47010 · 72125-47020 |
| 72125T | CACHE, GLISSIERE SIEGE AV, SUP ARR MG | 72125-47020 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-47060 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72137-47060 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-47080 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-42020 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47020 |
| 72601A | Right rear seat back lock sub-assembly | 72601-42040 |
| 72602A | Rear left seat back lock sub-assembly | 72602-42010 |
| 72630C | Rear right seat back lock assembly | 72630-42011 |
| 72640A | Rear left seat back lock assembly | 72640-42011 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72713 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD | 72713-42010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-42010 |
| 72750D | Right lumbar support adjuster assembly | 72760-42020 · 72760-42040 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 · 72750-33150 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-42050 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73705-42040 |
| 73910A | Front right seat airbag assembly | 73910-42080 |
| 73920A | Front left seat airbag assembly | 73920-42080 |
| 739F0 | ENS. AIRBAG, COUSSIN DE SIEGE AVANT, MD | 739F0-12030 · 739F0-42010 · 739F0-78040 |
| 79977 | Seat back felt pad | 79977-76010 |
| 79977A | Seat back felt pad | 79977-76010 |
| 79977B | Seat back frame felt pad | 79977-12090 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-11020 · 85801-47050 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-11030 · 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-42060 · 85801-50130 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-42050 · 85801-50140 |
| 85860A | Right seat cushion temperature control blower assembly | 85801-42030 · 85801-42040 |
| 85860B | Left seat cushion temperature control blower assembly | 85802-42020 |
| 85867J | SOUFFLERIE, COMMANDE CLIMAT. DOSSIER SIEGE, GAUCHE | 85867-42020 · 85867-42050 |
| 87501A | Right seat heater control sub-assembly | 87501-33010 |
| 87501B | Left side seat heater control sub-assembly | 87501-33010 |
| 87510K | Front right seat cushion heater assembly | 87510-12330 · 87510-42270 |
| 87510L | Front left seat cushion heater assembly | 87510-12390 · 87510-42270 |
| 87510M | Front right seat back heater assembly | 87530-12090 · 87530-42060 |
| 87510N | Front left seat back heater assembly | 87530-12090 · 87530-42060 |
| 87510P | Seat heater assembly | 87510-42250 |
| 87510Q | Seat heater assembly | 87510-42340 |
| 87510R | Seat heater assembly | 87530-42090 |
| 87510S | Seat heater assembly | 87530-42080 |
