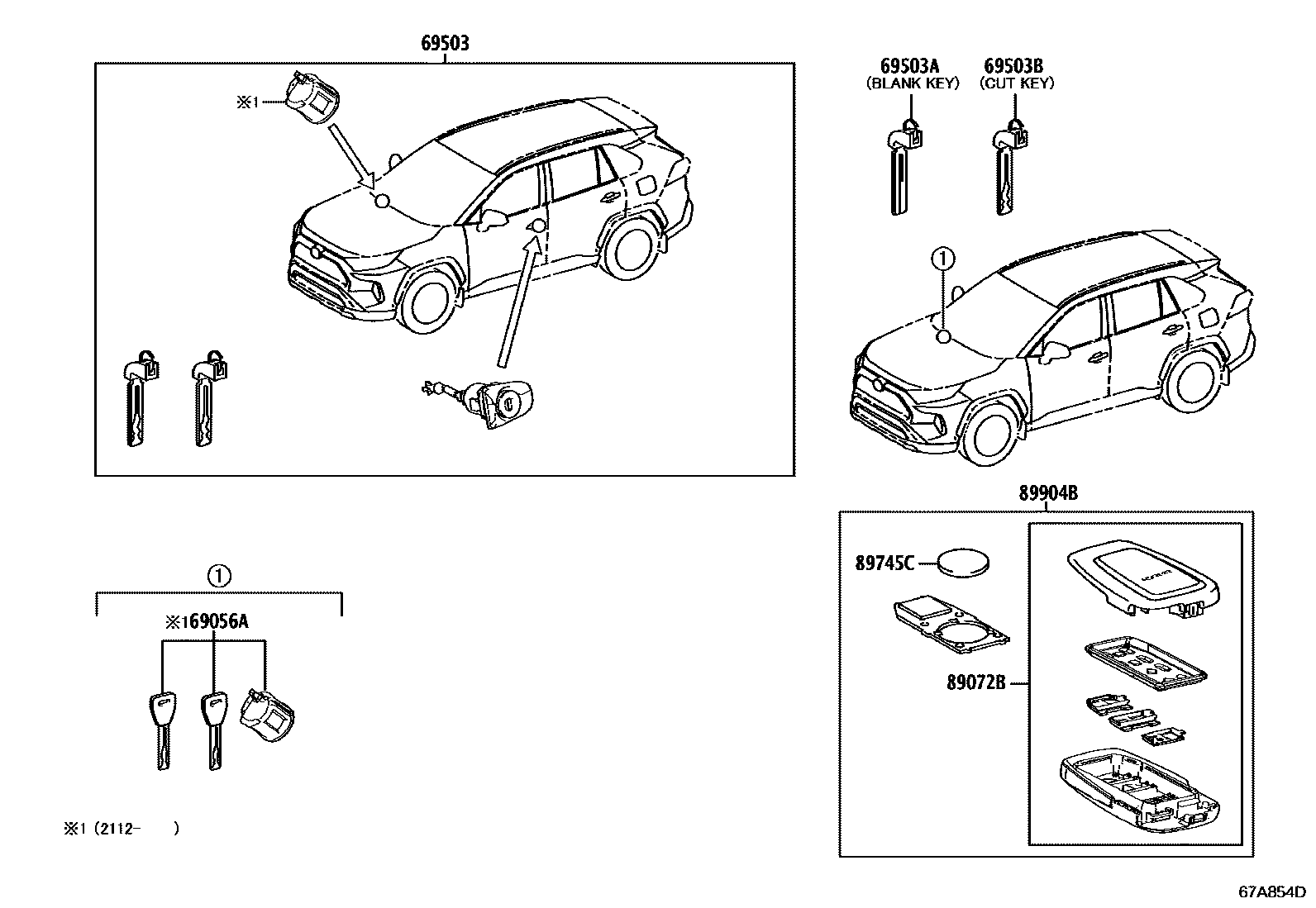

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69056A | Glove box lock cylinder and key assembly | 69056-50160 |
| 69503 | Door lock cylinder components | 69005-42A20 · 69005-42B20 |
| 69503A | external tooth key | 69515-K0020 |
| 69503B | internal tooth key | 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-42A30 · 89072-42A40 · 89072-42D40 · 89072-42D50 · 89072-42E00 |
| 89745C | Transmitter battery | 89745-K0010 · 89745-K0020 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-42370 · 8990H-42371 · 8990H-42380 · 8990H-42381 · 8990H-42A40 · 8990H-42A41 · 8990H-42A50 · 8990H-42A51 · 8990H-42B00 · 8990H-42B01 |
