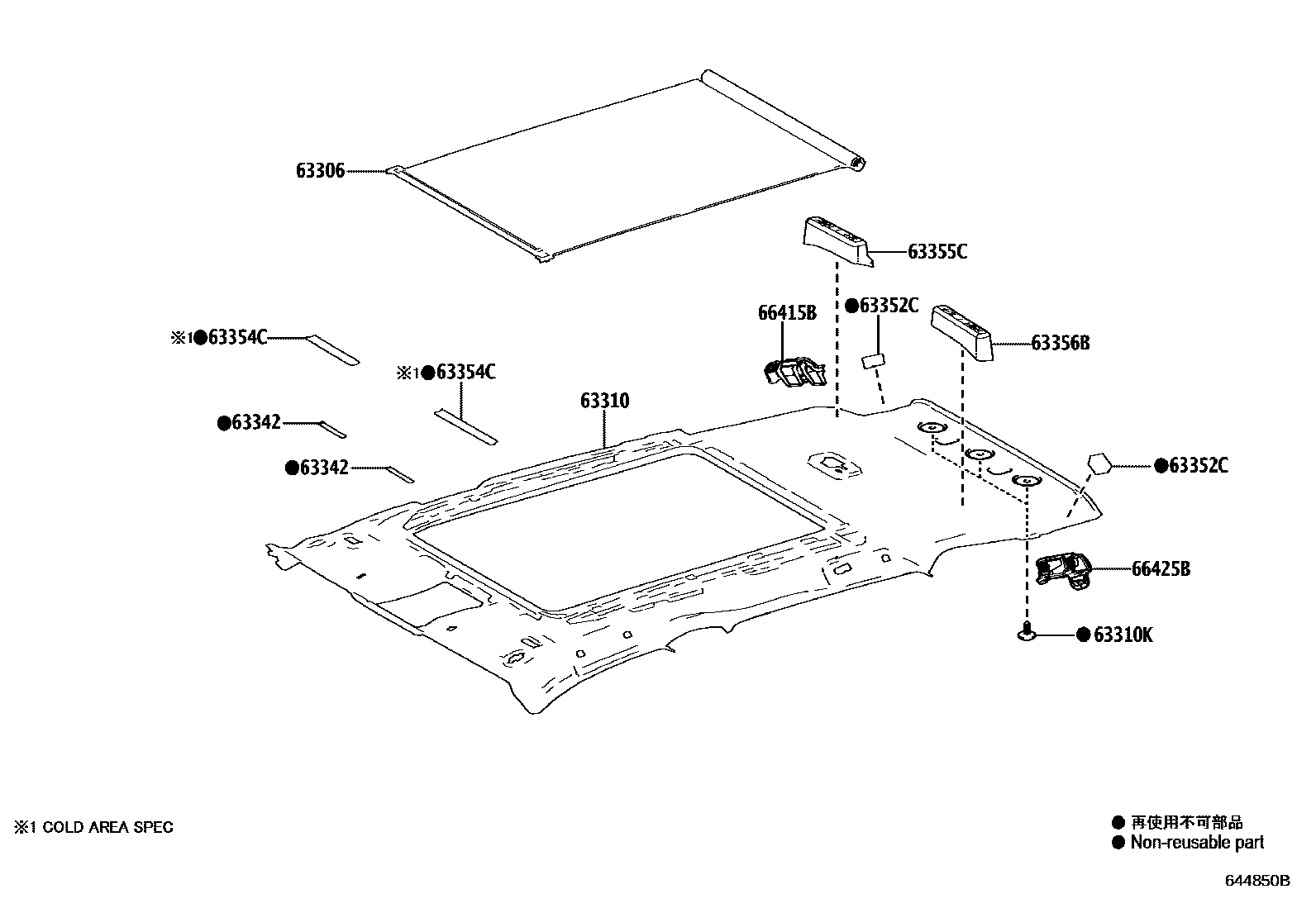

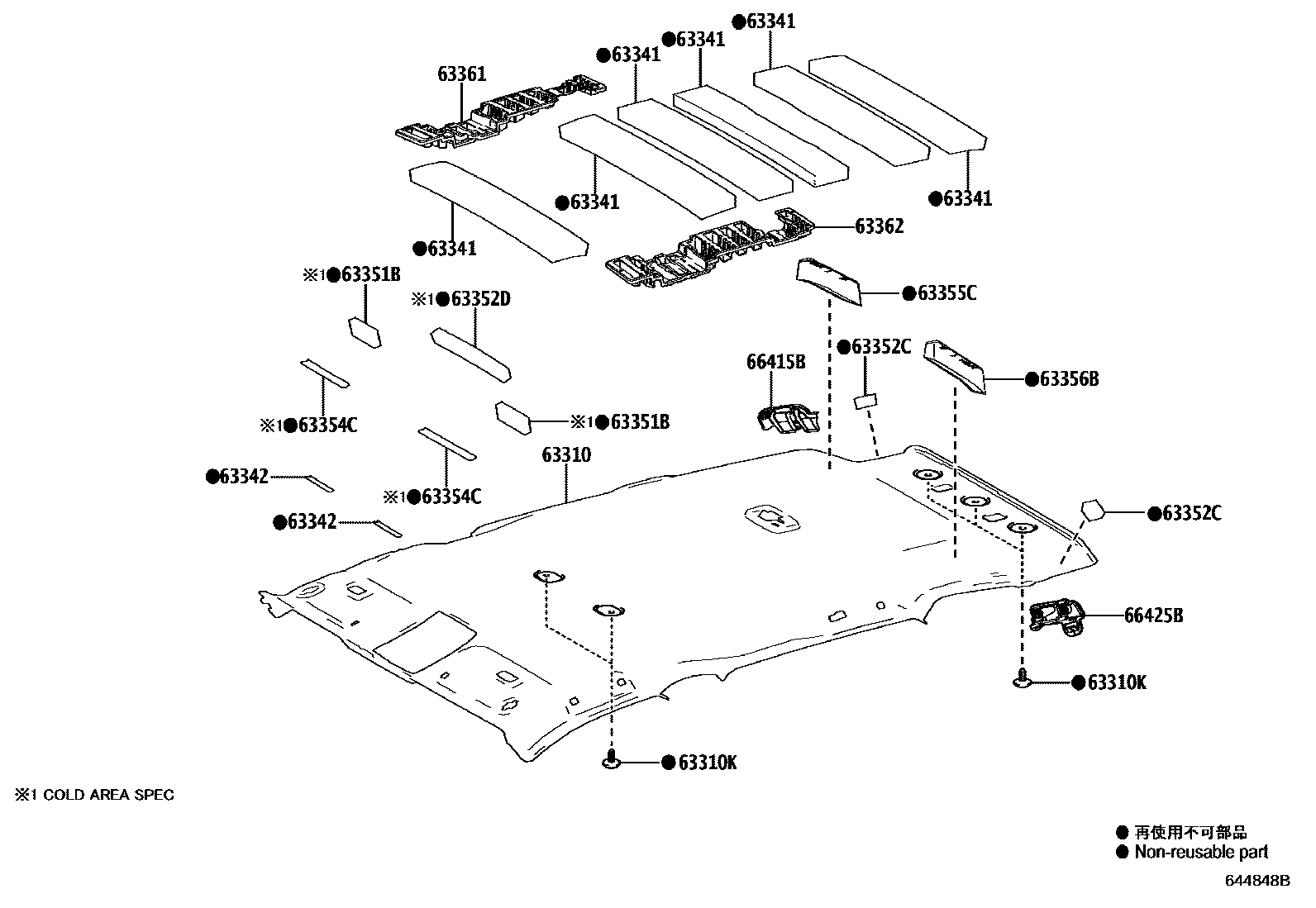

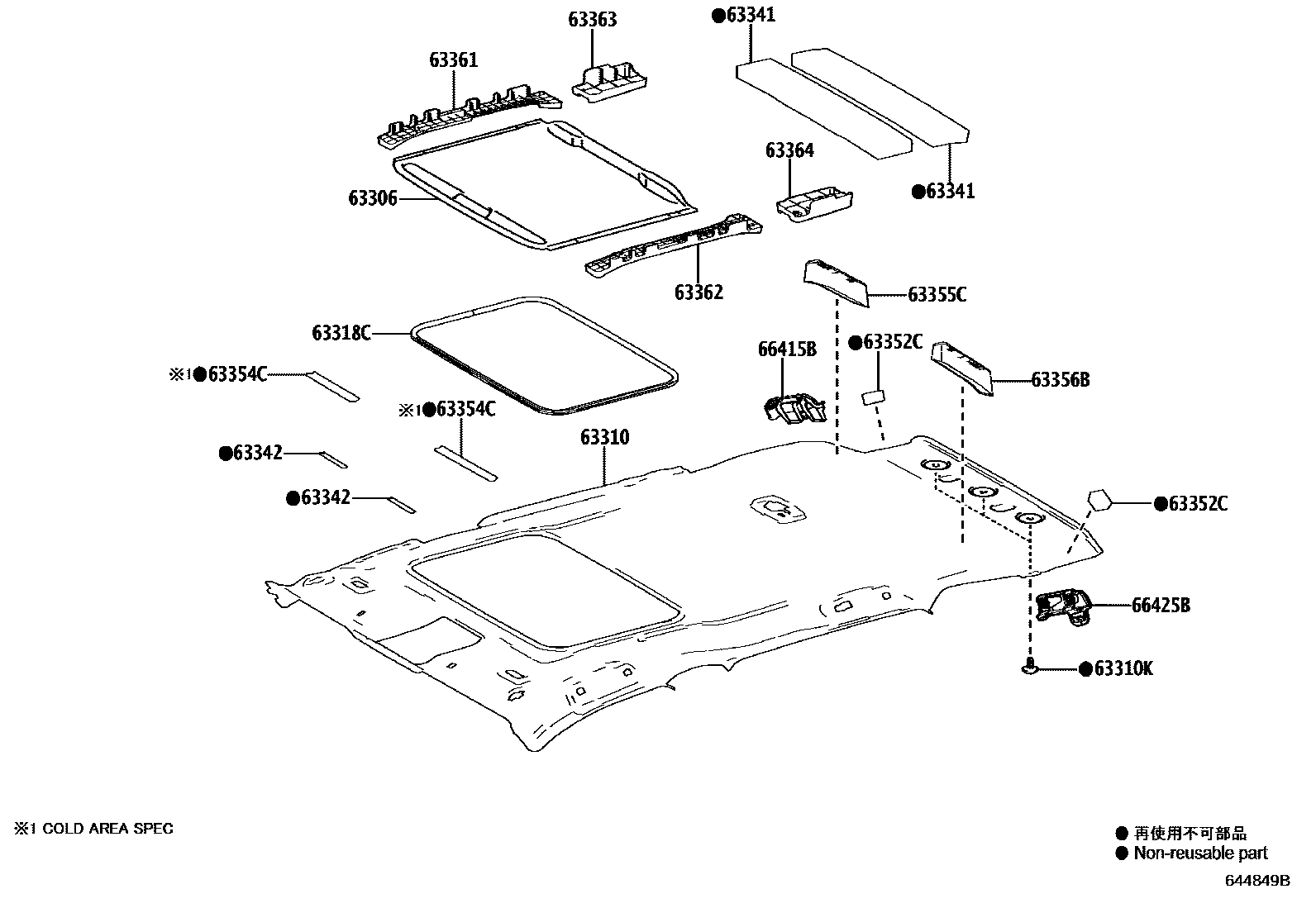

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-42060 |
| 63342 | No. 2 roof muffler pad | 63342-42080 |
| 63351B | roof lining pads | 63351-42040 |
| 63352C | Headlining end pads | 63353-42020 |
| 63352D | No. 2 roof lining lining block | 63352-42070 |
| 63354C | Headlining front side pads | 63354-42020 |
| 63355C | Right side roof lining | 63355-42020 · 63355-42030 |
| 63356B | Roof left inner lining block | 63356-42010 · 63356-42020 |
| 63361 | Headlining bracket No. 1 | 63361-42050 · 63361-42060 · 63361-42080 |
| 63362 | Headlining bracket No. 2 | 63362-42050 · 63362-42060 · 63362-42080 |
| 63363 | No. 3 roof lining bracket | 63363-42050 |
| 63364 | No. 4 roof lining bracket | 63364-42050 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-42130 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-42110 |
