Toyota RAV4 车内装饰板 — Figure 6451

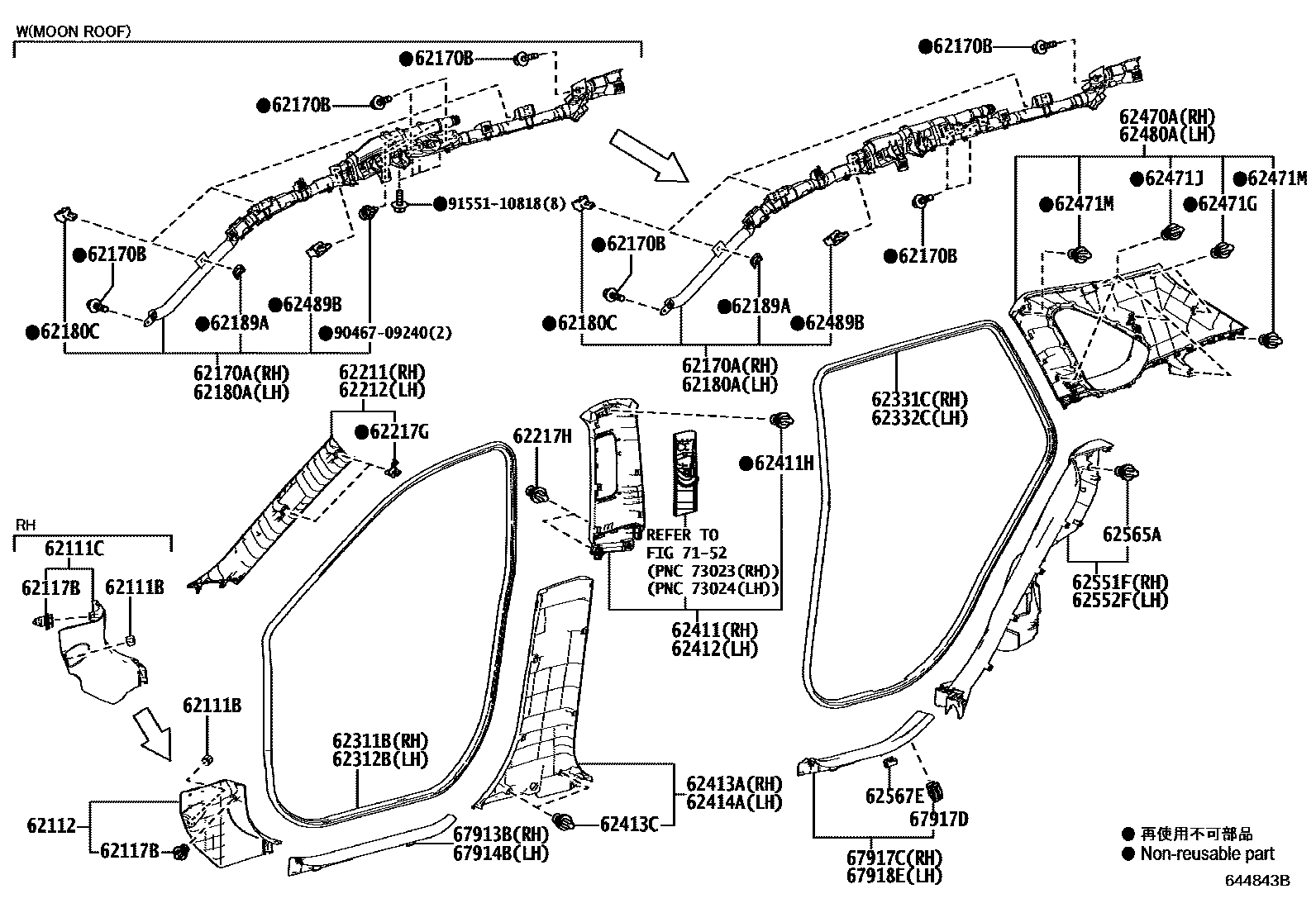

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06155 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-10161 |
| 62170A | Right curtain air bag assembly | 62170-42080 · 62170-42090 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-42080 · 62180-42090 |
| 62180C | ATTACHE, AIRBAG RIDEAU | 90467-18017 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62217G | Front pillar decorative plate clip | 62217-42050 · 62217-42060 |
| 62217H | Center pillar decorative plate clip | 90467-10216 |
| 62311B | Right front door opening waterproof tape | 62311-42110 |
| 62312B | Left front door opening waterproof tape | 62312-42110 |
| 62331C | Right rear door opening waterproof tape | 62331-42100 |
| 62332C | Left rear door opening waterproof tape | 62332-42090 |
| 62411H | Right front side window upper frame | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62471G | Roof side interior panel fixing gasket | 90467-10167 |
| 62471J | Clips (for roof side trim panels) | 90467-09240 |
| 62471M | clip | 90467-10161 |
| 62489B | Roof side interior panel clips | 62489-28010 |
| 62565A | Clips (for rear seat side trim panels) | 90467-09240 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33040 |
| 67917D | ATTACHE, PLAQUE DE PROTECTION DE PORTE ARRIERE | 90467-05171 |
