Toyota RAV4 中央扶手箱和支架 — Figure 5855

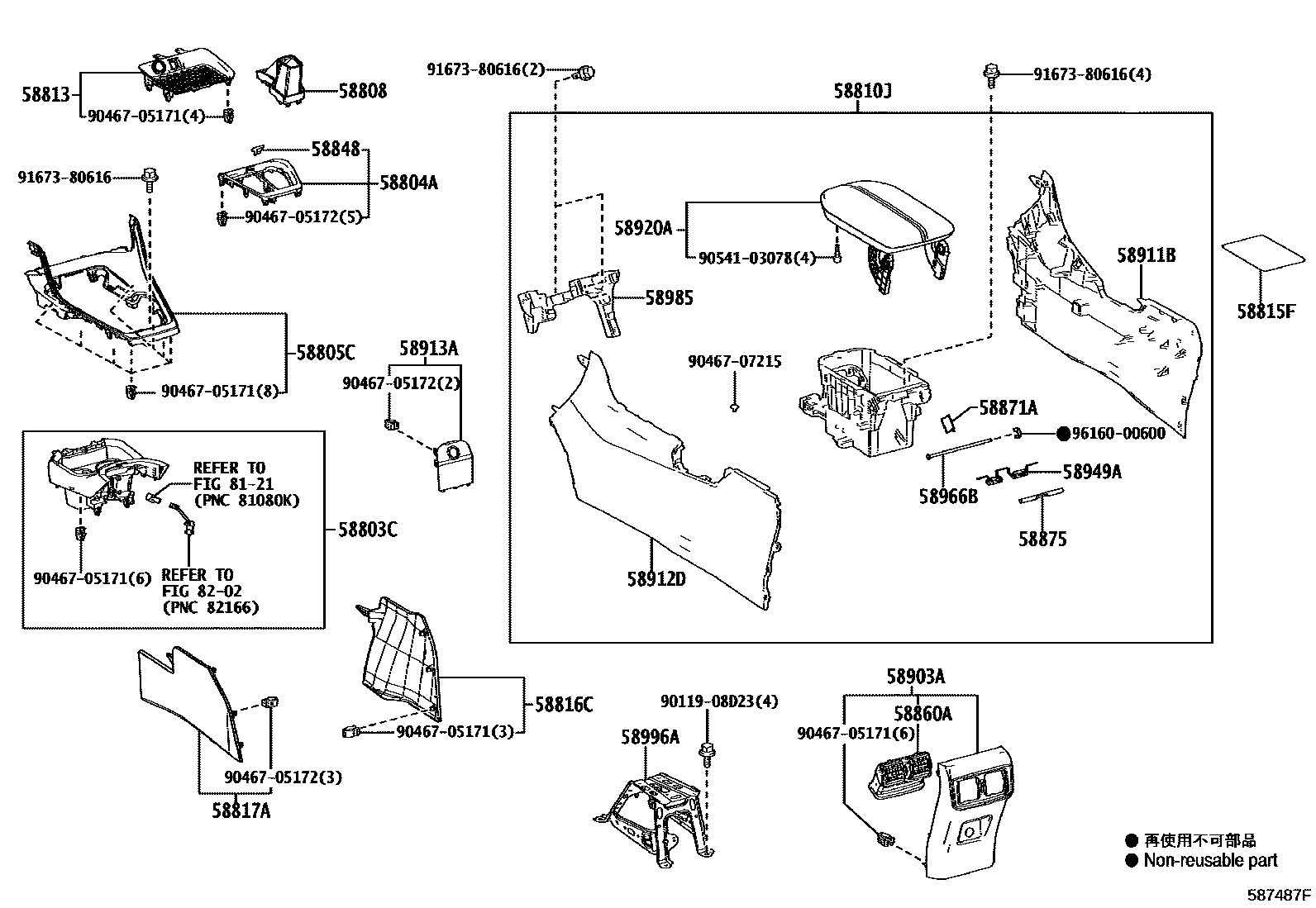

Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58804A | Armrest box upper panel sub-assembly | 58804-42460 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-42080 |
| 58815F | Armrest box felt pad | 58815-42040 |
| 58848 | Shift lever hole cover | 58848-42010 |
| 58871A | Armrest Box No. 2 Cushion Pad | 58871-42040 |
| 58875 | Armrest box spacer | 58875-42010 |
| 58913A | Armrest box panel No. 3 | 58913-42030 · 58913-42050 |
| 58949A | RESSORT, SUPPORT FIX BOITE DE CONSOLE | 58949-42040 · 58949-42050 |
| 58966B | AXE, BUTOIR PORTE COMPARTIMENT DE CONSOLE | 58966-42020 |
| 58985 | Armrest box fixing bracket | 58985-42060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-42080 · 58996-42081 |
