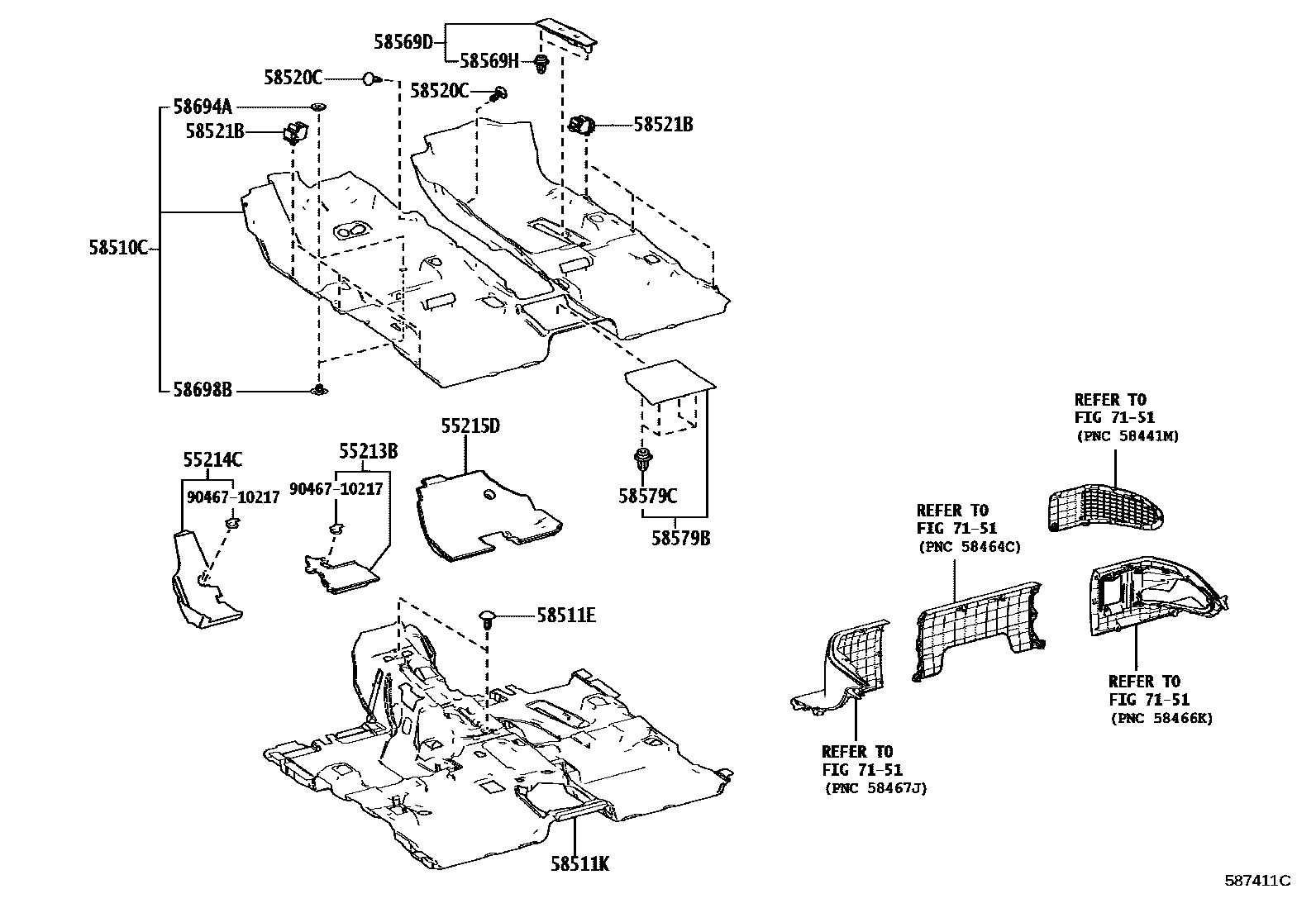

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-42120 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-42130 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-42050 |
| 58511K | COUSSINET, PLANCHER, NO.1 | 58511-42070 |
| 58521B | carpet hook | 58521-33070 |
| 58569H | ATTACHE, CACHE PLAQUE PRECAUTION PLANCHER AVANT, NO.1 | 62217-13010 |
| 58579C | Rear carpet fixing clip | 90467-10167 |
| 58694A | Pad the fixing plate | 58694-33010 |
| 58698B | Fixing plate under the pad | 58698-33010 |
