Toyota RAV4 前地板和前地板梁 — Figure 5851

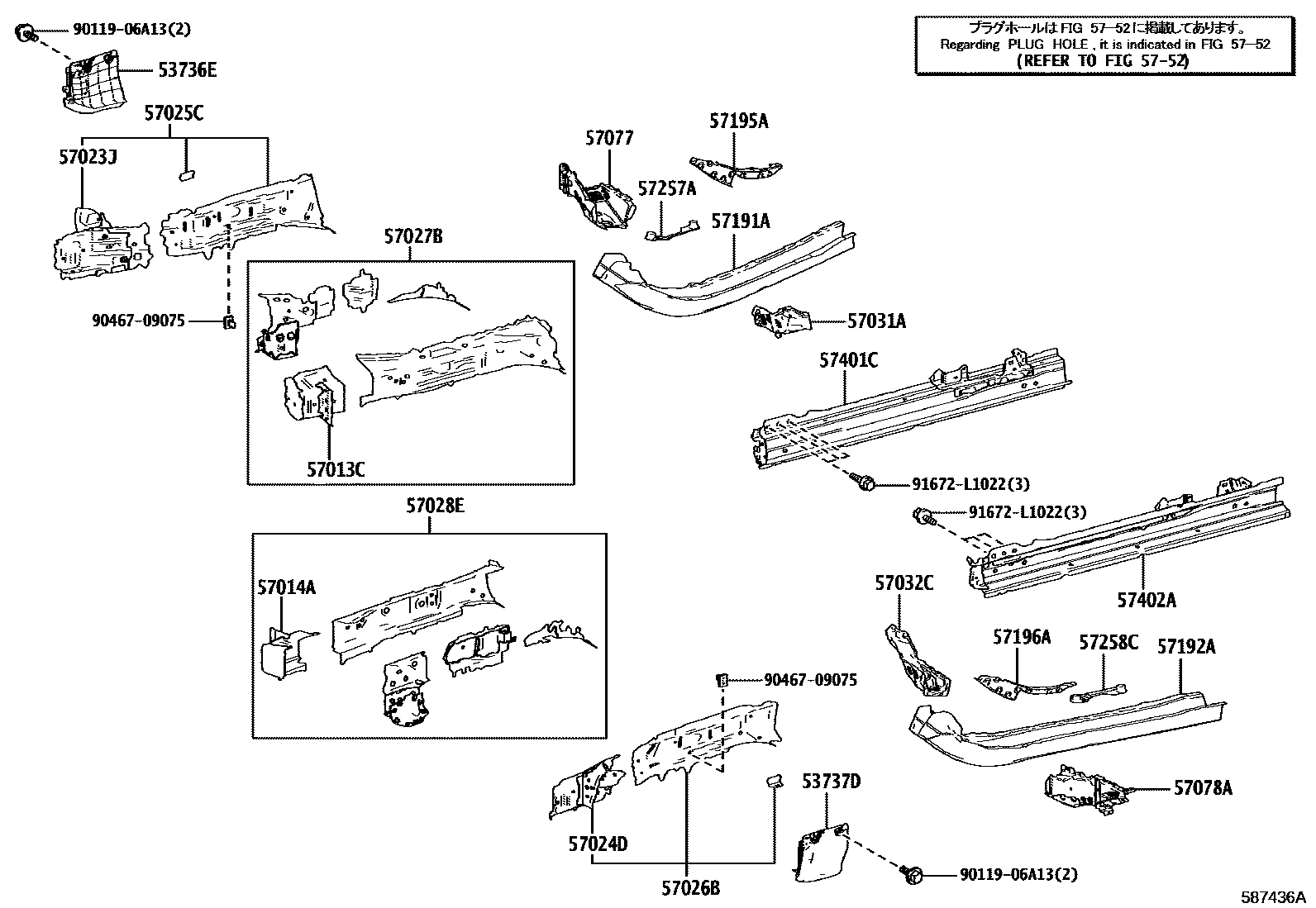

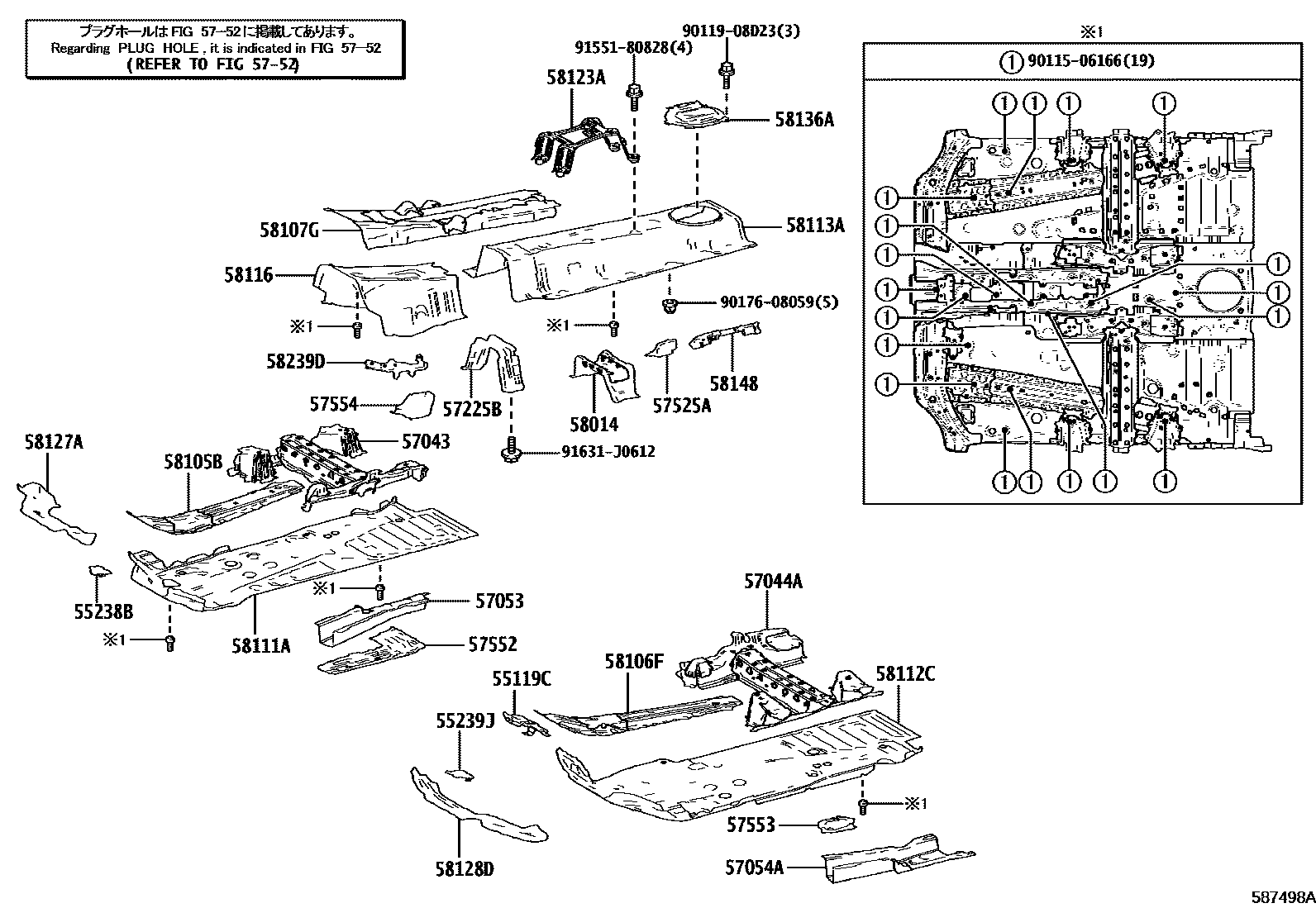

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53736E | Right front fender fender seal | 53736-42050 |
| 53737D | Left front fender fender seal | 53737-42010 |
| 55119C | SUPPORT, EMBRAYAGE AUX | 55119-42010 |
| 55238B | PLAQUE, ISOLANTE TABLEAU DE BORD, INF MD | 55238-42010 |
| 55239J | PLAQUE, ISOLANTE TABLEAU DE BORD, INF MG | 55239-42010 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-42020 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-42020 |
| 57023J | SOUS-ENS. LONGERON, ARRIERE, MD | 57023-42020 |
| 57024D | SOUS-ENS. LONGERON, ARRIERE, MG | 57024-42020 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-42020 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-42030 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-42030 |
| 57028E | SOUS-ENS. SUPPORT, SUPPORT CONVERTISSEUR | 57028-42030 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-42010 |
| 57032C | SOUS-ENS. RENFORT, LONGERON AVANT, NO.2 MG | 57032-42010 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-42030 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-42030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-42020 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-42020 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-42020 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-42020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-42070 |
| 57192A | Left rear longitudinal member inside front floor | 57192-42080 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-42040 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-42030 |
| 57225B | RENFORT, SUPPORT FIXATION AVANT | 57225-42010 |
| 57257A | Engine rear suspension beam right bracket | 57257-42030 |
| 57258C | Engine rear suspension beam left bracket | 57258-42030 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-42160 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-42180 |
| 57525A | Central floor plate No. 1 | 57526-42010 |
| 57552 | RENFORCEMENT, SOL CENTRE, NO.2 | 57552-42010 |
| 57553 | RENFORCEMENT, SOL CENTRE, NO.3 | 57553-42010 |
| 57554 | RENFORCEMENT, SOL CENTRE, NO.4 | 57554-42010 |
| 58014 | Front floor and rear lower panel sub-assembly | 58014-42030 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-42040 |
| 58106F | SOUS-ENS DE SUPPORT, MONTAGE SIEGE, EXT GA | 58106-42010 |
| 58107G | SOUS-ENS. RENFORT, BASE FREIN STATIONNEMENT | 58107-42020 |
| 58111A | Front floor right bottom panel | 58111-42220 |
| 58112C | Front floor left bottom panel | 58112-42030 |
| 58113A | front floor center panel | 58113-42040 |
| 58116 | Shift cable mounting plate | 58116-42030 |
| 58123A | shift lever bracket | 58123-42070 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-42021 |
| 58128D | RENFORT, TRAVERSE AVANT A ELEMENT PANNEAU AVANT, MG | 58128-42021 |
| 58136A | Front floor access hole cover | 58325-42050 |
| 58148 | Front floor shell left rear bracket | 58148-42010 |
| 58239D | Cable clip bracket | 58239-42020 |
