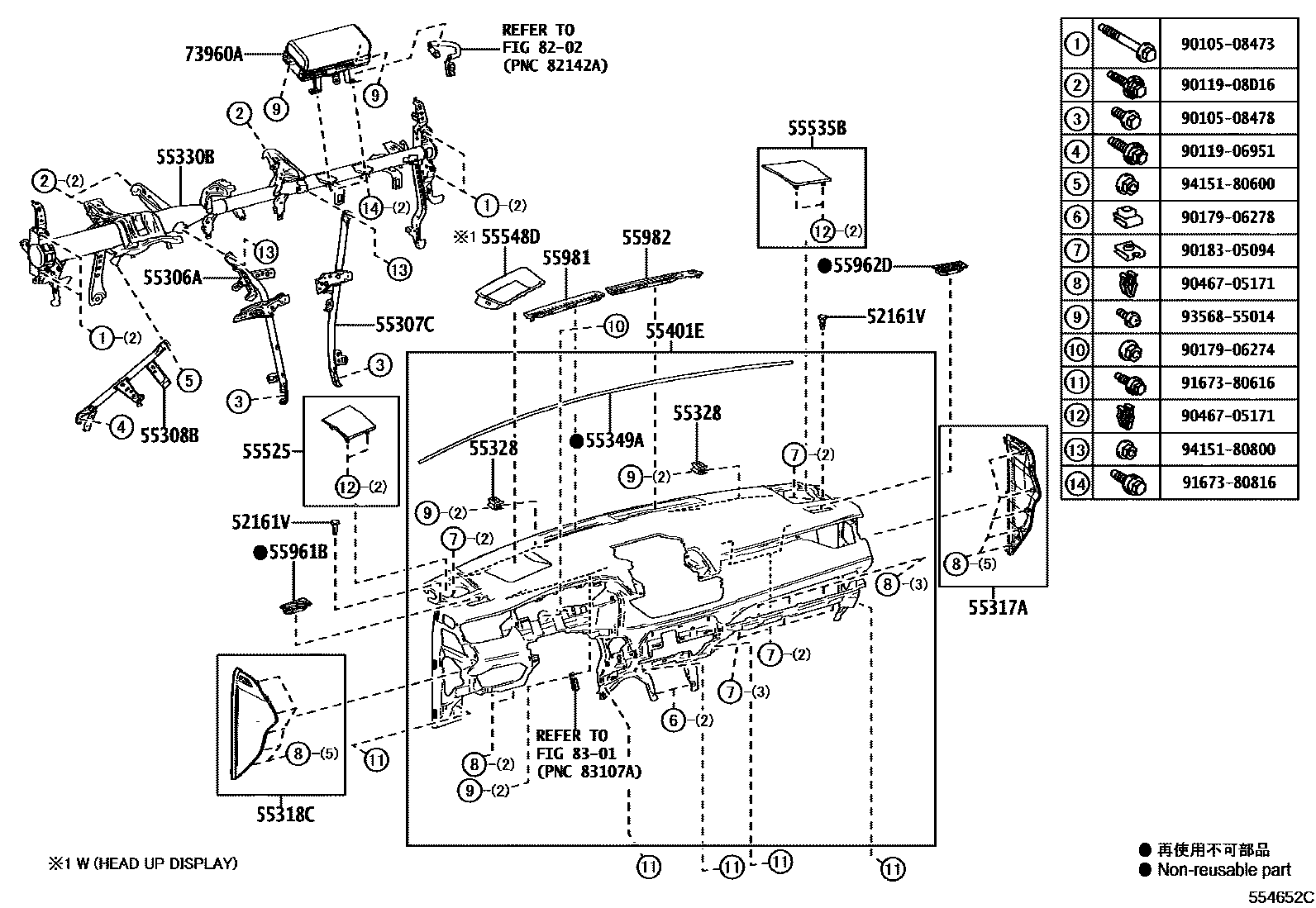

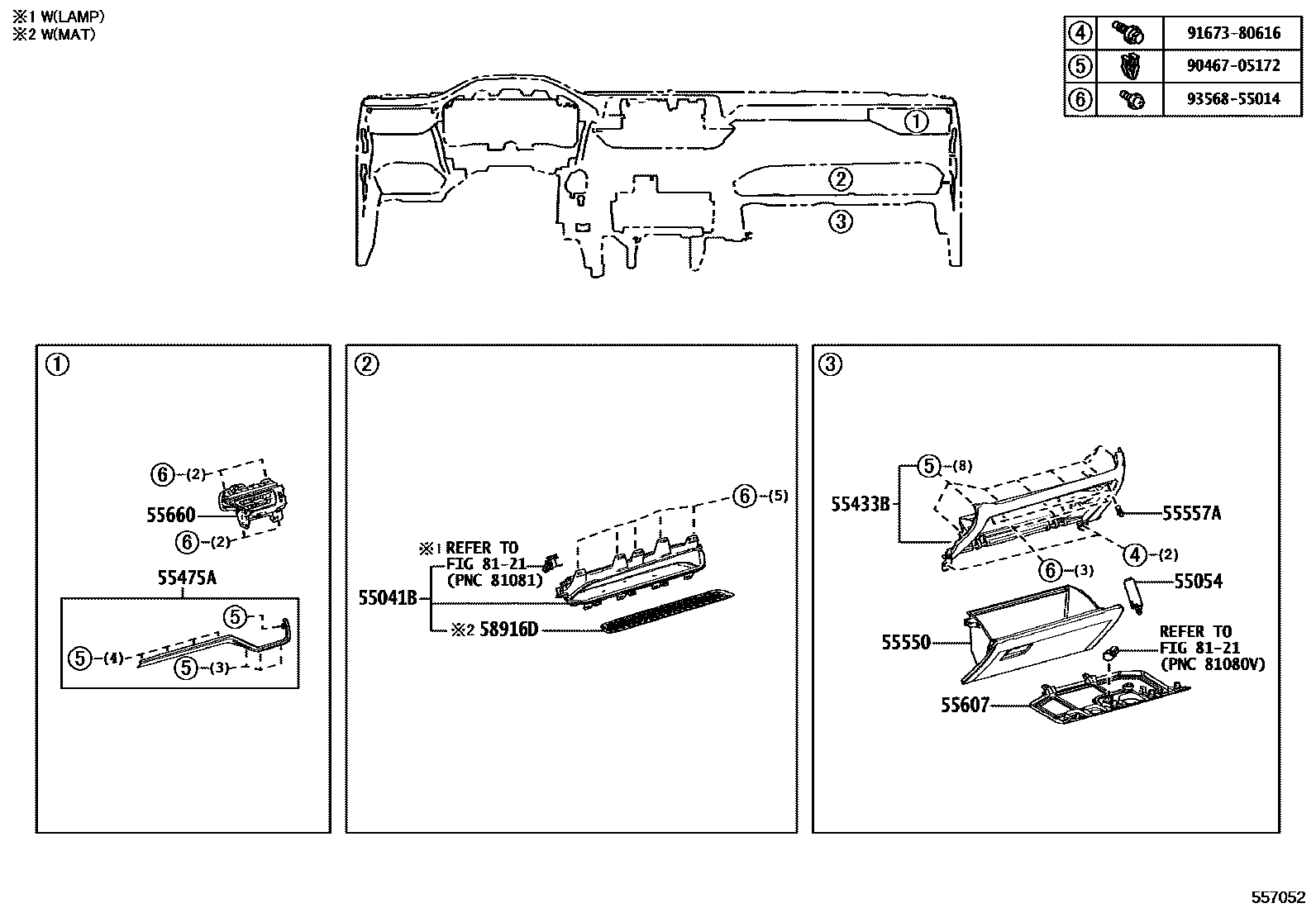

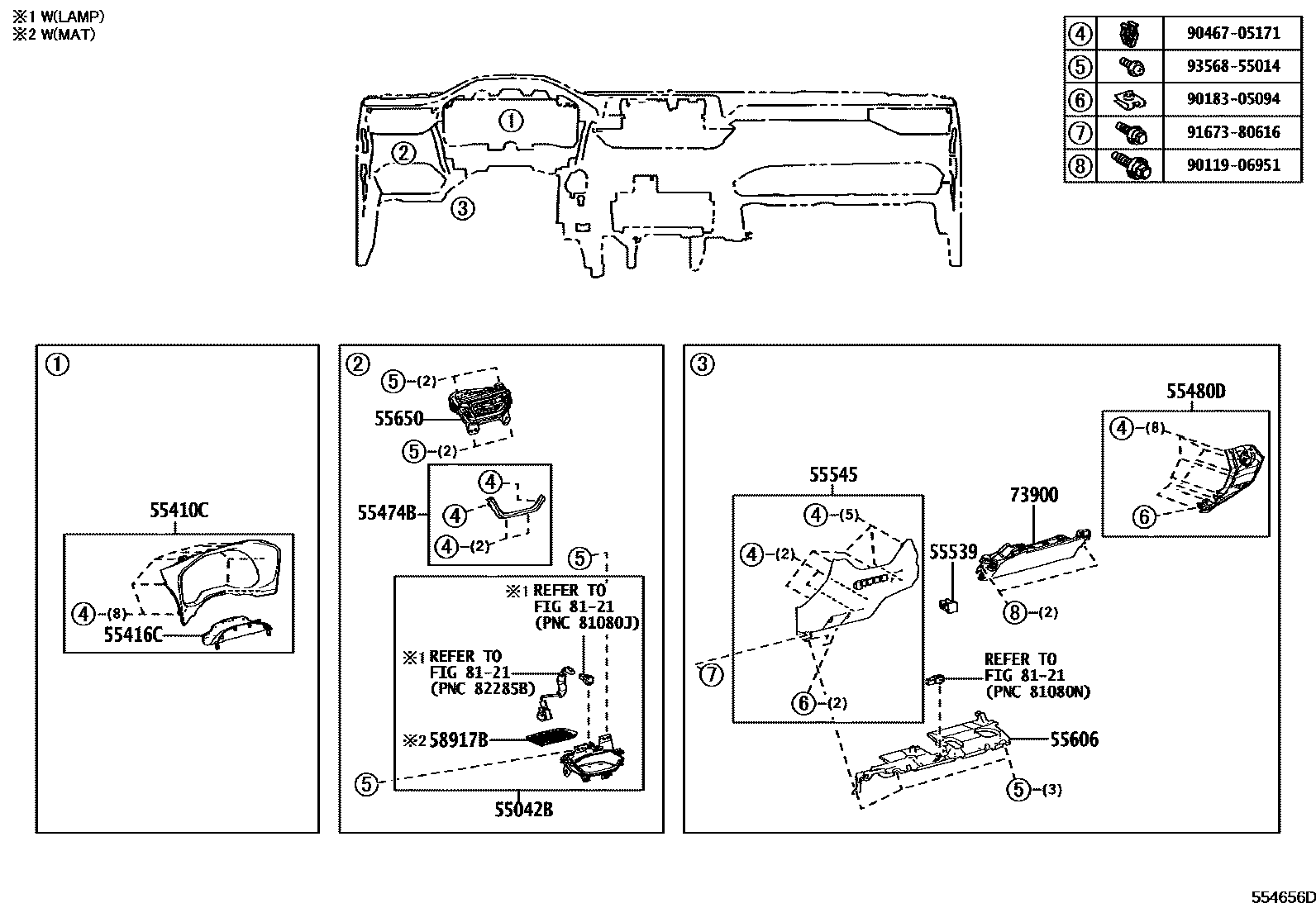

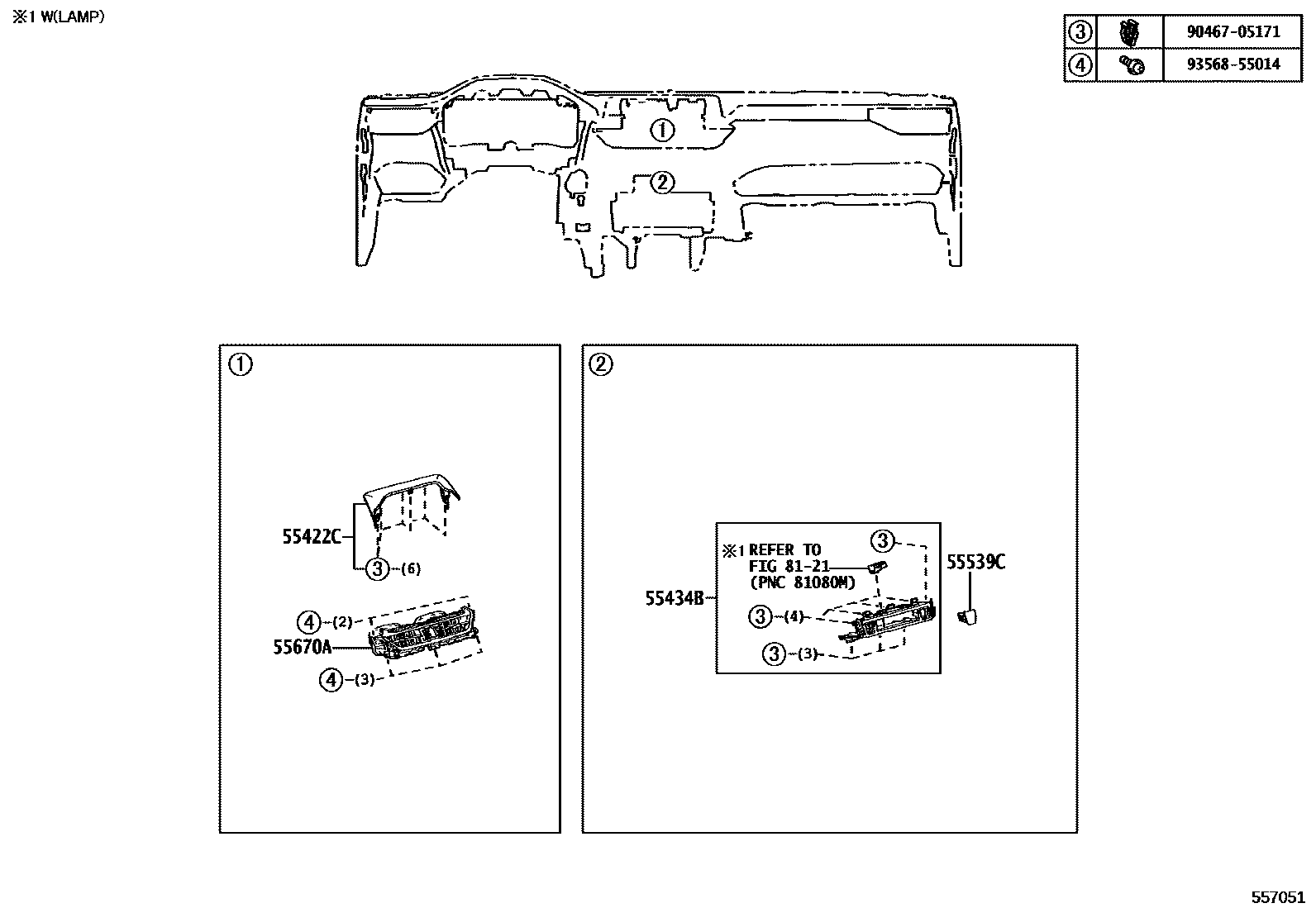

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | PIECE, TABLEAU DE BORD | 52161-16010 |
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-42150 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-42090 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-42070 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55330B | Instrument panel reinforcement assembly | 55330-42280 · 55330-42360 |
| 55349A | Dashboard cushion | 55349-42050 |
| 55410C | Instrument cluster decorative panel assembly | 55410-42170 · 55410-42210 |
| 55416C | Instrument cluster decorative panel fixings | 55416-42040 |
| 55422C | Center instrument cluster upper decorative panel | 55422-42030 · 55422-42080 |
| 55434B | Center dashboard lower trim panel | 55434-42090 · 55434-42110 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-42110 |
| 55475A | Instrument cluster No. 2 decorative panel decorative parts | 55475-42010 |
| 55548D | Dashboard hole cover | 55548-42060 |
| 55557A | Glove box cover limit pad | 55557-10040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-42120 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-42080 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-42070 · 55650-42080 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-42070 · 55660-42080 |
| 55670A | Instrument panel central air register assembly | 55670-42200 · 55670-42210 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-42100 |
