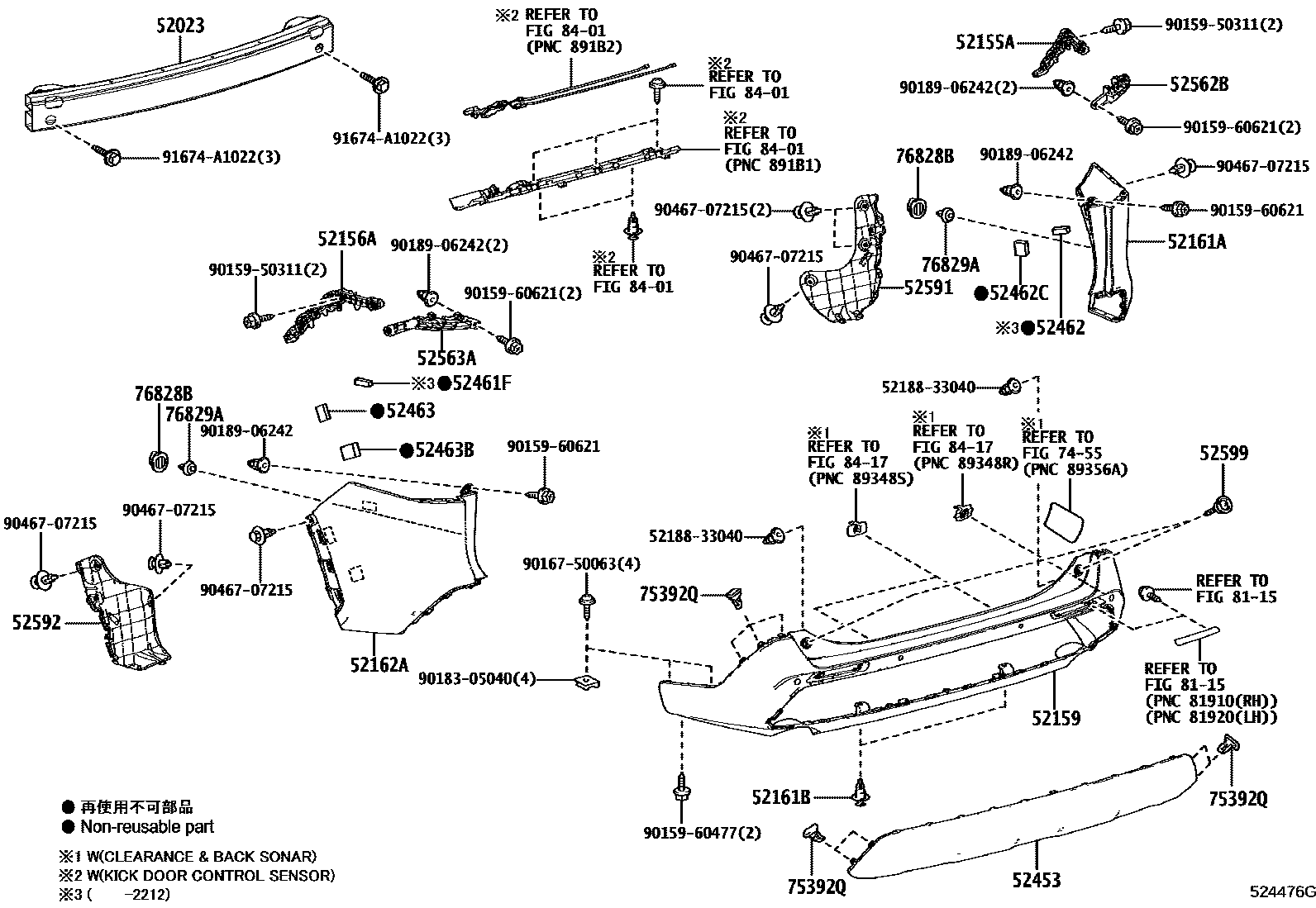

Toyota RAV4 后保险杠及附件 — Figure 5253
Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52171-42080 |
| 52155A | Rear bumper right side bracket | 52155-42050 |
| 52156A | Rear bumper left bracket | 52156-42050 |
| 52159 | rear bumper cover | 52159-42943 · 52159-42947 · 52159-42958 · 52159-42964 |
| 52161A | Rear bumper right side gap filler | 52161-42944 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162A | Rear bumper left insert | 52162-42944 |
| 52461F | rear bumper lining | 52462-42020 |
| 52462 | Rear bumper right side lining | 52462-42020 |
| 52462C | TAMPON, PARE-CHOCS ARR, MD | 52462-42030 |
| 52463 | Rear bumper left lining | 52463-42010 |
| 52463B | TAMPON, PARE-CHOCS ARR, MG | 52463-42020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-42060 |
| 52563A | Rear bumper upper left fixing bracket | 52563-42050 |
| 52591 | Rear bumper right seal | 52591-42100 |
| 52592 | Rear bumper left seal | 52592-42100 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 75392Q | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-35220 |
| 76828B | ARRETOIR, GARNITURE HAYON | 76828-60030 |
| 76829A | ARRETOIR, GARNITURE HAYON | 76829-60020 |
