Toyota RAV4 前保险杠及附件 — Figure 5252

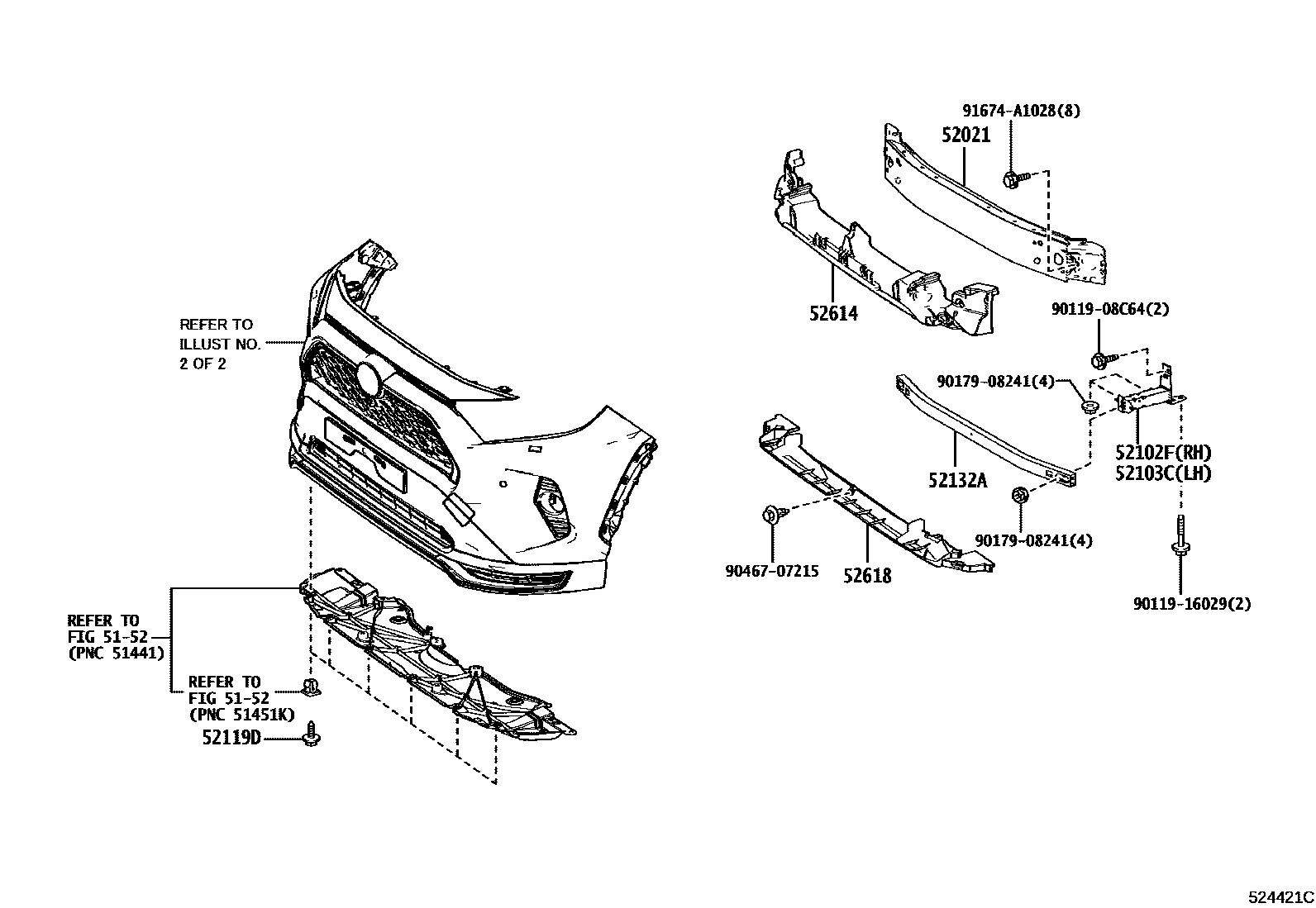

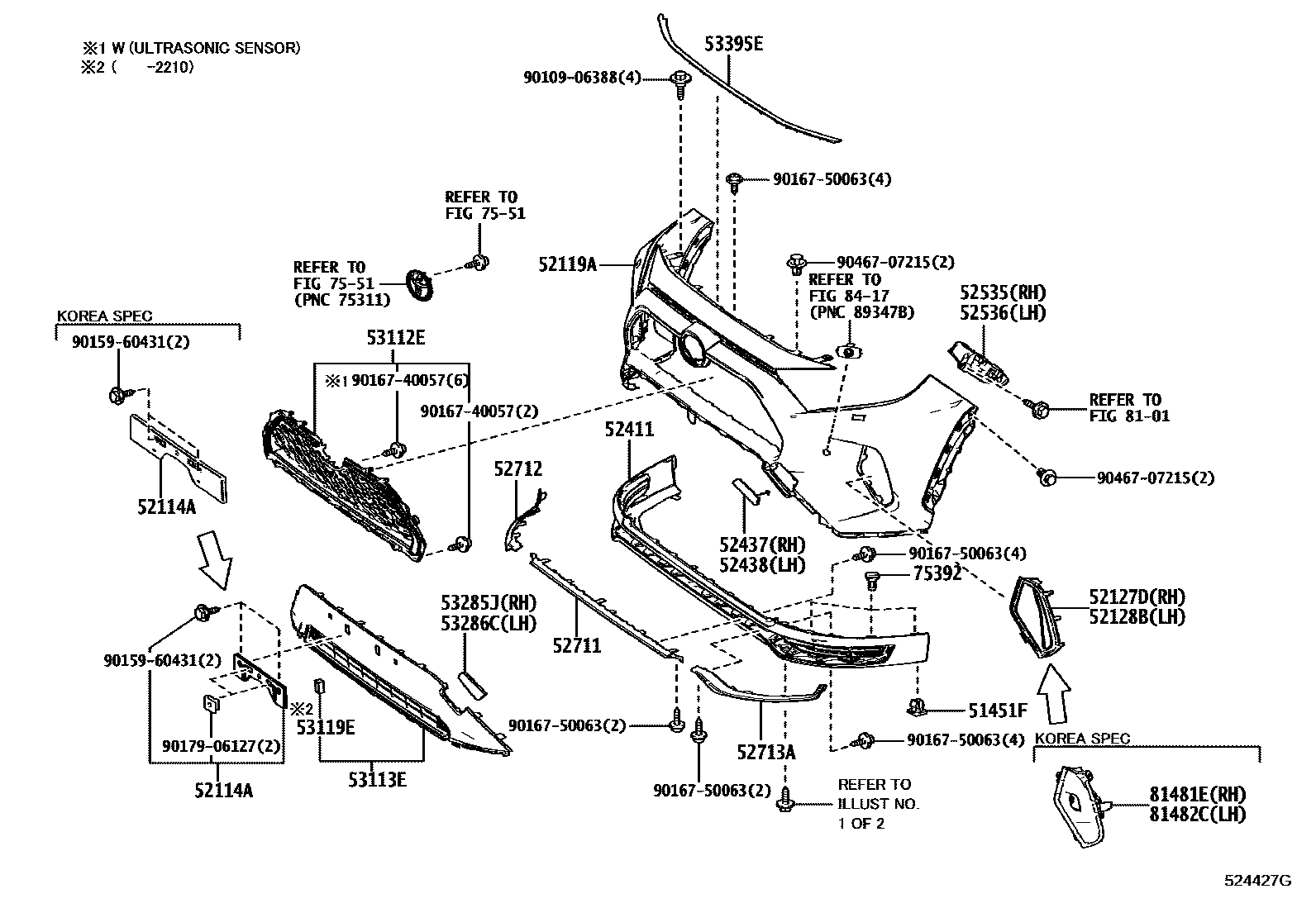

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-42190 |
| 52102F | SOUS-ENS. EXTENSION, PARE-CHOCS AV, MD | 52102-42100 |
| 52103C | SOUS-ENS. EXTENSION, PARE-CHOCS AV, MG | 52103-42100 |
| 52114A | Front bumper extension mounting bracket | 52114-42140 · 52114-42150 |
| 52119A | front bumper cover | 52119-4A916 · 52119-4A927 |
| 52119D | VIS, NO.1 | 90159-60477 |
| 52127D | Front bumper right hole cover | 52127-42210 · 52127-42230 |
| 52128B | Front bumper left hole cover | 52128-42210 · 52128-42230 · 52128-42231 |
| 52132A | No. 2 front bumper reinforcement | 52132-42070 |
| 52411 | Front bumper anti-collision bar | 52411-42909 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-42901 |
| 52438 | Front bumper left anti-collision bar cover | 52438-42901 |
| 52535 | Front bumper right side fixing bracket | 52535-42050 |
| 52536 | Front bumper left fixed bracket | 52536-42080 |
| 52614 | No. 2 energy absorber for front bumper | 52614-42140 |
| 52618 | Front bumper lower shock absorber | 52618-42090 |
| 52711 | Front bumper protection strip | 52711-42070 |
| 52712 | Front bumper right side protective strip | 52712-42070 |
| 52713A | Front bumper left protective strip | 52713-42070 |
| 53112E | No. 1 radiator lower grille | 53102-42010 · 53102-42020 · 53102-42030 · 53102-42040 |
| 53119E | Radiator grille protector | 53119-42030 |
| 53395E | Engine cover to front end plate seal | 53395-42080 |
| 75392 | External protective strip fixings | 75392-35220 |
| 81481E | Right fog light cover | 52030-42090 |
| 81482C | Left fog light cover | 52040-42090 |
