Toyota RAV4 制动配管和卡箍 — Figure 4708

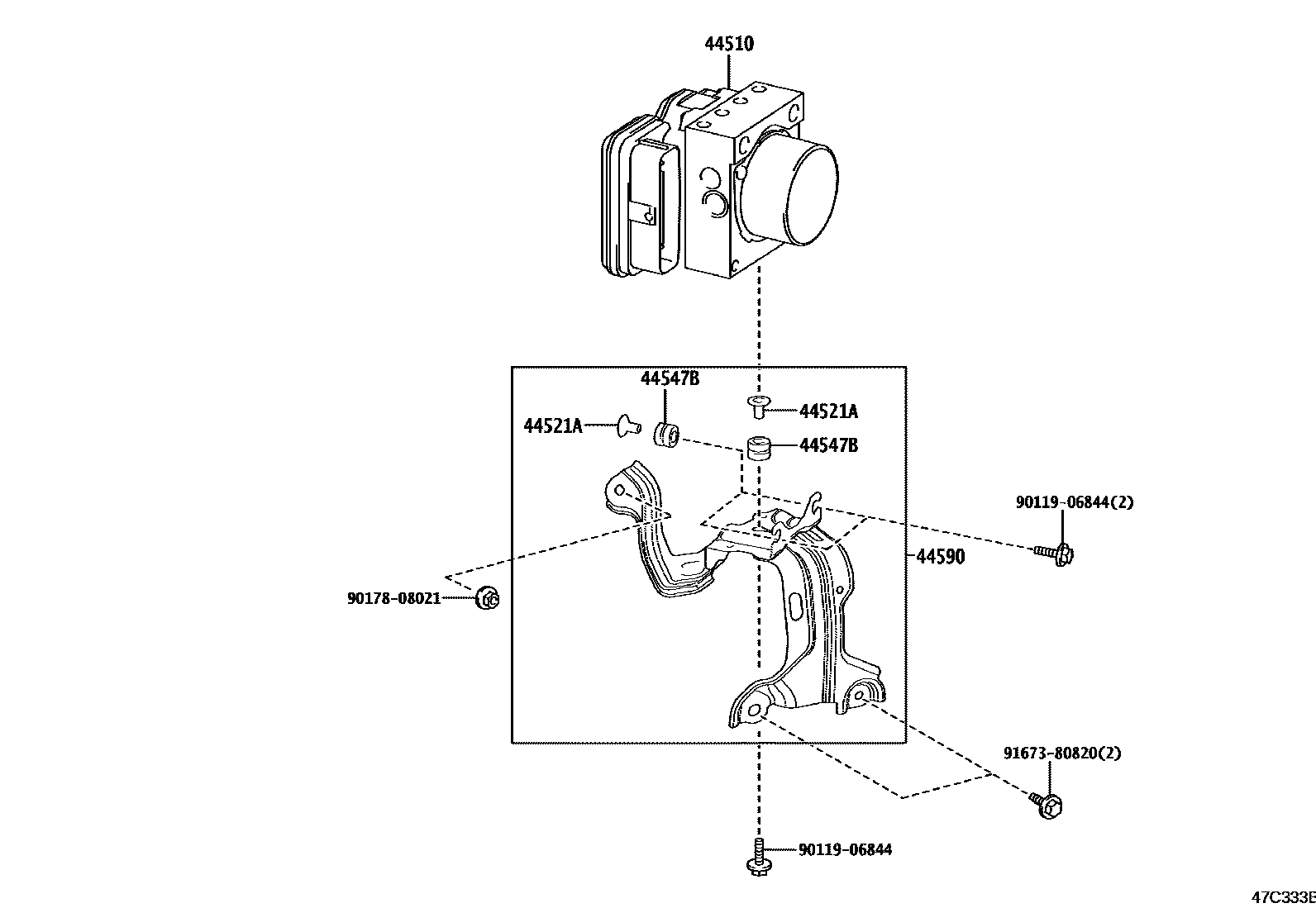

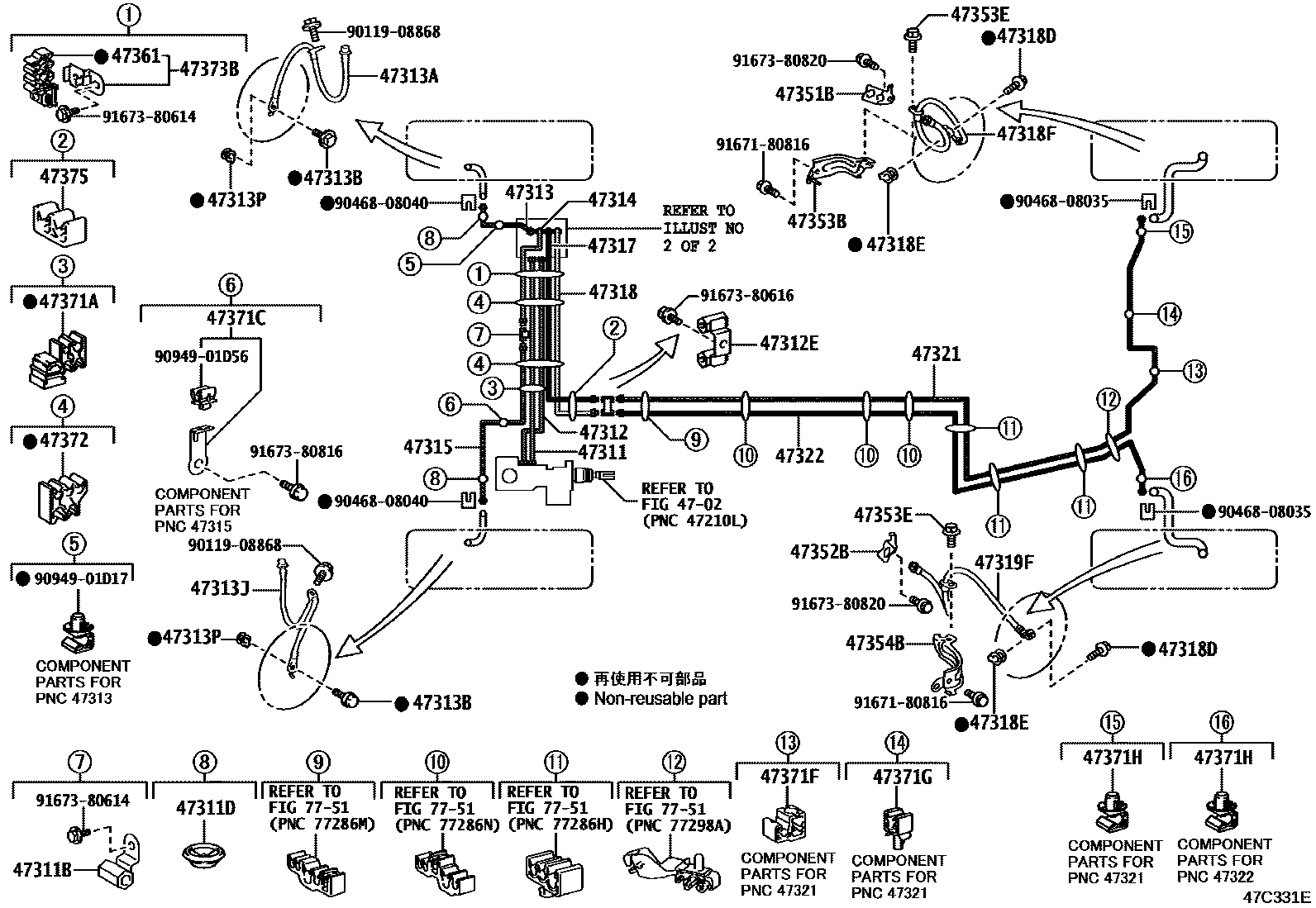

Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-42J50 · 44050-42J51 · 44050-42J52 · 44050-42J53 · 44050-42L40 · 44050-42P10 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 |
| 44547B | brake actuator bracket cushion | 44546-12120 |
| 44590 | Brake actuator bracket assembly | 44590-42190 |
| 47311 | No. 1 front brake pipe | 47311-42260 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-42430 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10285 |
| 47313 | No. 3 front brake pipe | 47313-42460 |
| 47313A | No. 1 front flexible hose | 90947-02J10 · 90947-02J12 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02J11 · 90947-02J15 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-42280 |
| 47315 | No. 5 front brake pipe | 47315-42310 |
| 47317 | No. 7 front brake pipe | 47317-42290 |
| 47318 | No. 8 front brake pipe | 47318-42290 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02J43 |
| 47319F | Left rear flexible hose | 90947-02J44 |
| 47321 | No. 1 rear brake pipe | 47321-42220 |
| 47322 | No. 2 rear brake pipe | 47322-42200 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-10110 |
| 47353E | BOULON(POUR SUPPORT TUYAU FLEXIBLE) | 90119-08868 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-10060 |
| 47361 | pipe clamp | 90949-01E31 |
| 47371A | No. 1 brake pipe clamp | 90949-01E30 |
| 47371C | No. 7 brake pipe clamp | 47371-42140 |
| 47371F | No. 10 brake pipe clamp | 90949-01C82 |
| 47371G | No. 11 brake pipe clamp | 90949-01E01 |
| 47371H | No. 12 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 47371-42150 |
| 47375 | No. 5 brake pipe clamp | 90464-00903 |
