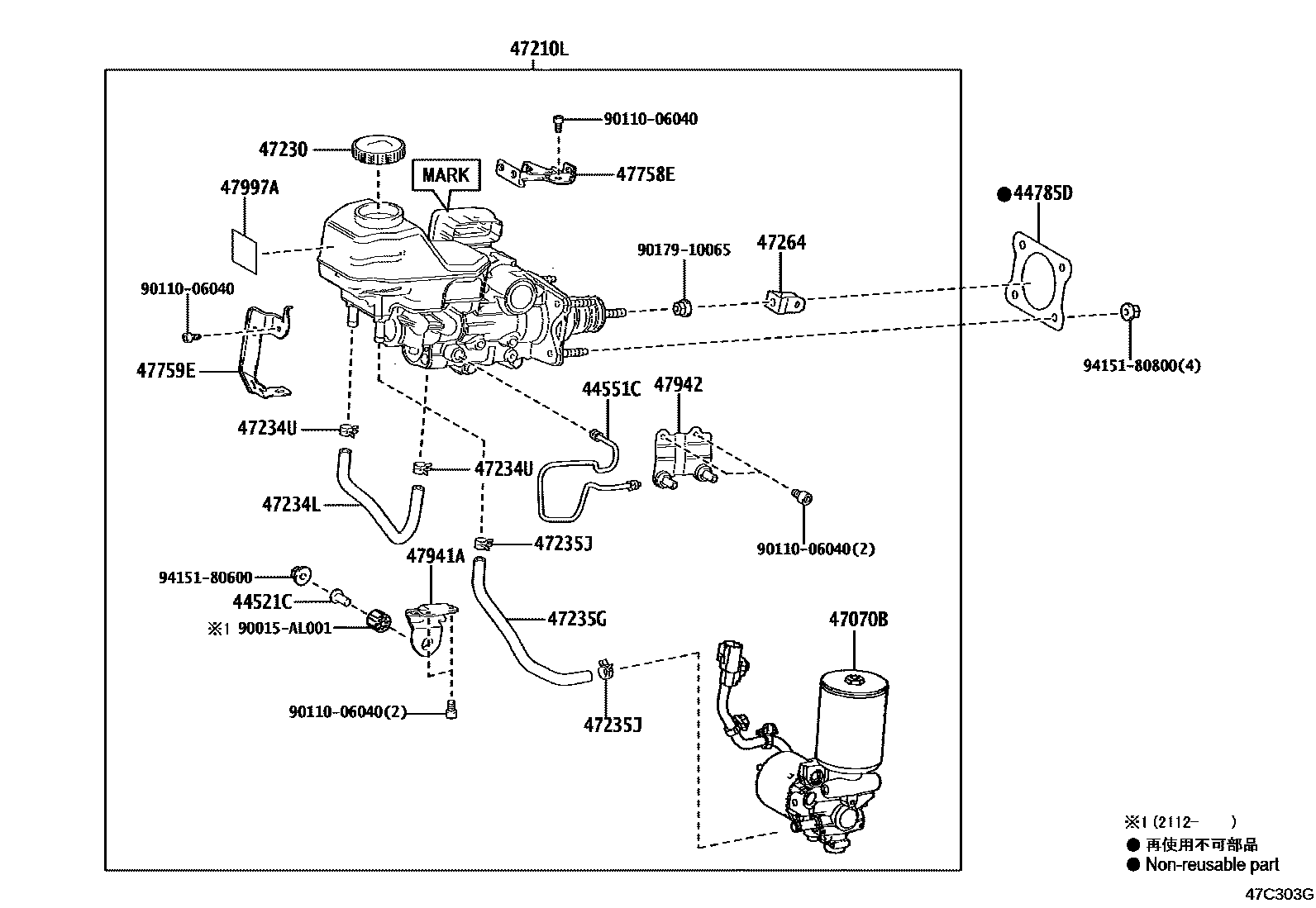

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44521C | COLLIER, BOITIER ACTIONNEUR FREIN | 44521-47010 |
| 44551C | No. 1 brake actuator pipe | 44551-48080 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47070B | Brake booster pump assembly with pressure accumulator | 47070-48100 |
| 47210L | Brake booster assembly with master cylinder | 47050-42240 · 47050-42241 · 47050-42400 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-42040 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-42040 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47758E | SUPPORT, BRIDE DE FIL, NO.1 | 47758-42010 |
| 47759E | SUPPORT, BRIDE DE FIL, NO.2 | 47759-42020 |
| 47941A | PLAT. FIX. ASSISTANCE FREIN NO.1 | 47941-48010 |
| 47942 | No. 2 brake power bracket | 47942-48010 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
