Toyota RAV4 Engine Oil Cooler — Figure 1503

Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 1 images and 3 PNC and OE references.

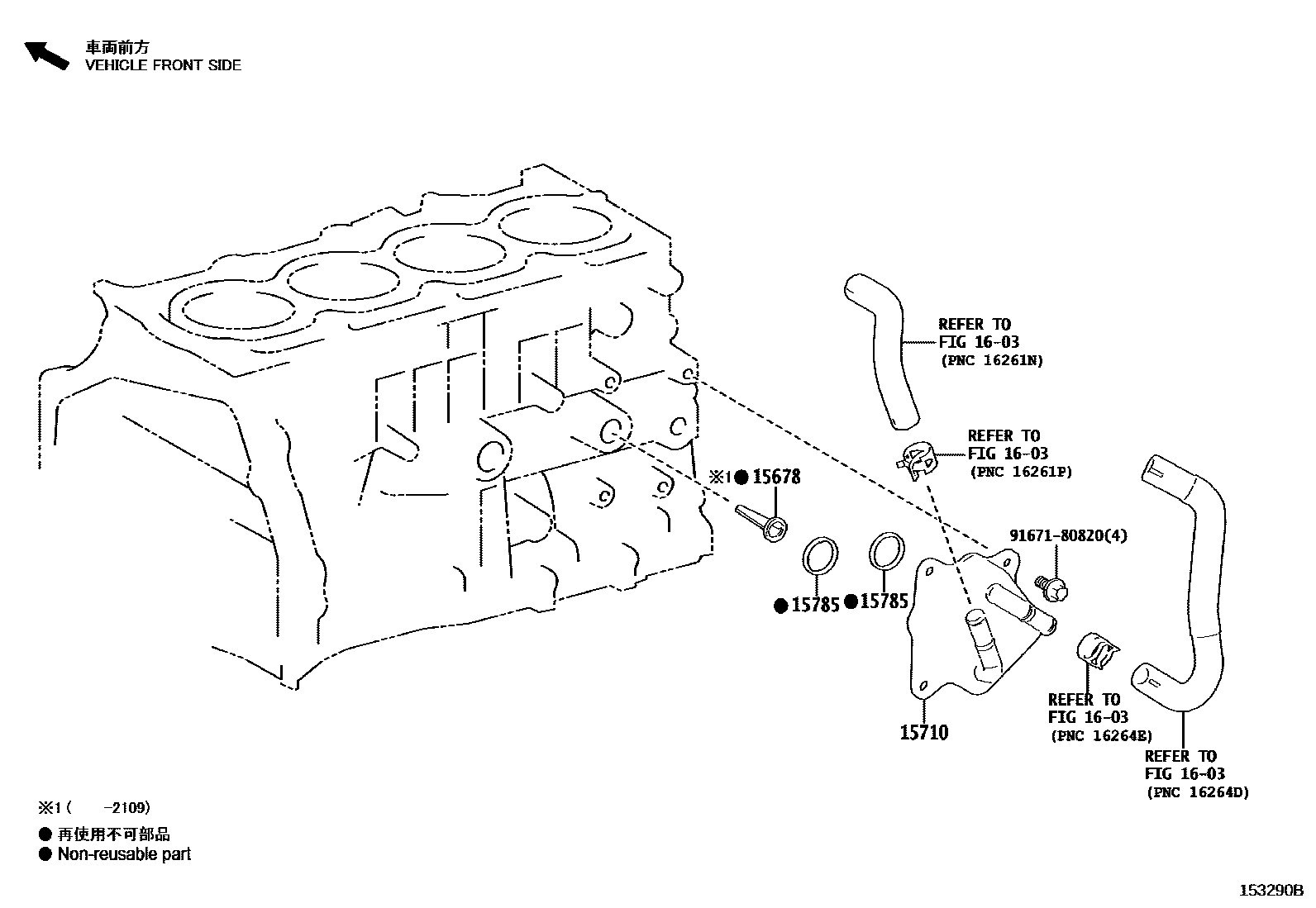

Toyota RAV4 Engine Oil Cooler EPC diagram — 153290B
Engine Oil Cooler — 153290B (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
15678Oil control valve filter15678-25010
15710Oil cooler assembly15710-25010
15785oil cooler gasket15785-25010
