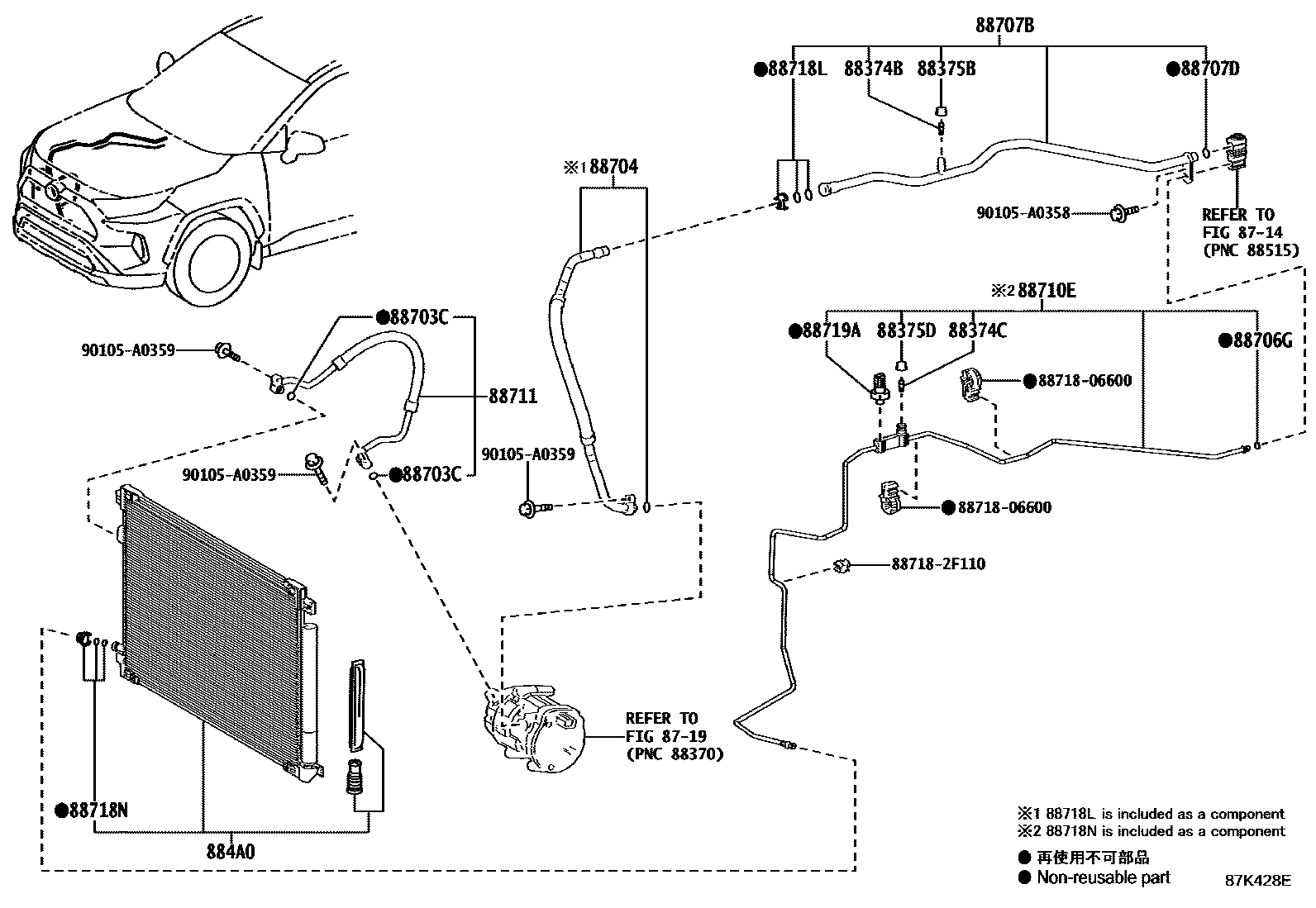

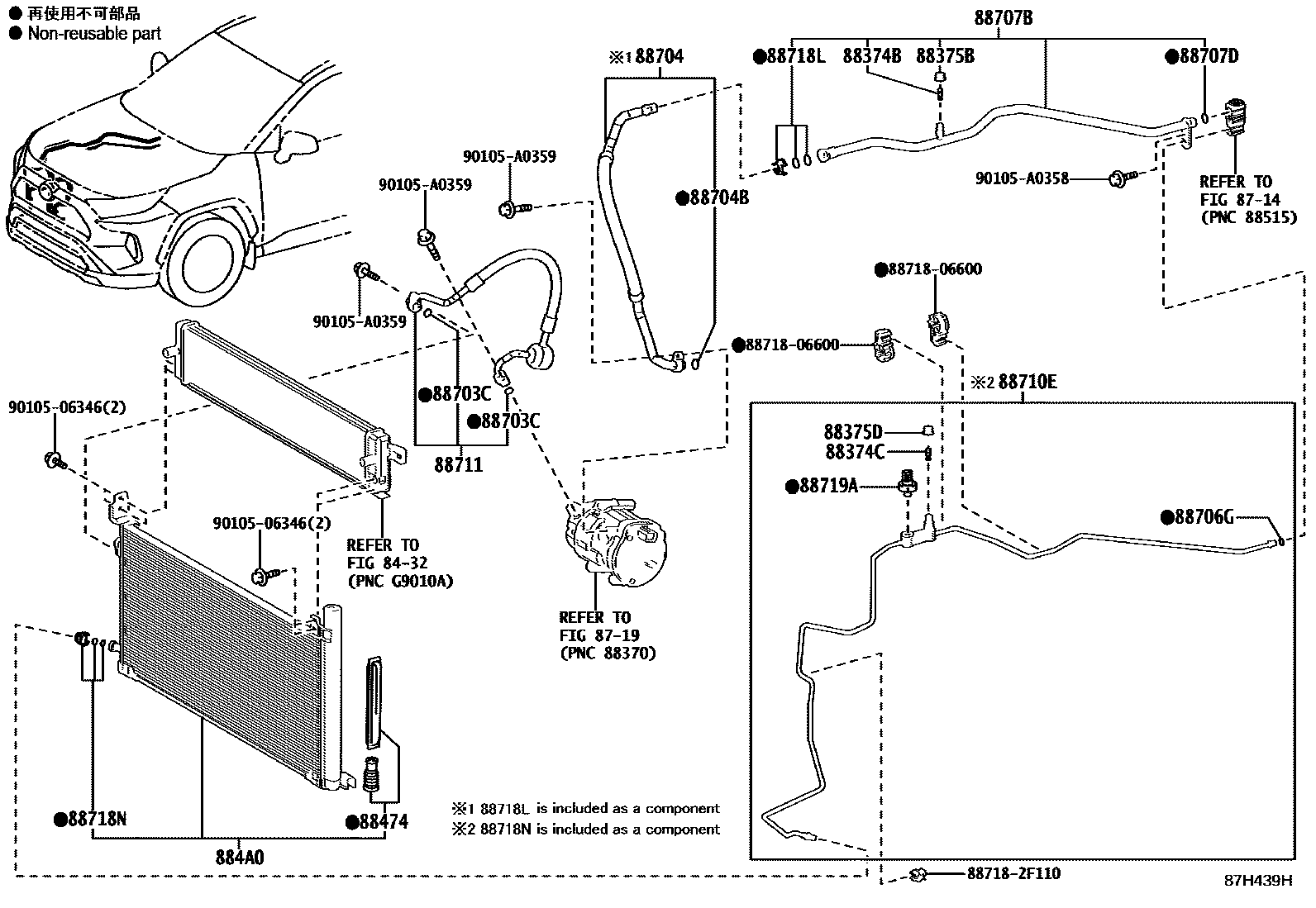

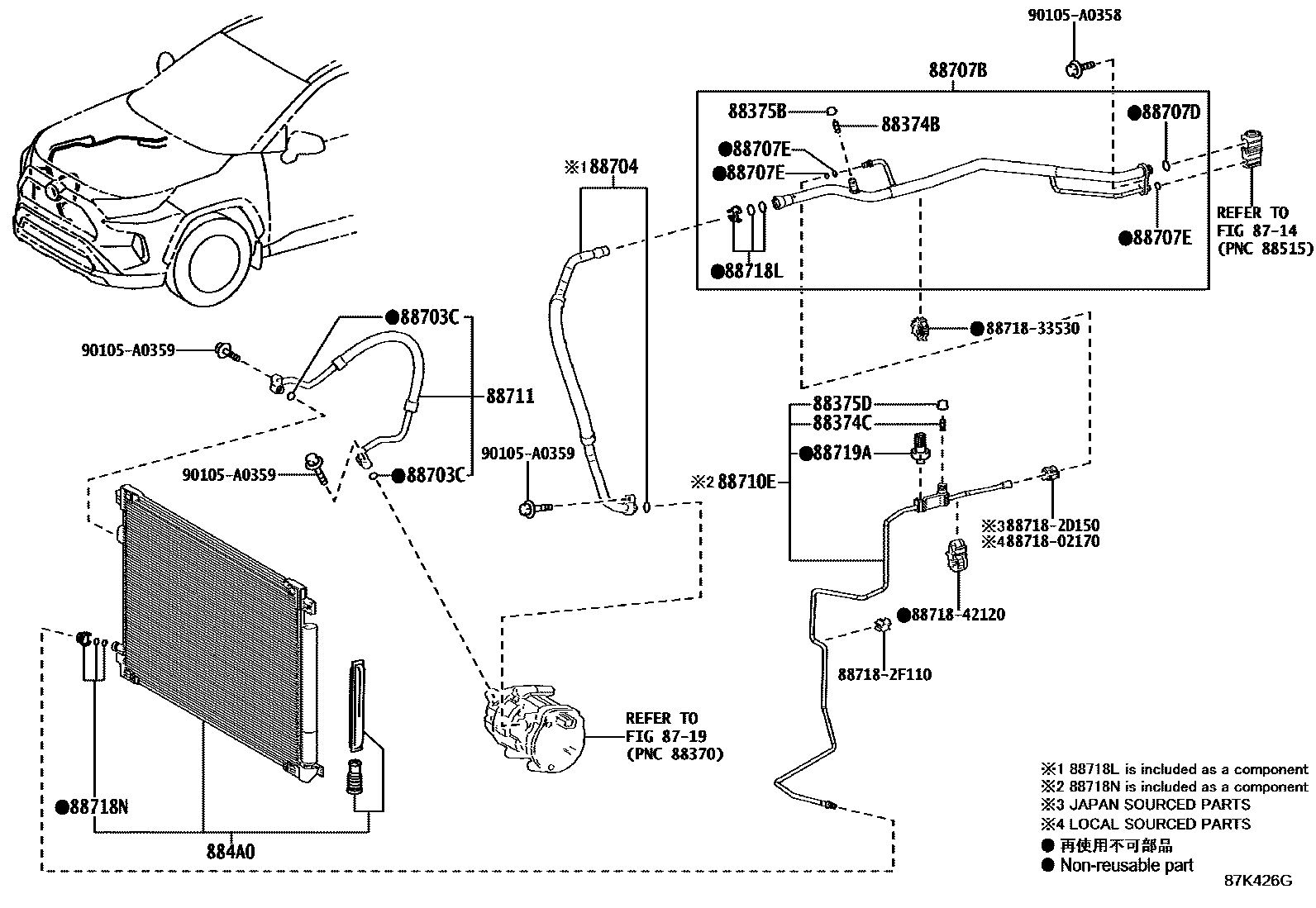

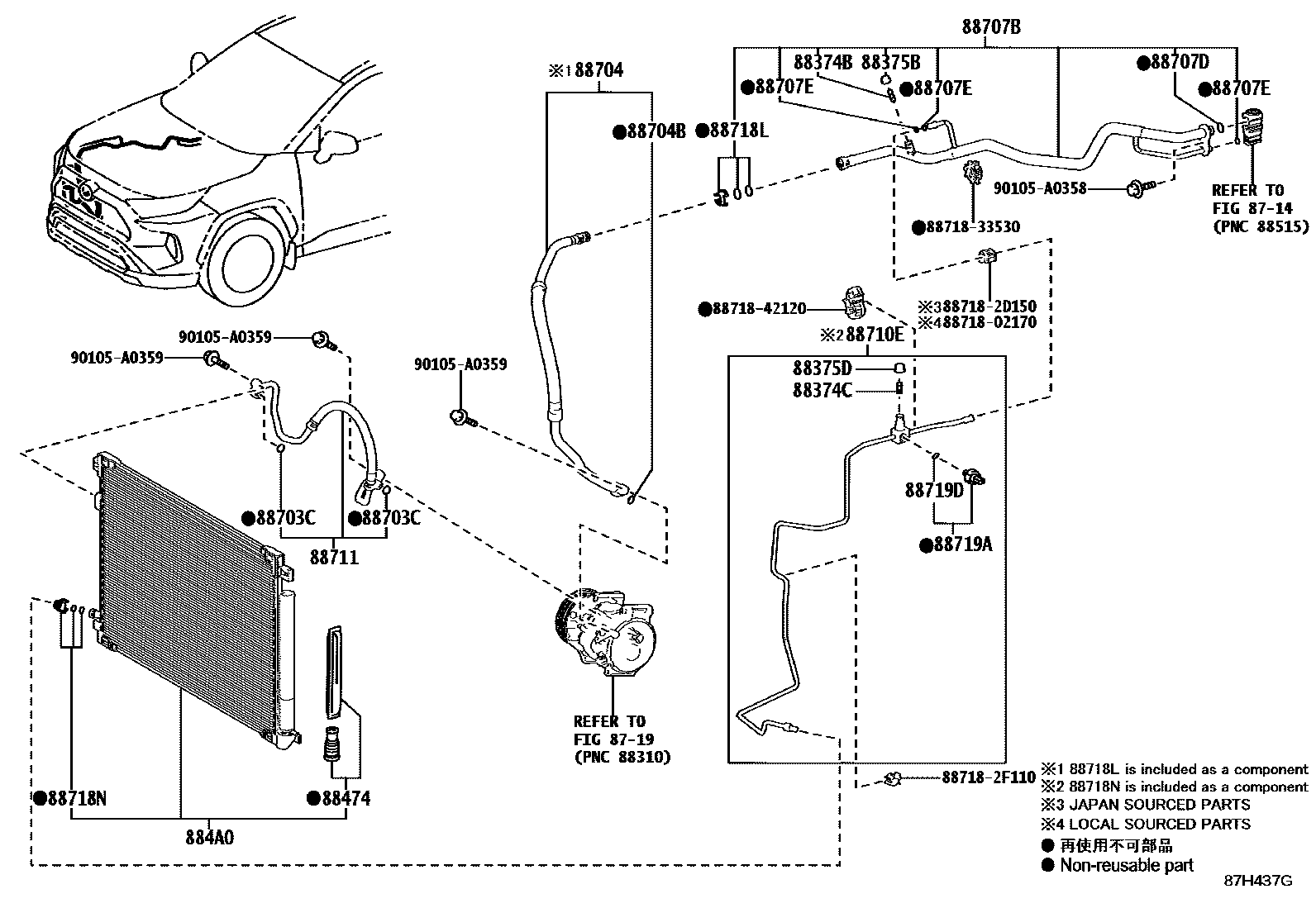

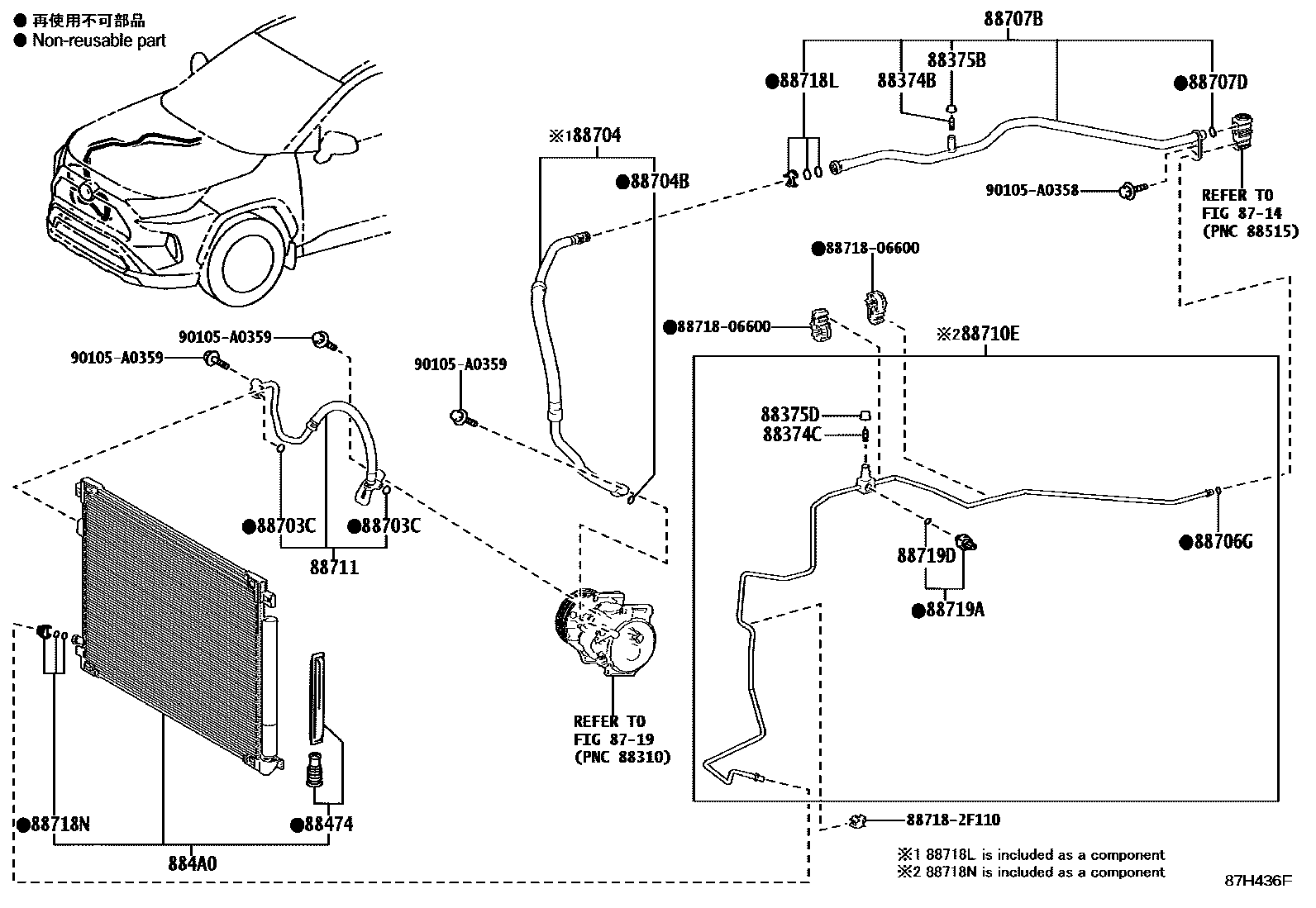

Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30320 |
| 88474 | cooler dryer | 88474-06020 · 88474-12020 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-06020 · 884A0-0R030 · 884A0-0R040 · 884A0-42040 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90069-08007 |
| 88704 | Oil suction hose sub-assembly | 88704-0R090 · 88704-0R100 · 88704-0R260 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90069-08009 |
| 88706G | JOINT, TORIQUE(POUR TUYAU LIQUIDE) | 90069-08011 |
| 88707B | Suction pipe B sub-assembly | 88707-0R070 · 88710-0R040 · 88710-0R300 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90069-08009 |
| 88707E | JOINT, TORIQUE(POUR TUYAU ASPIRATION) NO.2 | 90069-08011 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0R010 · 88710-0R020 · 88710-0R030 · 88710-0R270 · 88710-0R271 · 88710-0R280 · 88710-0R281 · 88710-0R290 · 88710-0R310 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0R010 · 88711-0R020 · 88711-0R250 · 88711-F6030 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | JOINT, TORIQUE(POUR CAPTEUR PRESSION CLIM) | 90099-14158 |
