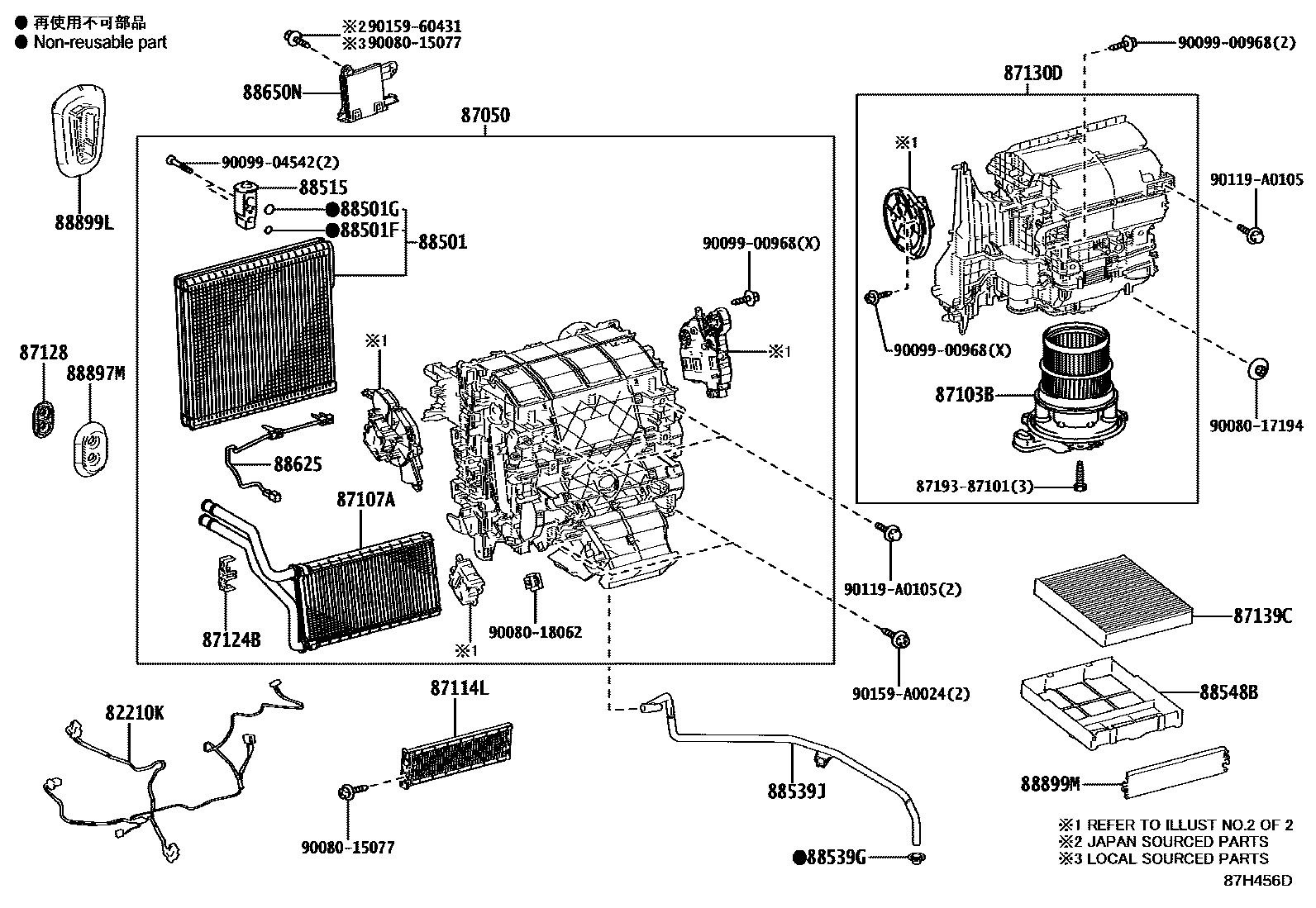

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06200 · 82212-0R040 · 82212-0R050 |
| 87050 | Air conditioning radiator assembly | 87050-06850 · 87050-06870 · 87050-06890 · 87050-0R110 · 87050-0R120 · 87050-0R130 · 87050-0R160 · 87050-0R161 · 87050-0R320 · 87050-0R330 · 87050-0R340 |

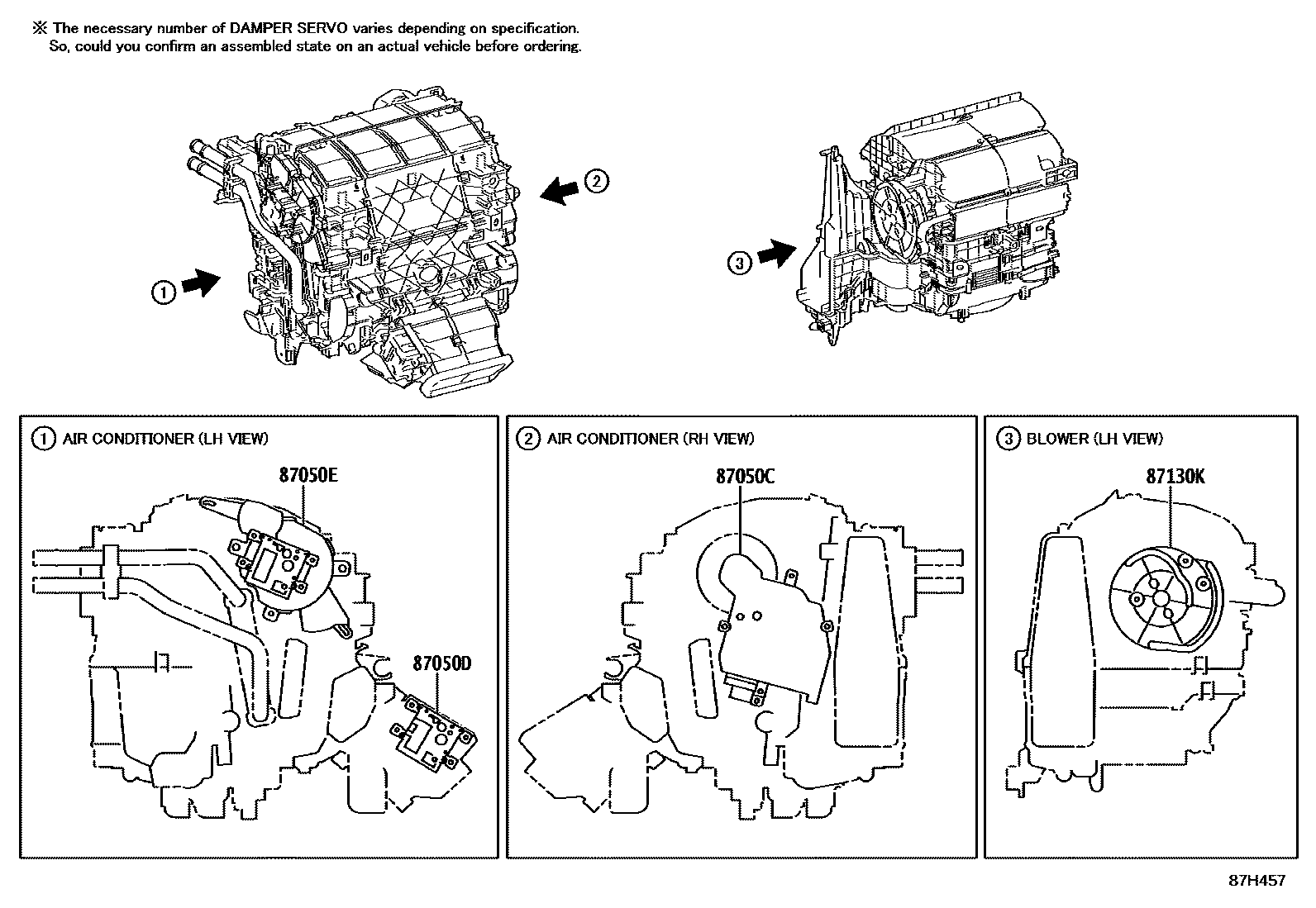

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06360 · 87106-06420 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0E120 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-0E110 |
| 87103B | Blower motor sub-assembly with fan | 87103-0E090 |
| 87107A | Heater radiator device sub-assembly | 87107-06100 |
| 87114L | COUVERCLE CHAUFFAGE, NO.2 | 87114-06090 |
| 87124B | heater clip | 87124-07030 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-06410 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0E130 |
| 87139C | air purification filter | 87139-0R030 · 87139-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06370 · 88501-06410 · 88501-06430 · 88501-0E190 · 88501-0R030 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90069-08007 · 90099-14120 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90069-08009 · 90099-14121 |
| 88515 | Cooler expansion valve | 88515-06140 · 88515-06160 · 88515-0E160 · 88515-12160 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06020 |
| 88539J | Cooler drain hose | 88539-0R050 |
| 88548B | air filter housing | 88899-0R010 |
| 88625 | Cooler No. 1 Thermistor | 88620-06060 · 88620-0E050 · 88620-0R010 |
| 88650N | Air conditioning amplifier assembly | 88650-0R280 · 88650-0R290 · 88650-0R340 · 88650-0R350 · 88650-0R390 · 88650-0R391 · 88650-0R400 · 88650-0R401 · 88650-0R470 · 88650-0R480 · 88650-0R500 · 88650-0R510 |
| 88897M | Seals (for heater tubes) | 87128-06010 |
| 88899L | Cooling unit parts | 88899-06280 · 88899-06300 |
| 88899M | cover (for air cleaner) | 88899-06310 |
