Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.

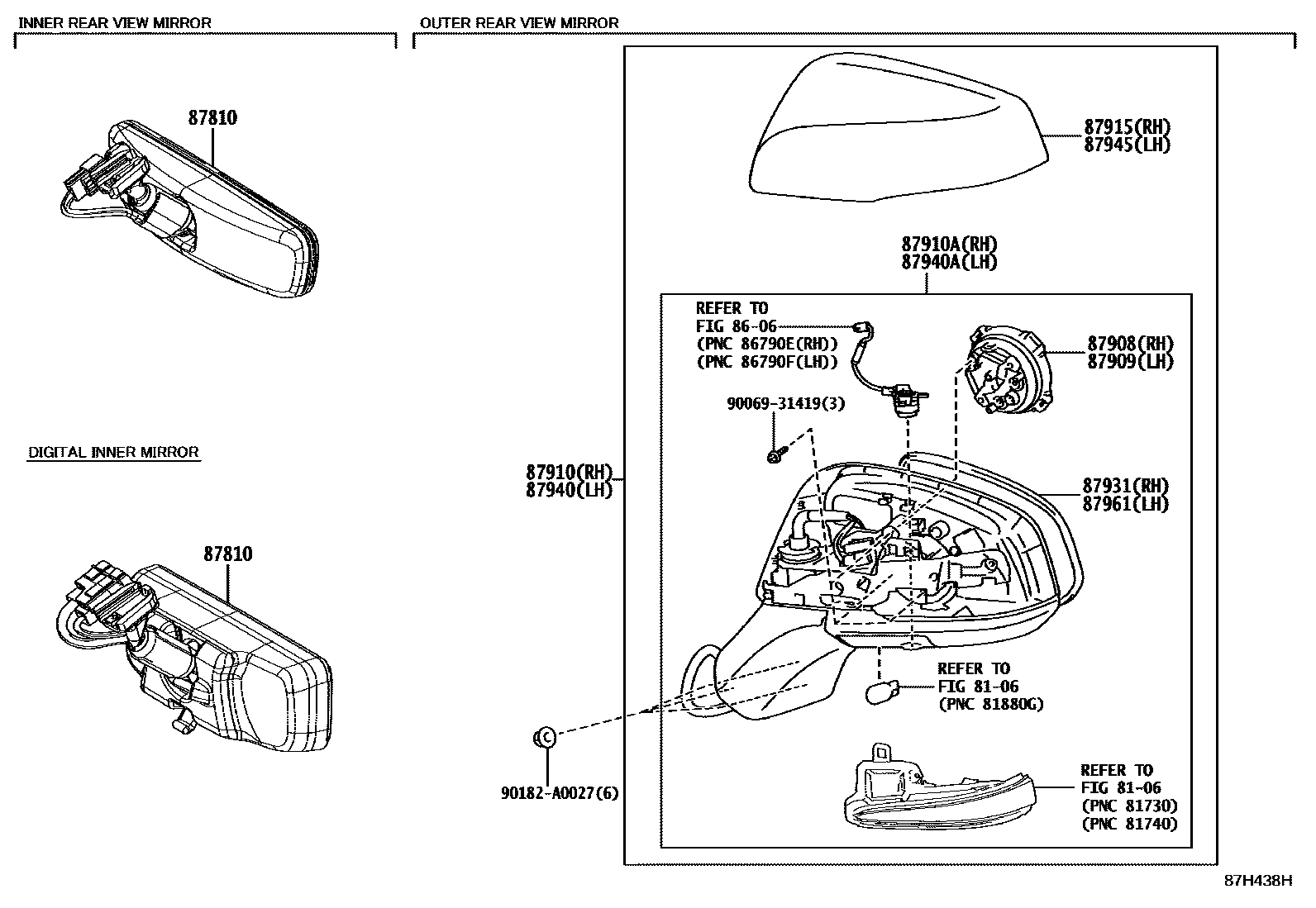

Toyota RAV4 后视镜 EPC diagram — 87H438H
后视镜 — 87H438H (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0R110 · 87810-0R170 · 87810-0R190 · 87810-0R200 · 87810-0R250 · 87810-0WQ40 · 87810-0WW60 · 87810-0WW70
87908Right exterior rearview mirror actuator assembly87925-0R260
87909Left exterior rearview mirror actuator assembly87925-0R260
87910Right exterior rearview mirror assembly87910-0R260 · 87910-0R261 · 87910-0R262 · 87910-0R560 · 87910-0R907 · 87910-0R908 · 87910-0R911
87910AENS. RETROVISEUR, EXTERIEUR, SANS HOUSSE, MD00000-00000 · 87910-0R907 · 87910-0R908 · 87910-0R910 · 87910-0R911 · 87910-0R912
87915Right exterior rearview mirror cover87915-0R150
87931Right exterior rearview mirror87931-0R260 · 87931-0R280
87940Left exterior rearview mirror assembly87940-0R260 · 87940-0R261 · 87940-0R262 · 87940-0R550 · 87940-0R907 · 87940-0R908 · 87940-0R911
87940AENS. RETROVISEUR, EXTERIEUR, SANS HOUSSE, MG00000-00000 · 87940-0R907 · 87940-0R908 · 87940-0R910 · 87940-0R911 · 87940-0R912
87945Left exterior rearview mirror cap87945-0R150
87961Left exterior rearview mirror87961-0R260 · 87961-0R280
