Toyota RAV4 车载电话和呼救装置 — Figure 8615

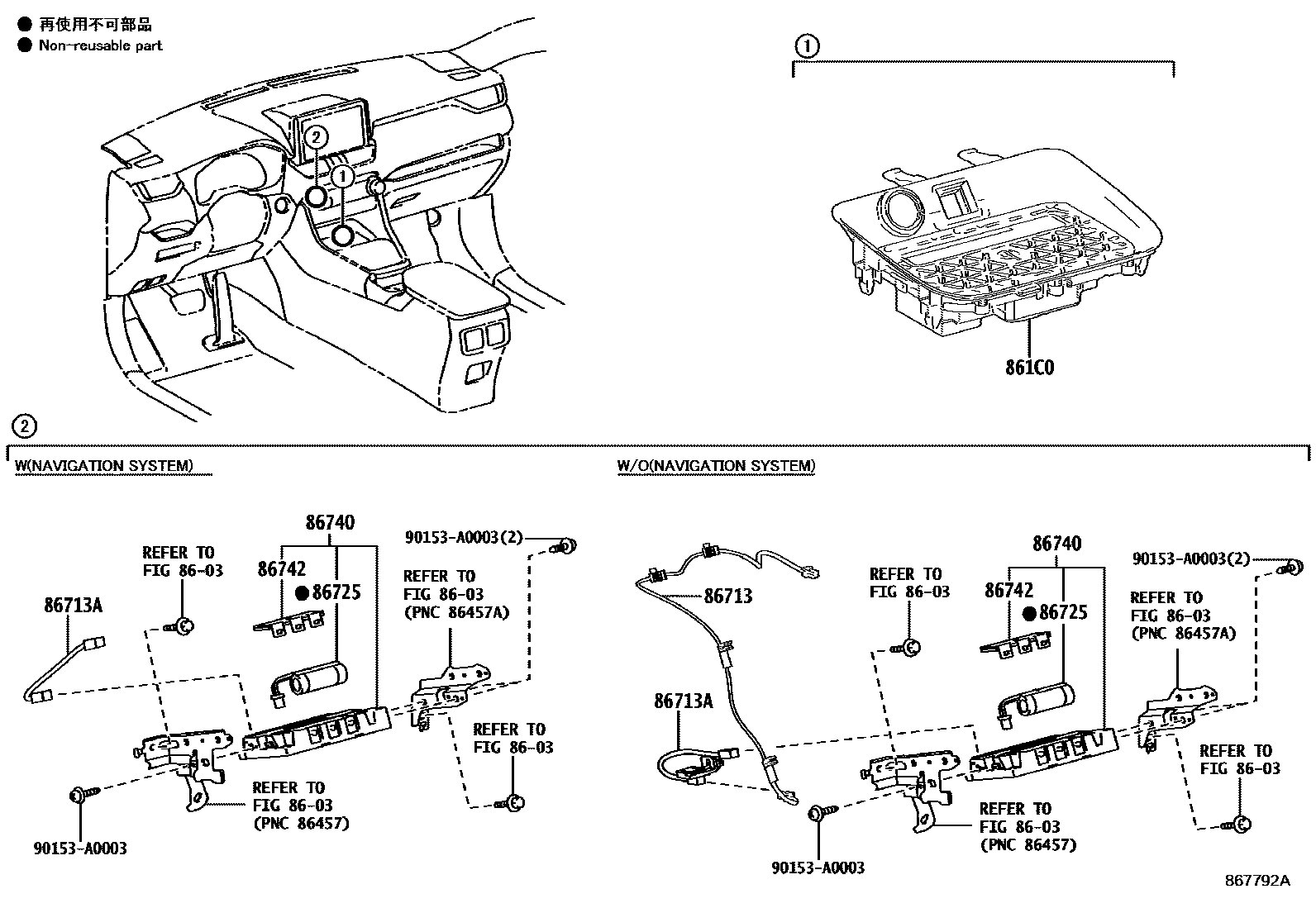

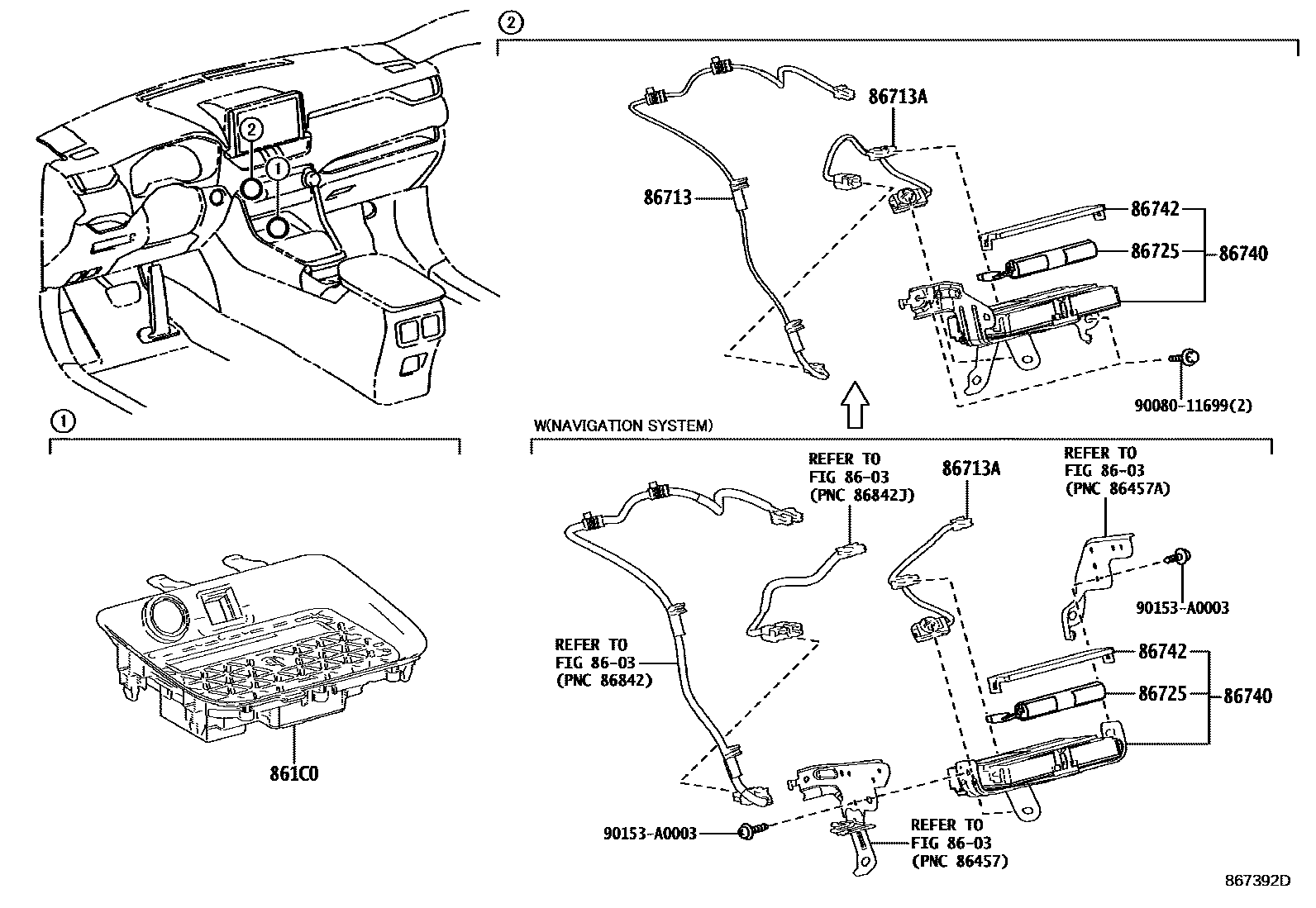

Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713 | Telephone ECU wiring harness | 86713-0R010 · 86713-0R140 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-0R030 · 86713-0R040 · 86713-0R050 · 86713-0R060 |
| 86725 | mobile phone battery | 86725-06020 · 86725-78010 |
| 86740 | Telephone transceiver assembly | 86740-42040 · 86740-42170 · 86741-06091 · 86741-06092 · 86741-06130 |
| 86742 | transceiver cover | 86742-06020 · 86742-12010 · 86742-78010 |
