Toyota RAV4 倒车影像和摄像头 — Figure 8606

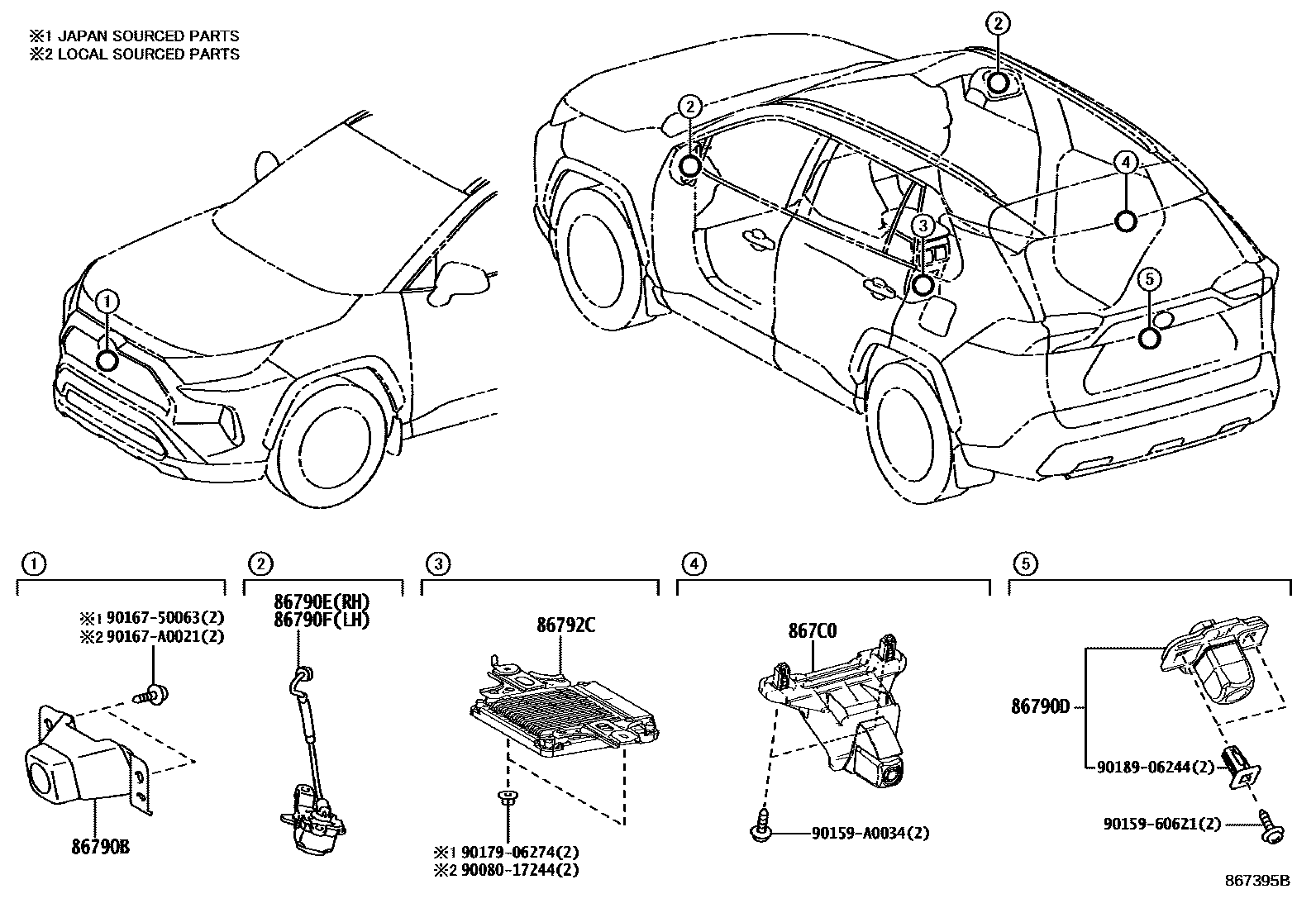

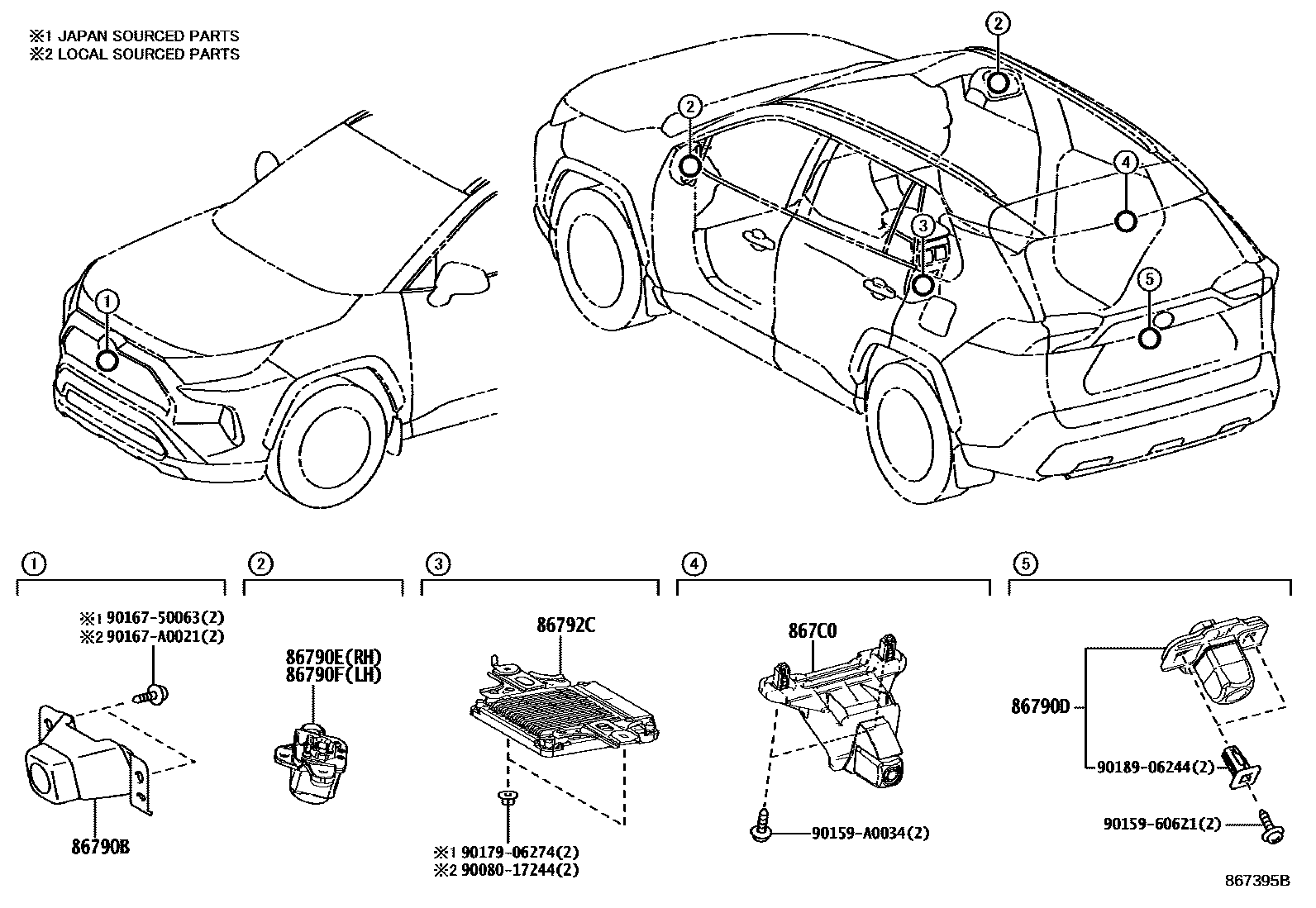

Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0R430 · 86790-0R440 · 86790-0R530 · 86790-0R531 · 86790-0R630 · 86790-0R640 · 86790-0R670 · 86790-0R671 · 86790-42130 · 86790-42140 |
| 86790D | Rear reversing image camera assembly | 86790-0R120 · 86790-0R190 · 86790-0R380 · 86790-0R381 · 86790-0R620 · 867B0-0R020 · 867B0-0R050 · 867B0-0R060 · 867B0-0R061 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-0R400 · 86790-0R401 · 86790-0R420 · 86790-0R660 · 86790-48160 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-0R390 · 86790-0R391 · 86790-0R410 · 86790-0R650 · 86790-48150 |
| 86792C | Parking assist ECU | 86792-42050 · 86792-42051 · 86792-42090 · 86792-42091 · 86792-42580 · 86792-42590 · 86792-42680 · 86792-42690 |
| 867C0 | ENS. CAMERA, RETROVISEUR INT | 867C0-42010 · 867C0-42030 |
