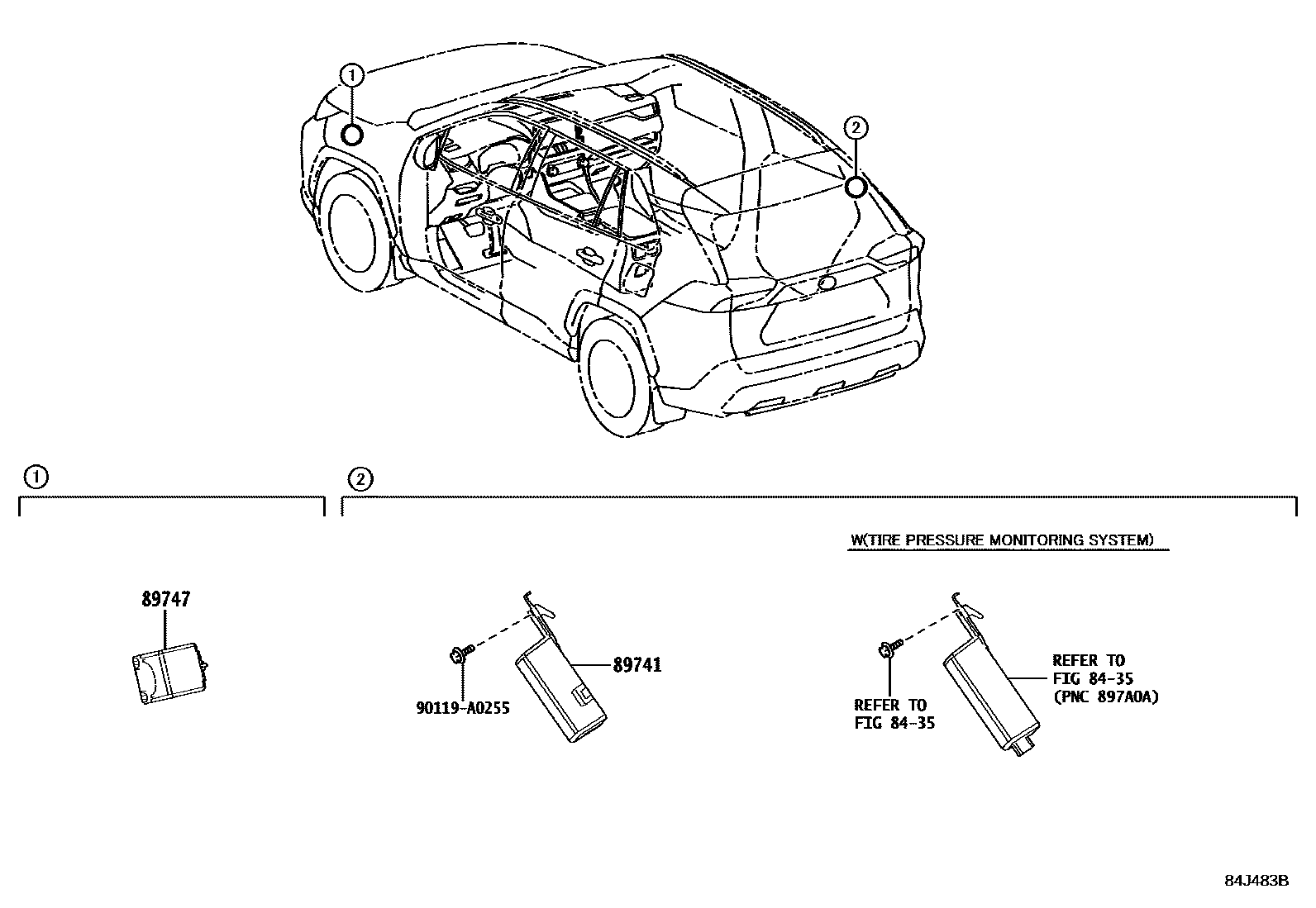

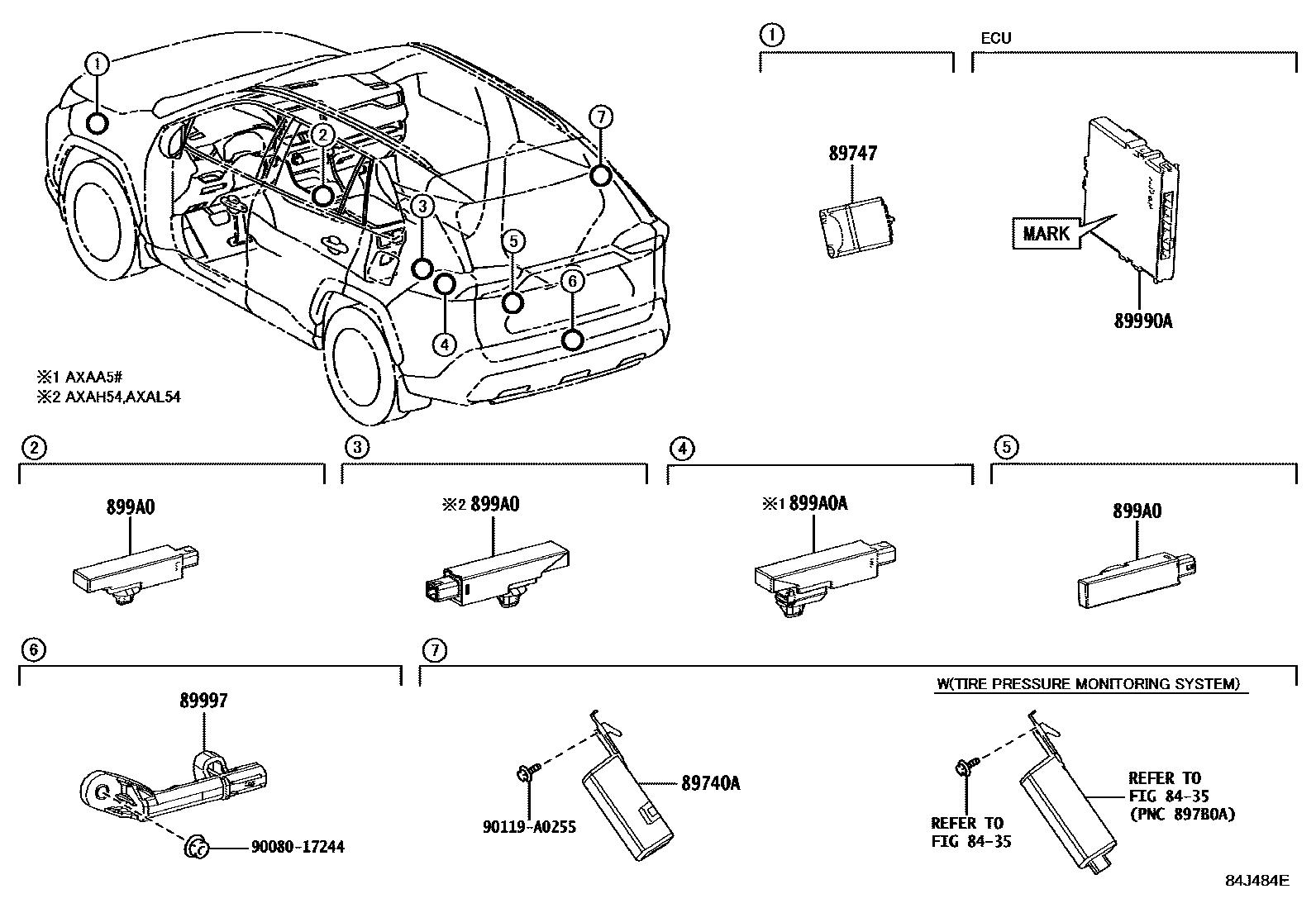

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-0R060 · 89740-0R070 |
| 89741 | door control receiver | 89741-0R060 · 89741-0R061 · 89741-42321 |
| 89747 | Remote door lock buzzer | 89747-0R020 |
| 89990A | Smart key ECU assembly | 899H0-0R010 · 899H0-0R020 · 899H0-0R030 · 899H0-0R040 · 899H0-0R100 · 899H0-0R110 · 899H0-0R120 · 899H0-0R130 · 899H0-0R140 · 899H0-0R141 · 899H0-0R150 · 899H0-0R151 · 899H0-0R160 · 899H0-0R161 · 899H0-0R170 · 899H0-0R171 · 899H0-0R290 · 899H0-0R300 · 899H0-0R310 · 899H0-0R320 |
| 89997 | electronic key antenna | 89997-0E050 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-06030 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0R020 |
