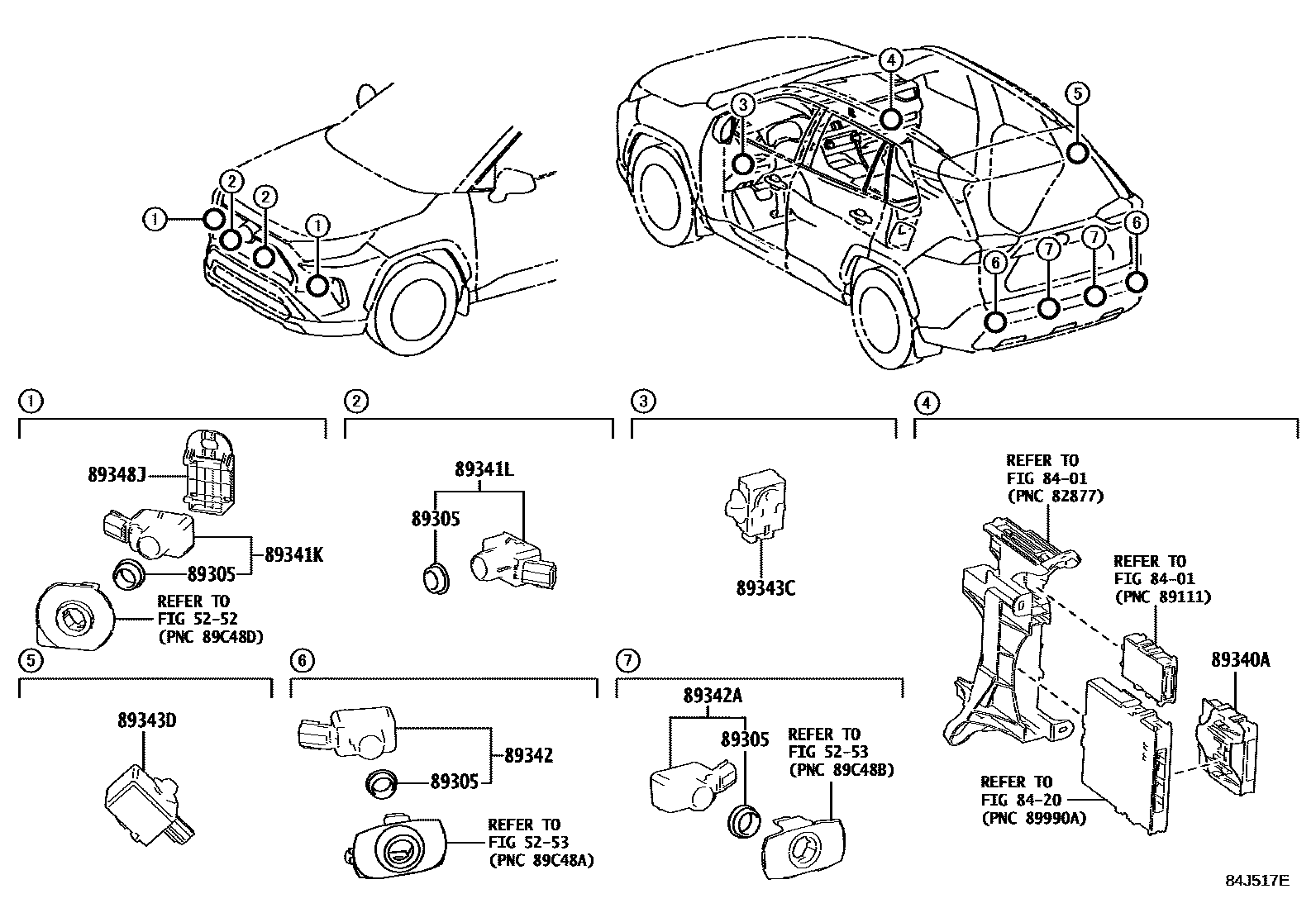

Toyota RAV4 测距雷达和倒车雷达 — Figure 8417
Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | JEU COUSSIN, CAPTEUR ULTRASONS | 89305-47010 |
| 89340A | Distance warning ECU assembly | 89340-0R080 · 89340-0R081 · 89340-0R210 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89747-0R020 · 89747-30040 |
| 89348J | Ultrasonic sensor clip | 89348-06100 |
