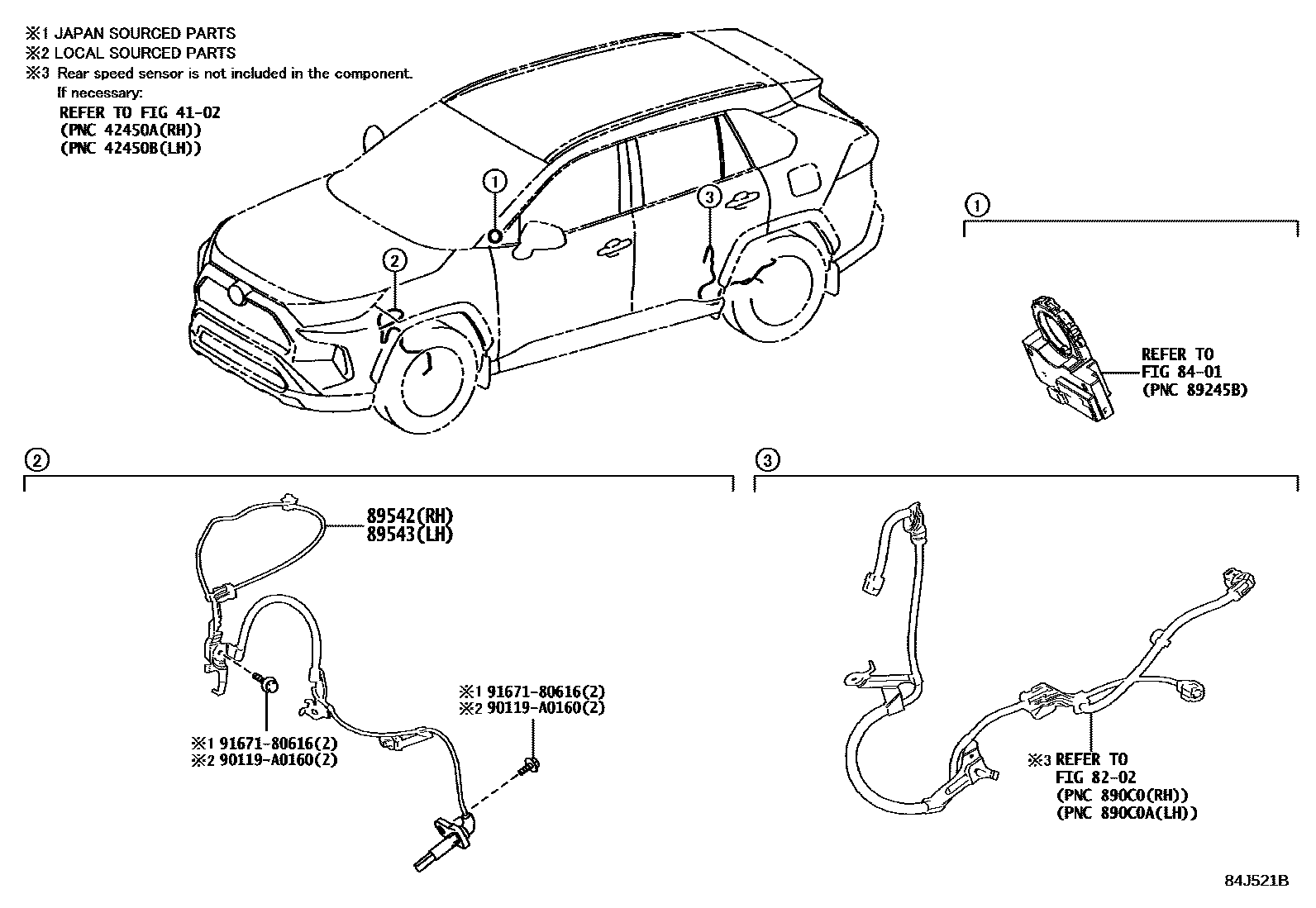

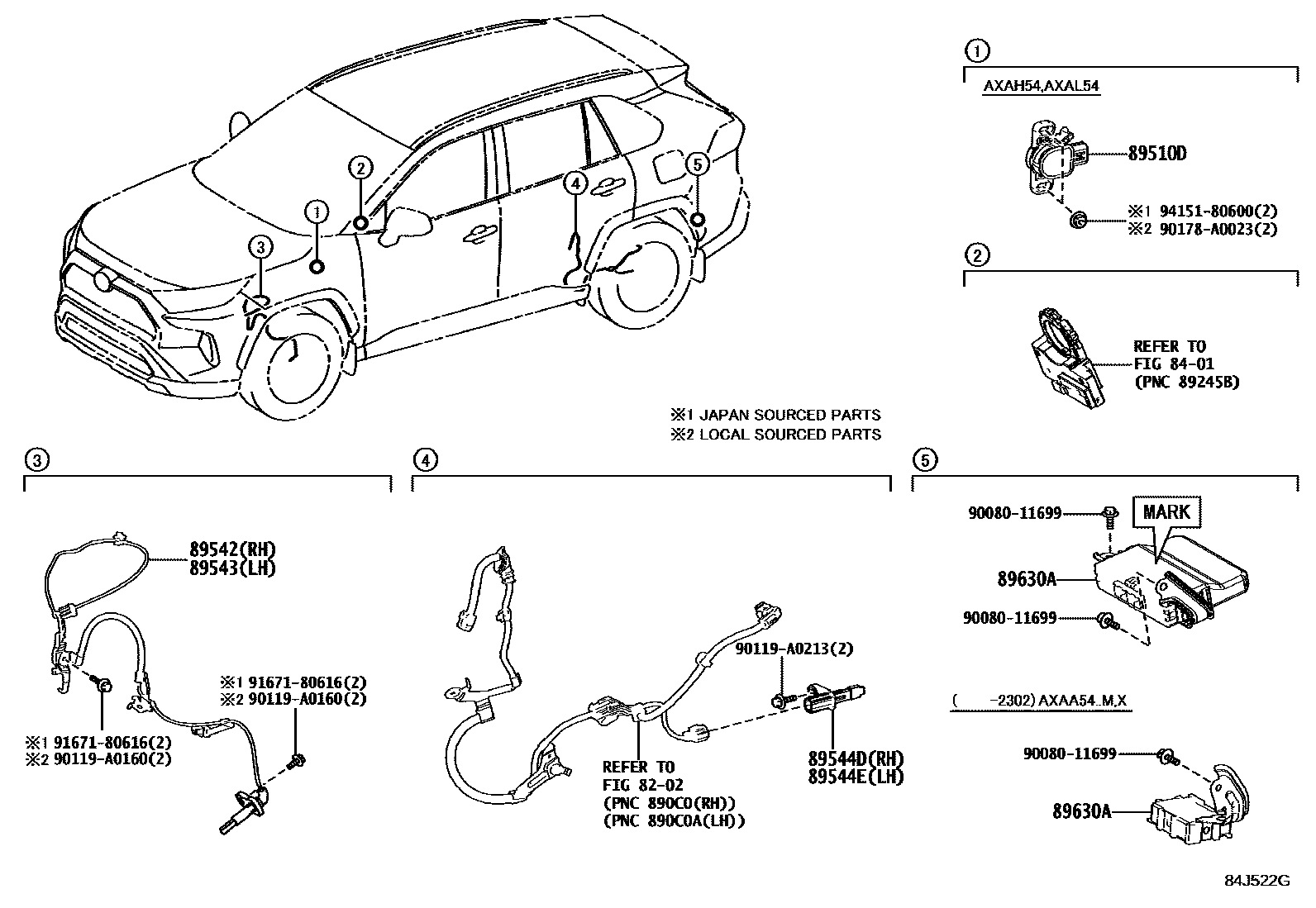

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-33030 · 89510-42010 · 89510-47040 |
| 89542 | Right front wheel speed sensor | 89542-0R040 |
| 89543 | Left front wheel speed sensor | 89543-0R040 |
| 89544D | CAPTEUR, CONTROLE DERAPAGE, ARR MD | 89544-06130 · 89544-0R020 |
| 89544E | CAPTEUR, CONTROLE DERAPAGE, ARR MG | 89544-06130 · 89544-0R020 |
| 89630A | Four-wheel drive ECU assembly | 89630-42120 · 89630-42121 · 89630-42130 · 89630-42140 · 89630-42150 · 89630-42161 |
