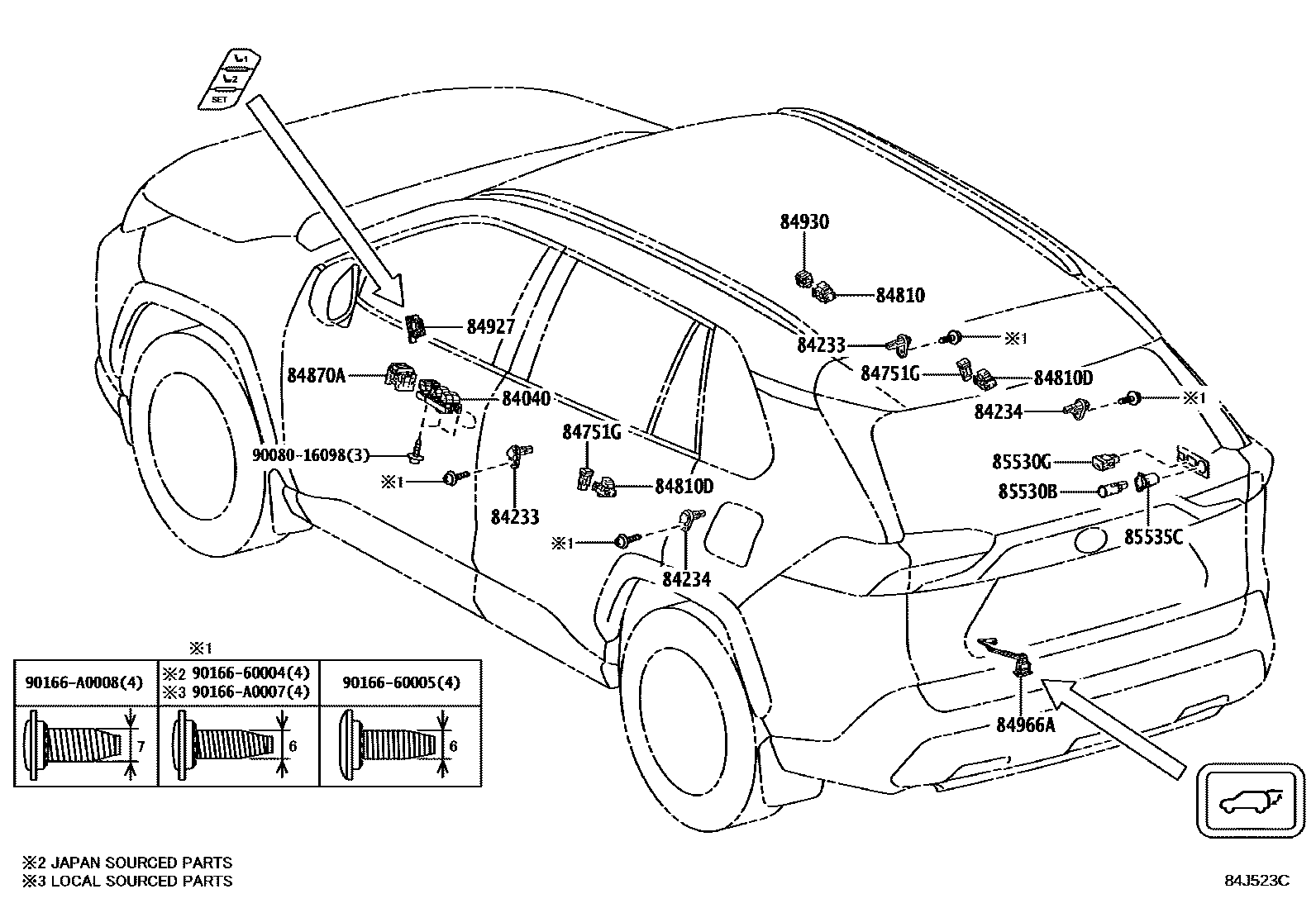

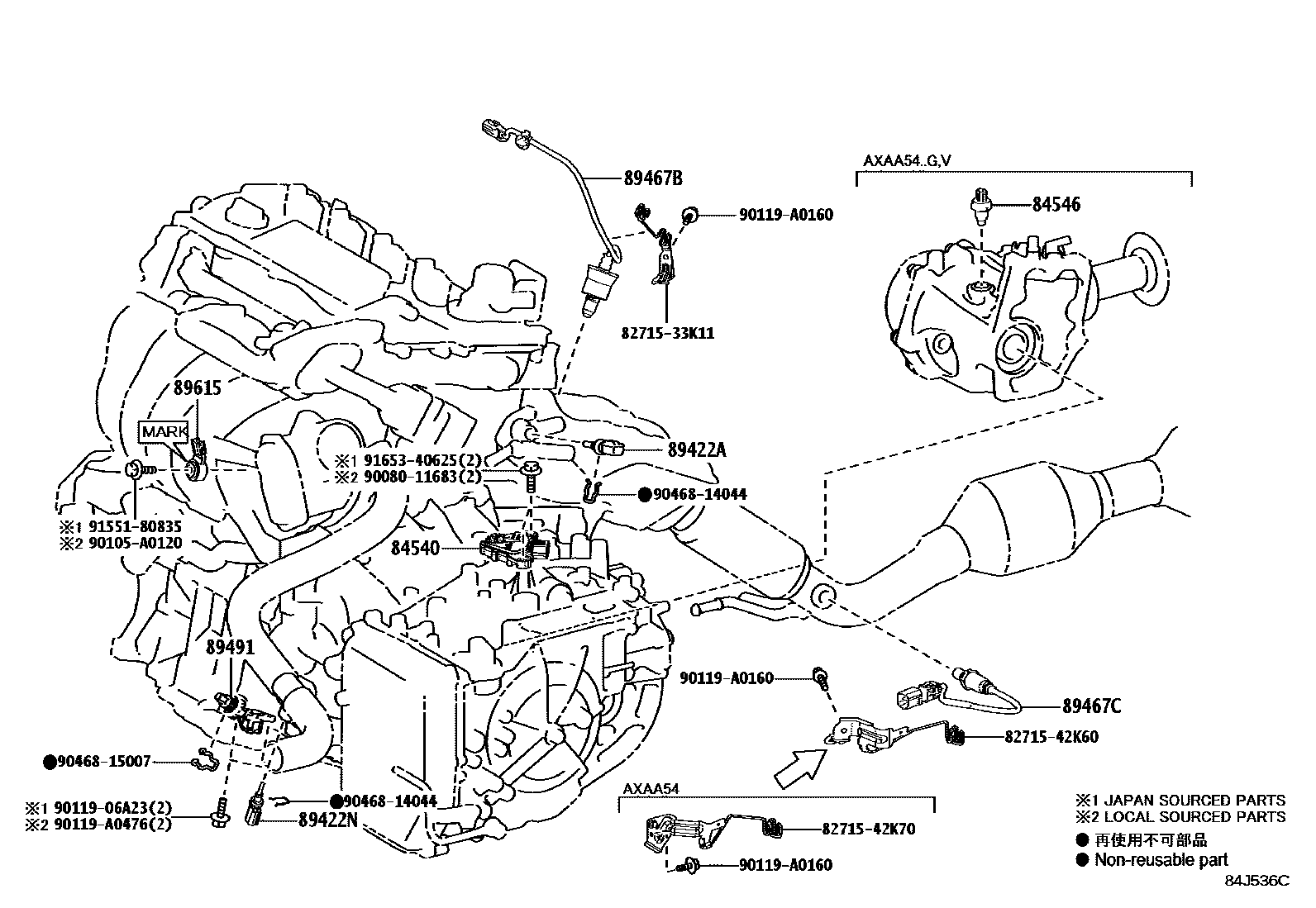

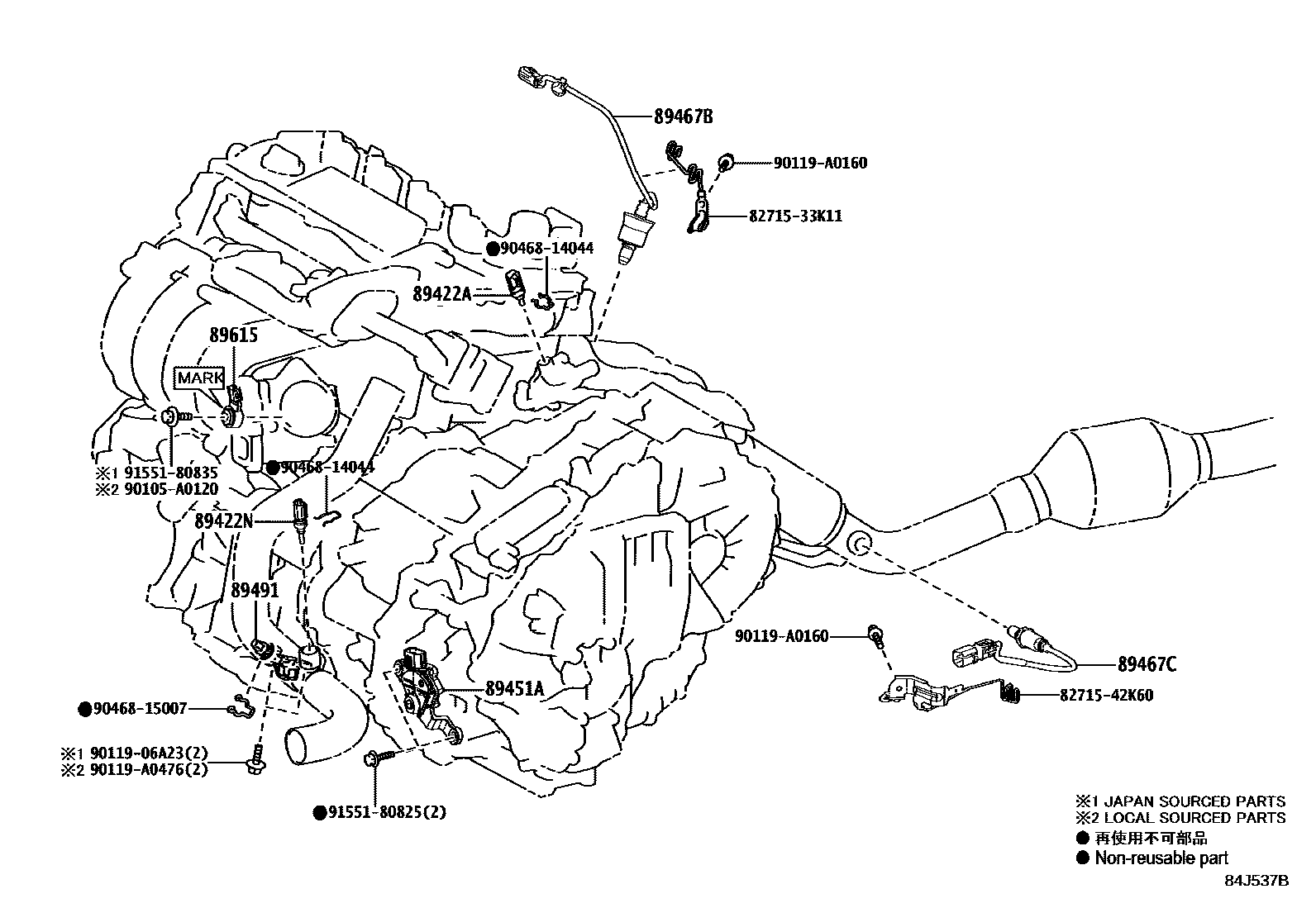

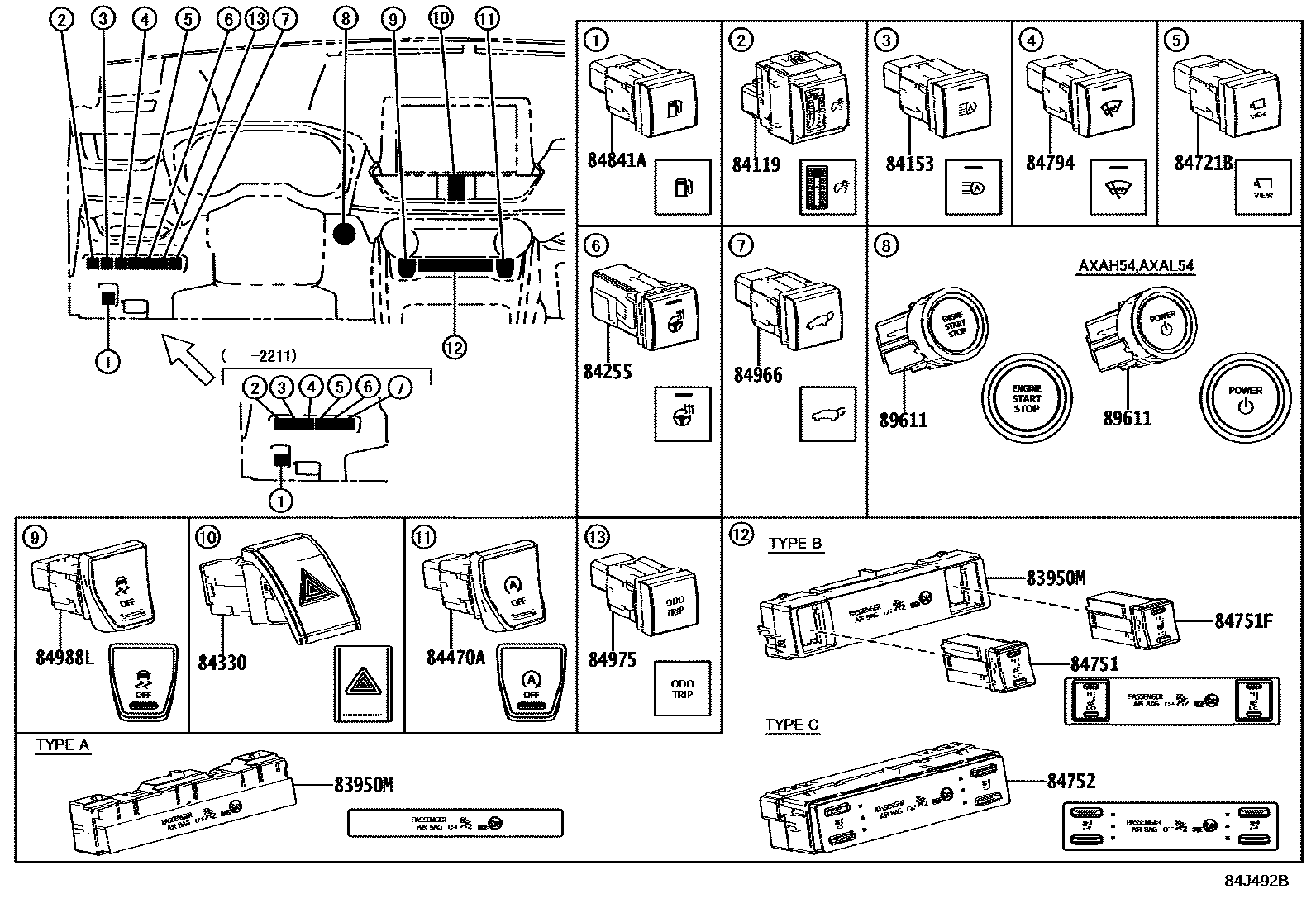

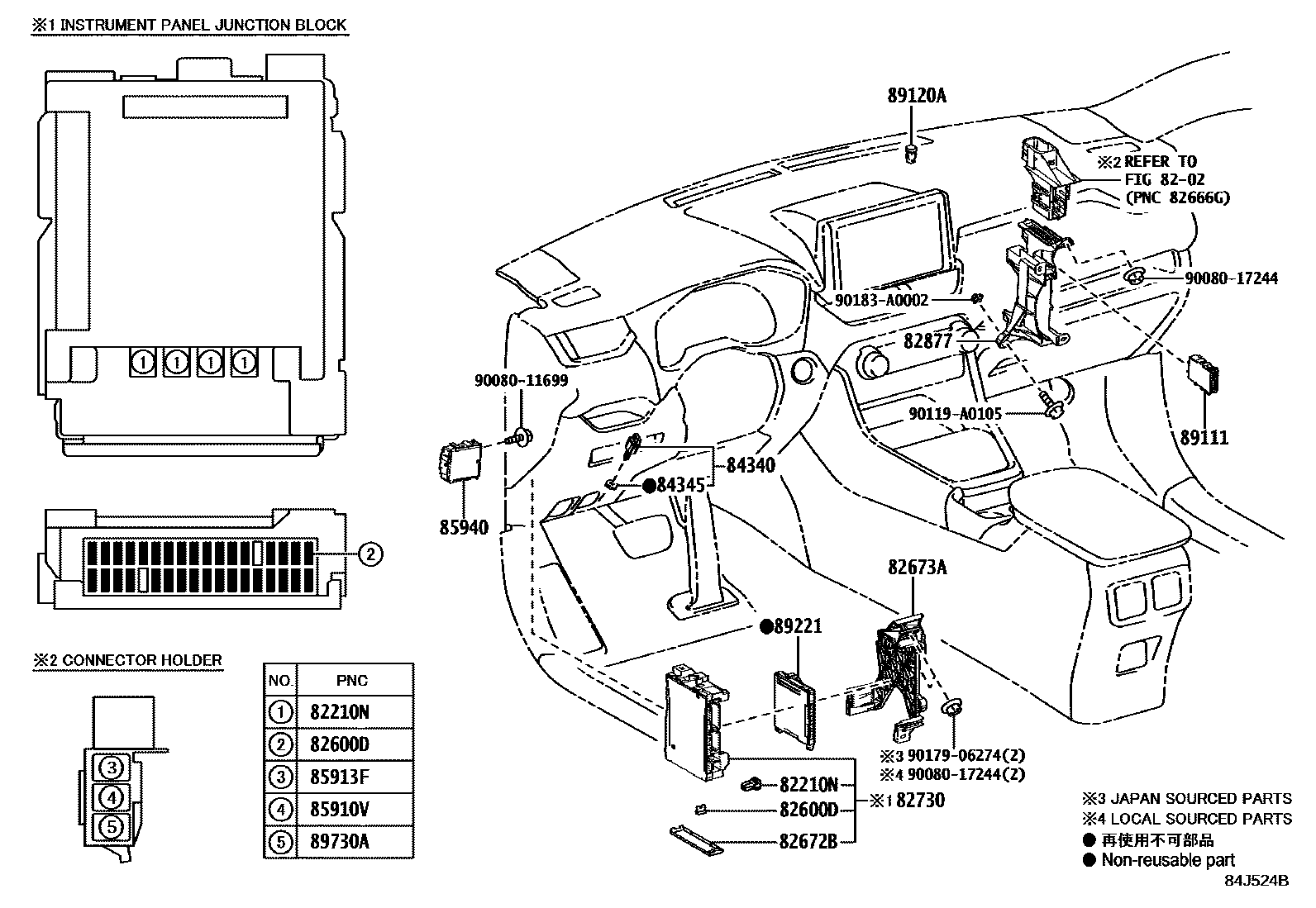

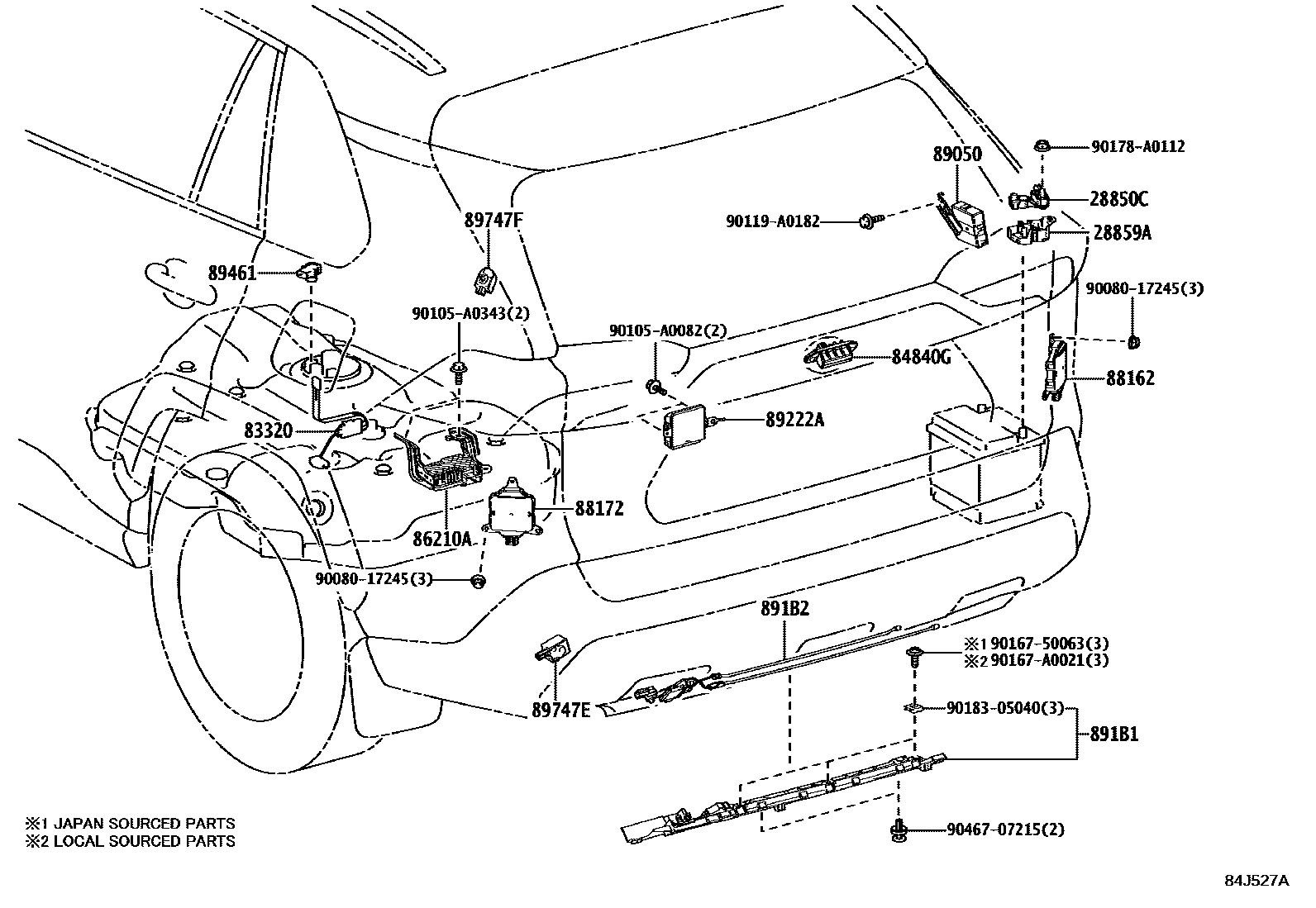

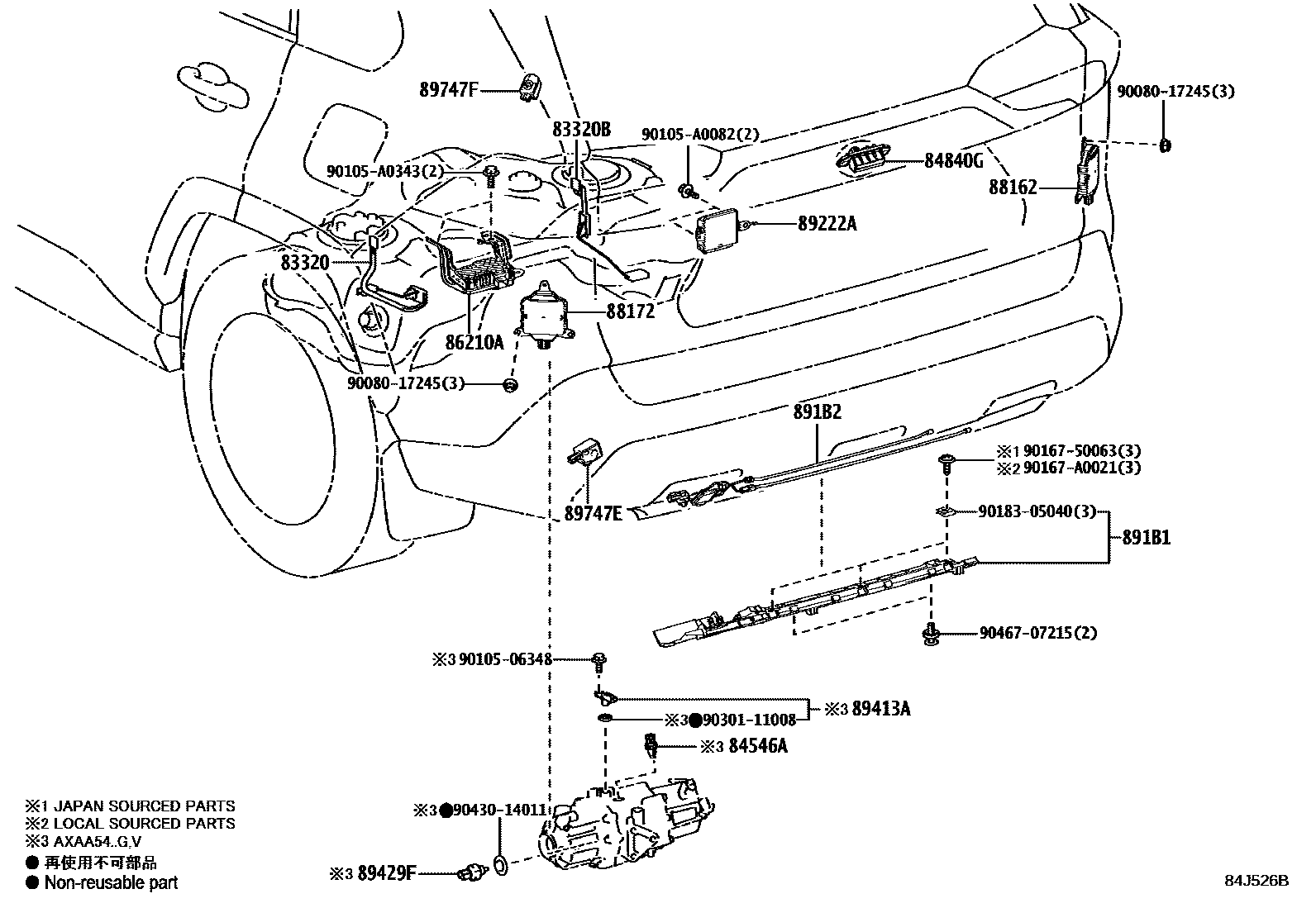

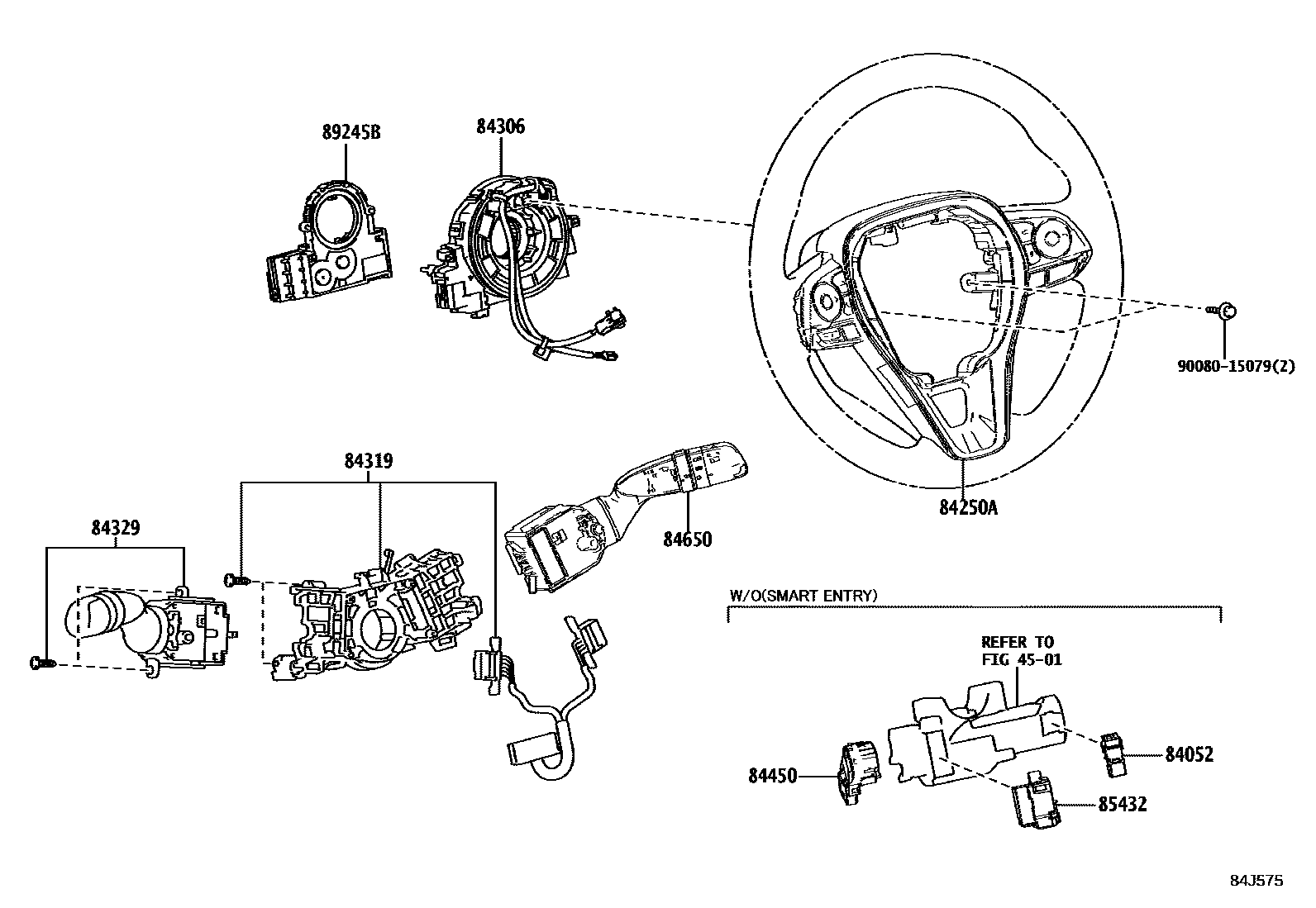

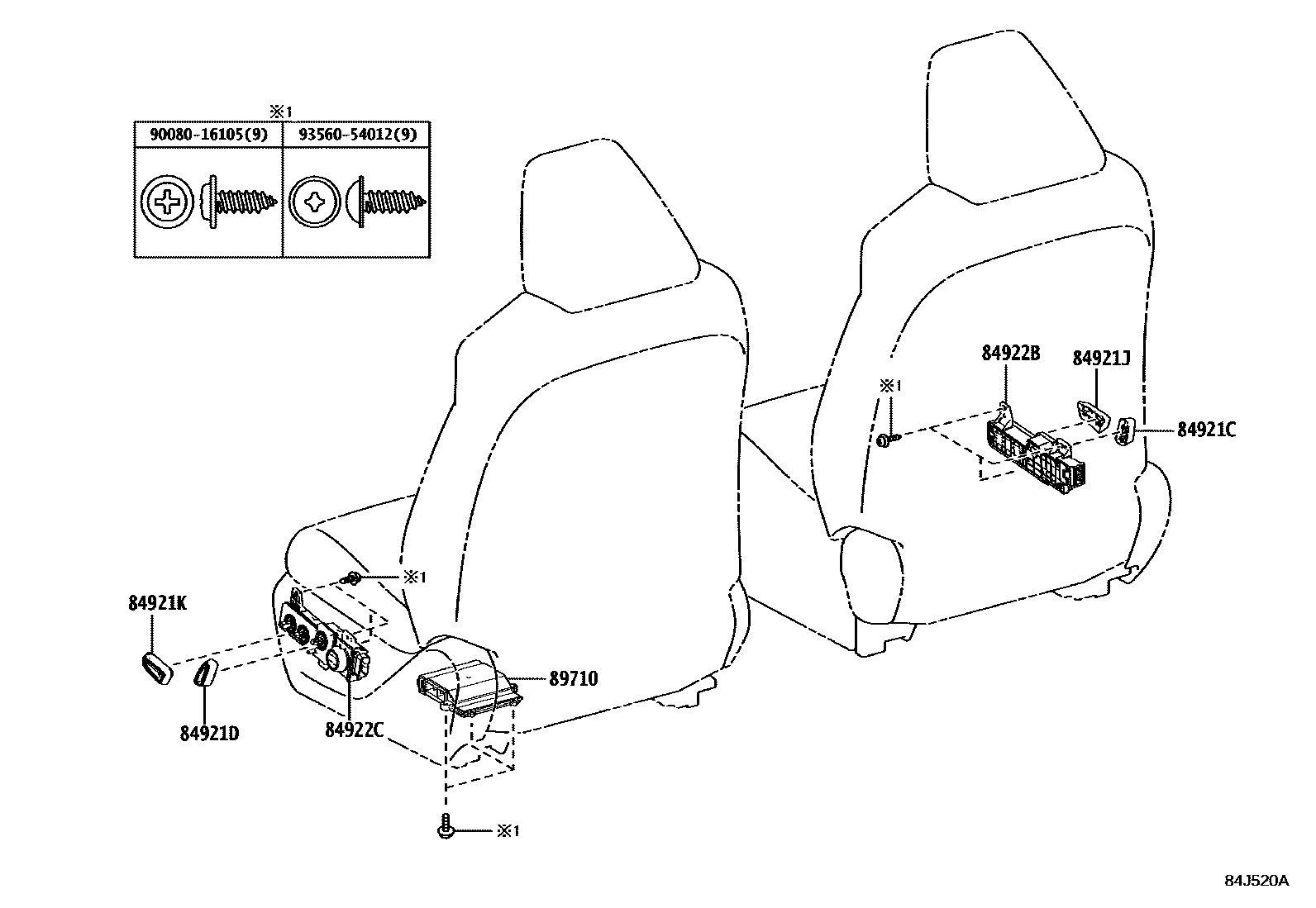

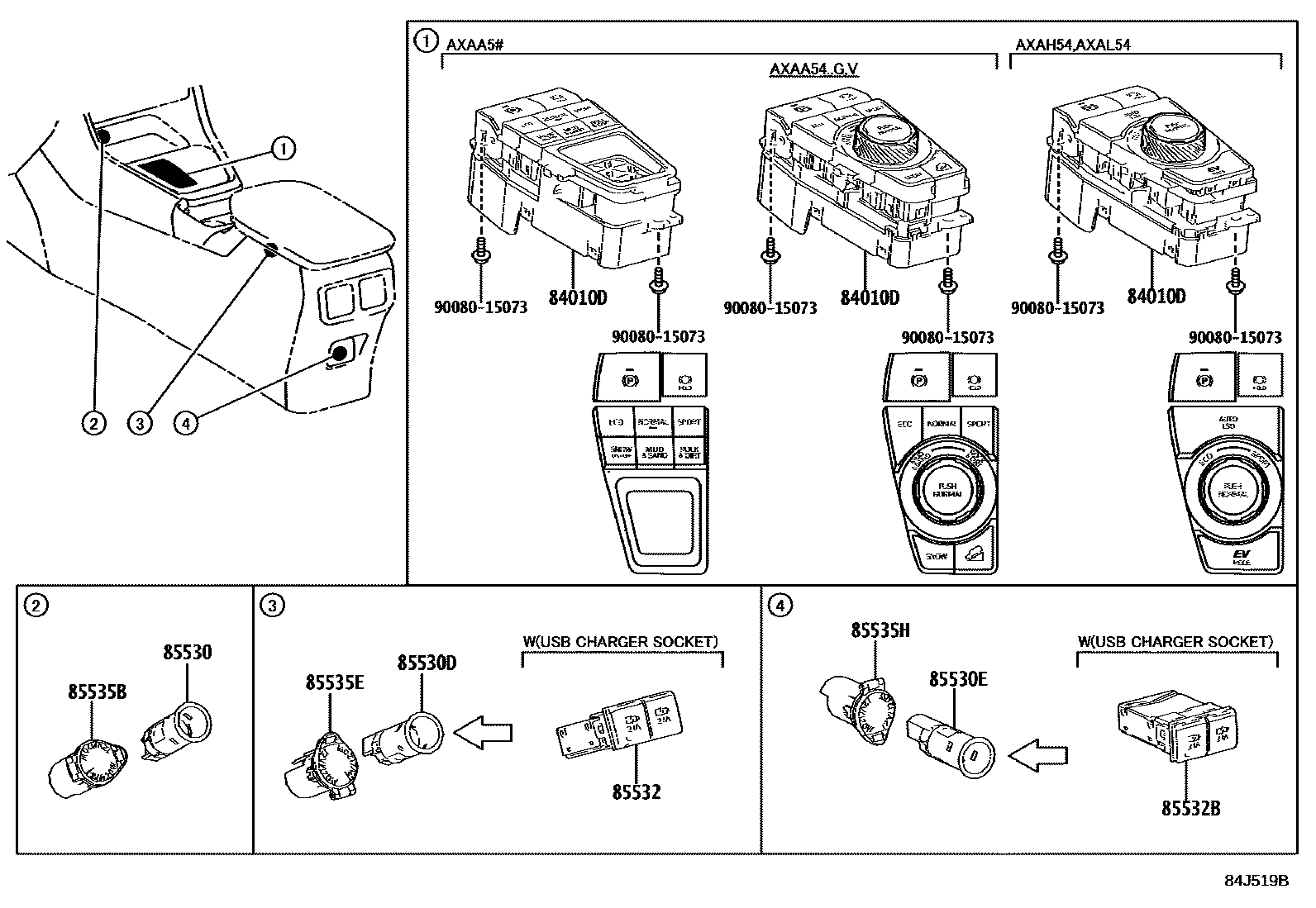

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 14 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

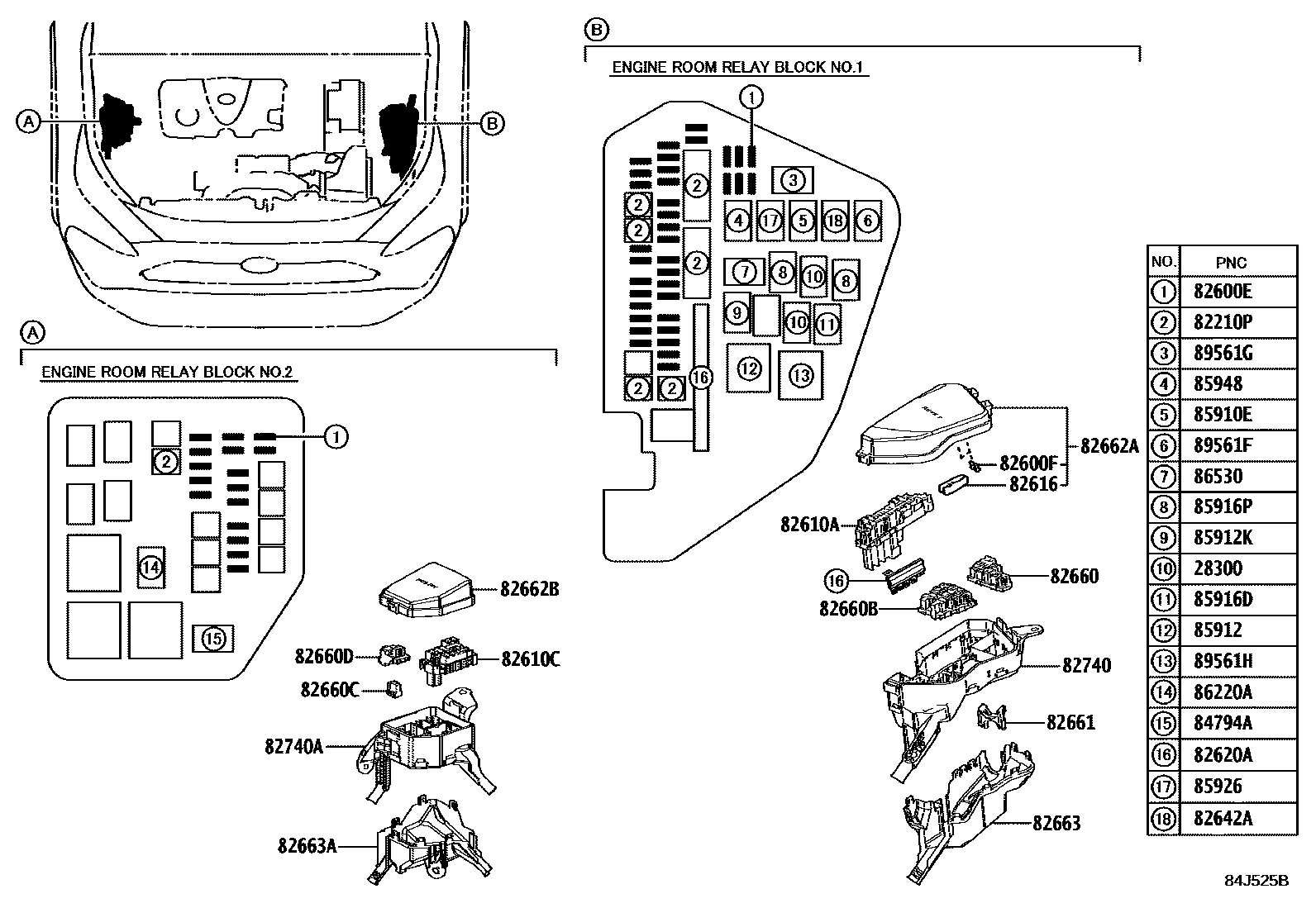

| 28300 | Starter relay assembly | 28300-0A011 |

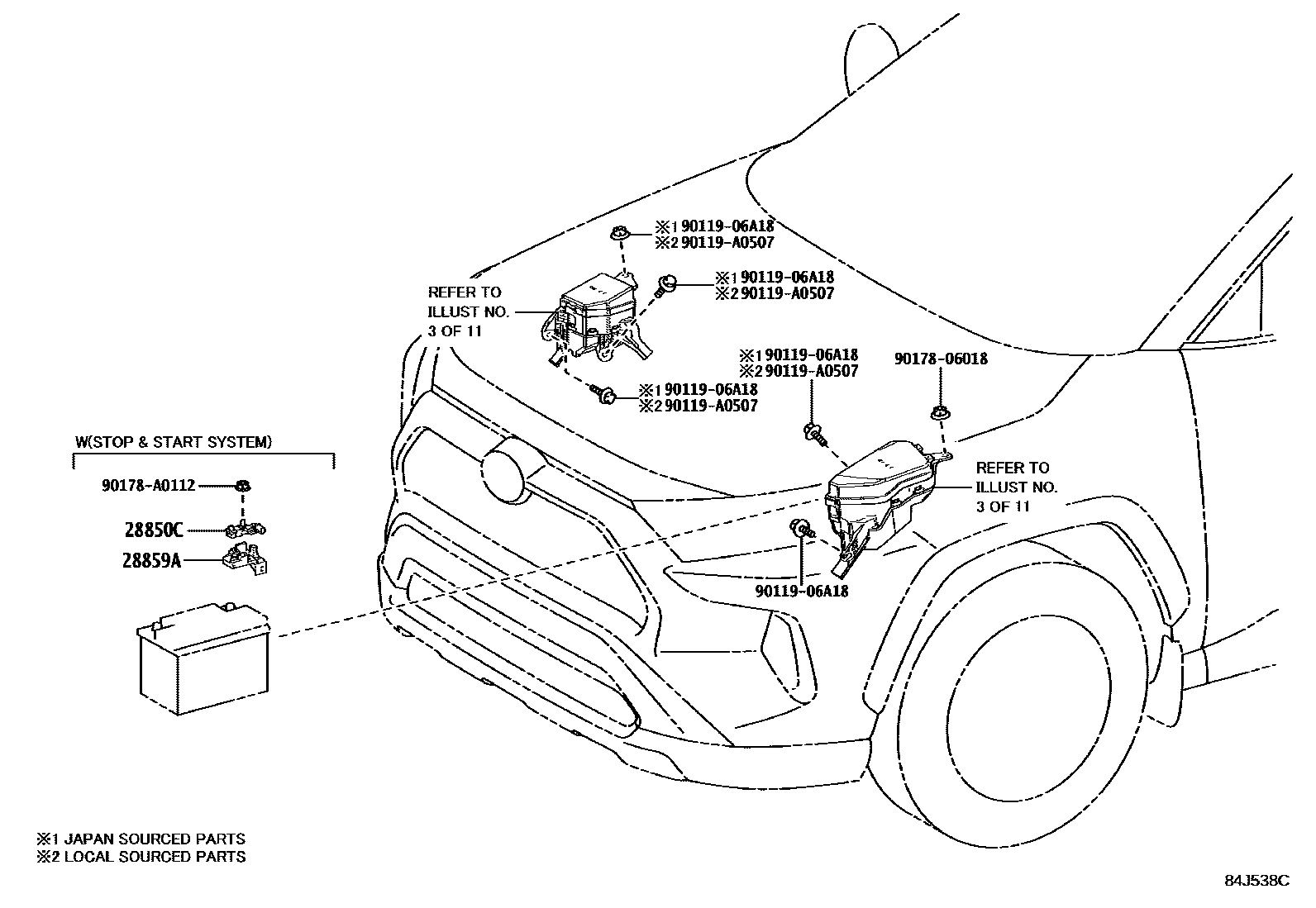

| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-25020 · 28850-F0040 · 28850-F0050 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-F0030 · 28859-F0040 · 28859-F0460 |

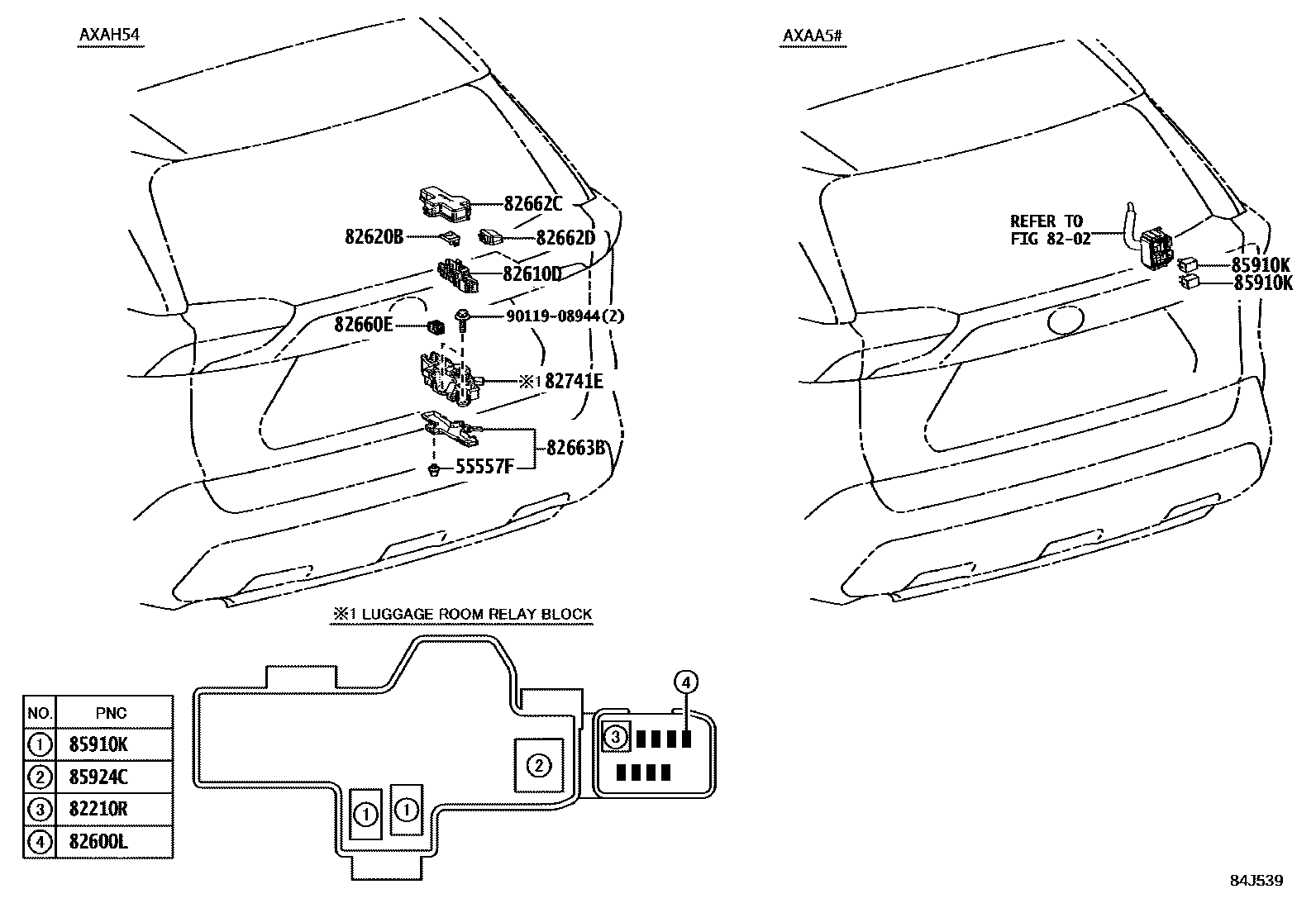

| 55557F | COUSSIN, BLOC RELAIS | 55557-53030 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08283 · 90982-08285 · 90982-08300 · 90982-08302 · 90982-08303 |
| 82210R | FIL FUSIBLE DU COMPARTIMENT BAGAGE | 90982-08284 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 |

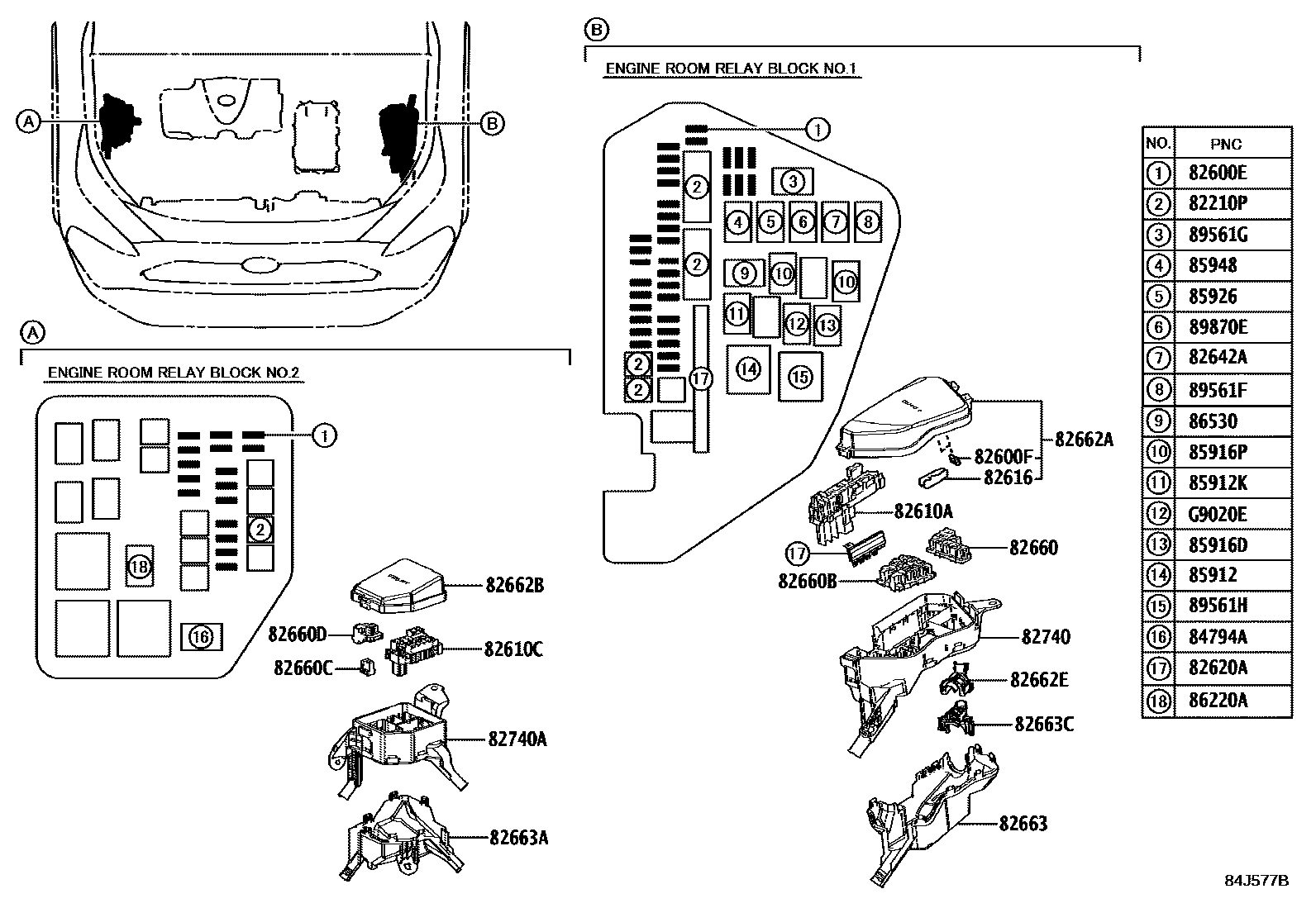

| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09023 · 90982-09025 |
| 82600L | FUSIBLE DU COMPARTIMENT BAGAGE | 90982-09020 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-42080 · 82610-42120 |
| 82610C | Fuse box assembly | 82610-42090 |
| 82610D | Fuse box assembly | 82610-42100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33140 · 82620-33150 |
| 82620B | Fuse box assembly | 82620-42080 |
| 82642A | driving light relay | 90080-87026 |
| 82660 | Engine room relay box assembly | 82660-42100 |
| 82660B | Relay assembly | 82660-42110 |
| 82660C | Relay assembly | 82660-0E010 |
| 82660D | Relay assembly | 82660-33050 |
