Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

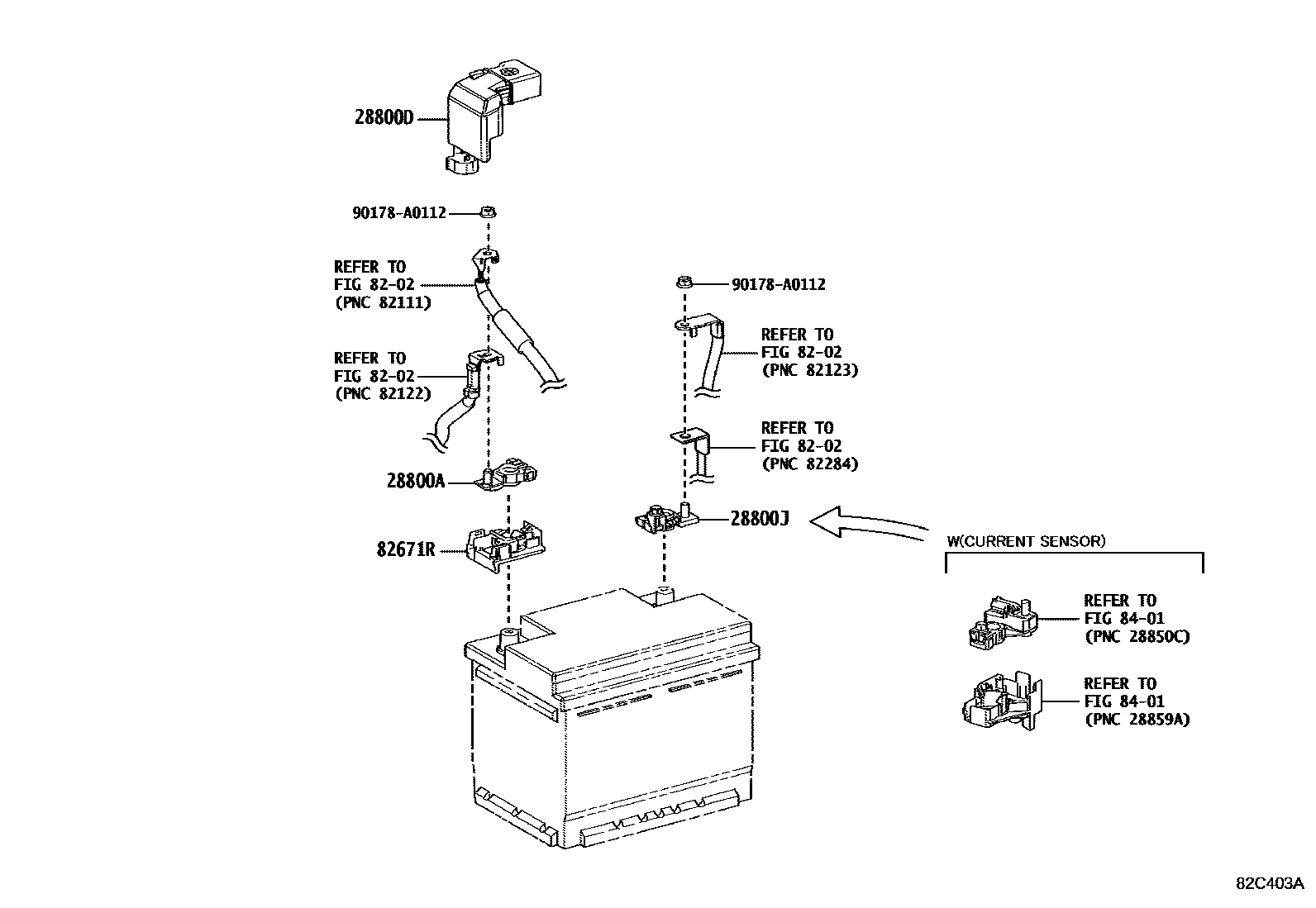

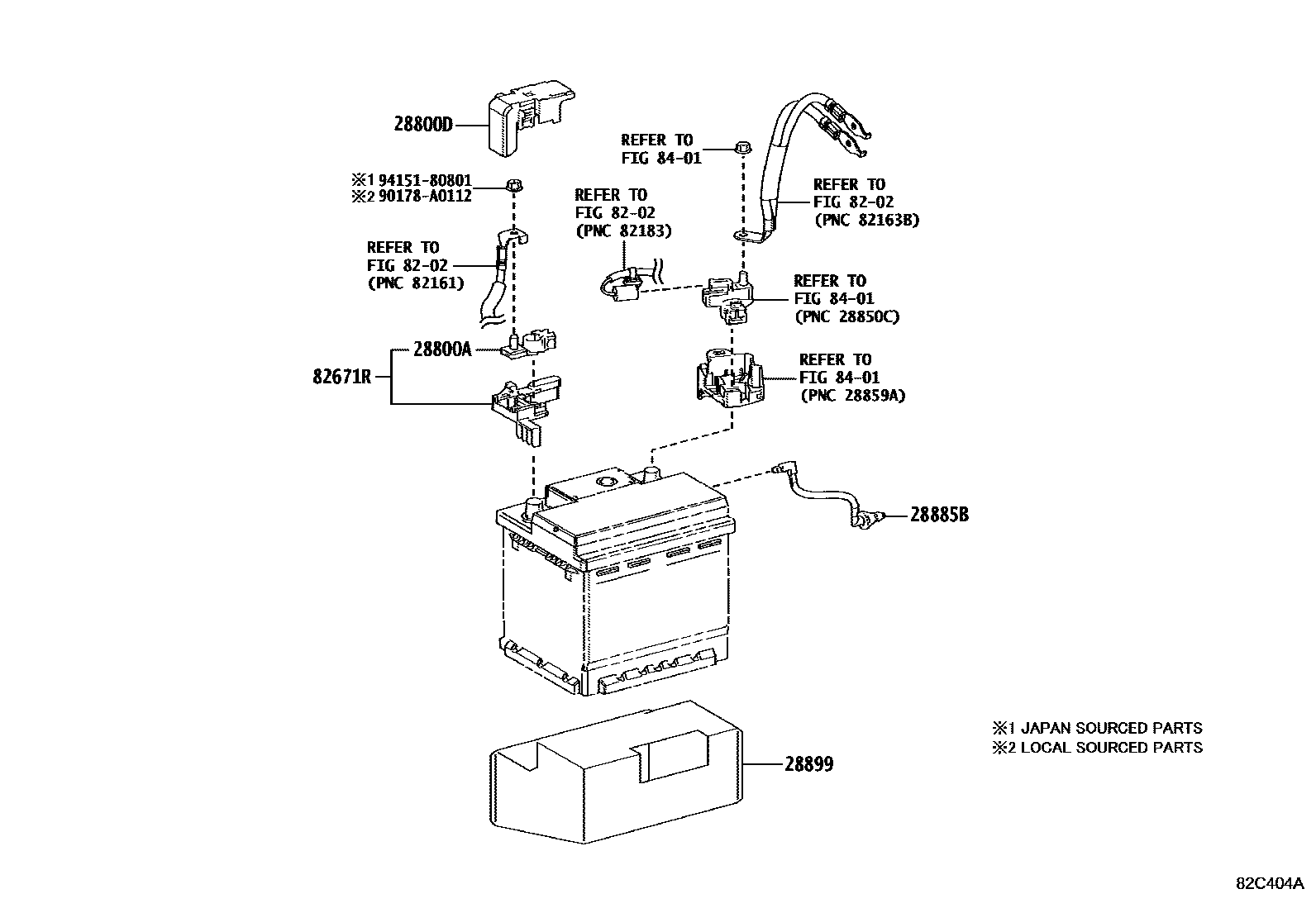

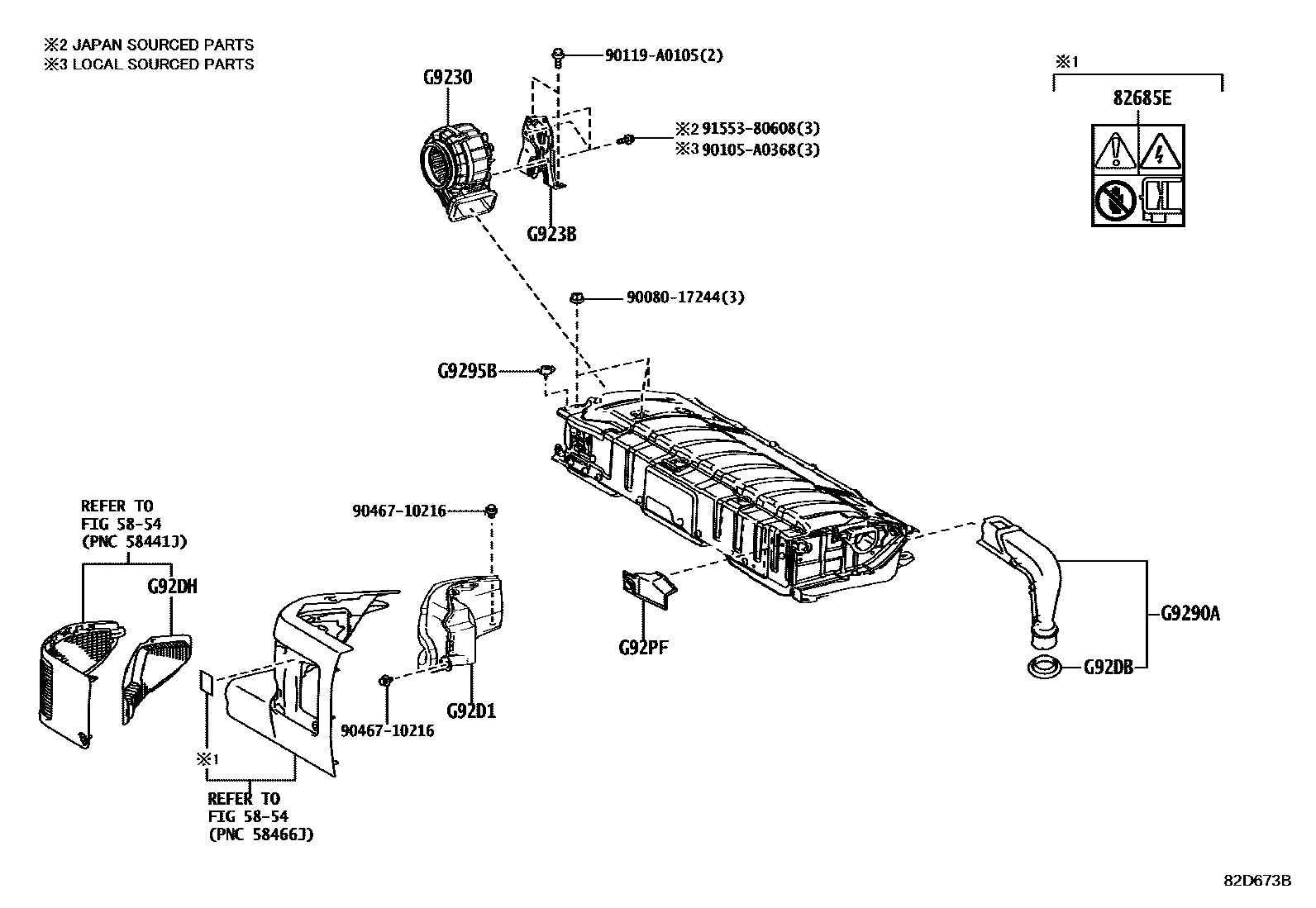

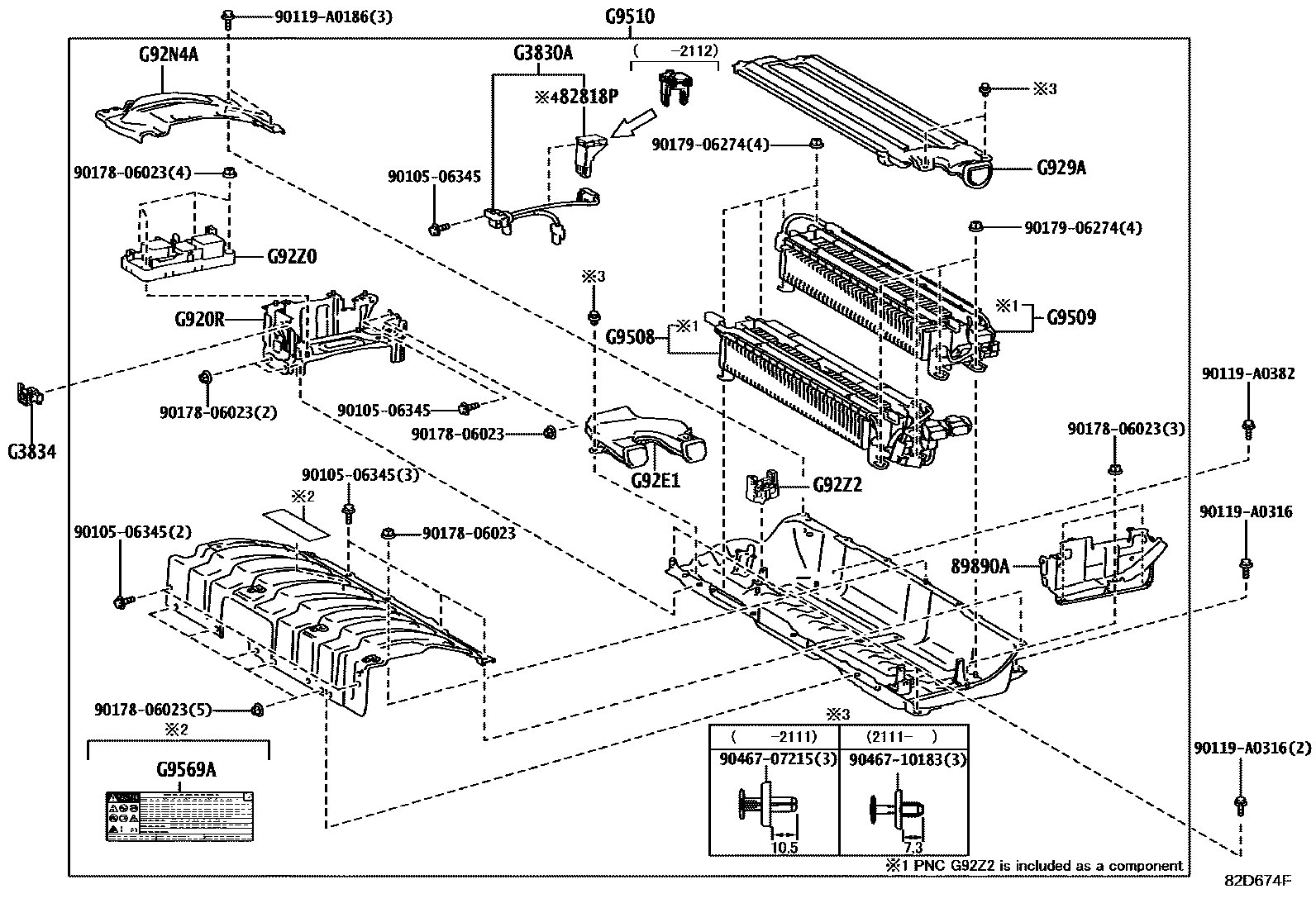

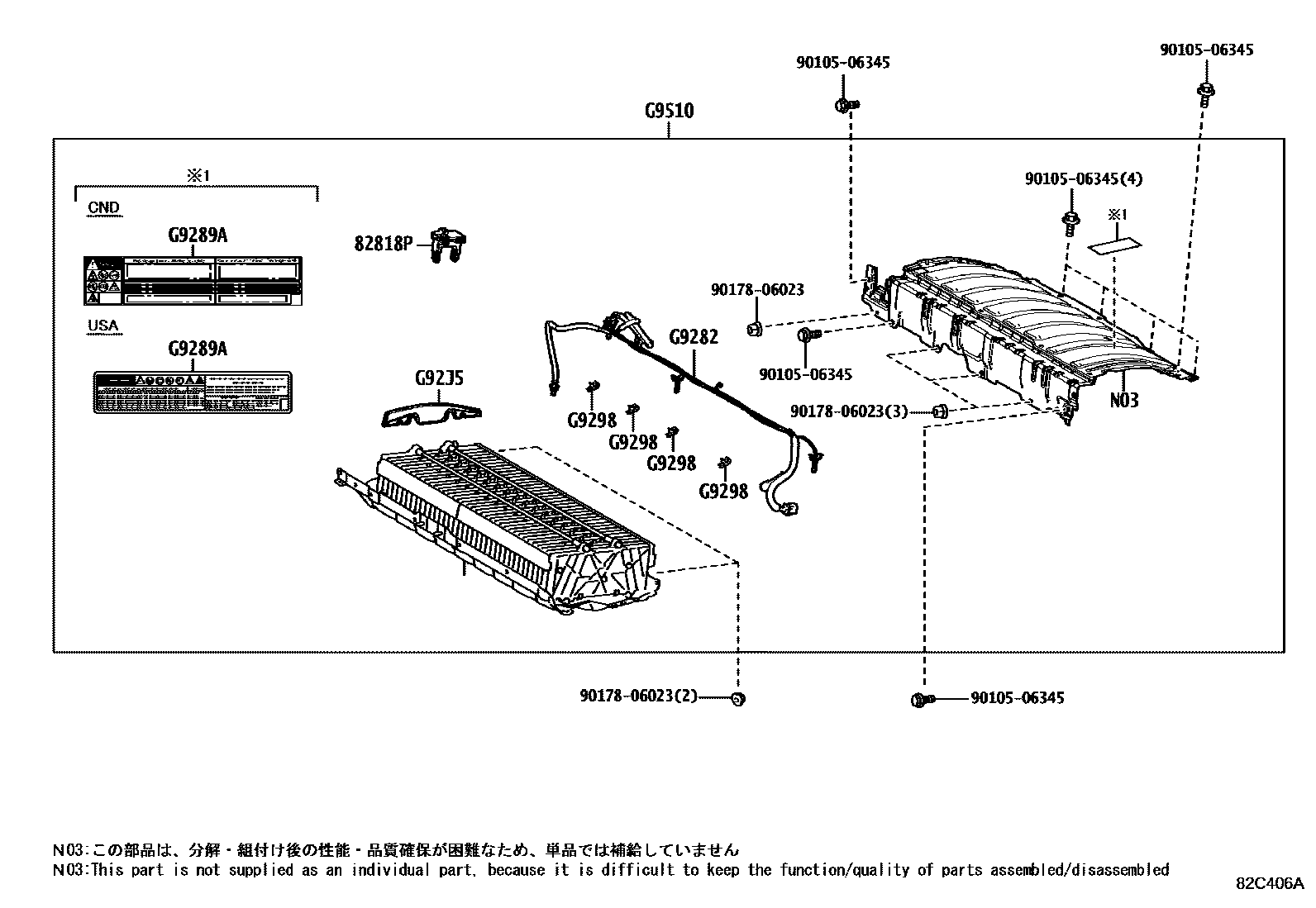

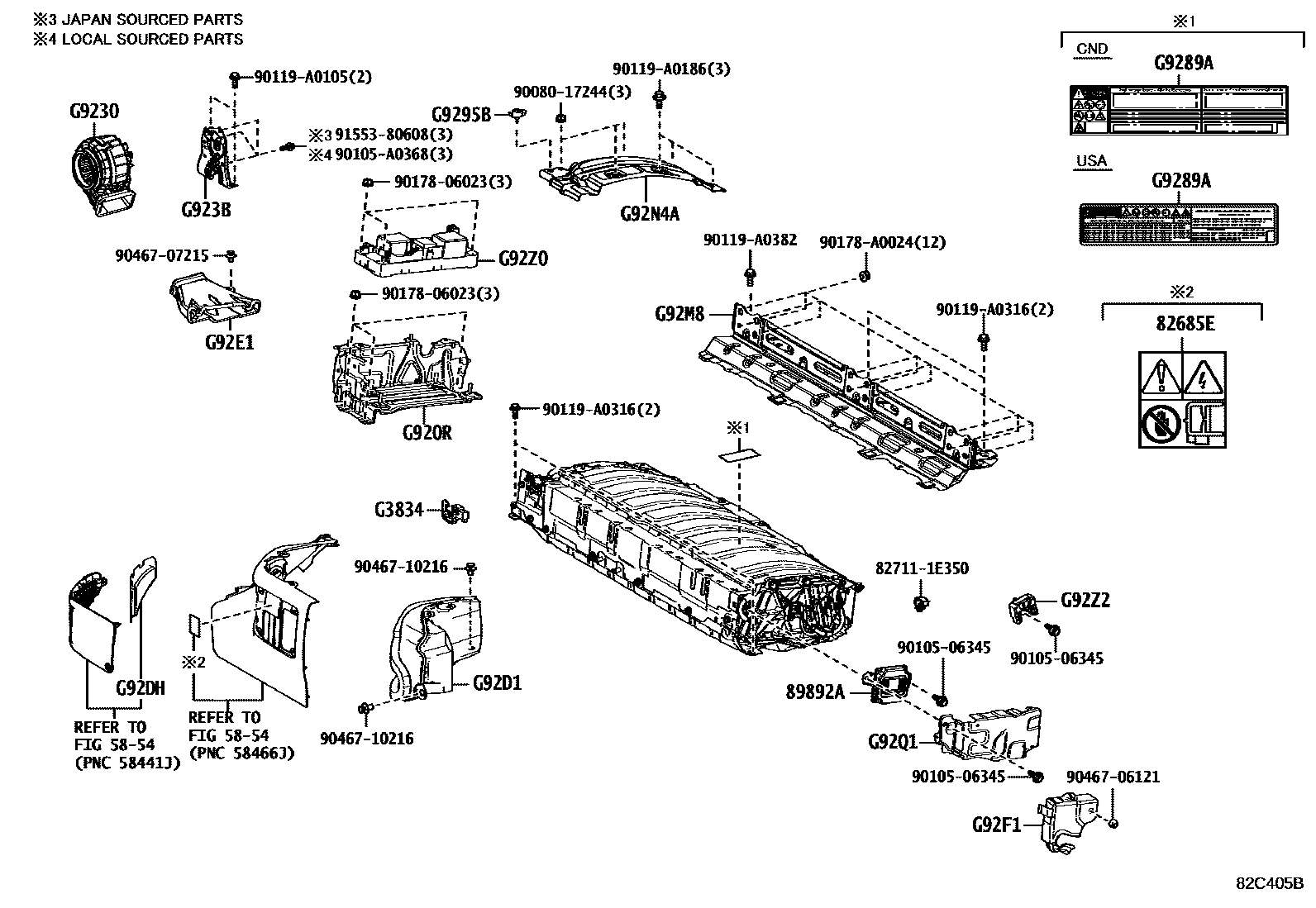

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05058 · 90982-05072 |
| 28800D | Connector cover (for battery terminals) | 82621-42020 · 82821-33440 |
| 28800J | battery negative terminal | 90982-06061 |
| 28885B | battery hose | 28885-F0030 |
| 28899 | Battery insulation cover | 28899-F0030 · 28899-F0040 |
| 82671R | BUTEE, BORNE BATTERIE | 82670-42010 · 82671-33100 |
| 82685E | Maintenance plug warning nameplate | 82685-47110 |
| 82818P | PROTECTEUR, FAISCEAU DE FILS | 82817-47Q60 · G92SK-K0020 |
| 89890A | Battery ECU assembly | 89890-42090 · 89890-42150 |
| 89892A | battery voltage sensor | 89892-33040 |
| G3830A | Electric vehicle battery plug assembly | G3830-47120 |
| G3834 | Service plug handle | G3834-47050 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-33020 · G920R-33030 |
| G9230 | Battery cooling blower assembly | G9230-33050 |
| G923B | Battery cooling blower bracket | G923B-0R010 |
| G9282 | HV battery thermistor | G9282-33030 |
| G9289A | battery warning label | G9288-0R010 · G9288-0R020 · G9288-48040 · G9288-48080 |
| G9290A | HV battery hose assembly | G9290-42010 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G929A | No. 1 hybrid vehicle battery hose | G929A-33020 |
| G92D1 | No. 1 HV battery air inlet | G92D1-0R010 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92DH | FILTRE, ENTREE BATTERIE HAUTE TENSION, NO.1 | G92DH-42010 |
| G92E1 | No. 1 HV battery cover air inlet | G92E1-33020 · G92E1-42010 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-33020 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 |
| G92M8 | HV battery No. 2 upper bracket bracket | G92M8-0R010 |
| G92N4A | No. 1 cover on the right side of the hybrid vehicle battery | G92N4-33030 · G92N4-33040 |
| G92PF | PROTECTION, BATTERIE HV, NO.4 | G92PF-06010 |
| G92Q1 | No. 1 HV battery shielding plate | G92Q1-33050 |
| G92Z0 | HV battery junction box assembly | G92Z0-33041 · G92Z0-33051 · G92Z0-47100 · G92Z0-47110 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery stack sub-assembly | G9509-42010 · G9509-48020 |
| G9509 | No. 2 HV power supply battery stack sub-assembly | G9508-42010 · G9508-48020 |
| G9510 | HV power supply battery assembly | G9510-33120 · G9510-33121 · G9510-42020 · G9510-42050 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-47110 |
