Toyota RAV4 日间行车照明灯或照明灯 — Figure 8119

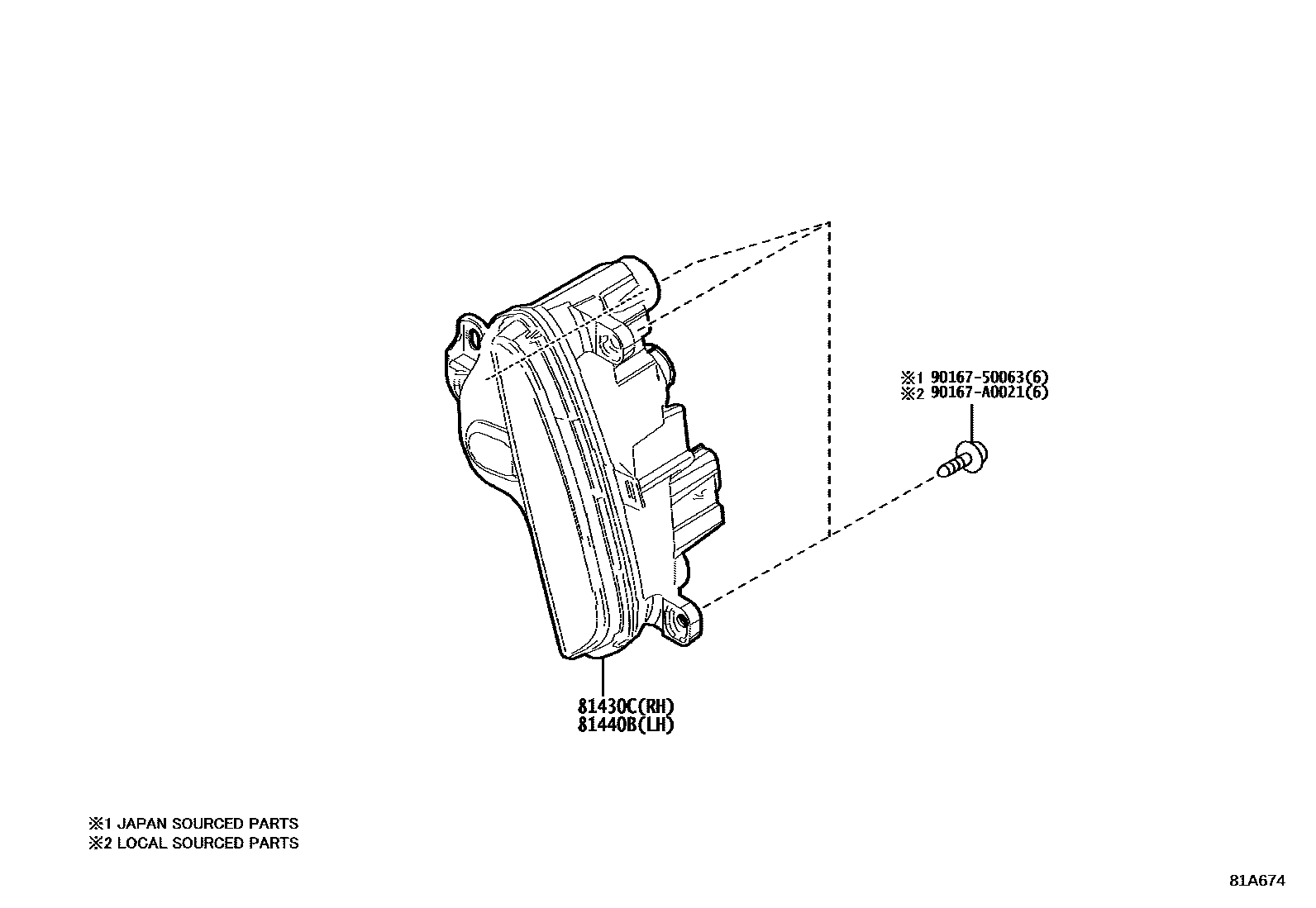

Toyota RAV4 EPC diagram 8119, 日间行车照明灯或照明灯, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81430C | Right daytime running light assembly | 81430-42020 |
| 81440B | Left side daytime running light assembly | 81440-42020 |
