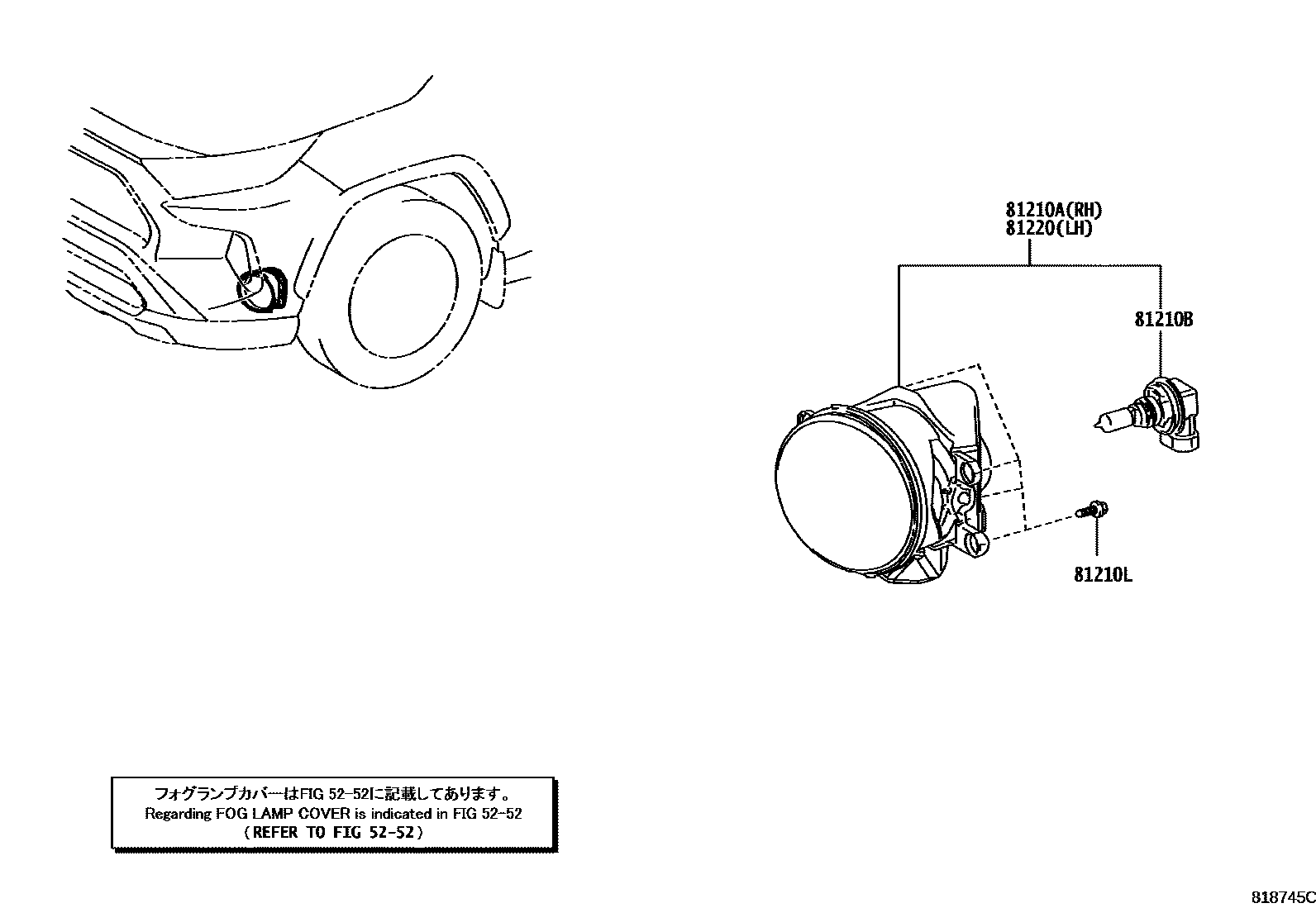

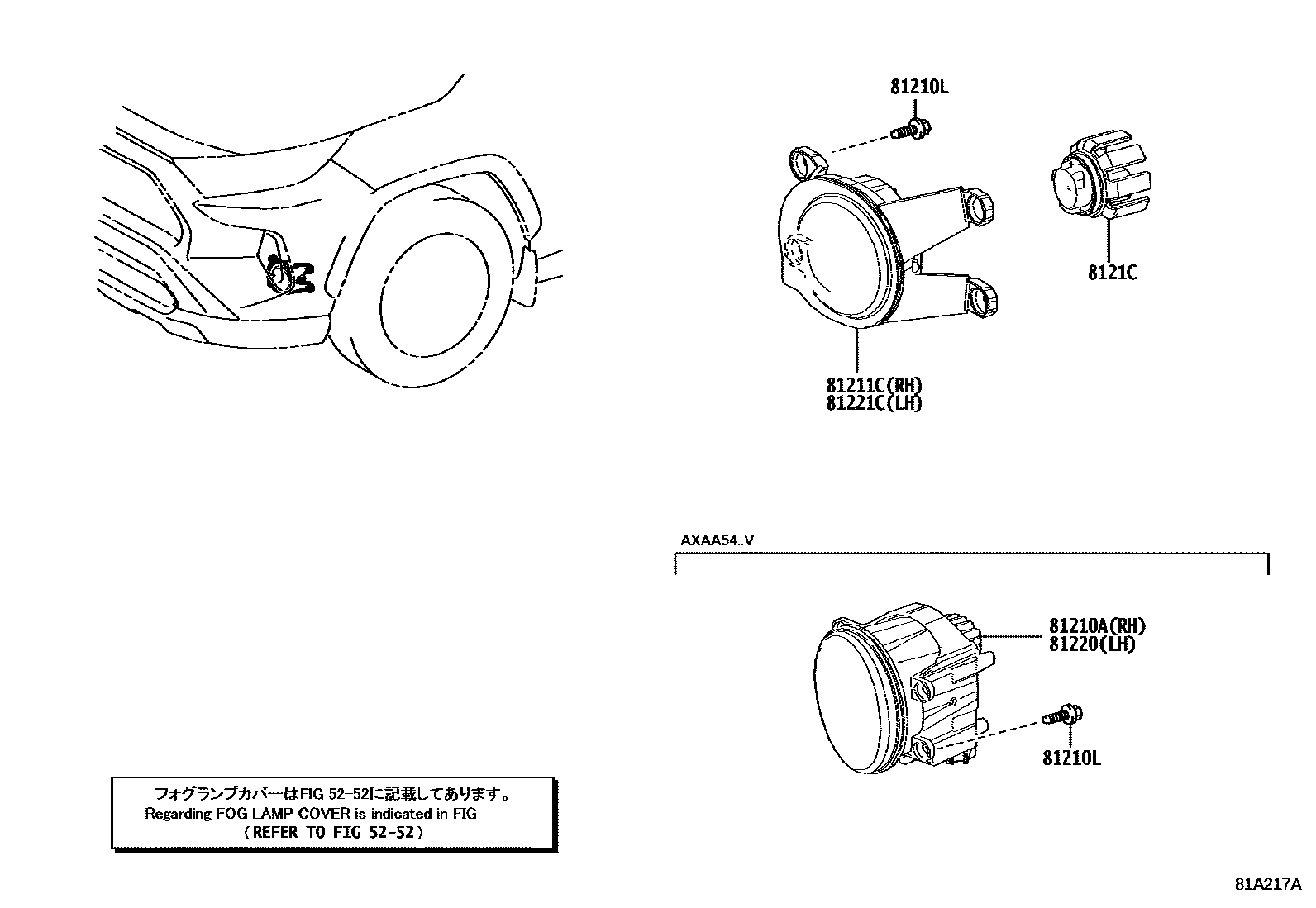

Toyota RAV4 Fog Lamp — Figure 8102
Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-02160 · 81210-0E050 |
| 81210B | fog light bulb | 90981-13090 |
| 81210L | VIS(POUR FEU ANTIBR AV) | 90167-50063 · 90167-A0021 |
| 81211C | Right fog light assembly | 81211-52140 |
| 8121C | DMY | 8121C-52140 · 81965-52050 |
| 81220 | Left fog light assembly | 81220-02160 · 81220-0E030 |
| 81221C | Left fog light assembly | 81221-52120 |
